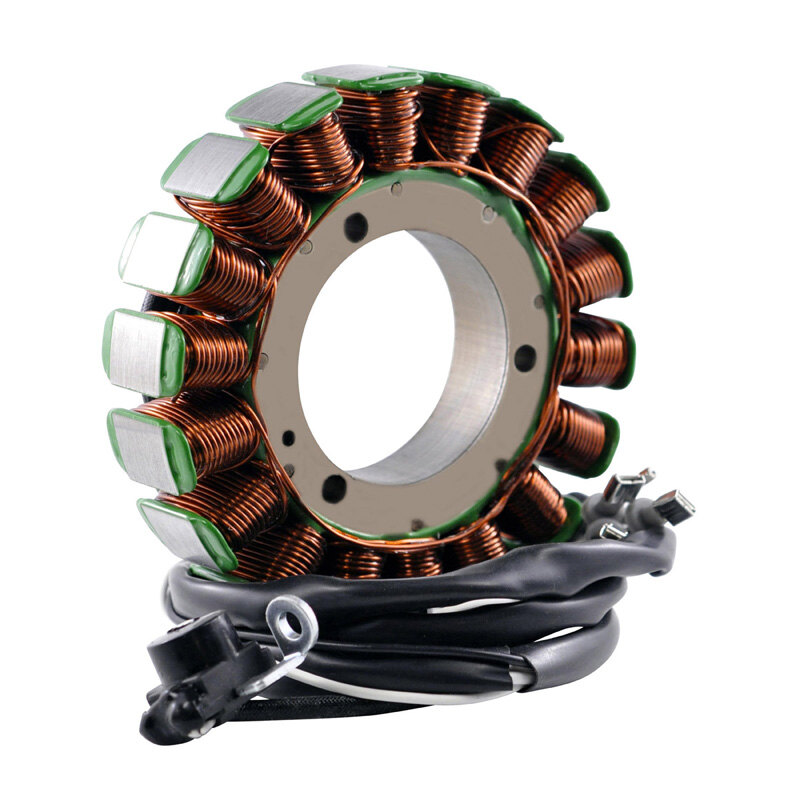

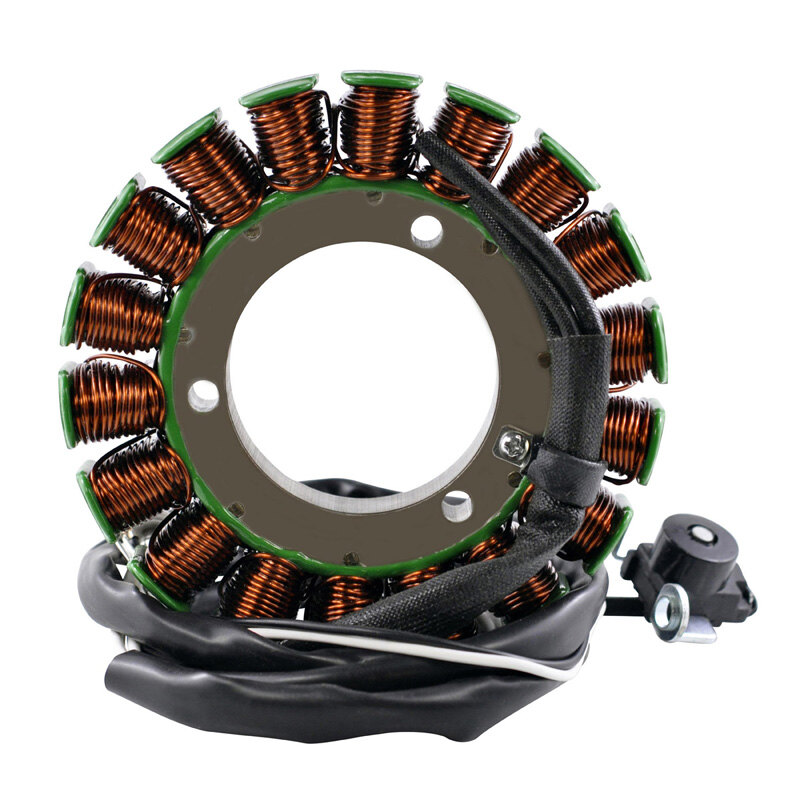

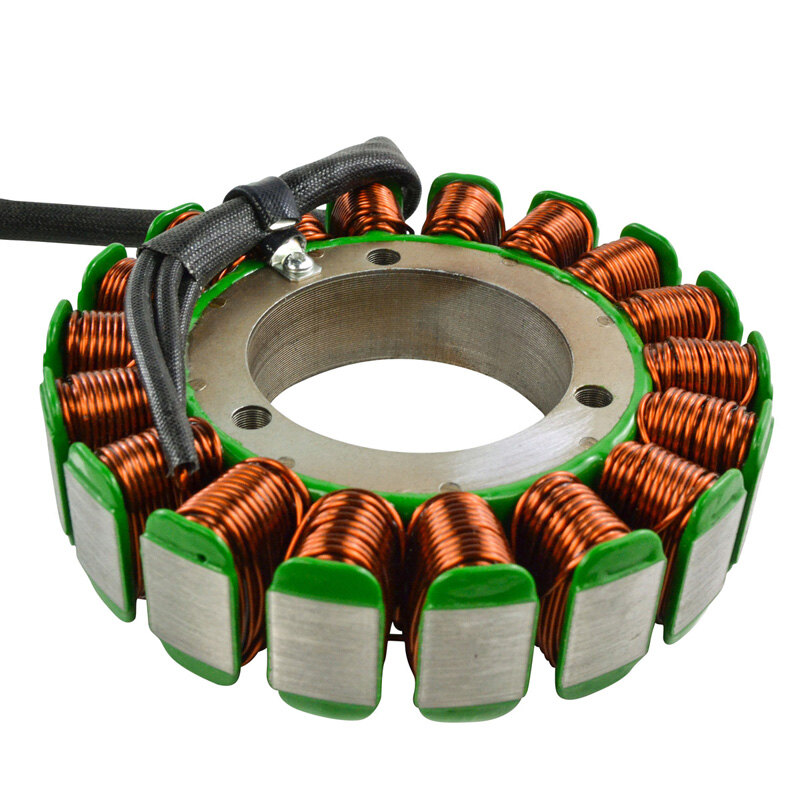

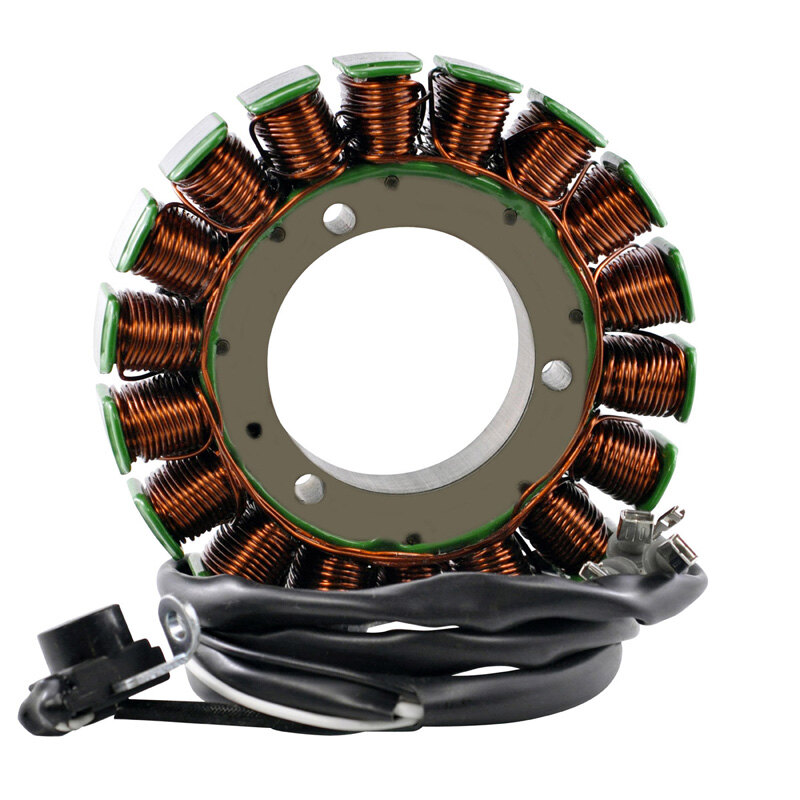

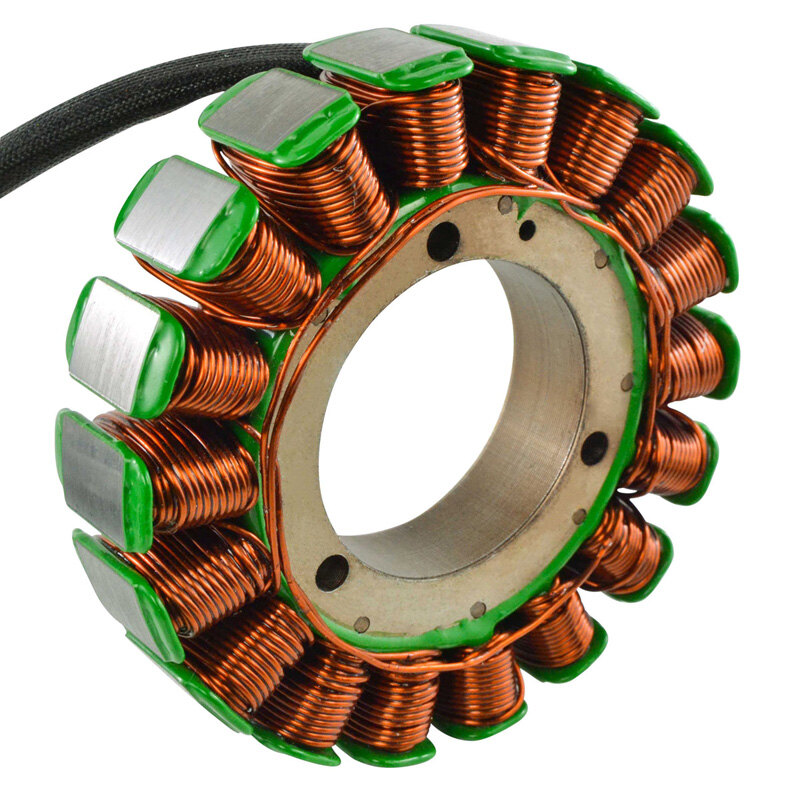

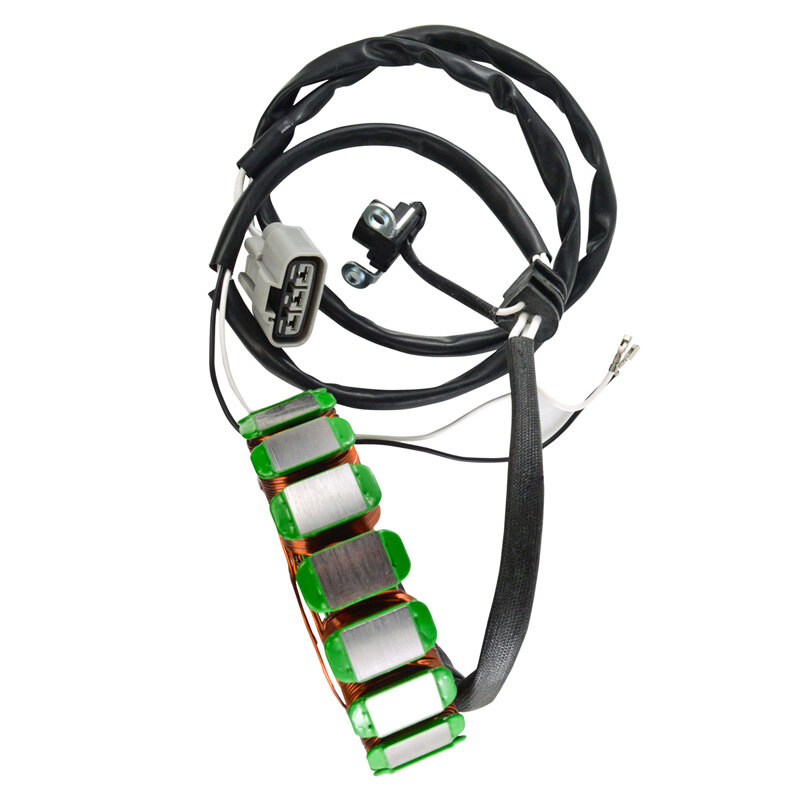

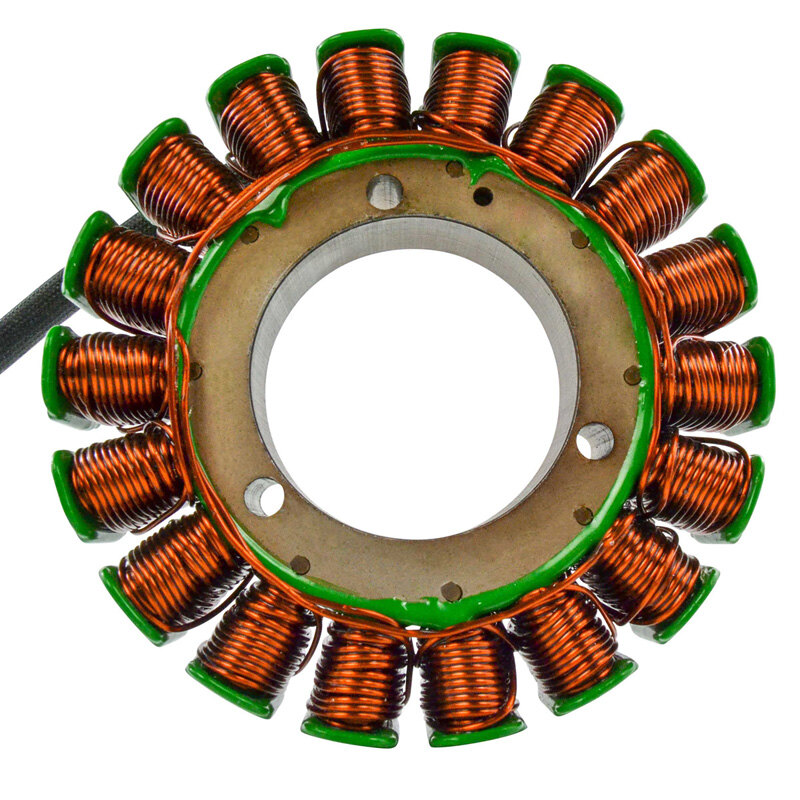

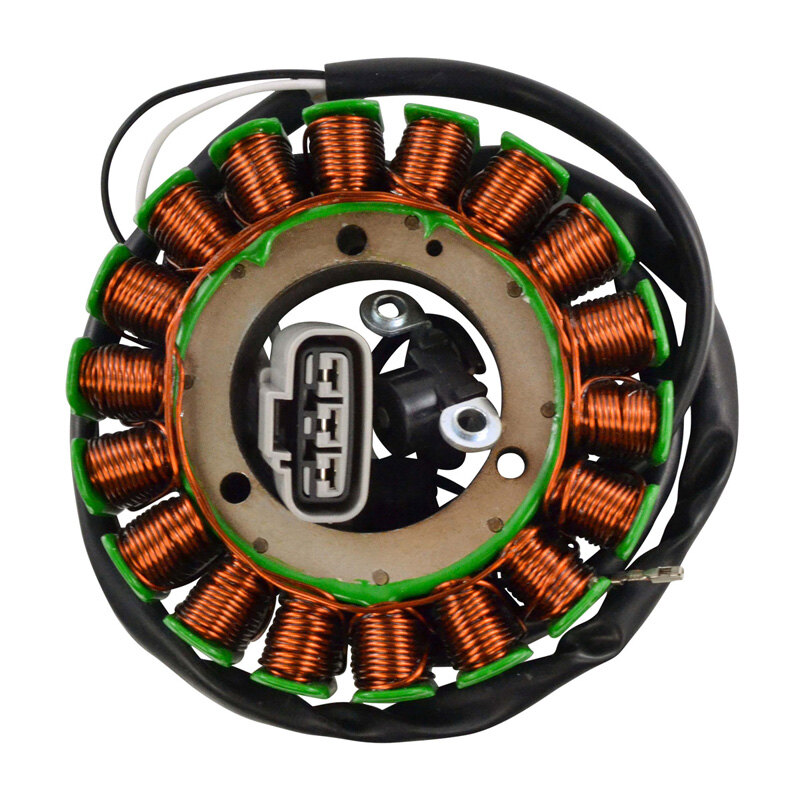

STATOR YAM V-STAR 950 09-17

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

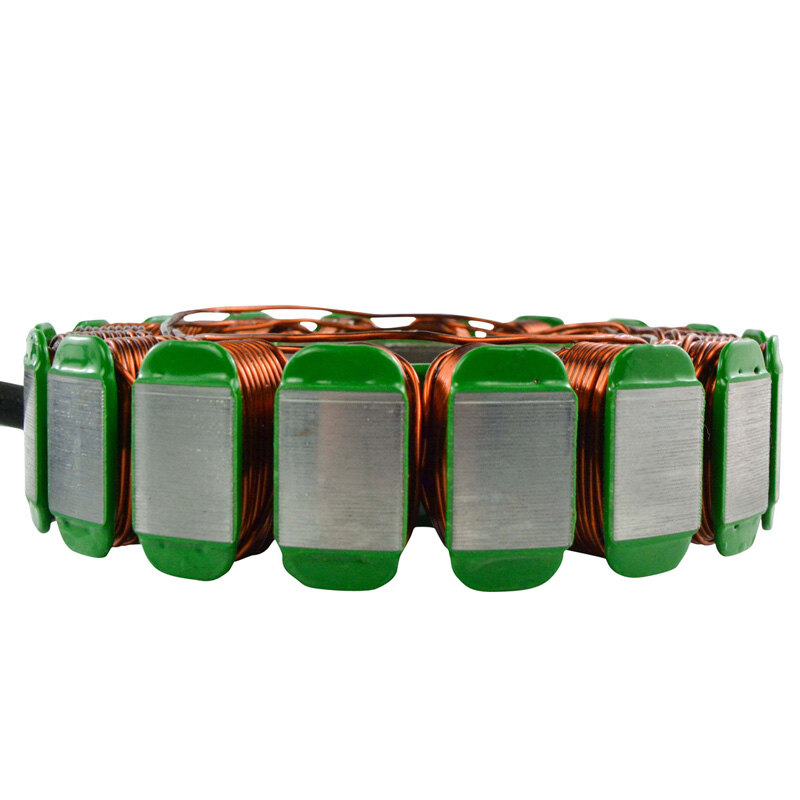

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

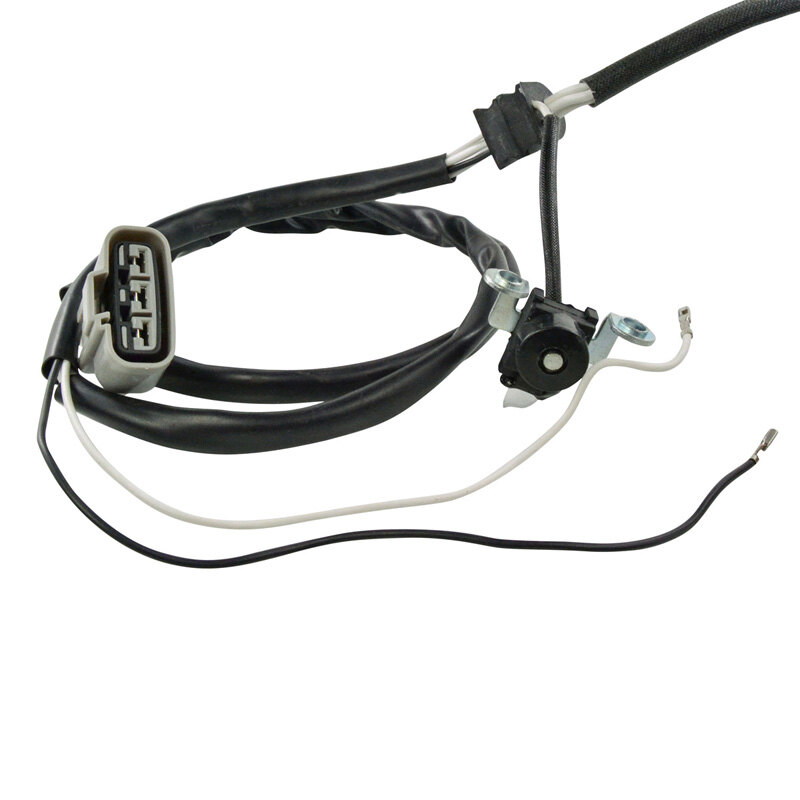

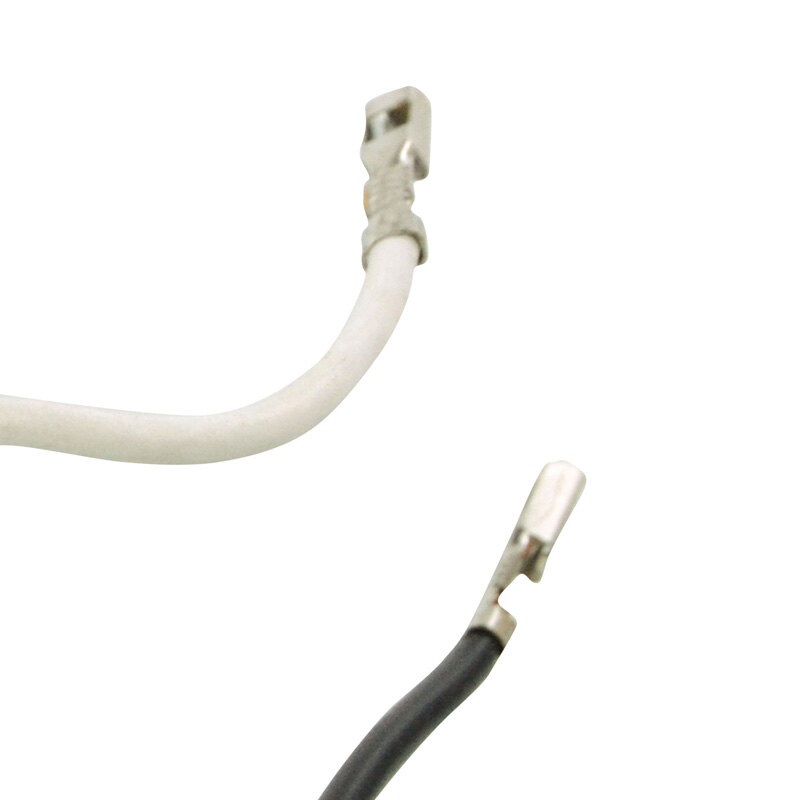

• Pick up pulsar coil included

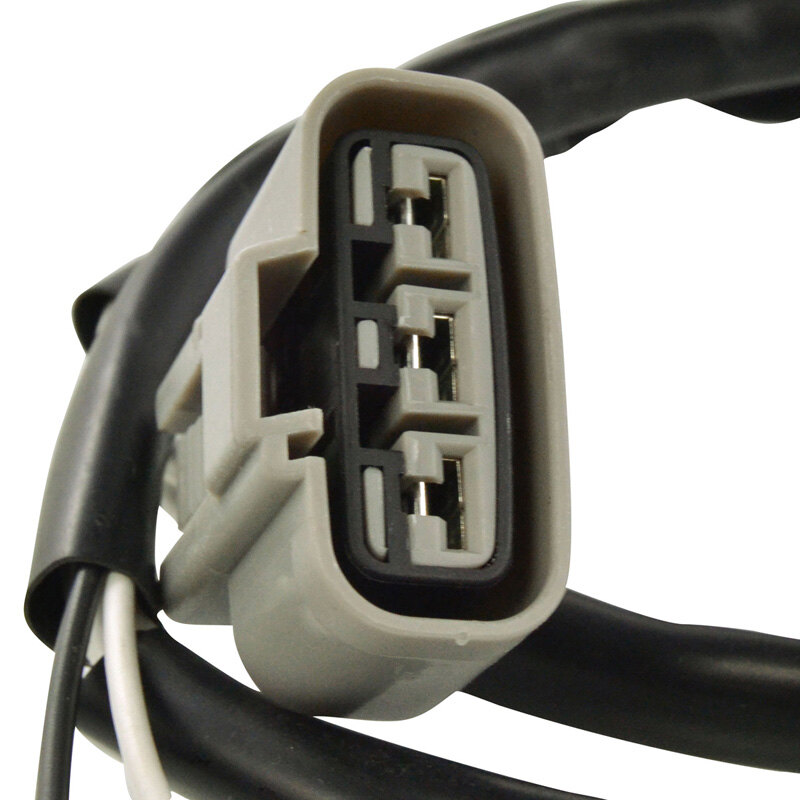

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 22 mm
Length of wires stator to grommet 1 : 135 mm
Length of wires Between grommet 1 and 2 : 2 mm
Length of wires grommet 2 to alternator plug : 1050 mm
Length of wires grommet 2 to pick-up coil plug : 295 mm
Length of pickup coil\'s wire to grommet : 75 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.5 ohms \-20%
Pickup : White to Grey = 296 ohms \-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
