STATOR HON VFR|SUZ VL/VZ|YAM XV/XT|POL 88-09

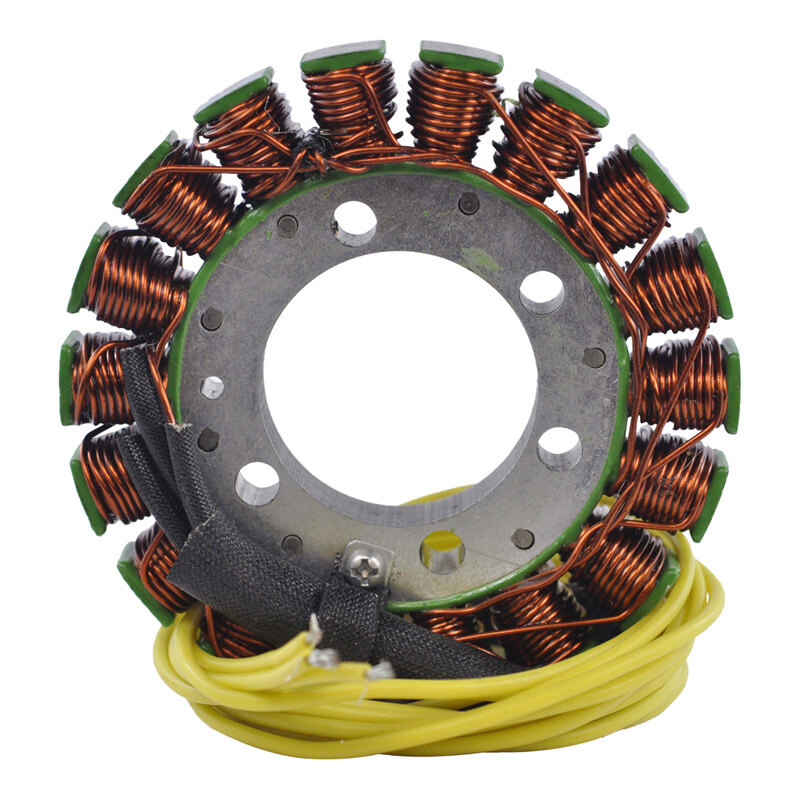

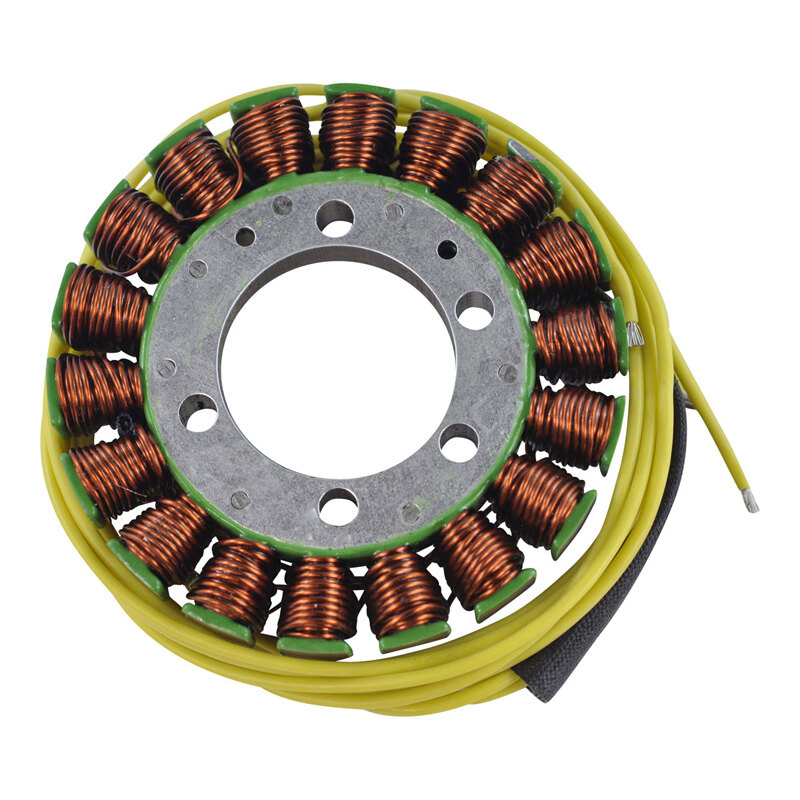

Brand new stator

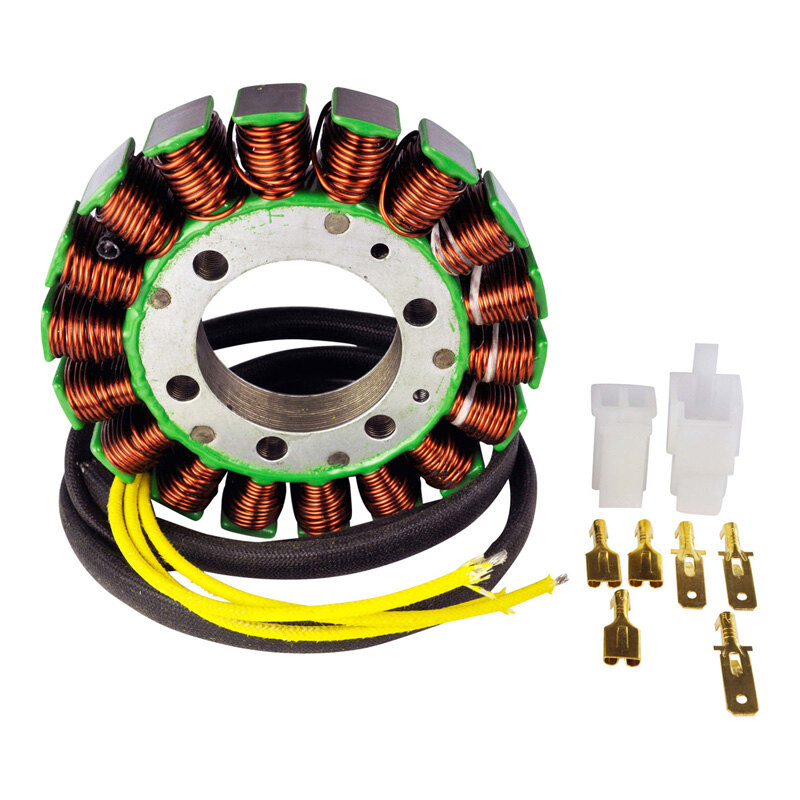

• You must re-install your original grommet and the new connector (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42mm
Exterior diameter: 103mm

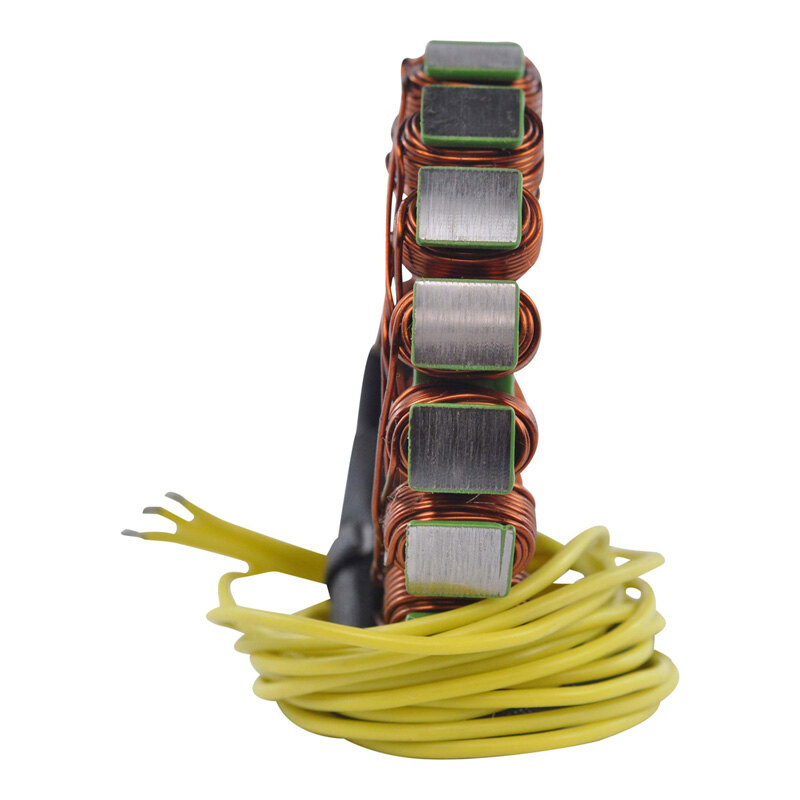

Thickness: 16mm

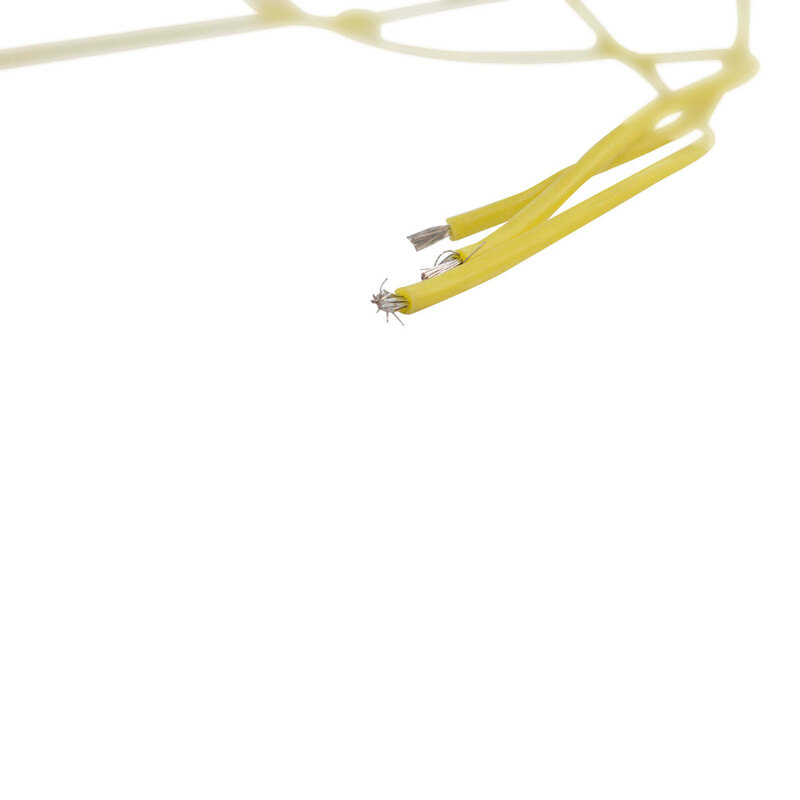

Length of wires stator to connectors: 900mm

Other specifications:
Number of wires : 3
Number of terminals : 3

Wire to wire resistance:
Alternator : Yellow between each Yellow = 0.4 ohms\/-20%
Alternator : Yellow to Ground ?= O.L. ON DISPLAY

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note : there are two possible stators for Suzuki Intruder VS 800 1992-1997. This stator will only fit on models T and V.
