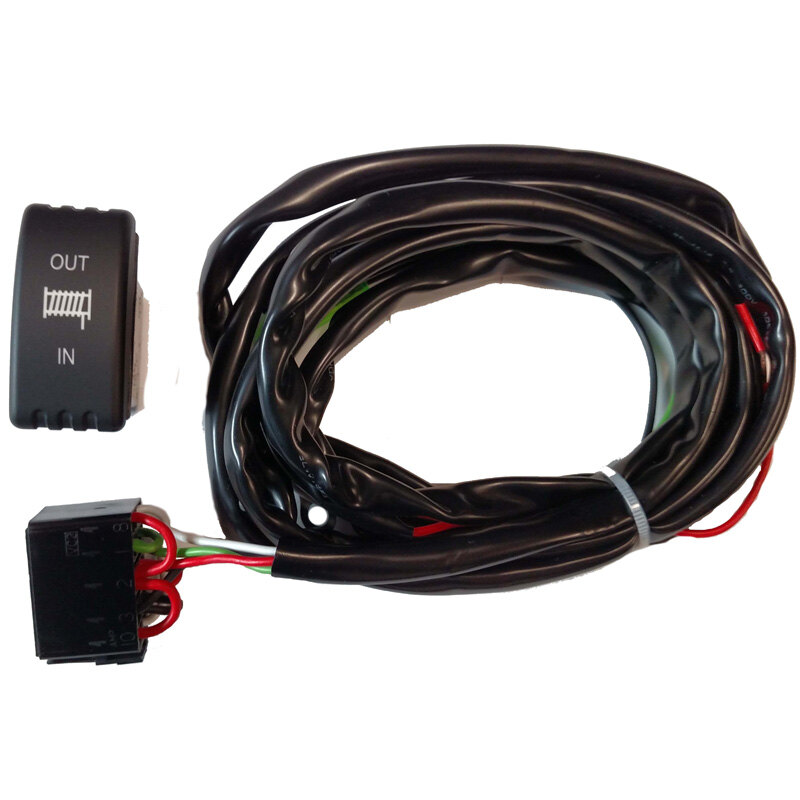

UTV DASH ROCKER SWITCH KIT

Kit includes:

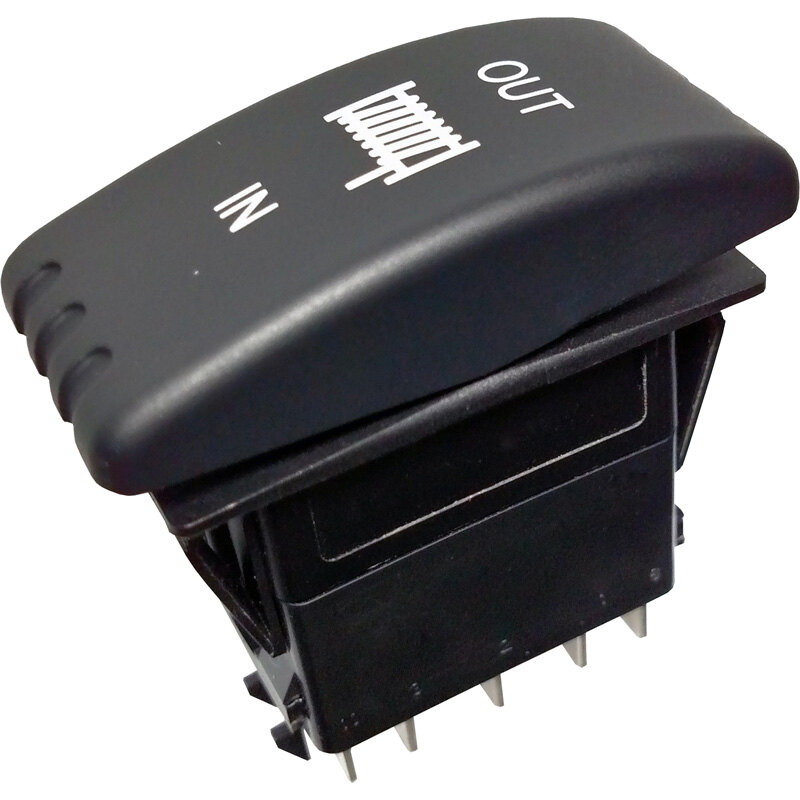

• Winch rocker switch
• Complete wire harness with plug

Specifications:

• This kit includes the rocker switch and the wire harness with plug for easy wiring installation
• Will work with most brands of ATV and UTV winches on the market with the standard electrical contactor
• Blue LED illuminated when your key is turned on to allow you to see at night
• Circuit type (ON)-OFF-(ON)
• Double pole switch, this means two contact points instead of just one for better repeatability operation
• Requires mounting hole 0.830” X 1.450” (Standard on most UTV’s)
• Works with panel thickness ranging from .030” To .250” thick
• Max current rating: 20A 12VDC and 15A 24VDC
• Silver plated terminals
• Requires standard ATV winch contactor to control winch
