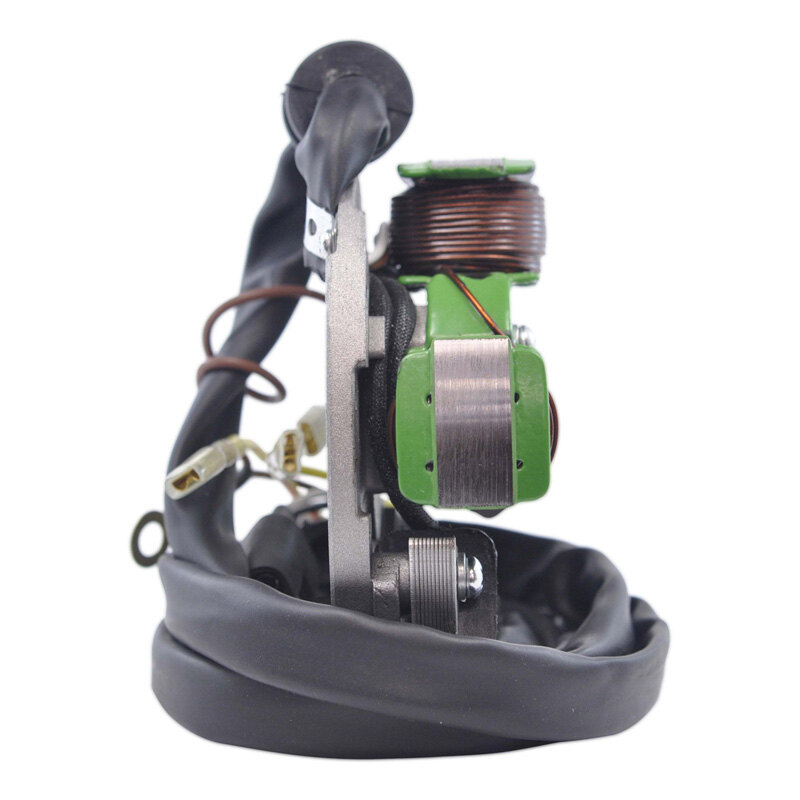

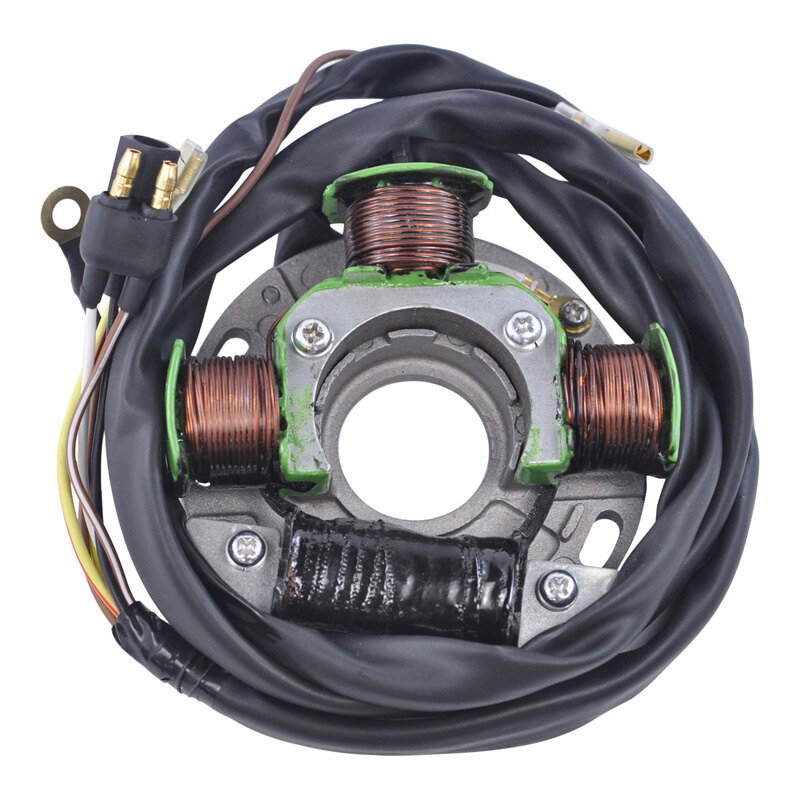

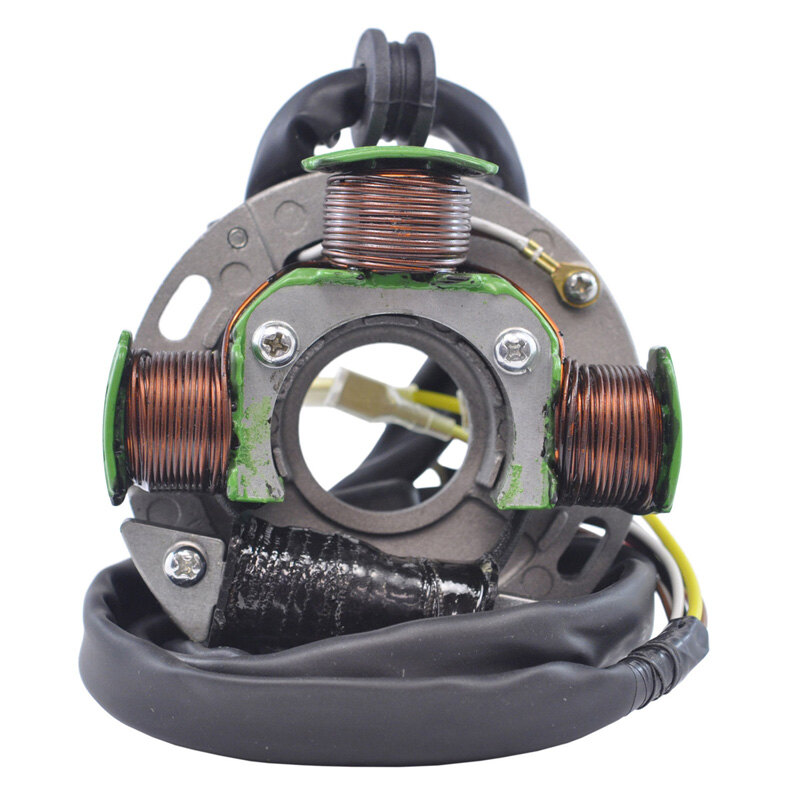

STATOR POL TRAIL BOSS/BLAZER 250 88-06

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

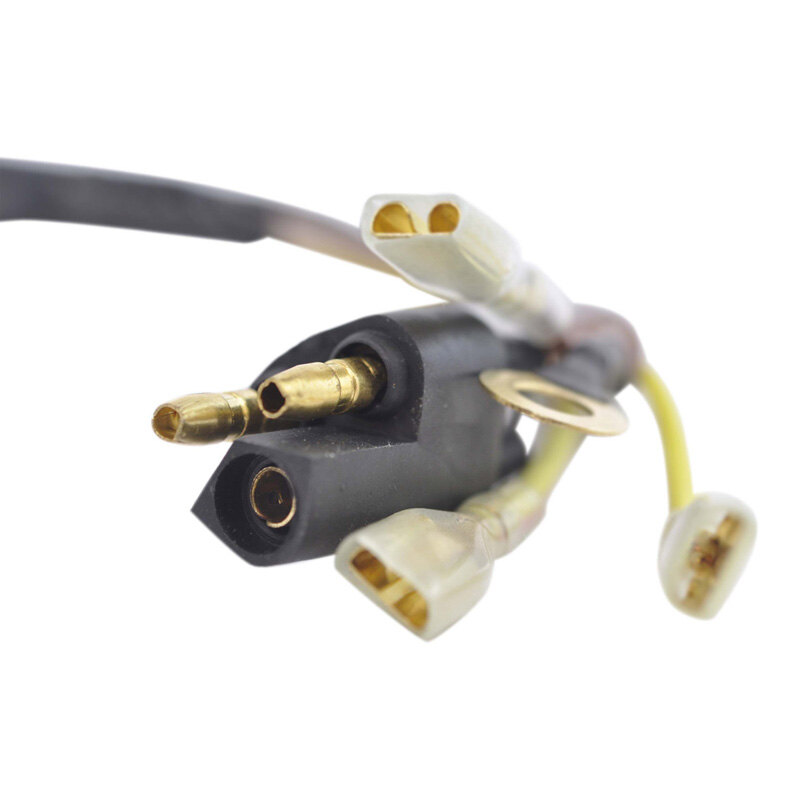

• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 31 mm
Exterior diameter : 100 mm
Thickness : 16 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 1080 mm

Other specifications :
Number of wires : 7
Number of plugs : 5
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow to Yellow/Red = 0.4 ohms \/- 20%
Source 1 : Black/Red to Brown/White = 992 ohms \/- 20%
Ground : White to Brown = 0.2 ohms \/- 20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

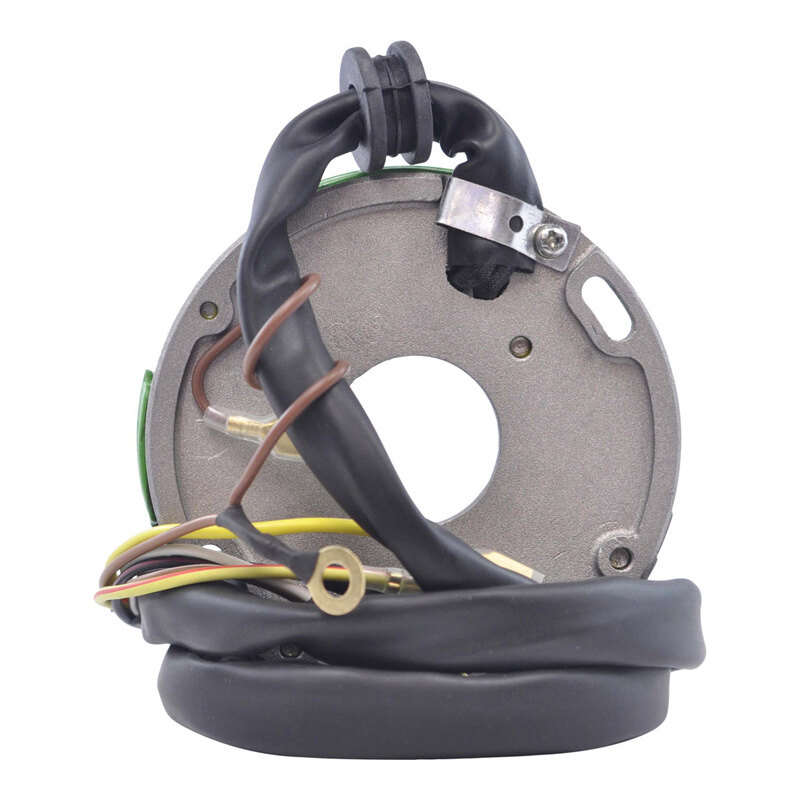

There are 2 possible stators for the 1996 & 1997 Polaris Trail Blazer. This stator has a completely circular backplate. Please compare your current stator before buying.
