Stock # 4444617558

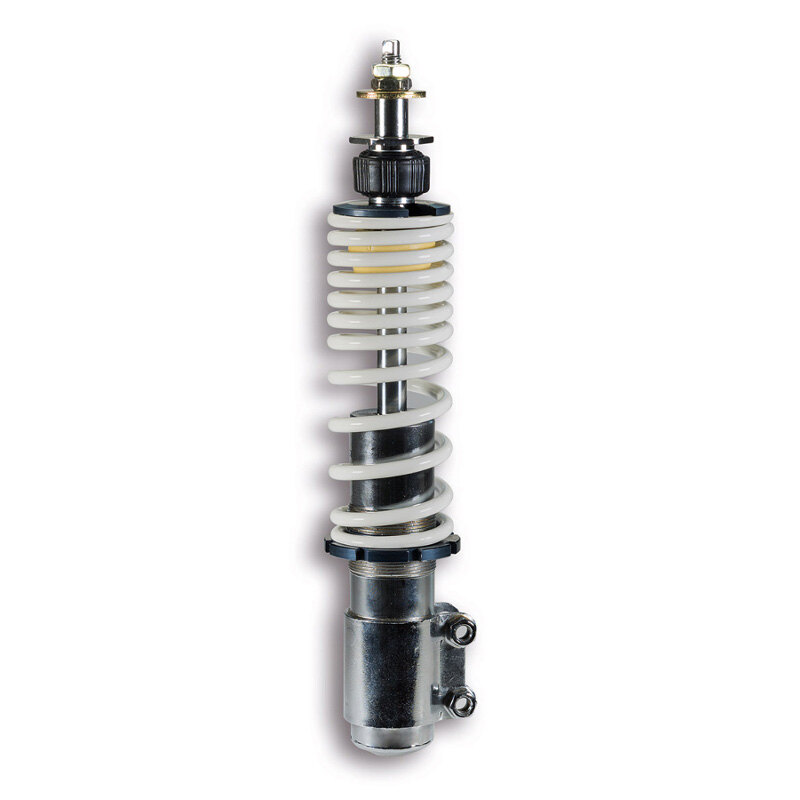

@FRONT SHOCK RS24 227 MM / VESPA

In Stock

Dealer Price $311.99 CAD

Add to Cart

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

SHOCK ABSORBER RS24

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.

Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration
LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound)
Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE \ PB)
Polyester resin SEALTHANE grade 9345 scraper ring
38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60)

Code		Inter-axis mm	Stroke mm
46 7588	rear	267	42
46 7900	front	205	60
46 8308	rear	294	65
46 8611	rear	290	60
4611641	rear	410	85
4612962	rear	290	54
4613055	rear	307	60
4613598	rear	316	45
4614615	front	257	90
4615218	rear	343	86
4617065	rear	360	70
4617076	front	275	58
4617558	front	227	75

Products reserved exclusively for competitions in places intended for them in accordance with the provisions of the competent sports authorities. We Disclaim all liability for improper use

Specifications

Category Name

Suspension_arriere_moto

Sale Type

New

Etiquette En

@FRONT SHOCK RS24 227 MM / VESPA

No Produit Fournisseur

4617558
