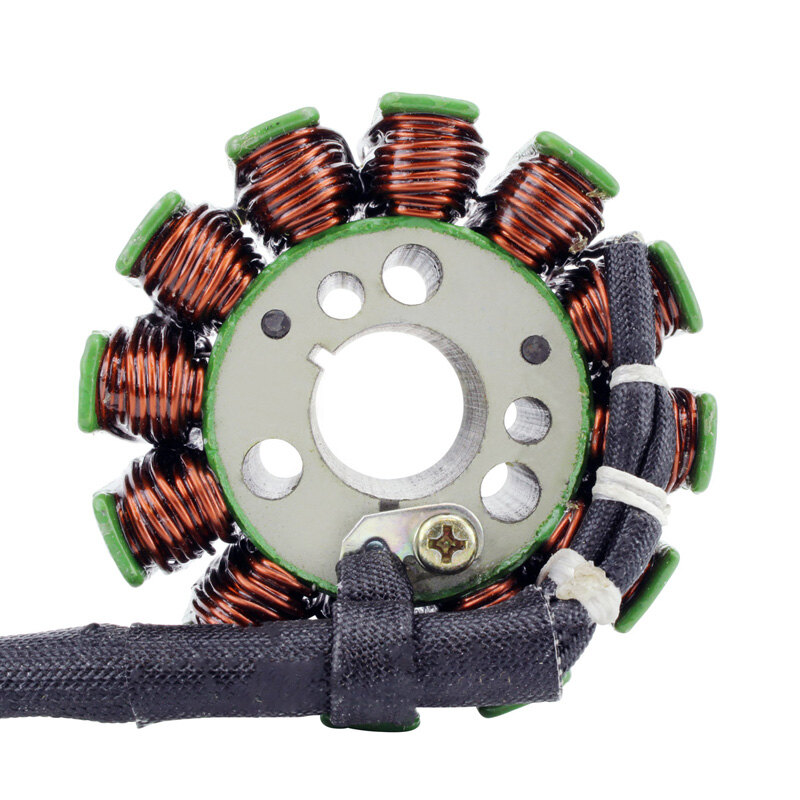

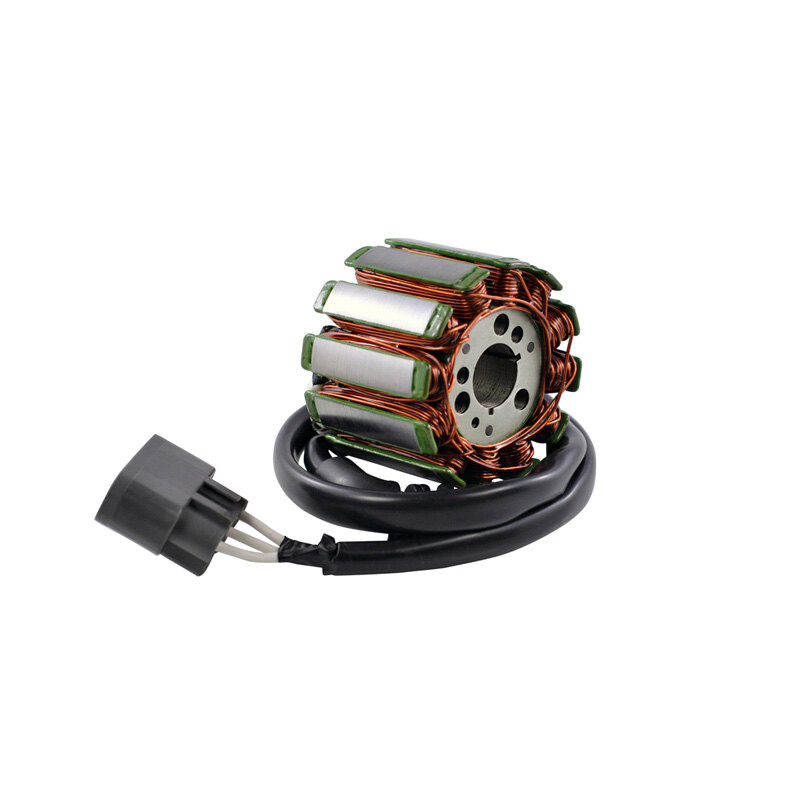

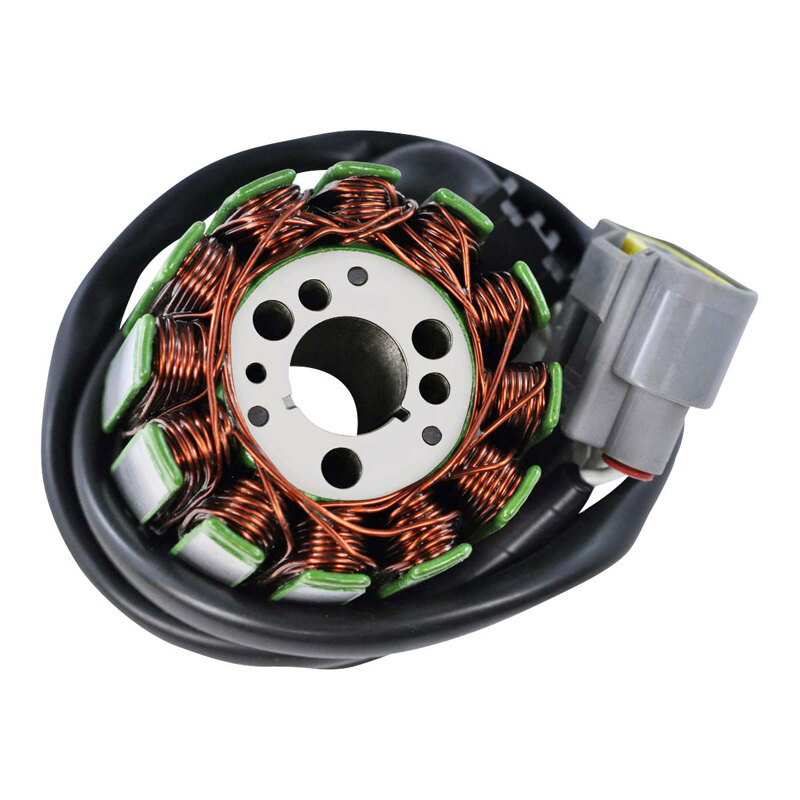

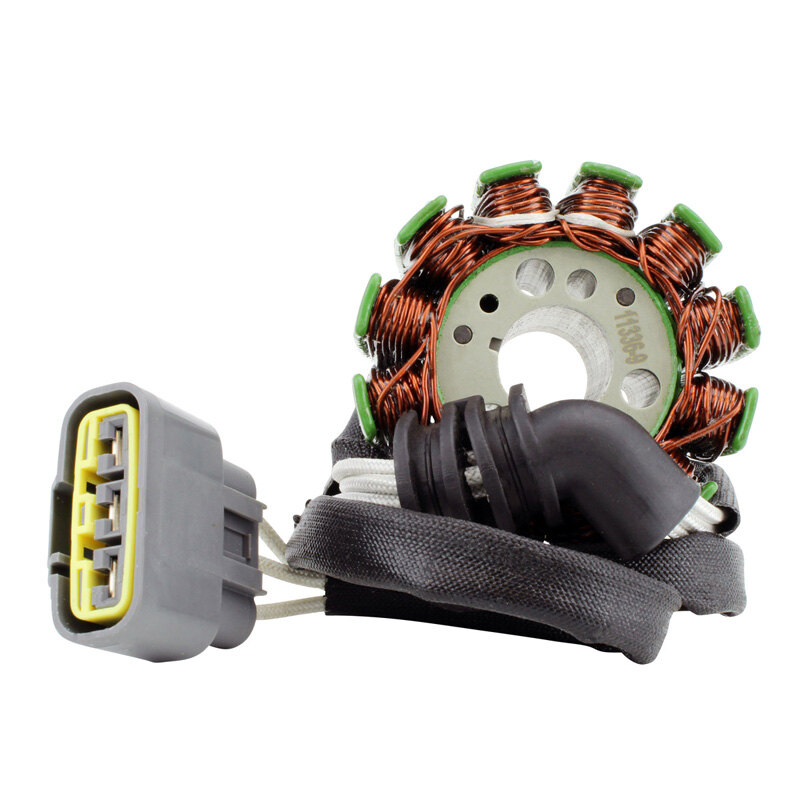

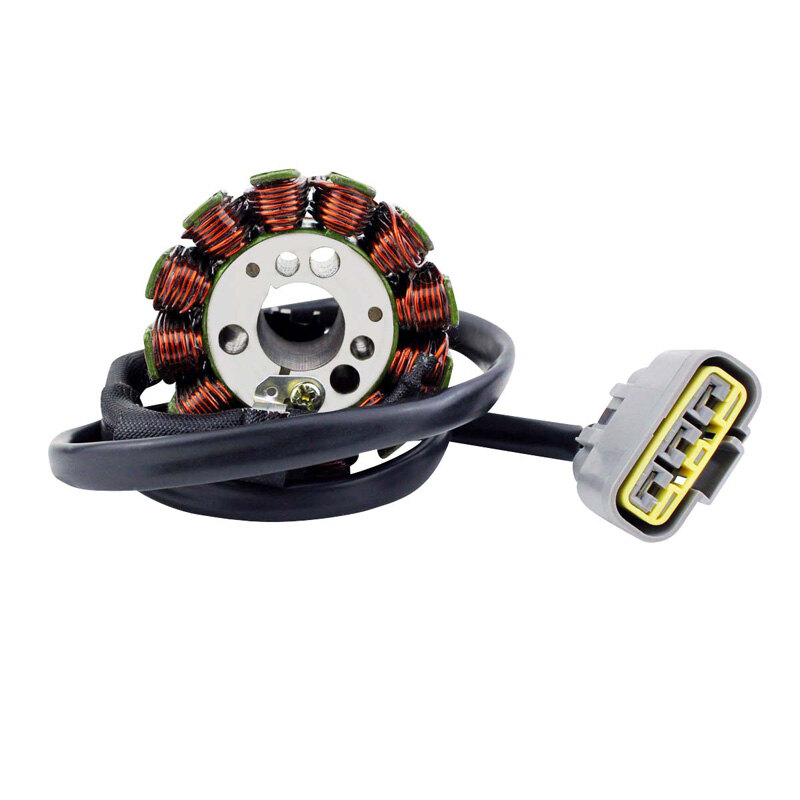

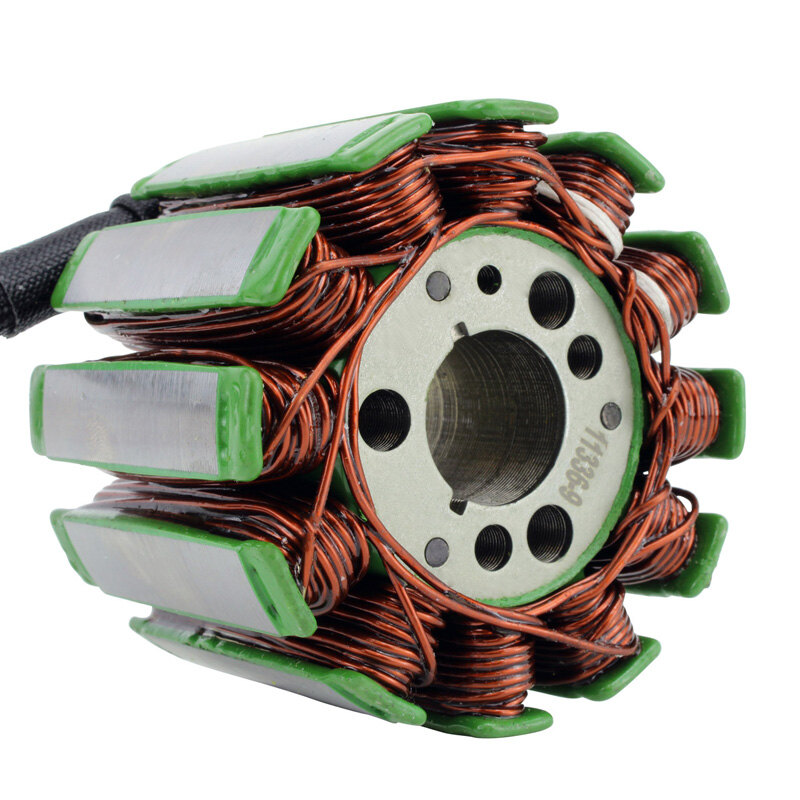

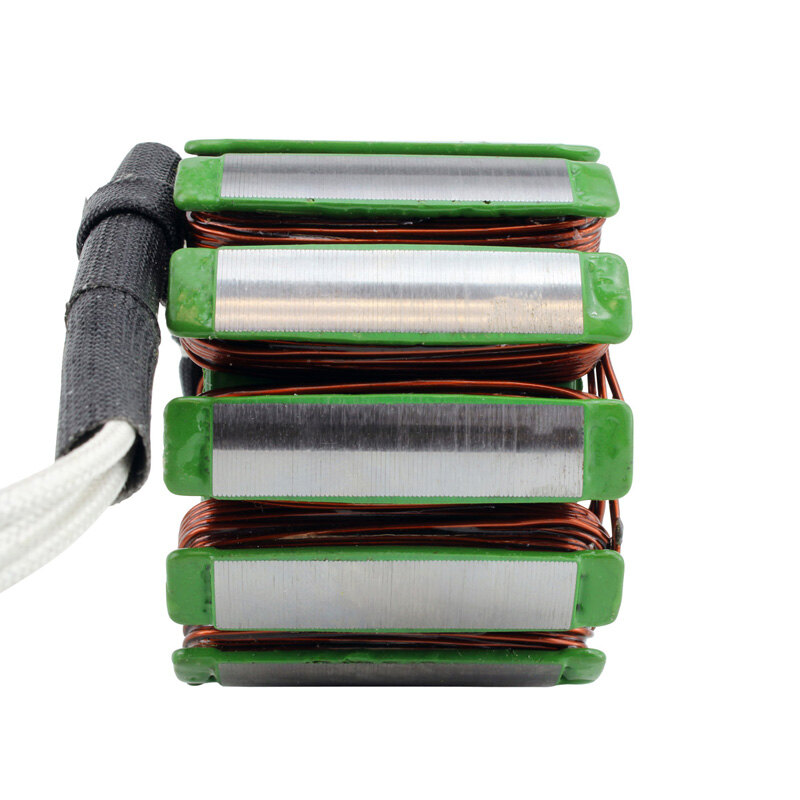

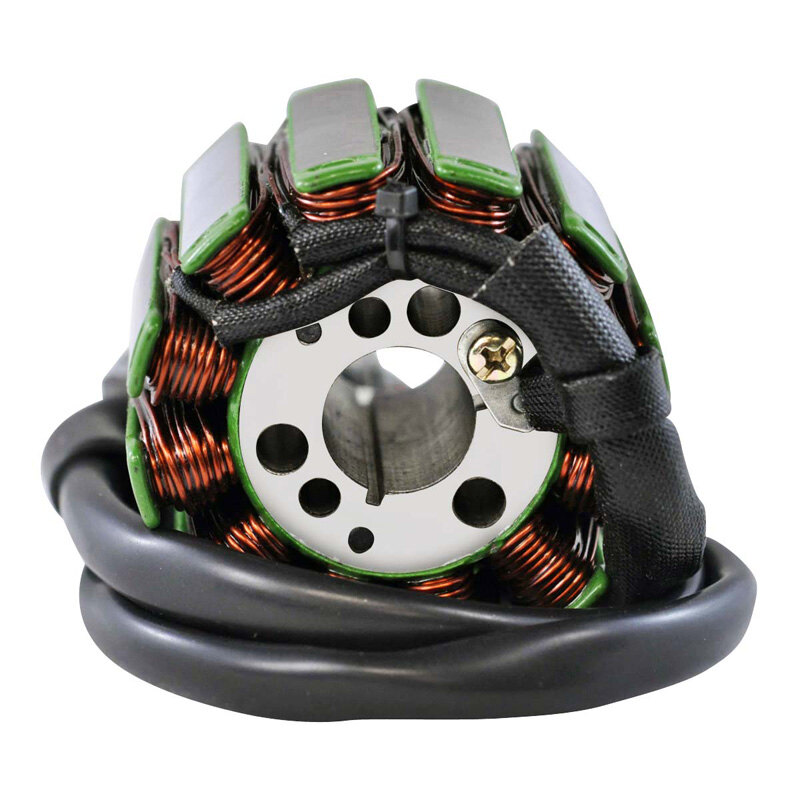

STATOR YAM FZ1|FZS1|YZF-R1|FZ8 04-15

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All product shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 18 mm
Exterior diameter : 68 mm
Thickness : 42 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 500 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
