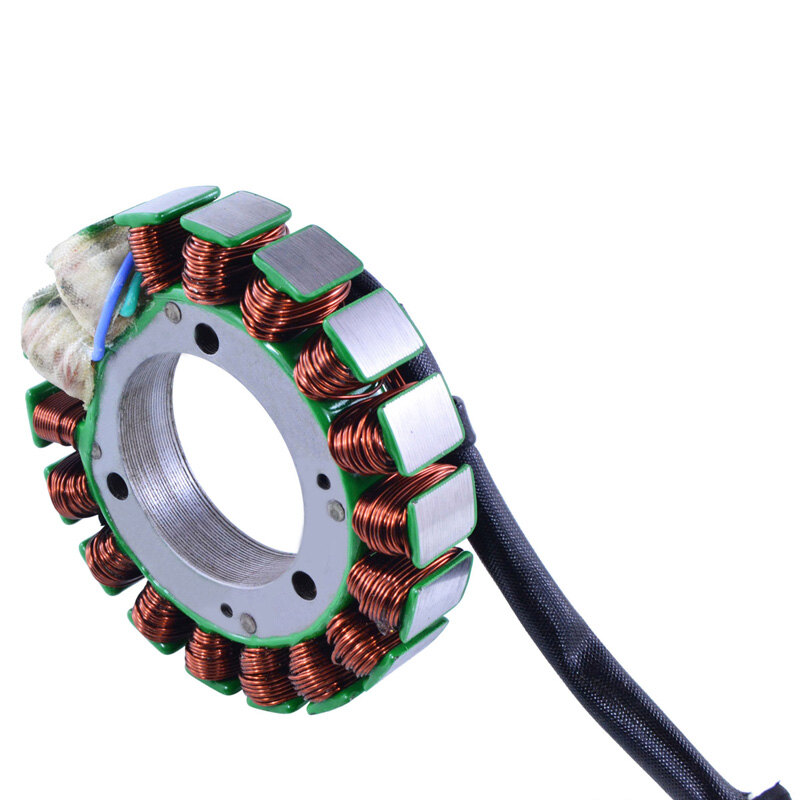

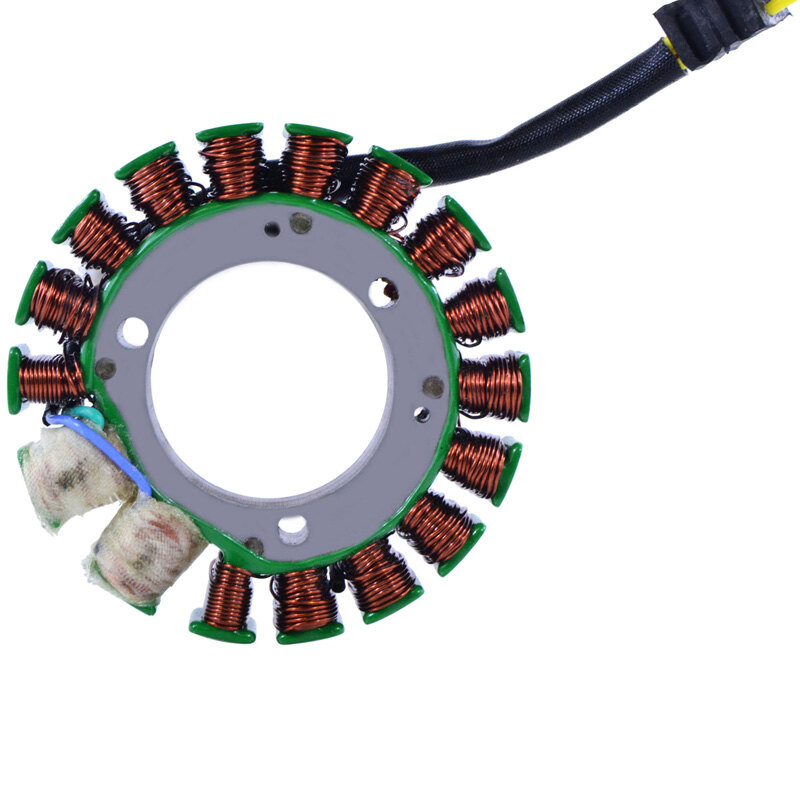

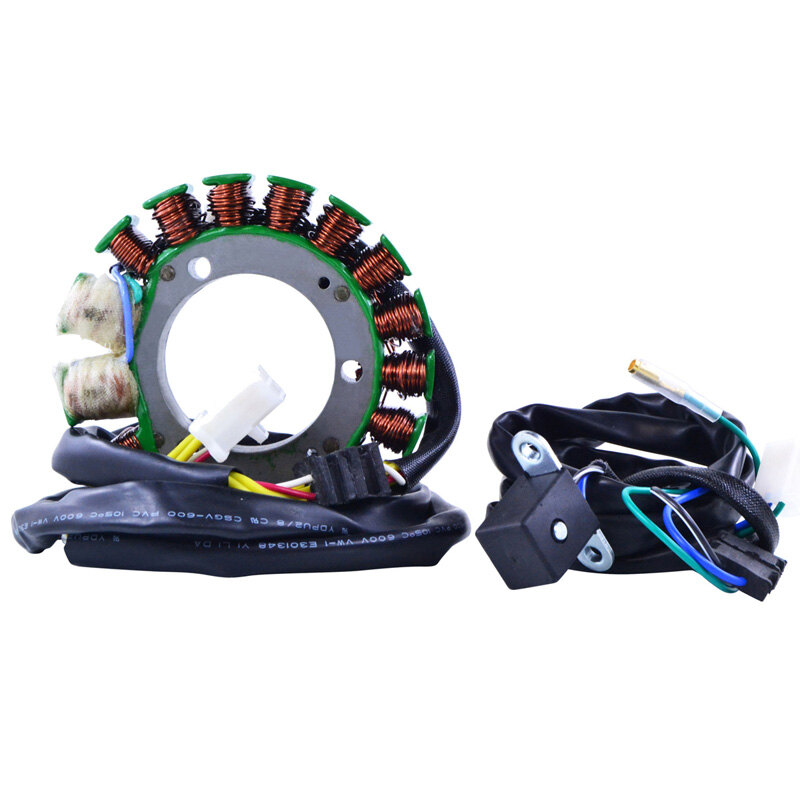

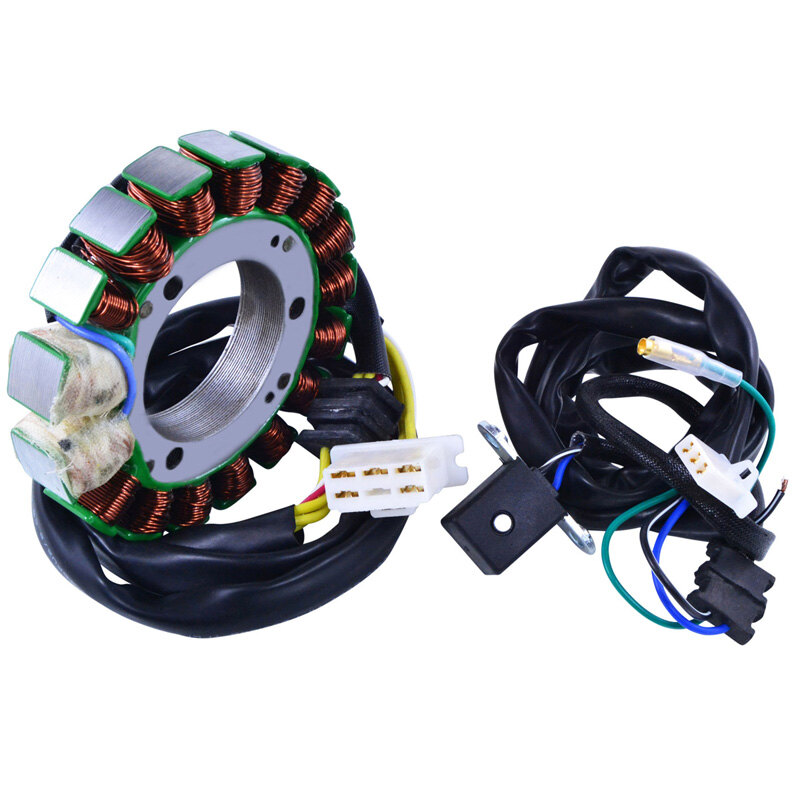

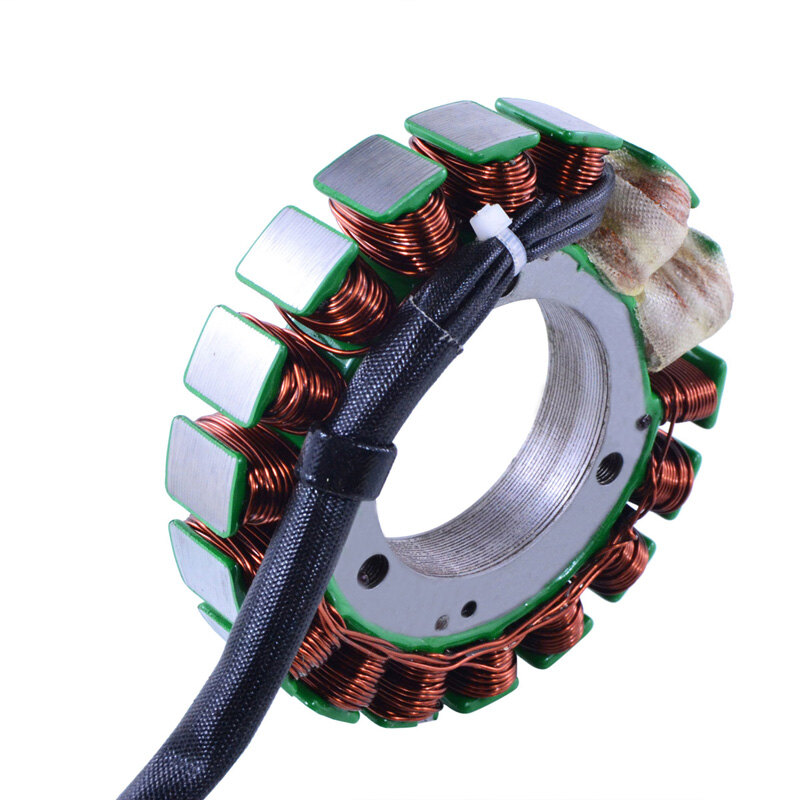

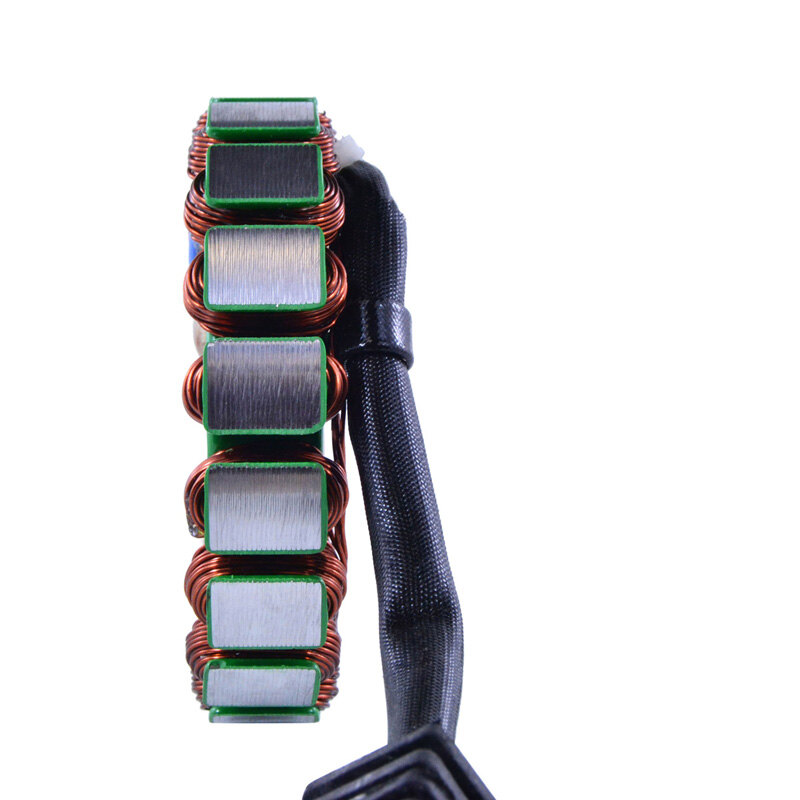

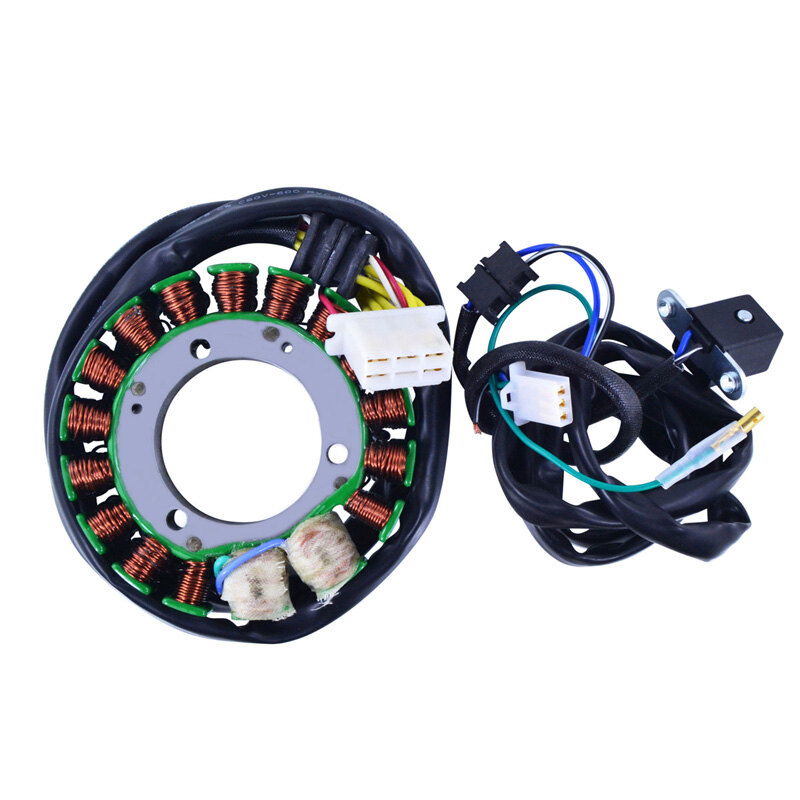

STATOR KAW KLR TENGAI 650 87-07

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

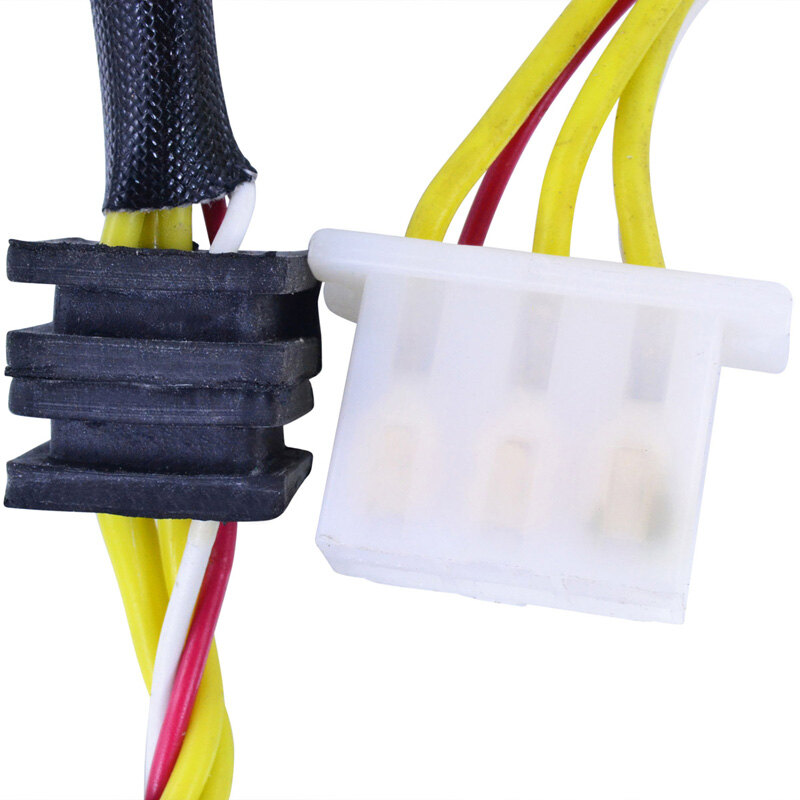

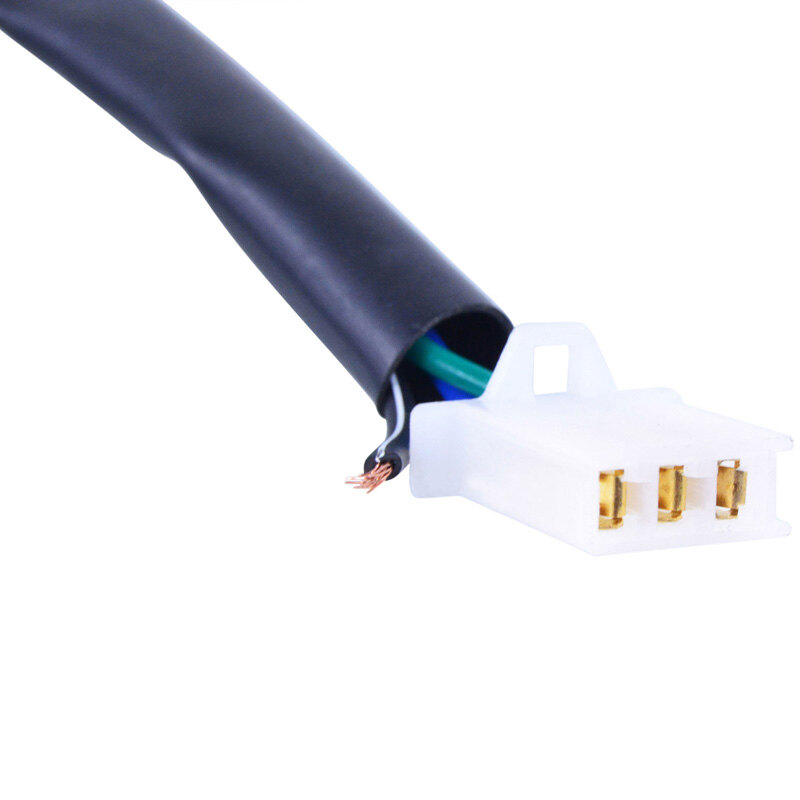

• Connector included
• Rubber grommet included

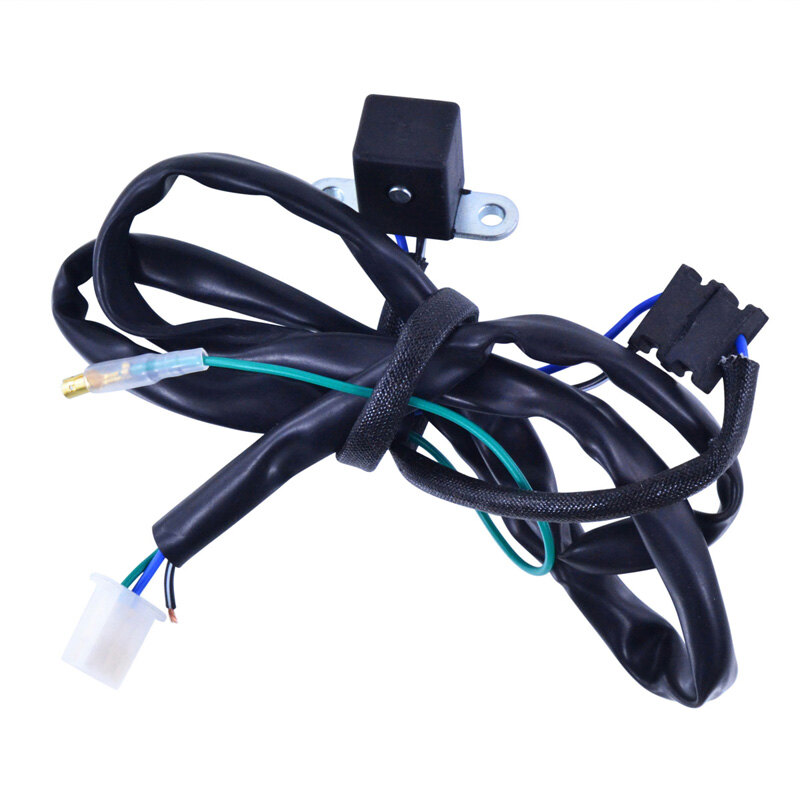

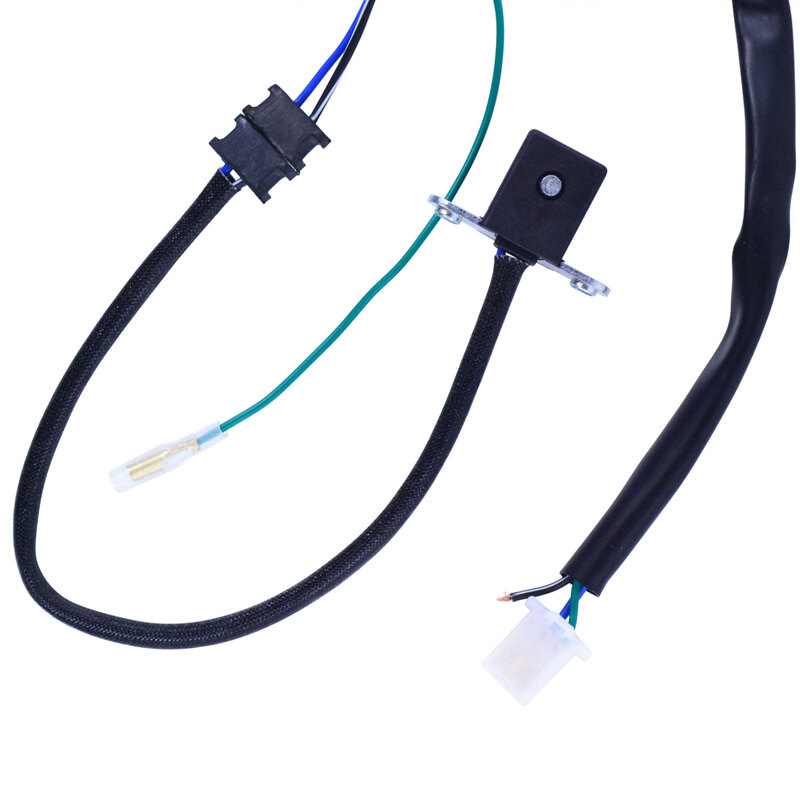

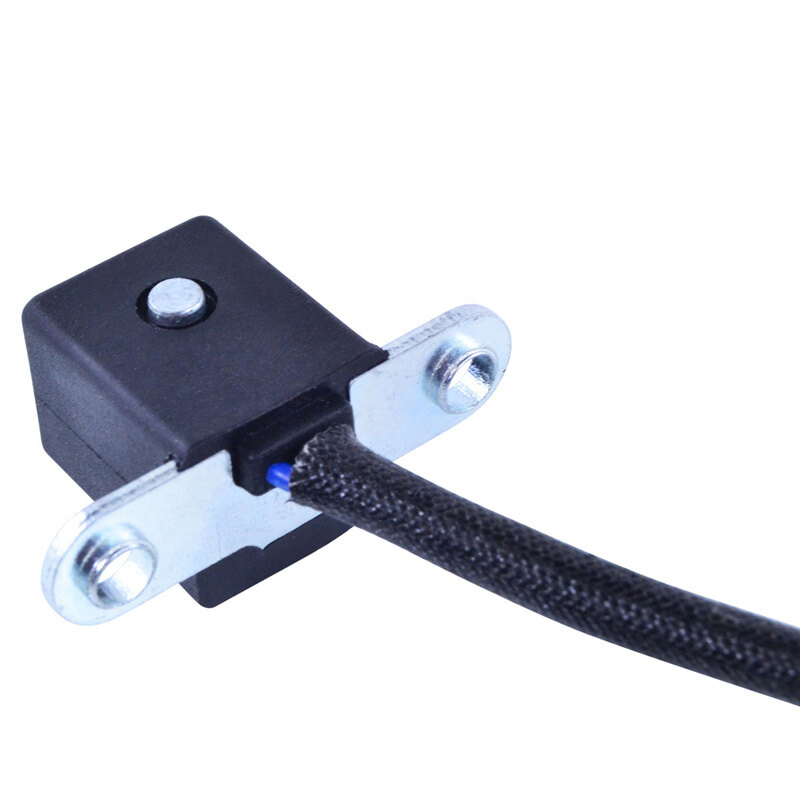

• Pick-up coil included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 113 mm
Thickness : 36 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 800 mm

Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.8 ohms \/-20%
Source : Red to White = 140 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
