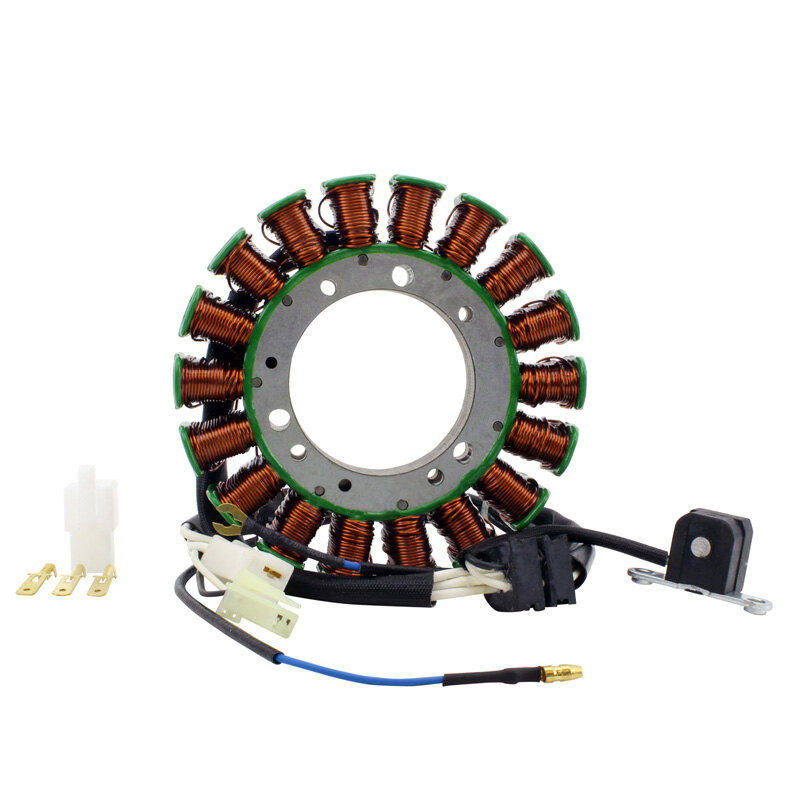

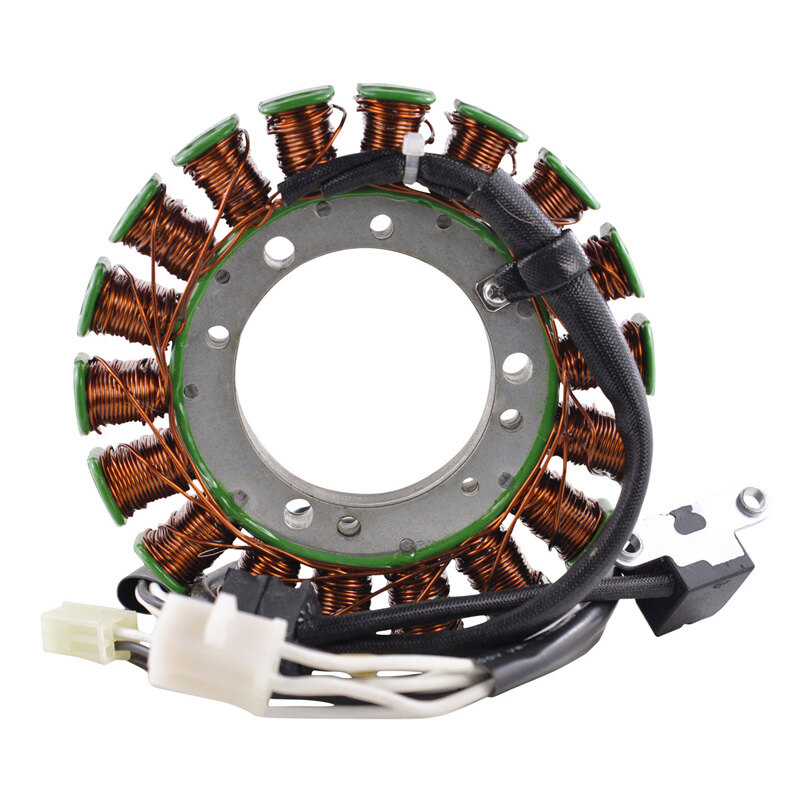

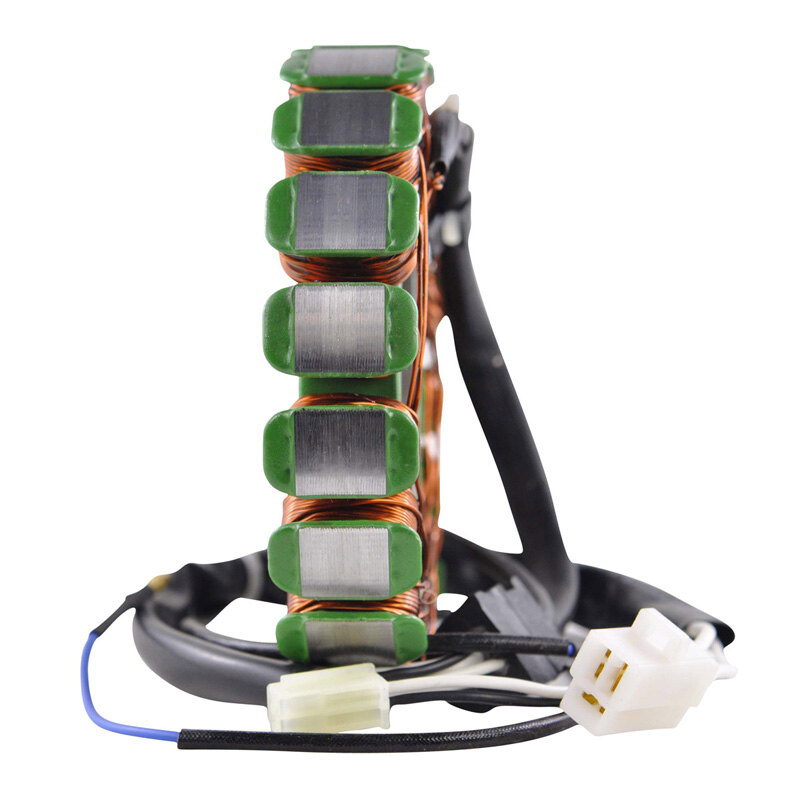

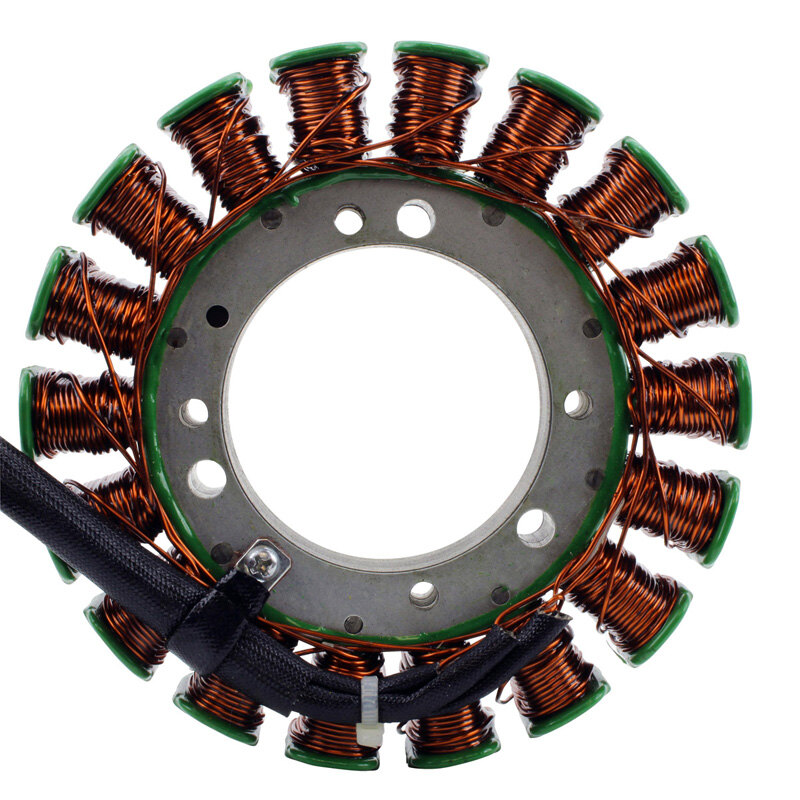

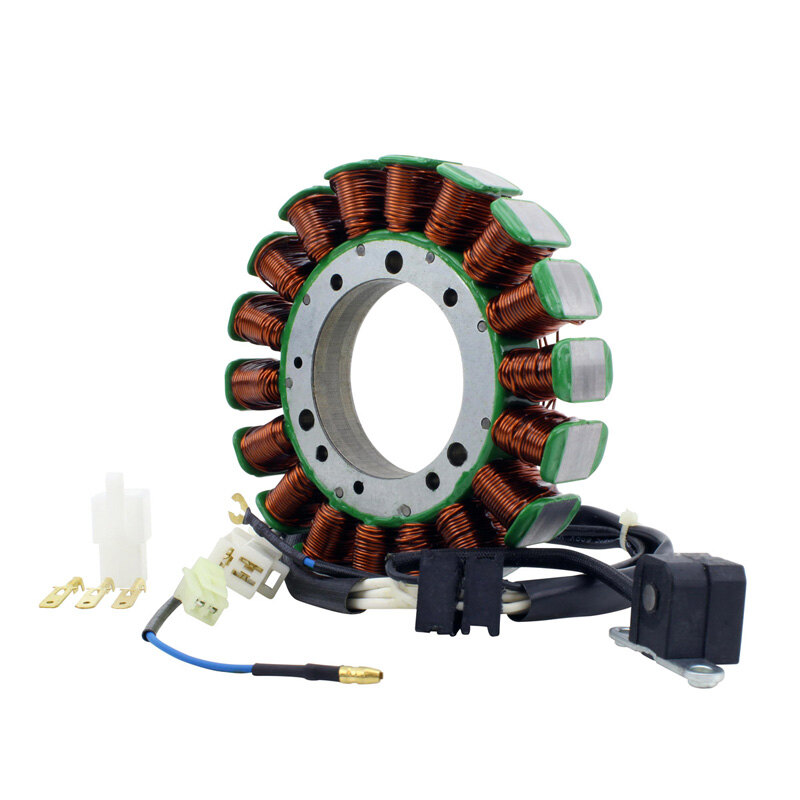

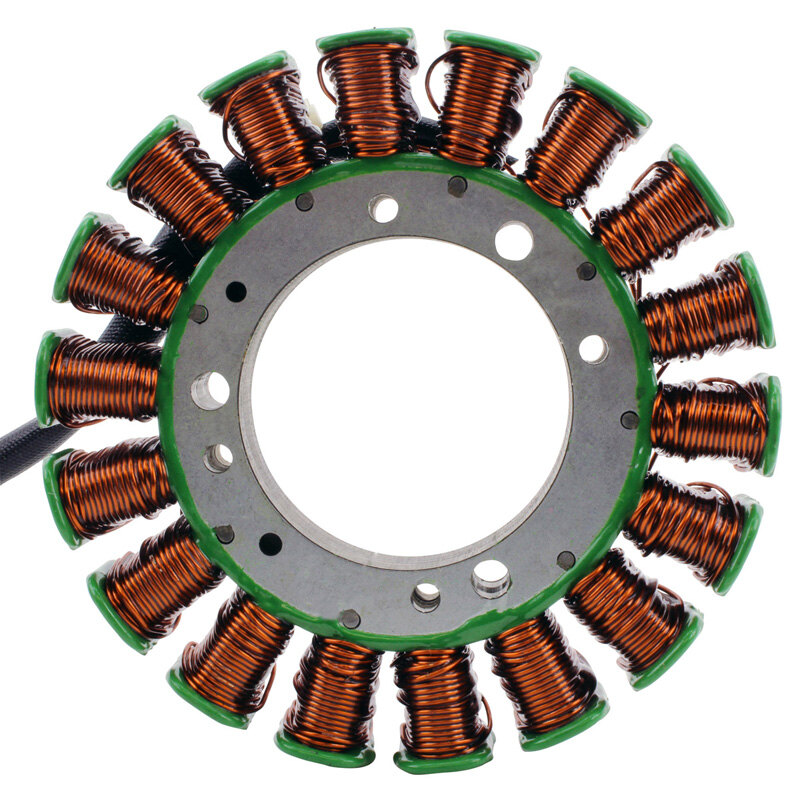

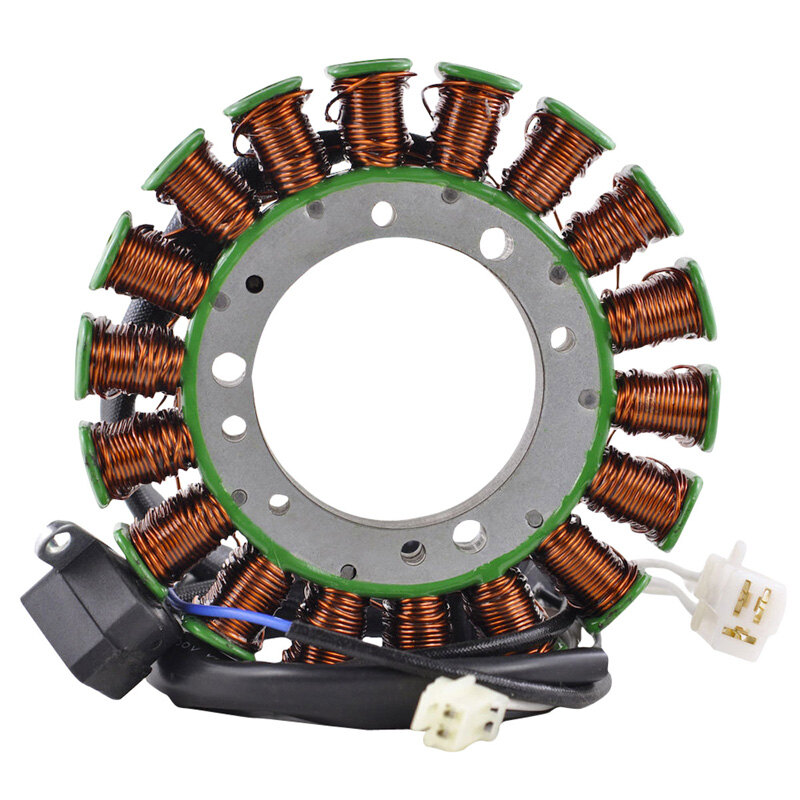

STATOR YAM V-STAR 1100 03-09

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

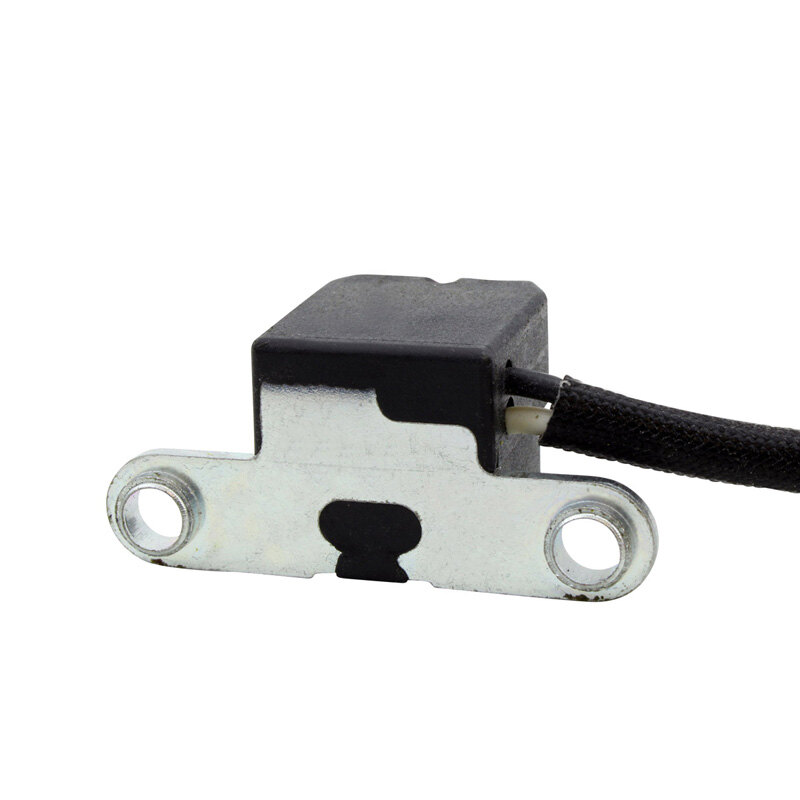

• Pick up pulsar coil included

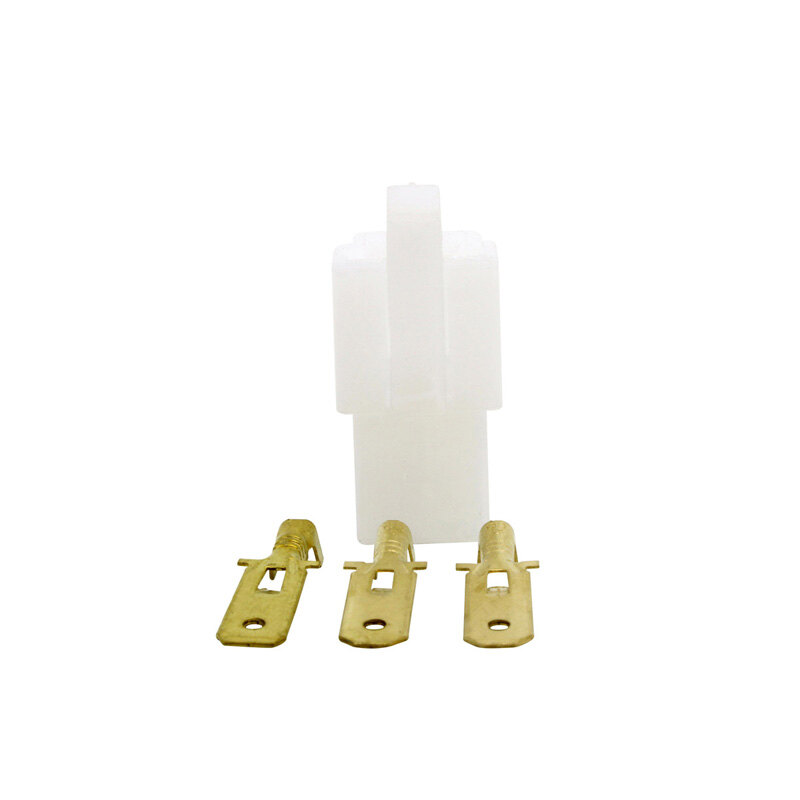

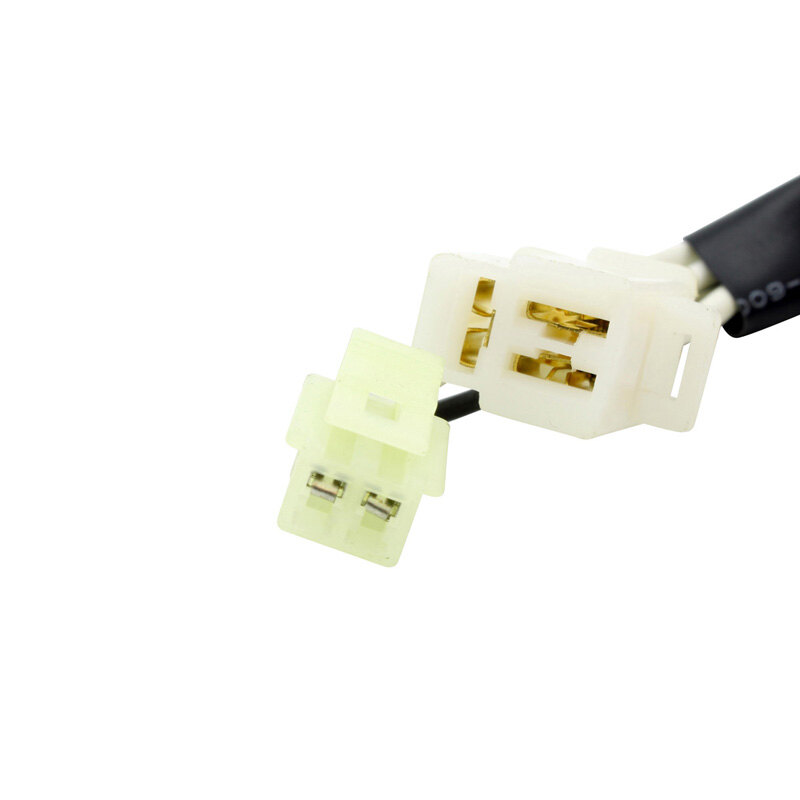

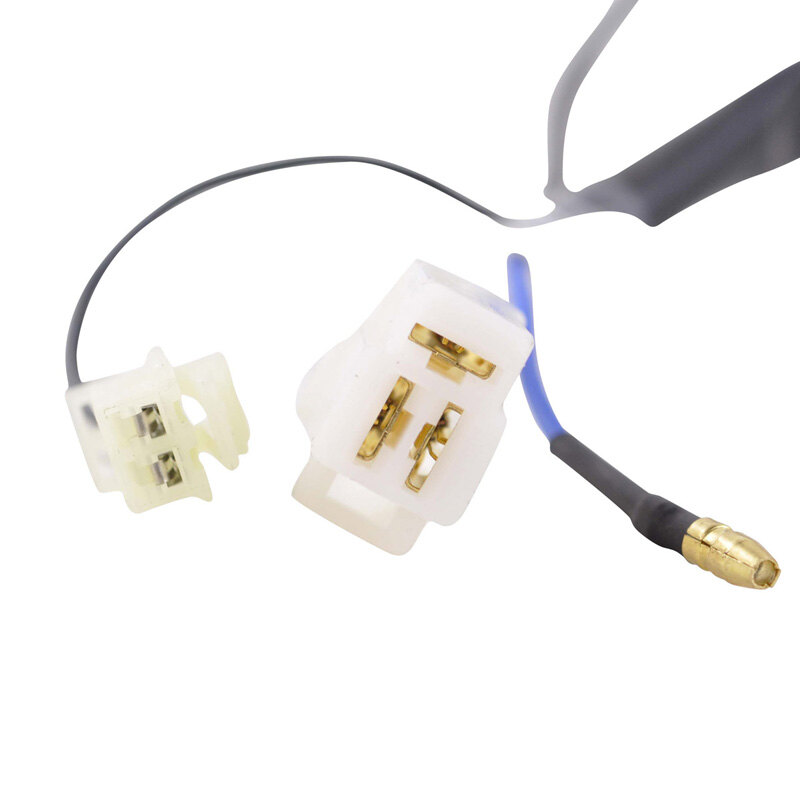

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 18 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 250 mm
Length of pickup coil\'s wire to grommet : 90 mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : White to White = 0.8 ohms \-20%
Pickup : Black to Grey = 209 ohms \-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two possible stators for the V Star 1100 Classic 2003 model. This stator fits the Classic Cast Wheels model. Always check in the \'Fits models\' section and please compare to your original part before buying.
