STATOR KAW VN1500/1600 ALL 99-08

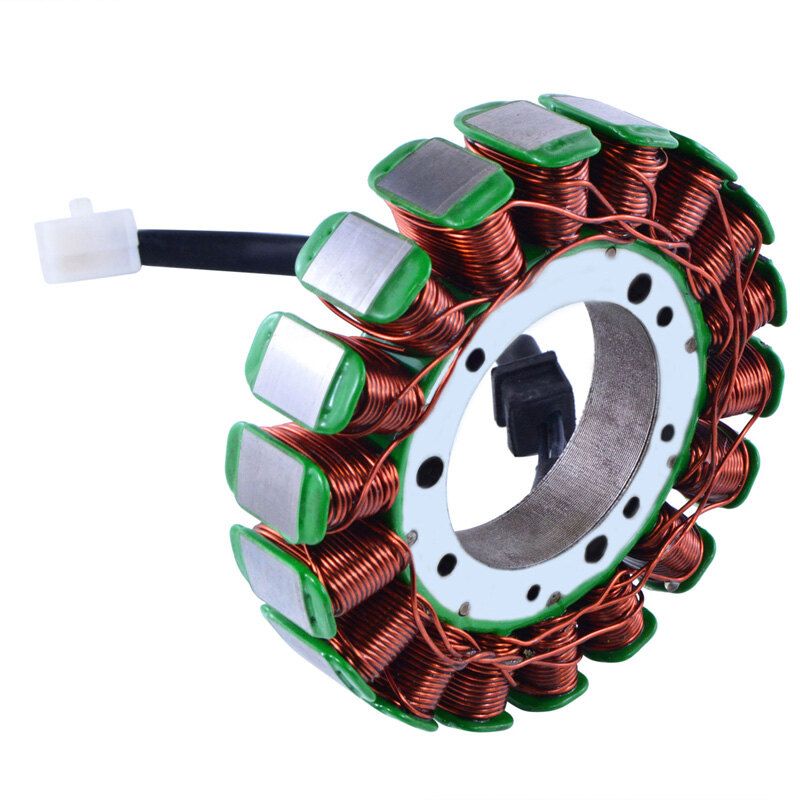

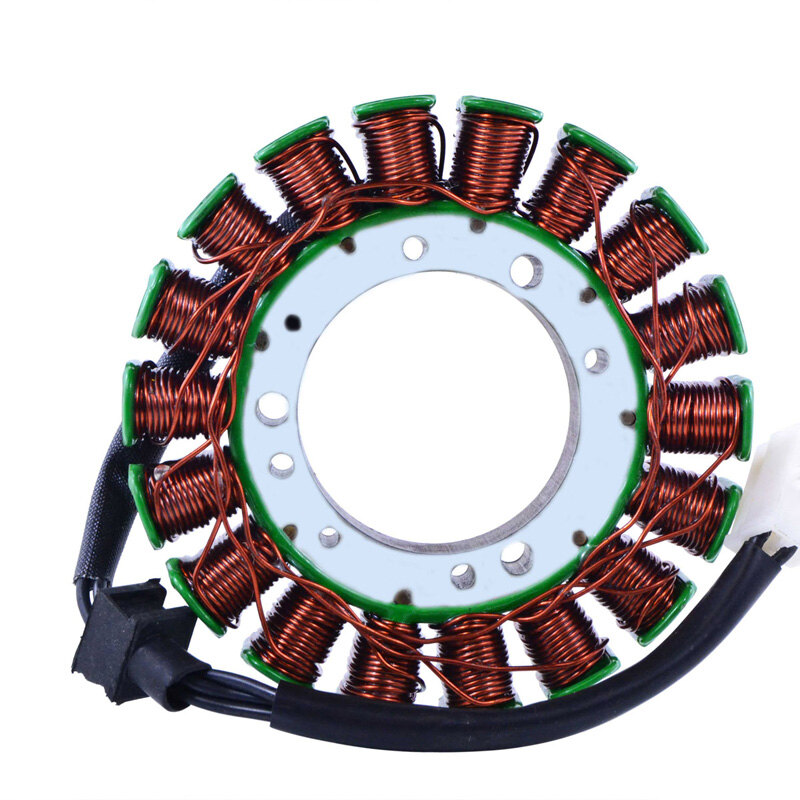

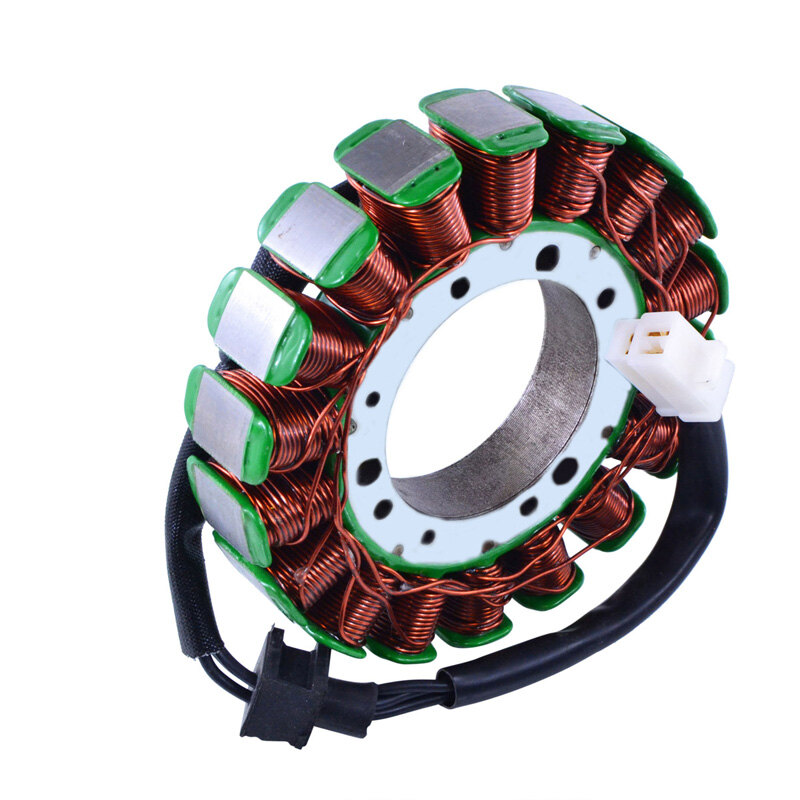

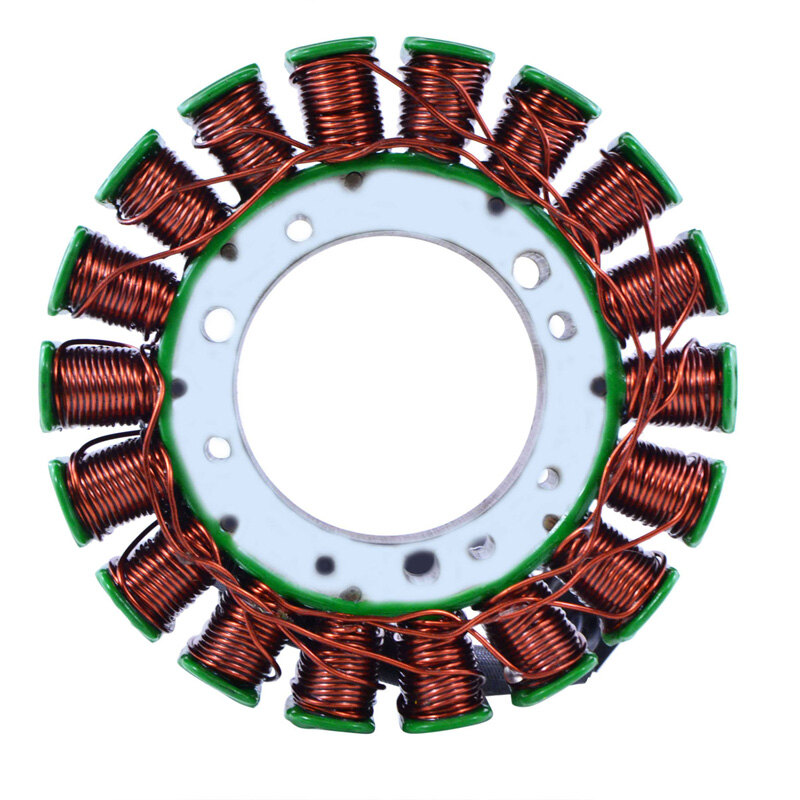

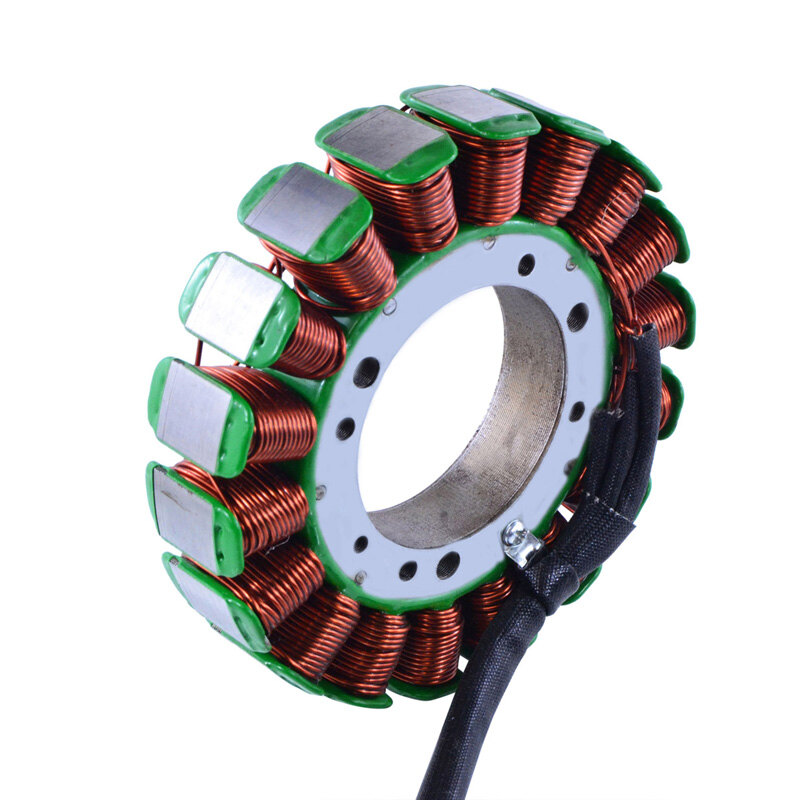

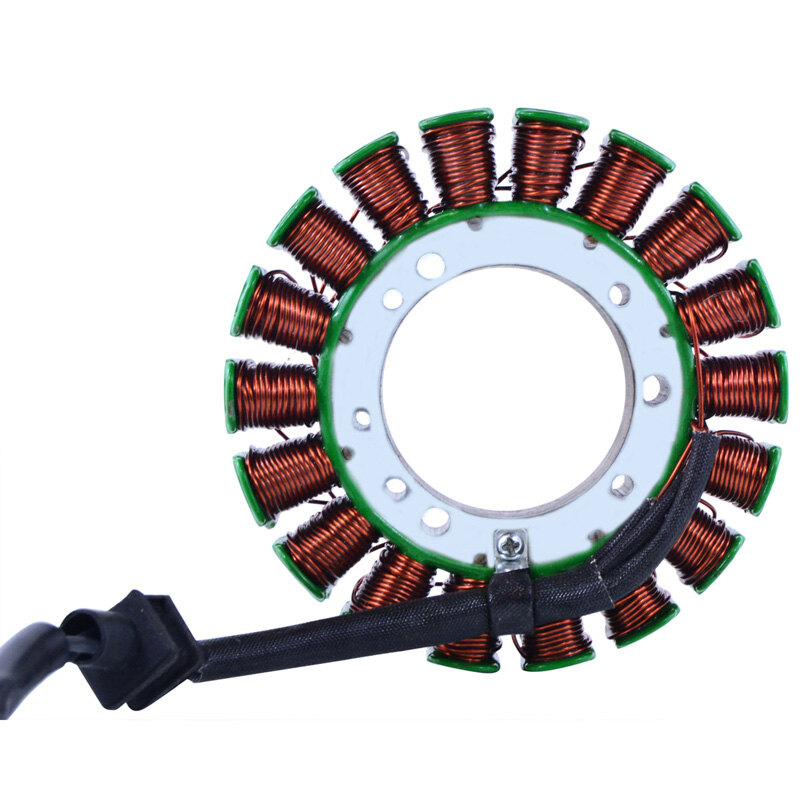

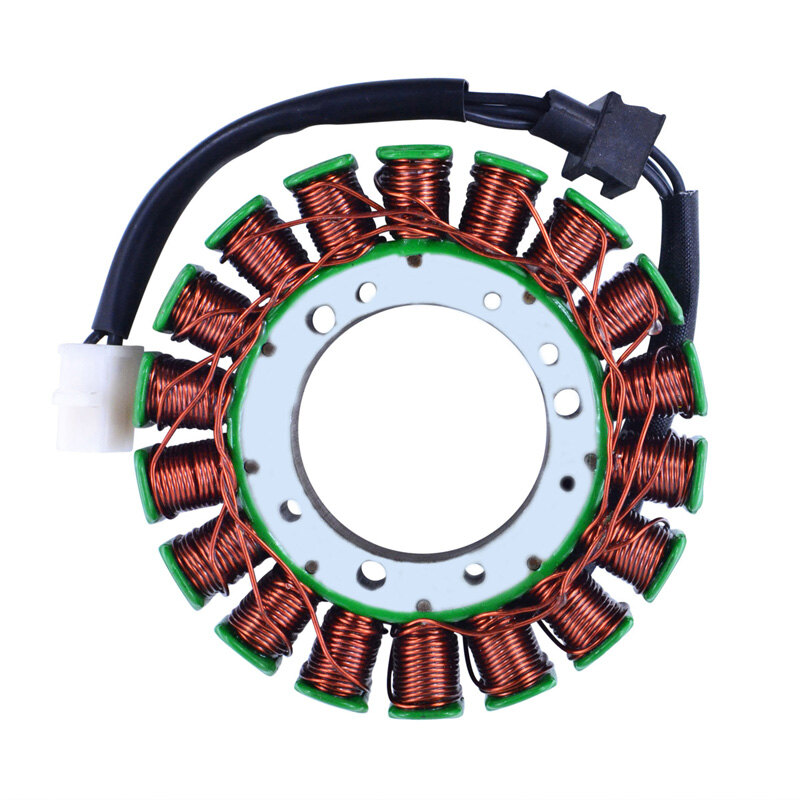

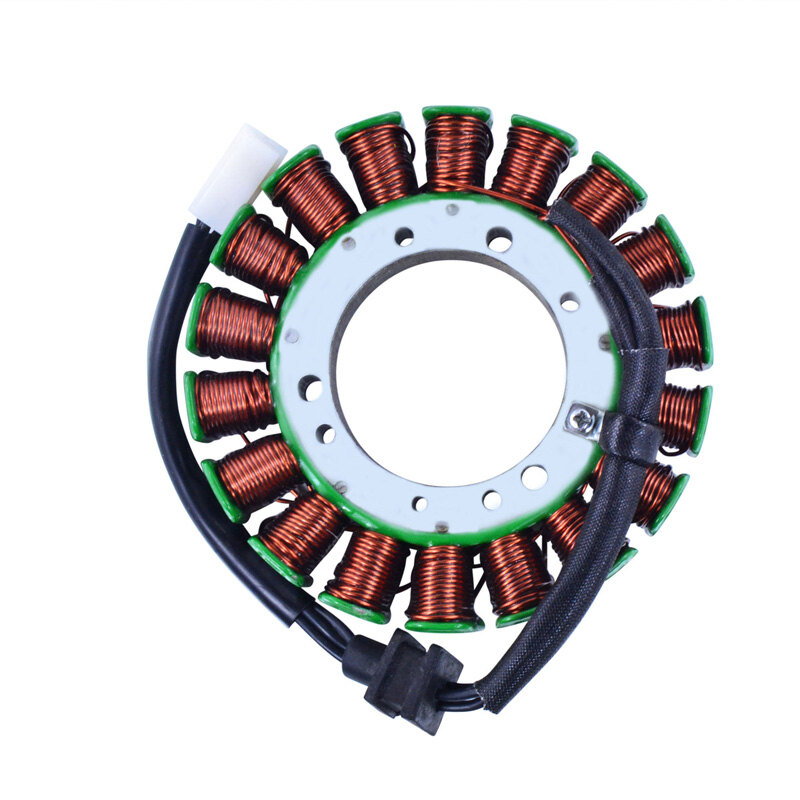

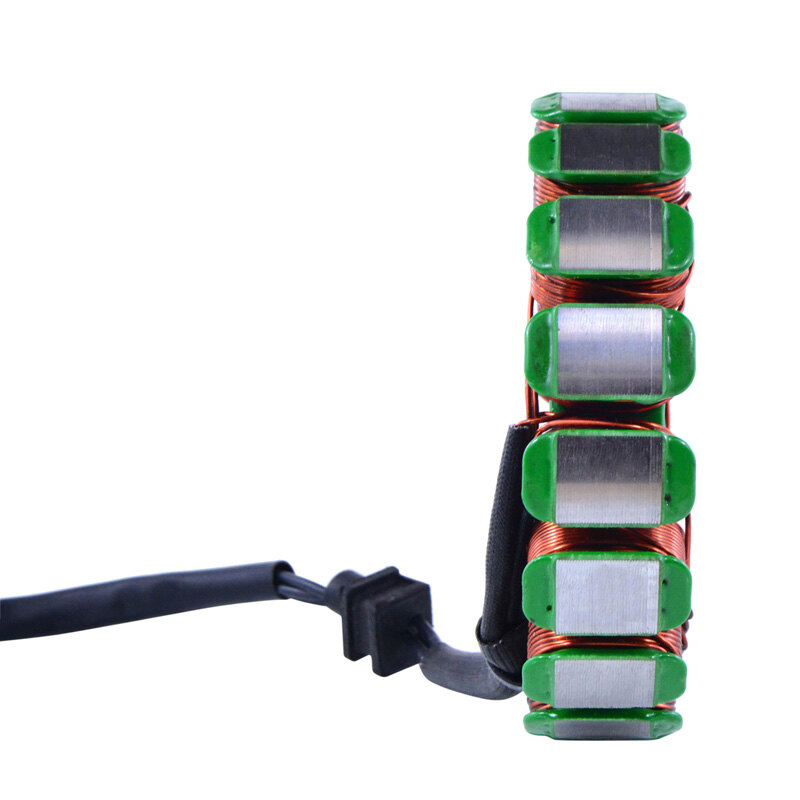

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

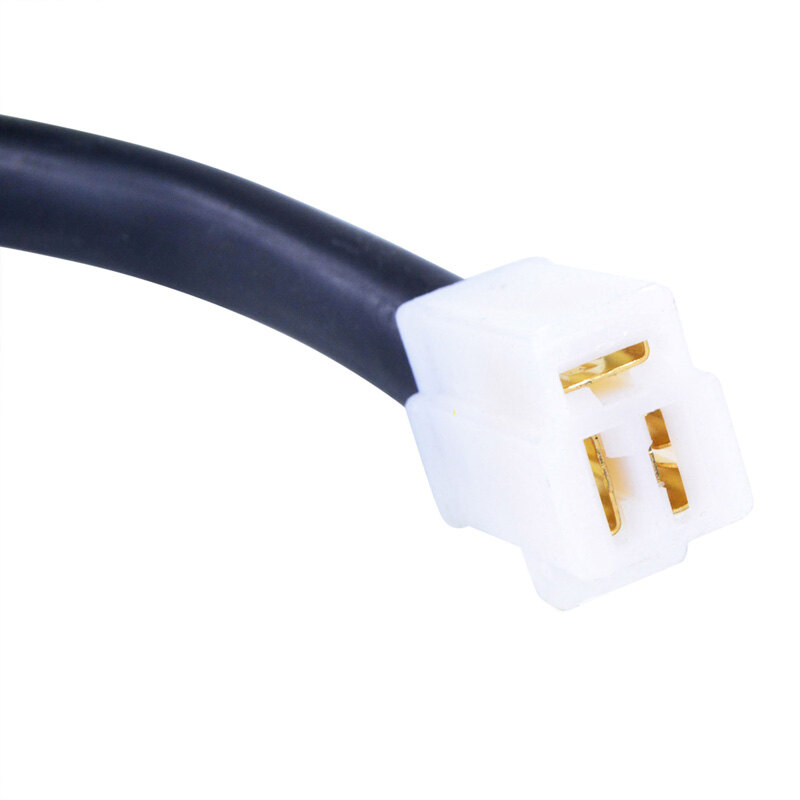

• Connector included

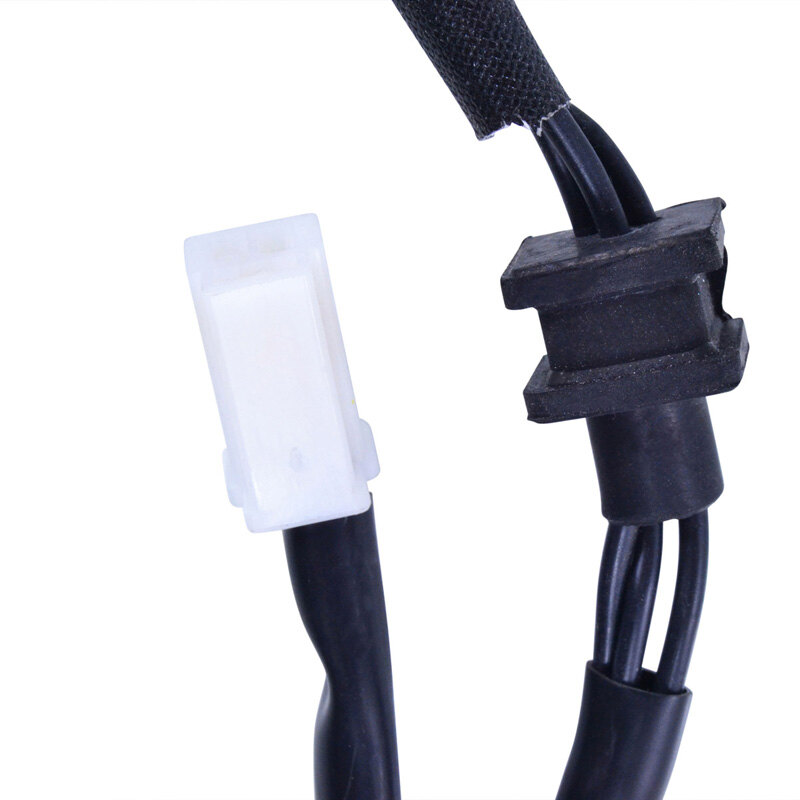

• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm

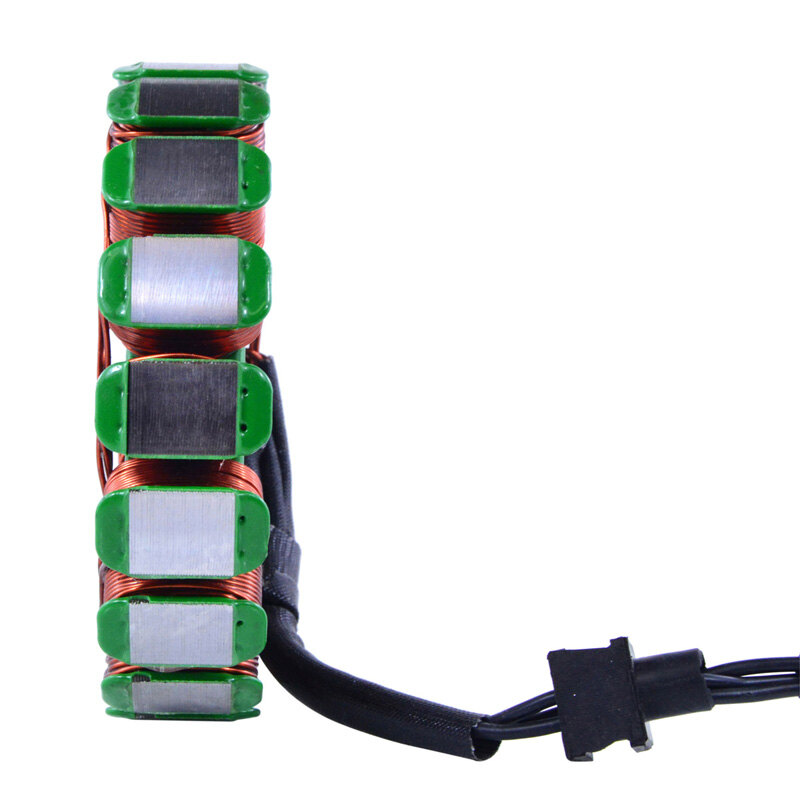

Thickness : 21 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 125 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black to Black = 0.7 ohms \-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note there is a possibility of two stators with certain models

This stator can replaces the inner stator and the outer stator
