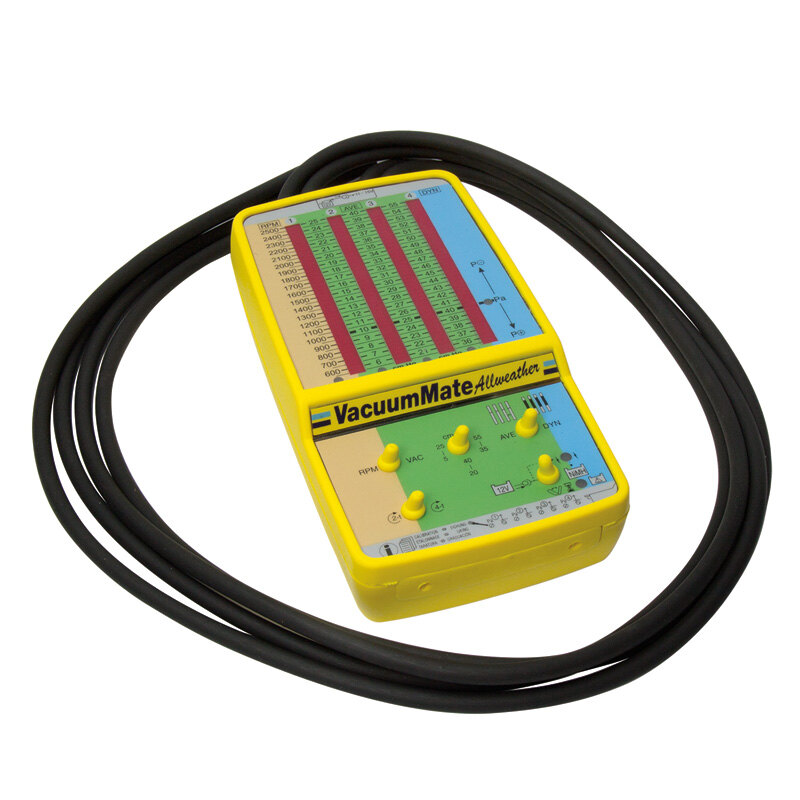

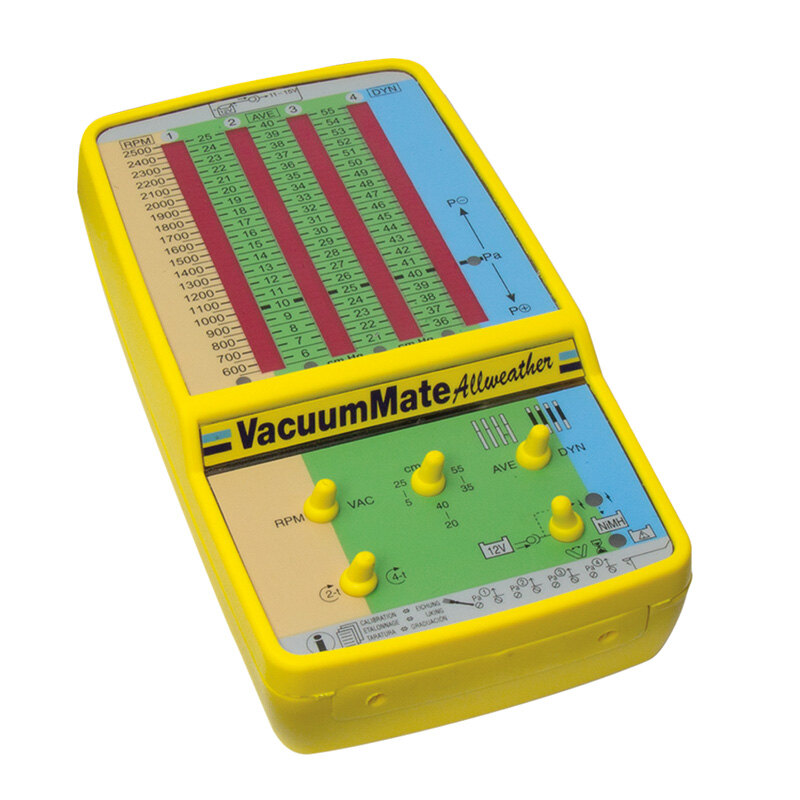

VacuumMate Allweather is the industry standard for fast & accurate synchronizing of up to 4 x carburetor/fuel injection throttle valves on 2 and 4-stroke engines. VacuumMate displays the individual manifold pressure of 4 separate carburetors (or fuel injection throttle bodies) on four vertically arranged bright LED bars (40 LEDs per bar) visible in sunlight, making it ideal even for on-board marine & external use.
Key features:
- Fixed resolution accuracy of 0.5cmHg as recommended by motorcycle and outboard marine OEMs.
- A built-in tachometer displays engine speed in RPM (from pressure pulses, no additional pick-up required).
- DYNamic mode to troubleshoot poor engine synchronizing; displays valve sealing differences.
- 4 x industrial/medical grade MOTOROLA pressure transducers.
- Approved as a recommended tool by Mercury, Honda, Yamaha.
- CYLINDERS: 4 (6 possible with 4-6 cylinder adapter).
- METHOD: Compare and display individual pressures of 4 carburetor/fuel injection manifolds.
- DISPLAY/RESOLUTION: 4 x display of 40 x hi-bright LEDs, fixed 0.5cmHg resolution.
SELECT/ADJUST:
- SYNC: 5-25 cmHg, 20-40 cmHg, 35-55 cmHg ranges.
- RPM: 500-2500 rpm range, 2/4-stroke selector.
- DYNamic mode for troubleshooting valve sealing.
- ON/OFF power switch.
- POWER: 7.2V NiMH battery with 6-hour autonomy, recharged from 12V DC (11-15 Vdc), power can also be drawn from the vehicle battery.

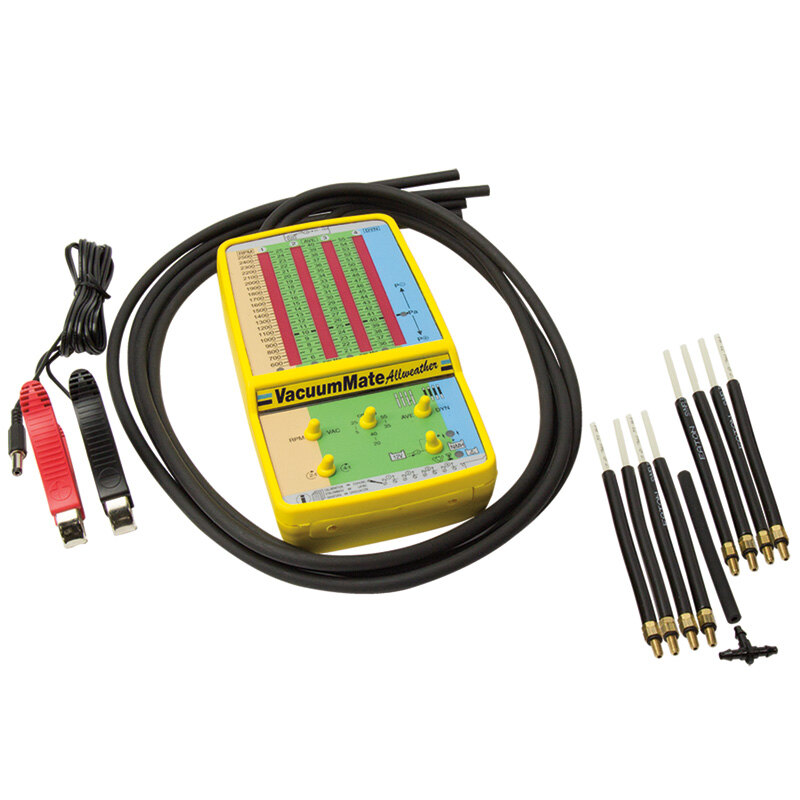

- STYLE/INCLUDED: fuel & oil resistant rubber hoses, DC supply socket with a 6 1/2 ft/200cm power lead ending in battery clips, 4 x M5 flexi-rigid adapters, 4 x M6 flexi-rigid adapters, fuel switch T-piece, instructions for use.

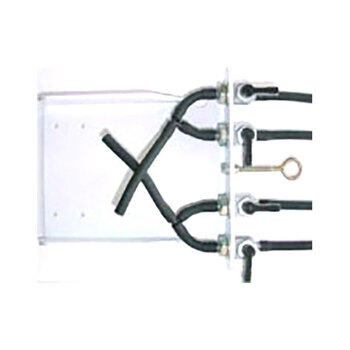

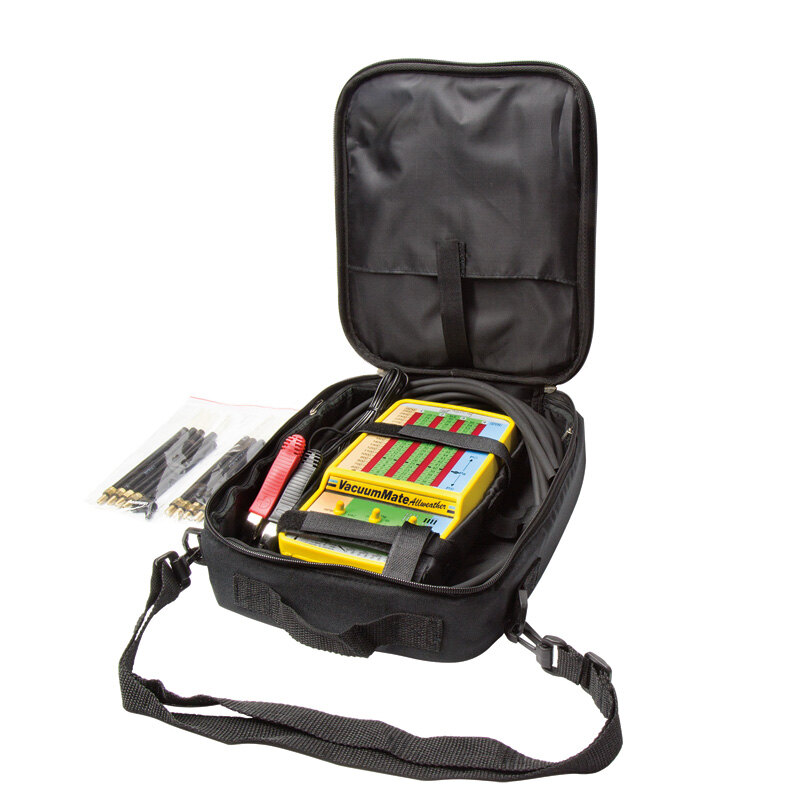

- OPTIONS: TS222 - Nylon storage case - Order separately or with new VacummMate as Marine kit TS70 in the EU or TS71 in North America; TS221 - 4-6 Channel adapter.
- Two-year limited warranty.
