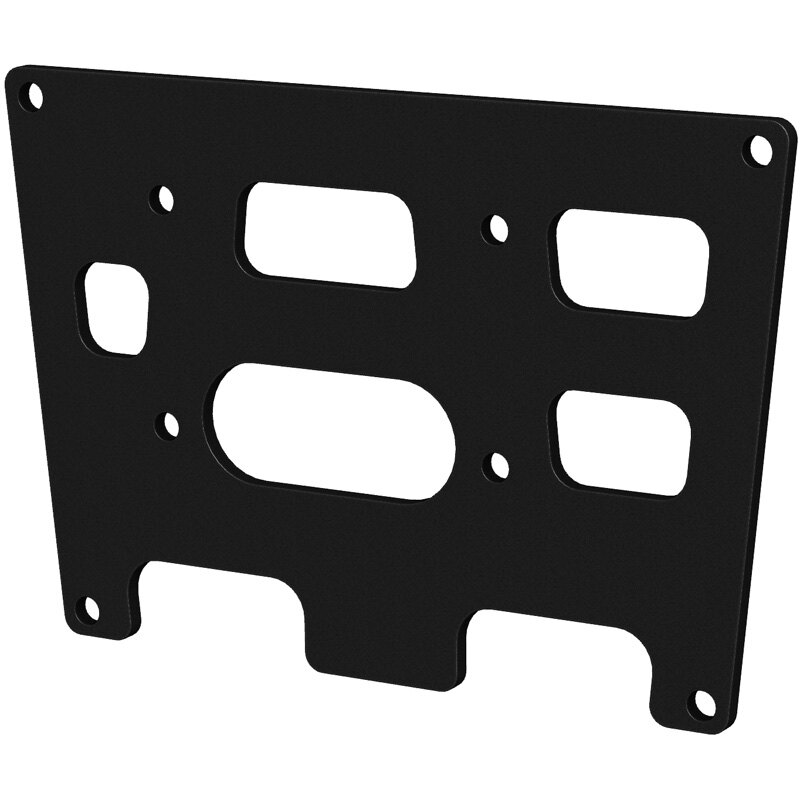

ATC 2002-2005 WINCH MOUNT

KFI Winch Mount for the following Arctic Cat ATVs:

• 2002-2004 Arctic Cat 250/300/375/400/500/650 2X4 and 4X4
• 2005 Arctic Cat 250/300/400 2X4 and 4X4 and 500 4x4 Automatic TRV
• Will NOT fit 2005 400/500 4x4 Automatic TBX

Designed to work with the following winches:

• KFI:  ST17/A2000/A2500-R2/A3000/SE25/SE35
• KFI: AM-25/AM-35/AS-25/AS-35
• KFI: AS-50 (requires purchase of ATV-MR)
• WARN: VRX 25/VRX 25-S/VRX 35/VRX 35-S
• WARN:  A2000/A2500/U2500/1.5ci/2.5ci/2.5ce/3.0ci/3.0ce
• WARN:  RT15/RT25/RT30/XT15/XT25/XT30
• WARN:  Vantage 2000lb-3000lb/Provantage 2500lb-3500lb
• RAMSEY: ATV2500/ATV3000
• SUPERWINCH: Terra25/Terra35/A3500/LT2500/LT3000/LT4000ATV
• MILE MARKER:  PE2.5/PE 3.5/VMX2.5/PE2500/PE3500
• CYCLE COUNTRY:  Work Power 1500 and 2500/Powermax 2500, 3500
• BADLAND: 2-hole winches
  • All 2-hole mounted winches will require the additional purchase of the Converter Mount #100480
• BADLAND: Standard Winches
• KEEPER CORP. TRAKKER:  KT2500/KT3000/KT2500C/KT3000C
• CHAMPION: Standard winches
• CHAMPION: 2-hole winches
  • All 2-Hole mounted winches will require the additional purchase of the Converter Mount  179-100480
• SMITTYBILT: XRC 3.0/XRC 4.0
• XGEAR:  X3000/X4000
  • 4- Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM:  2000/2500/3000/3500/4000/4500/5000 (standard ONLY)
  • 4- Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
• Possibly many others with the below standard mounting patterns (call to confirm)
  • 4- Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
• 2- HOLE MOUNTED WINCHES WITH A 3.10" BOLT PATTERN:
  • All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• QUADBOSS: RP25/RP35

Specifications:

• 100% MADE IN THE USA.
• Constructed of 1/4" steel.
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Complete installation instructions included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
