STATOR YAM YFM600 GRIZZLY 98

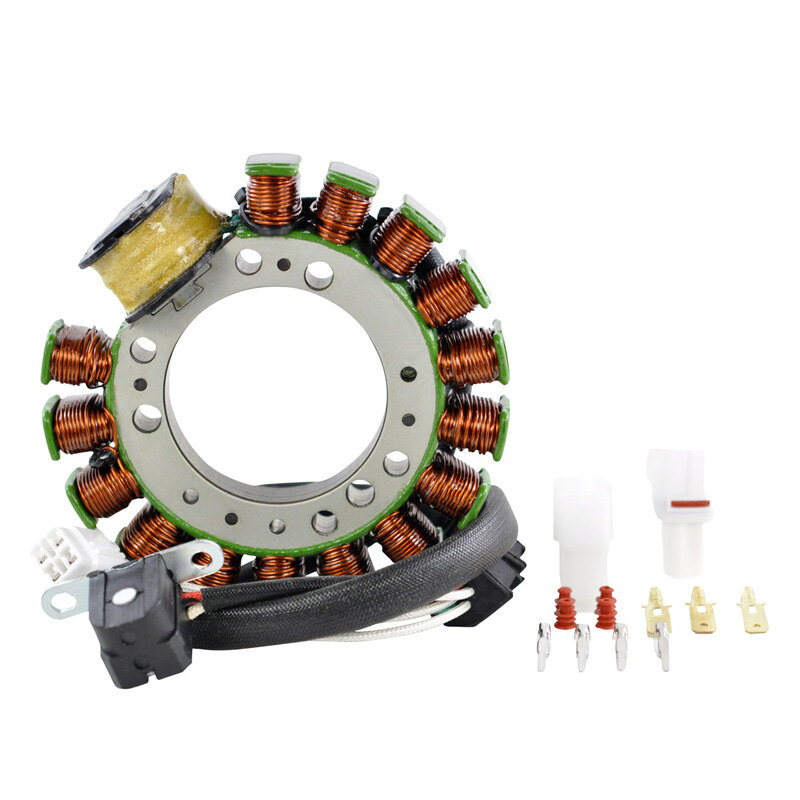

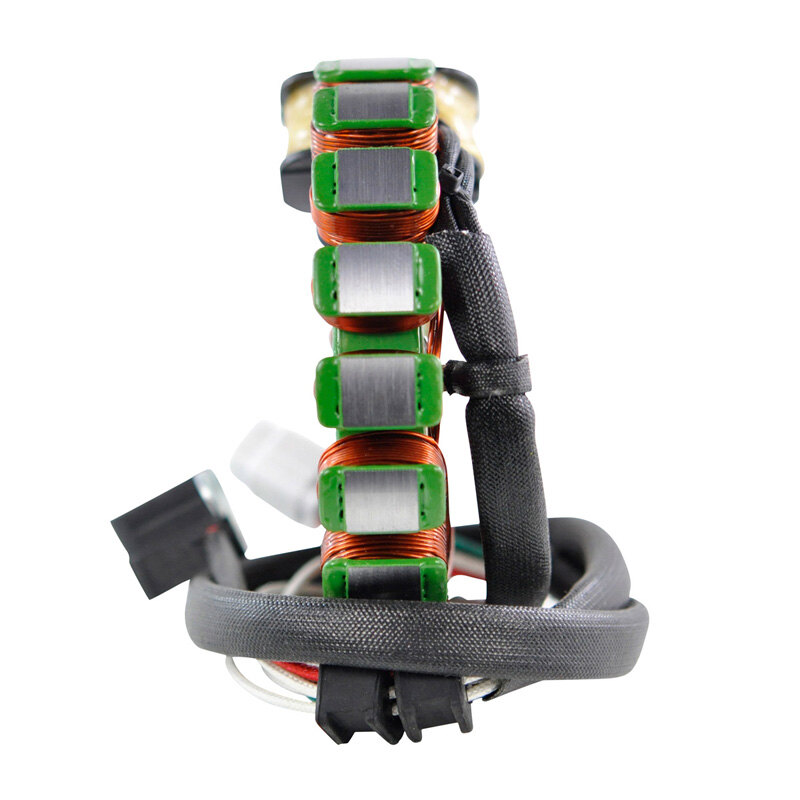

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

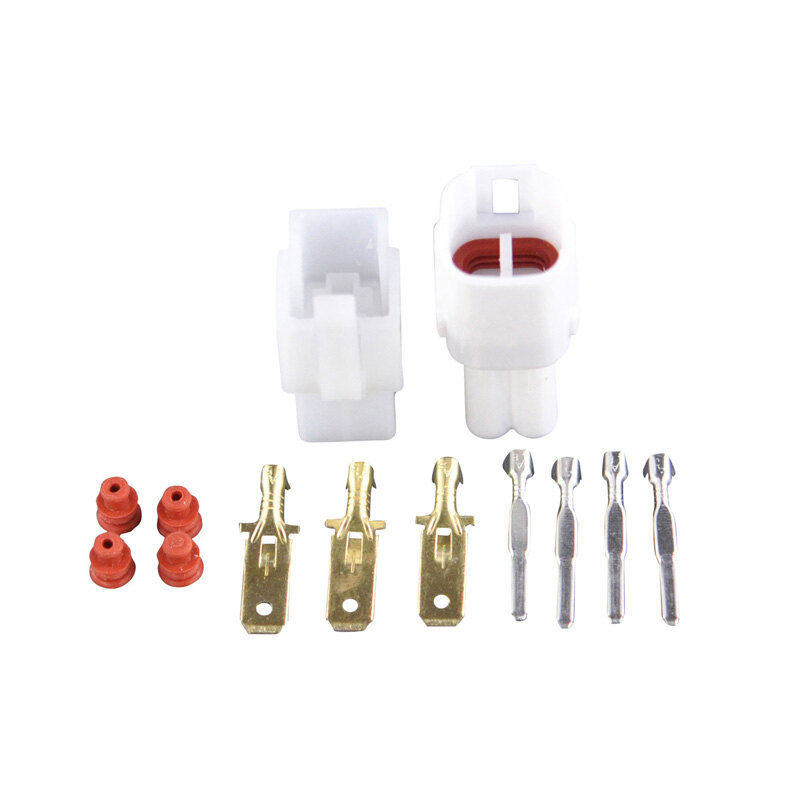

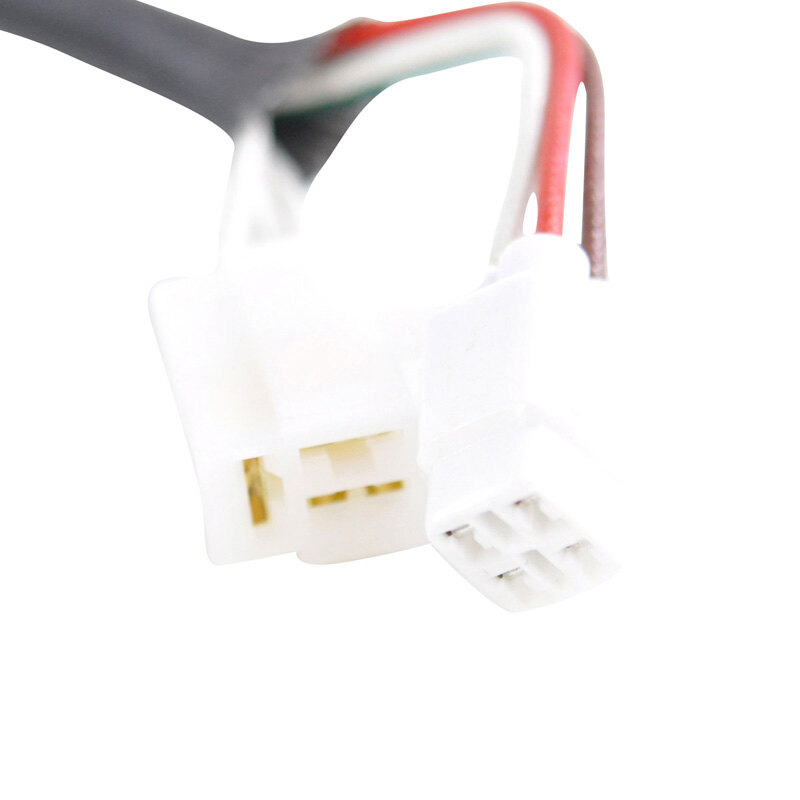

• Connector included
• Rubber grommet included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 113 mm
Thickness : 19 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 390 mm
Length of pickup coil\'s wire to grommet : 59 mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Number of poles : 14

Wire to wire resistance :
Source 1 : Green to Black = 300 ohms\/-20%
Pick up 1 : Red to White = 500 ohms\/-20%
Alternator : White Between each White = 0.9 ohms\/-20%
Alternator : White to Ground = O.L. ON DISPLAY

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
