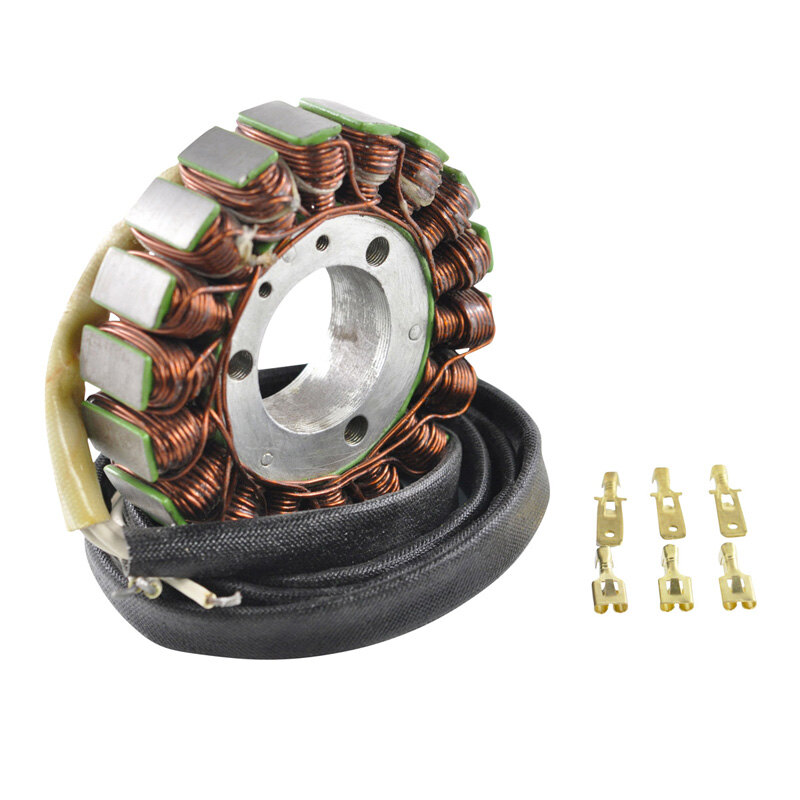

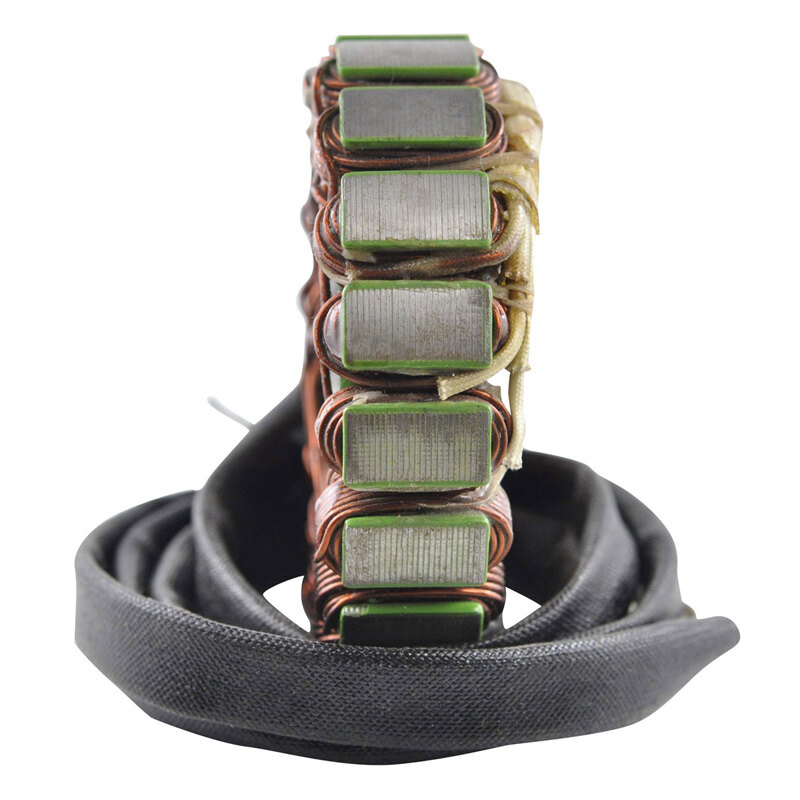

STATOR KAW ZX550-1100|SUZ GSX-R600-1000 80-05

Brand new aftermarket stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

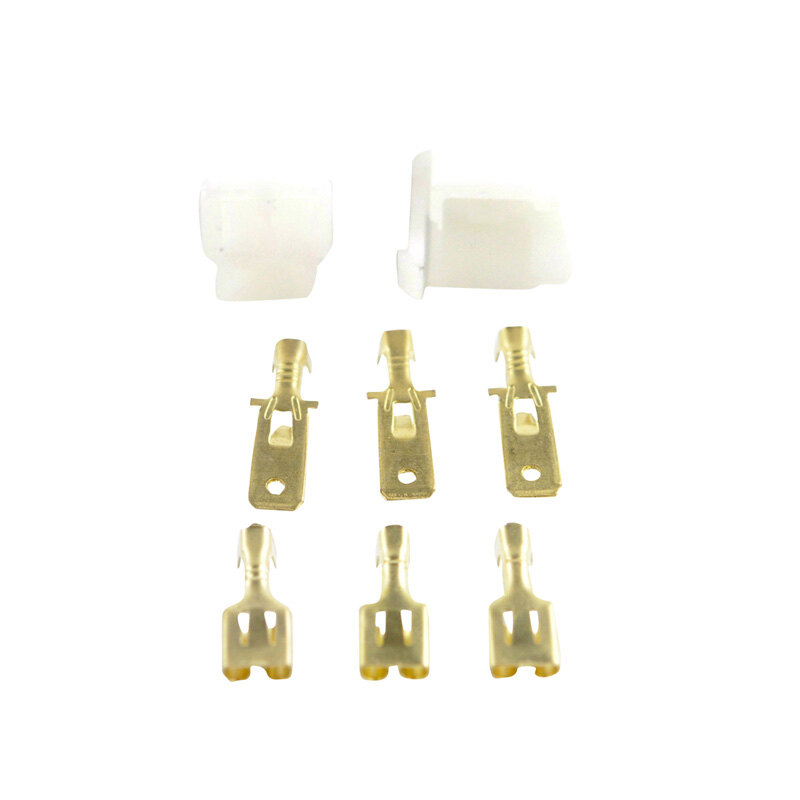

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior Diameter: 28mm
Exterior Diamter: 102mm
Thickness: 20mm

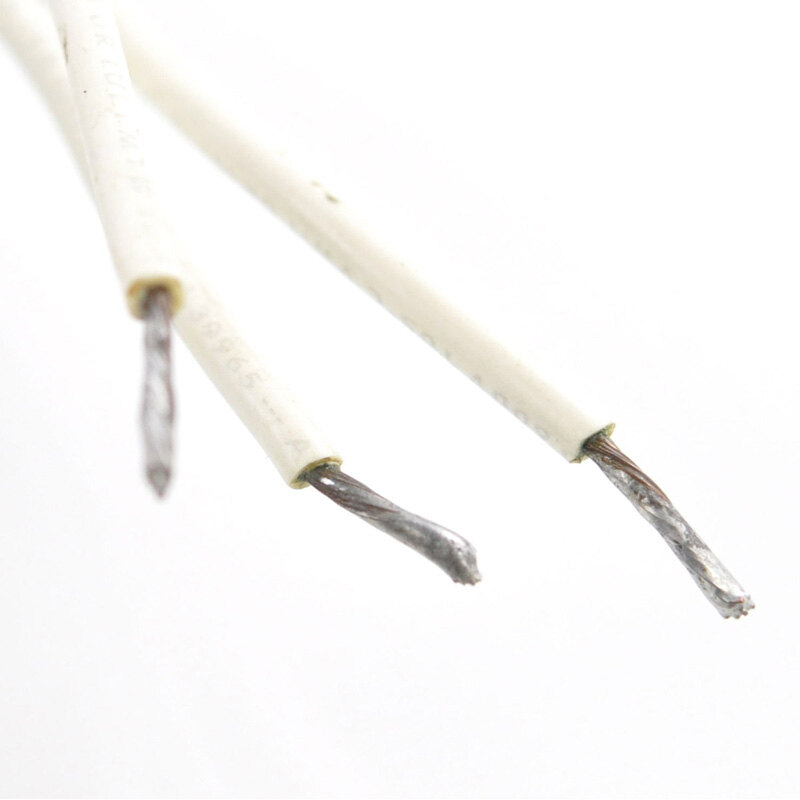

Wires length stator to terminals : 700 mm

Other specifications :
Number of wires :3
Number of plugs: 0
Number of terminals : 3

Wire to wire resistance :
Alternator :White Between each White = 0.4 ohms\/-20%
Alternator : White to Ground = O.L. ON DISPLAY

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
