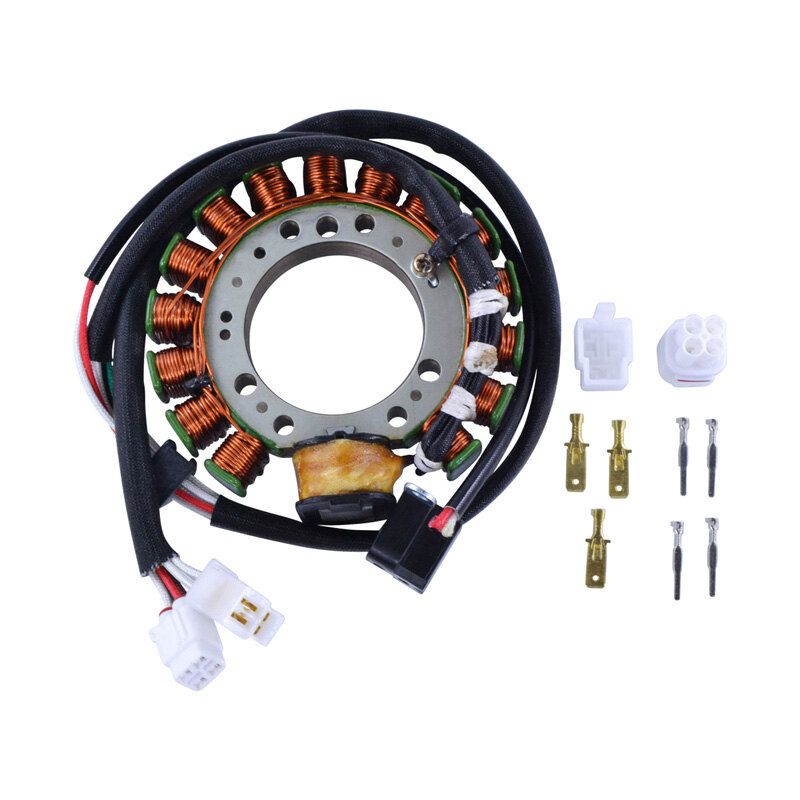

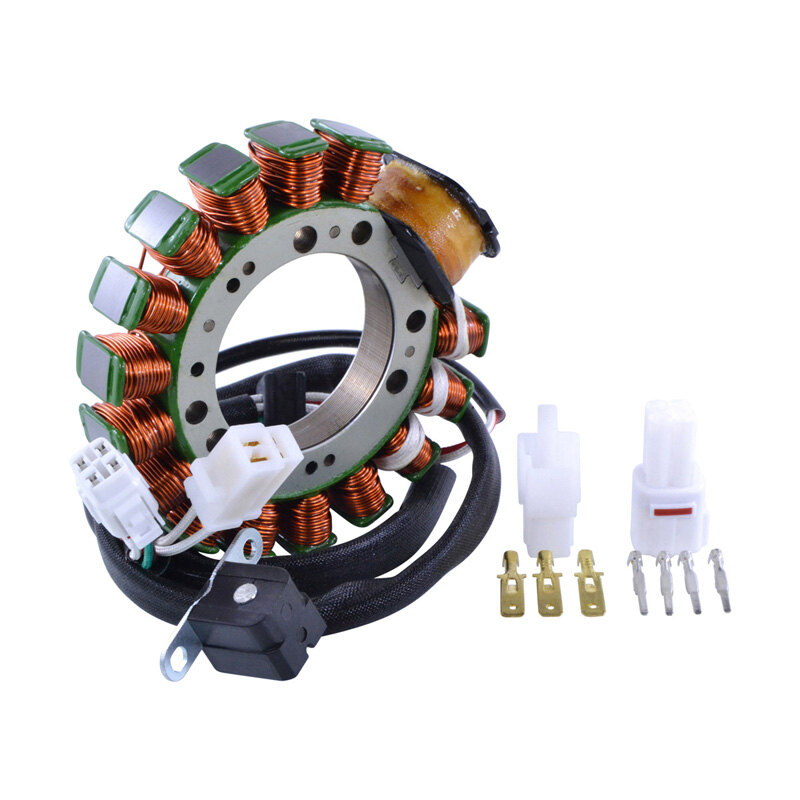

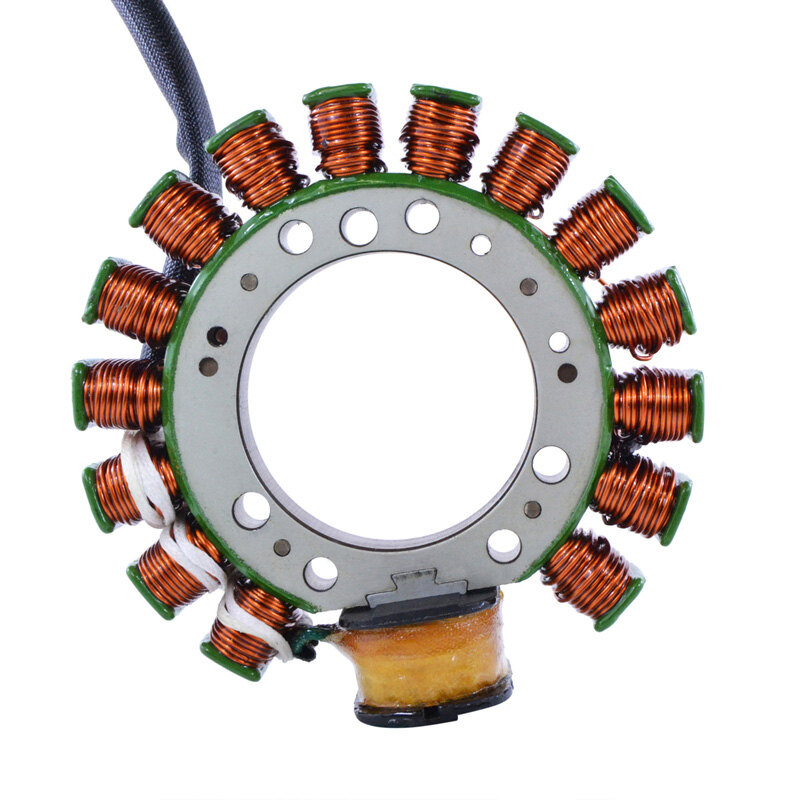

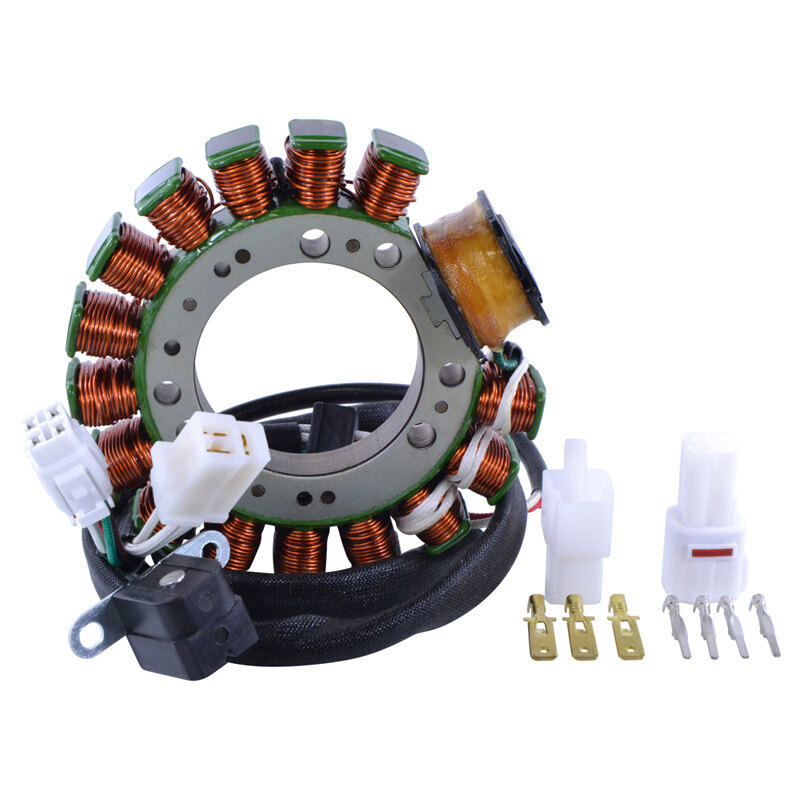

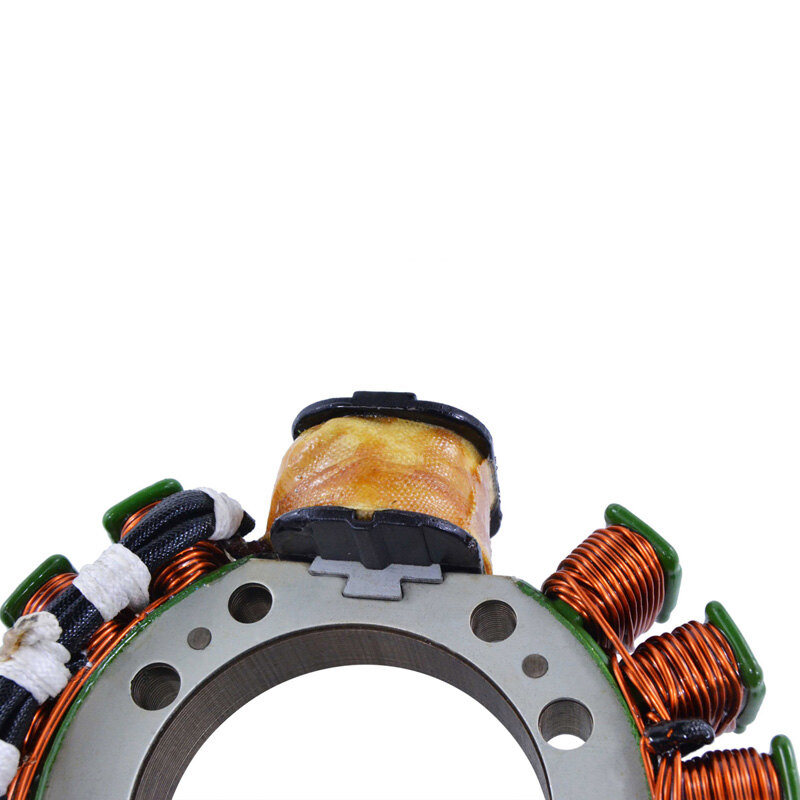

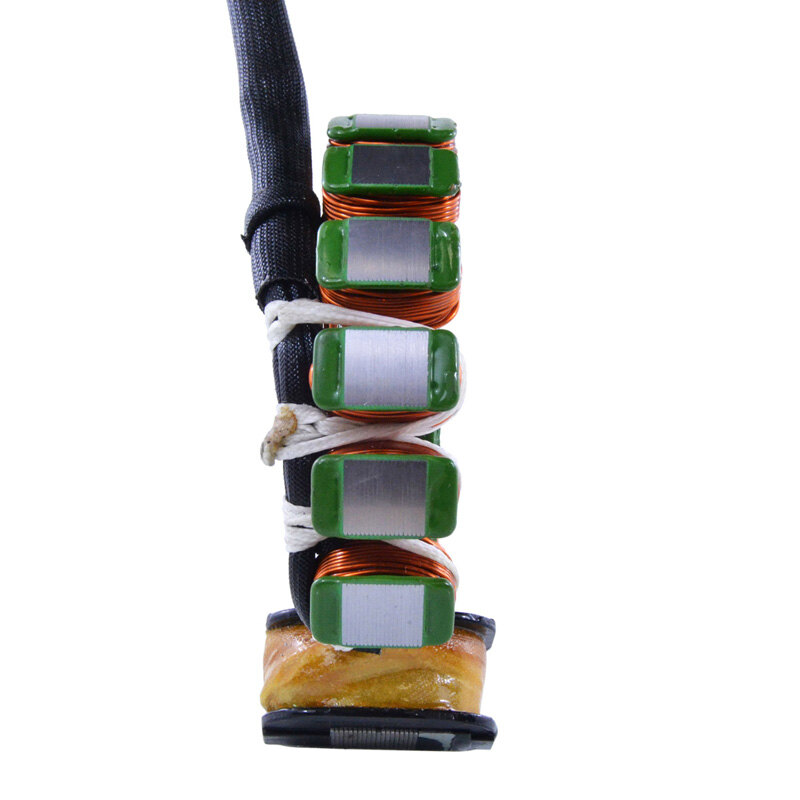

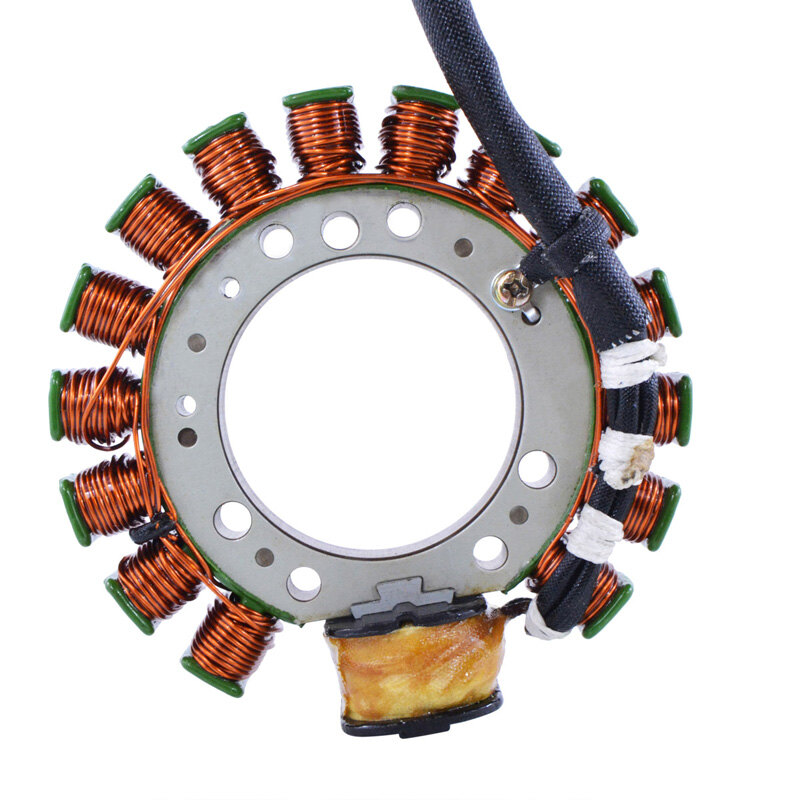

STATOR YAM YFM350 BIG BEAR|WOLVERINE 97-01

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper windings, resistant to 200 degrees Celsius.

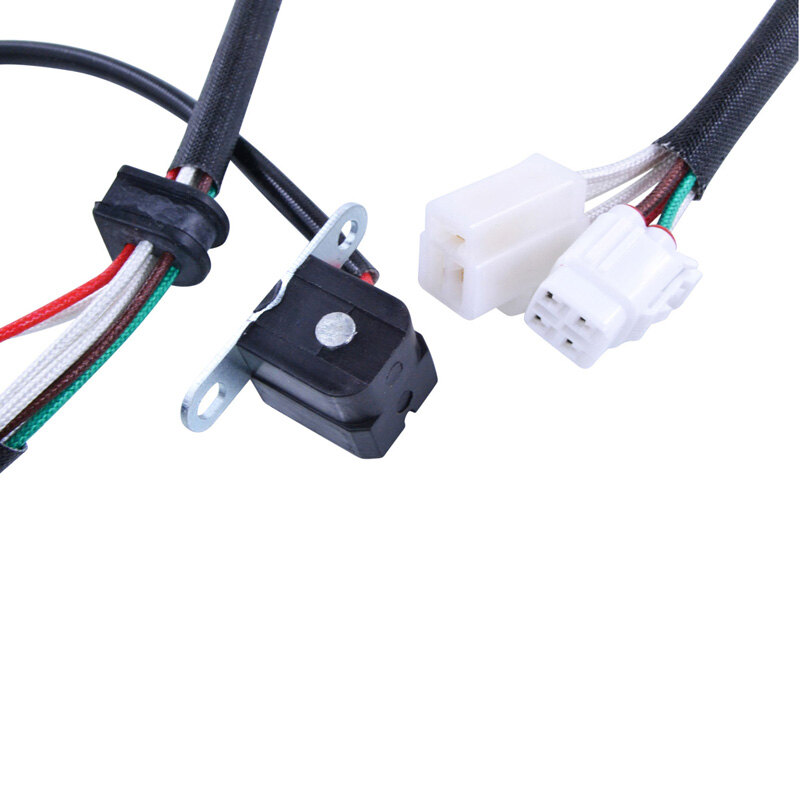

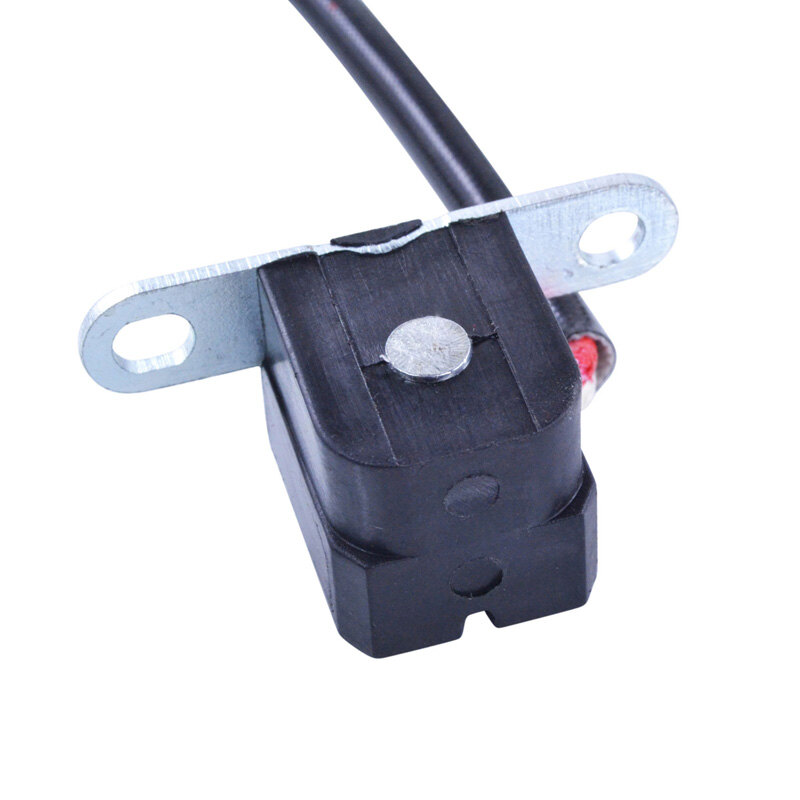

• Pick up pulsar coil included

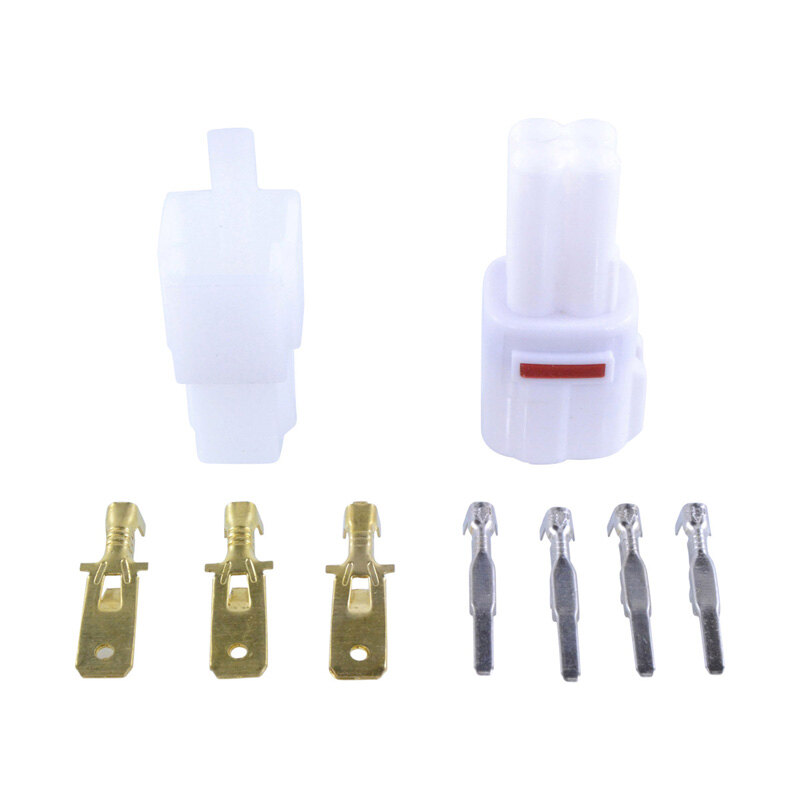

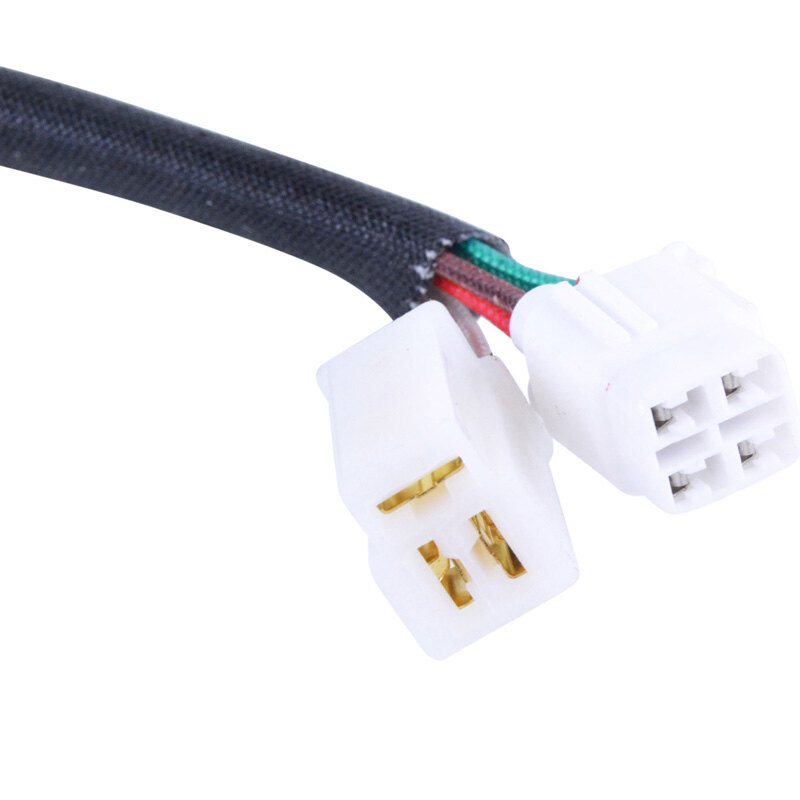

• Connector included

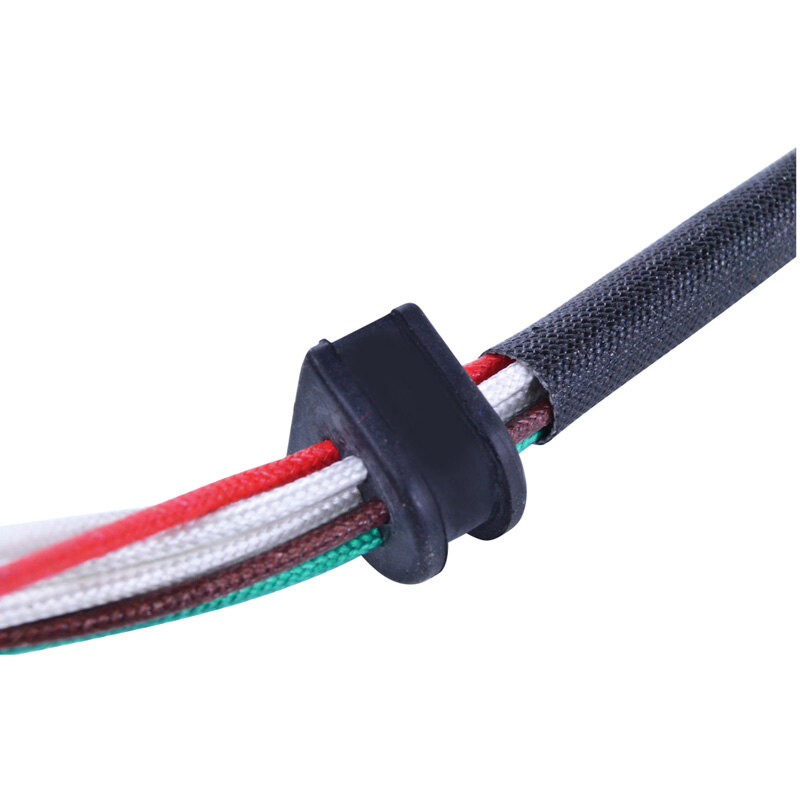

• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires : 7
Number of plugs : 1
Number of pins : 7

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms \/-20%
Pickup : White to Red = 570 ohms \/-20%
Source : Green to Brown = 318 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note : There are TWO different stators that fits on Yamaha YFM 350 Wolverine 1995-1999. See specifications tab for details. PLEASE VALIDATE THESE MEASUREMENTS WITH YOUR OLD STATOR BEFORE BUYING THIS PRODUCT
