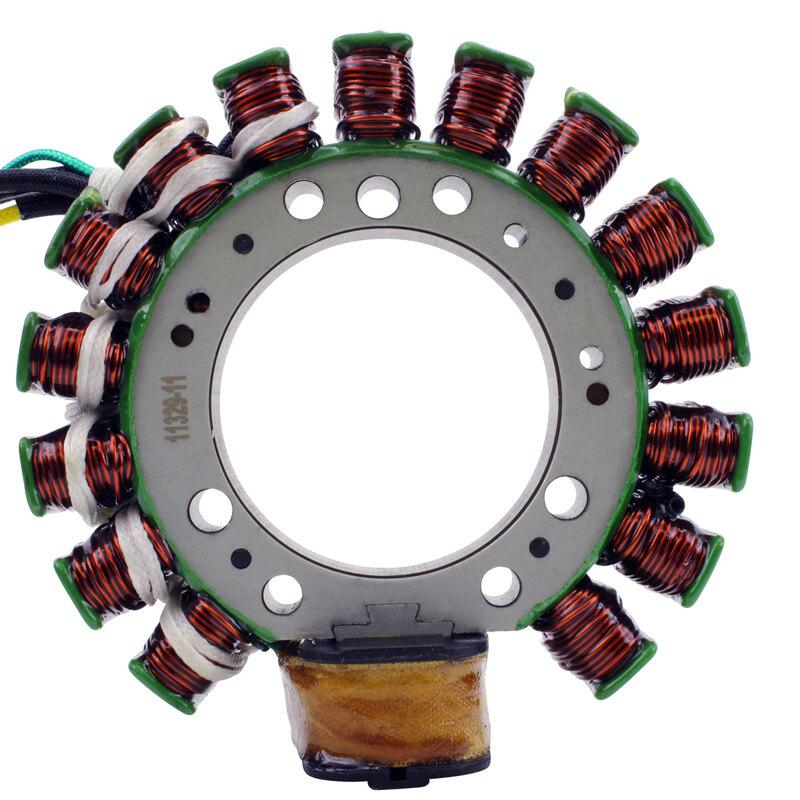

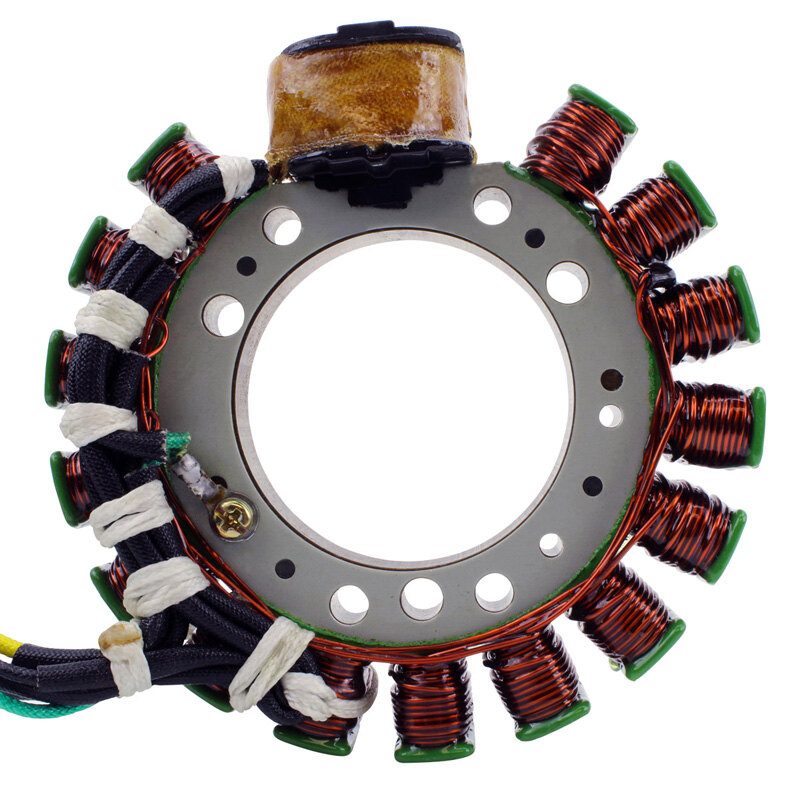

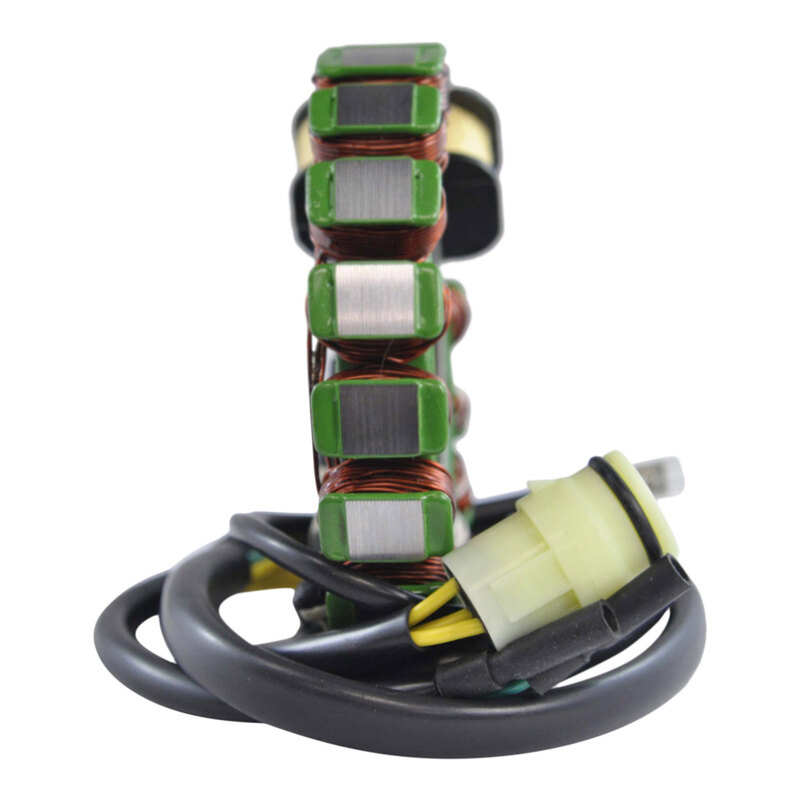

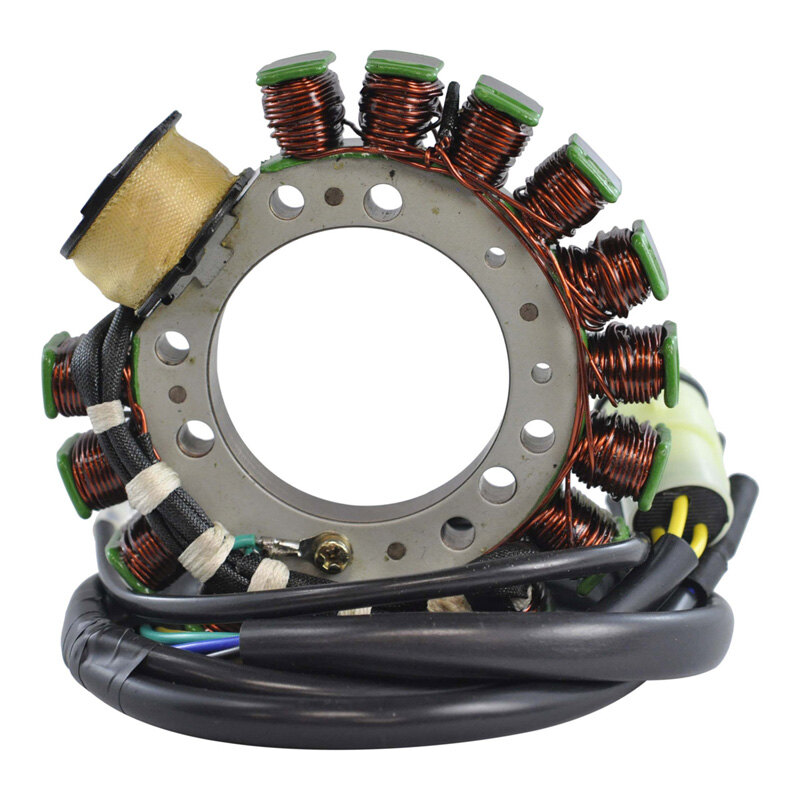

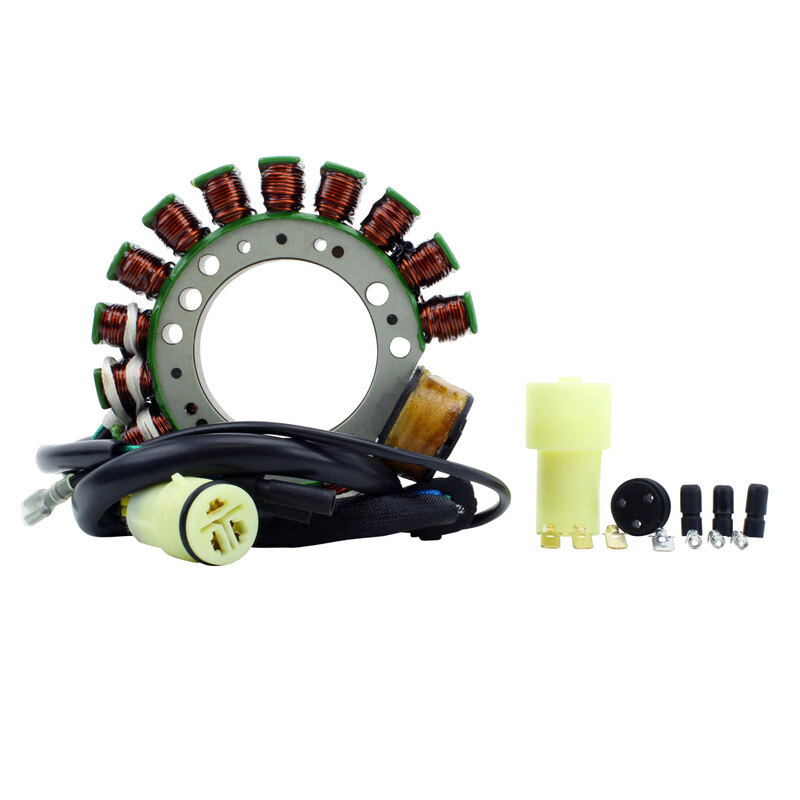

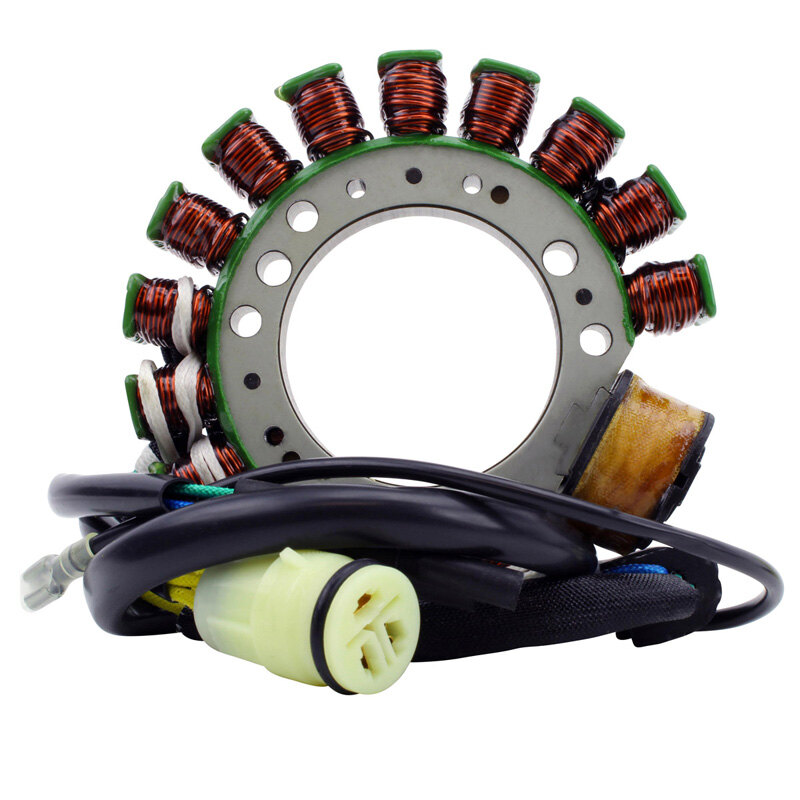

STATOR HON TRX350|TRX350 86 87

Brand new aftermarket high output stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

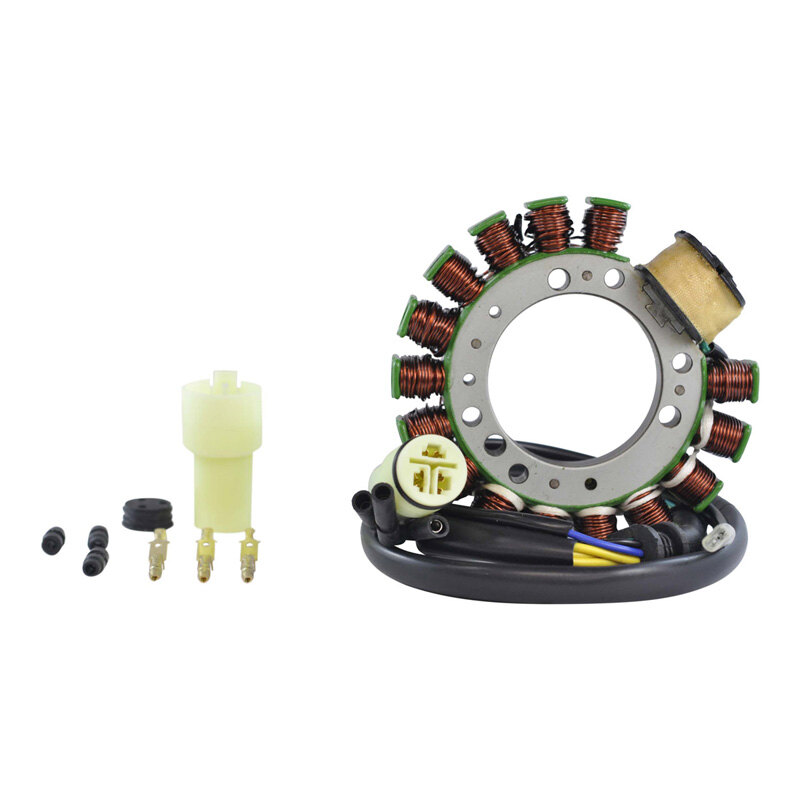

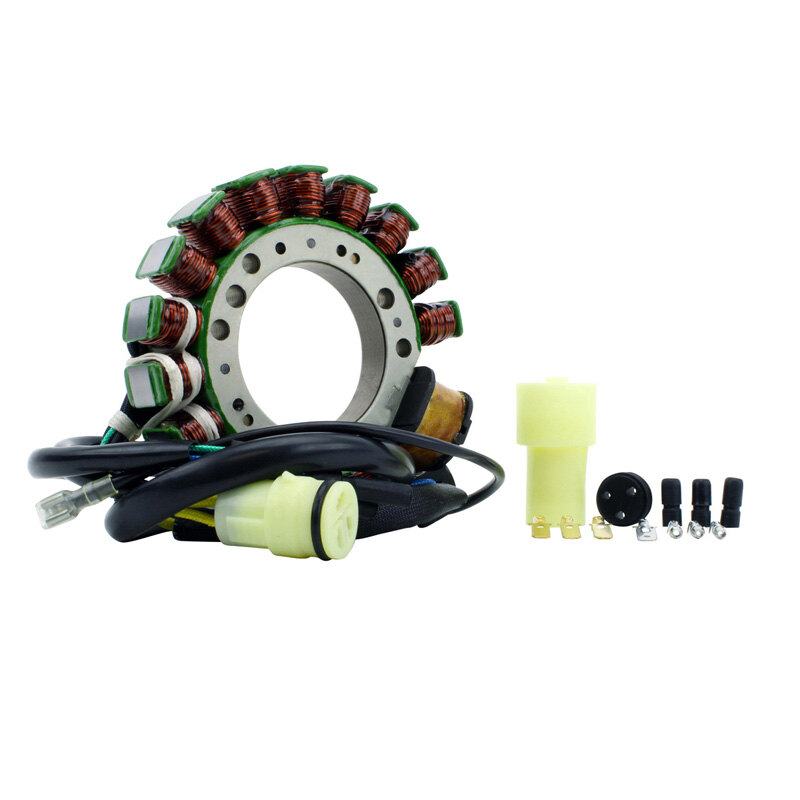

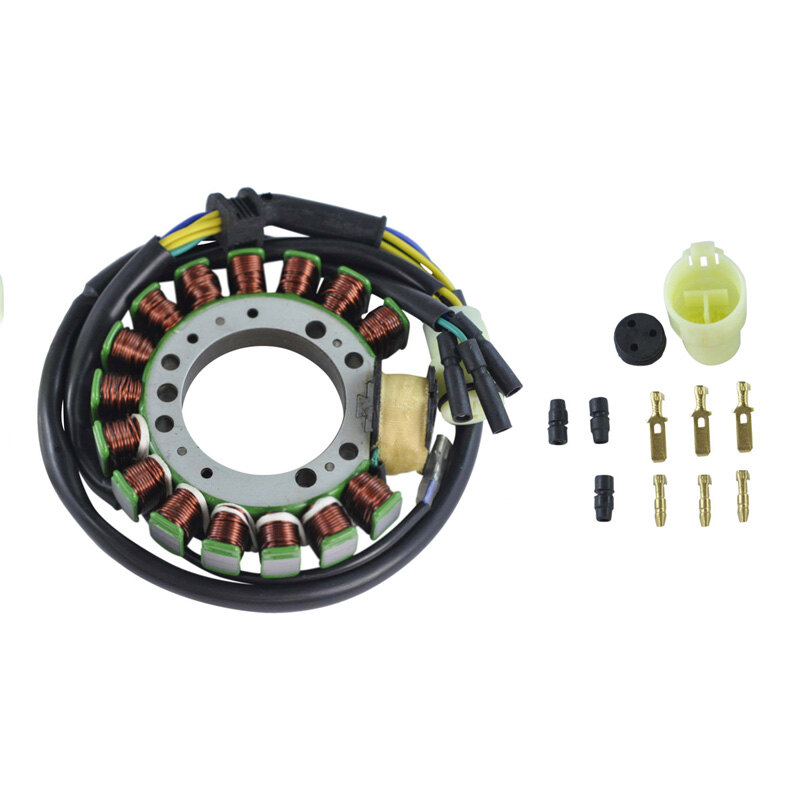

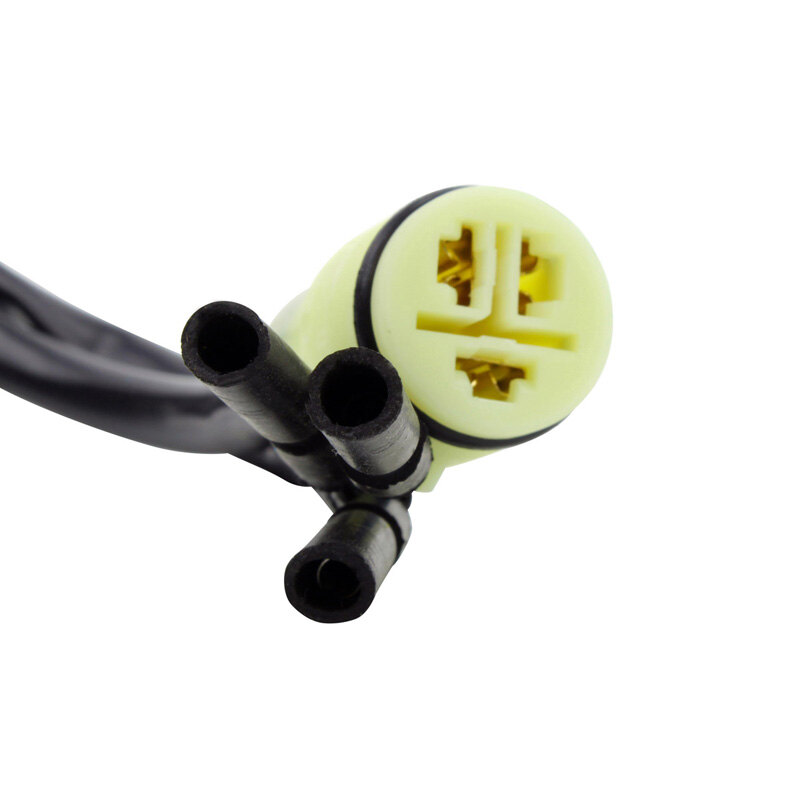

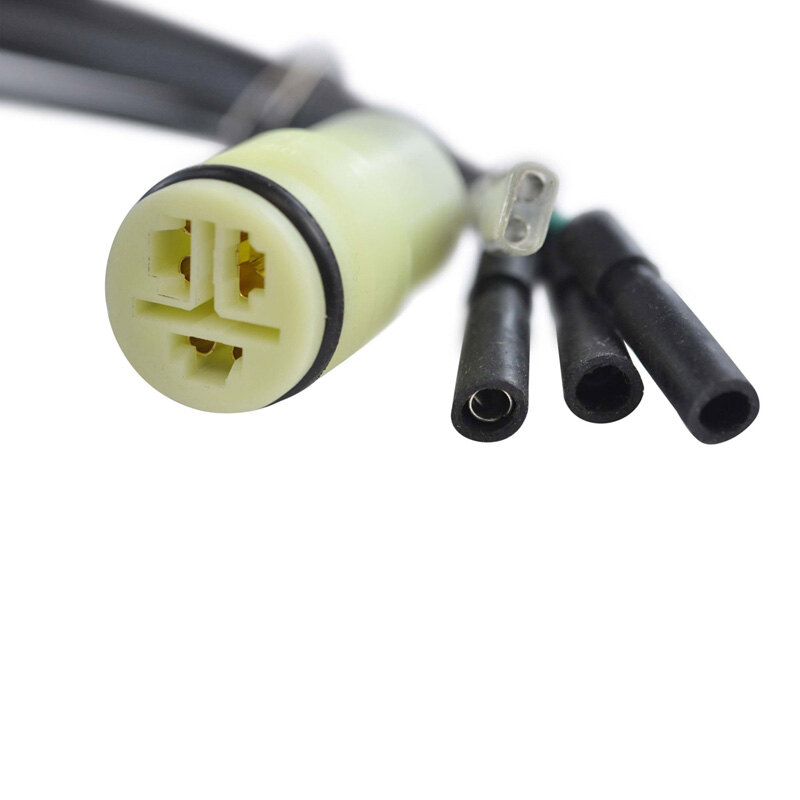

• Connector included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

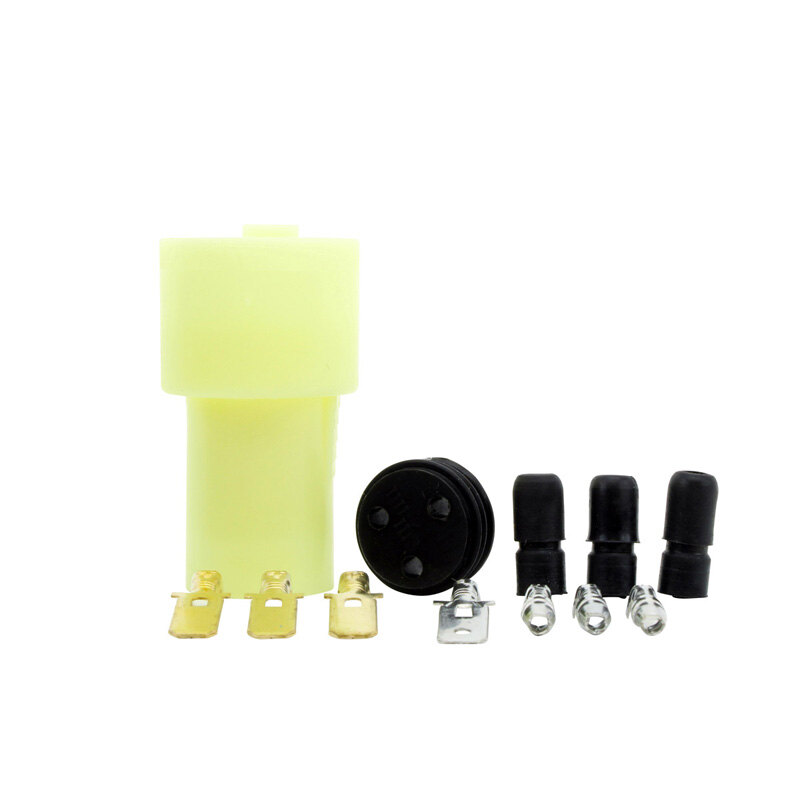

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires : 6
Number of pins : 7

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms \/-20%
Alternator : Yellow to Ground = 0.L
Source : Green to Black = 315ohms \/-20%

Warning:

Please note : Our stator is designed differently then the OEM part.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

This stator will not work for the \'D\' model.
