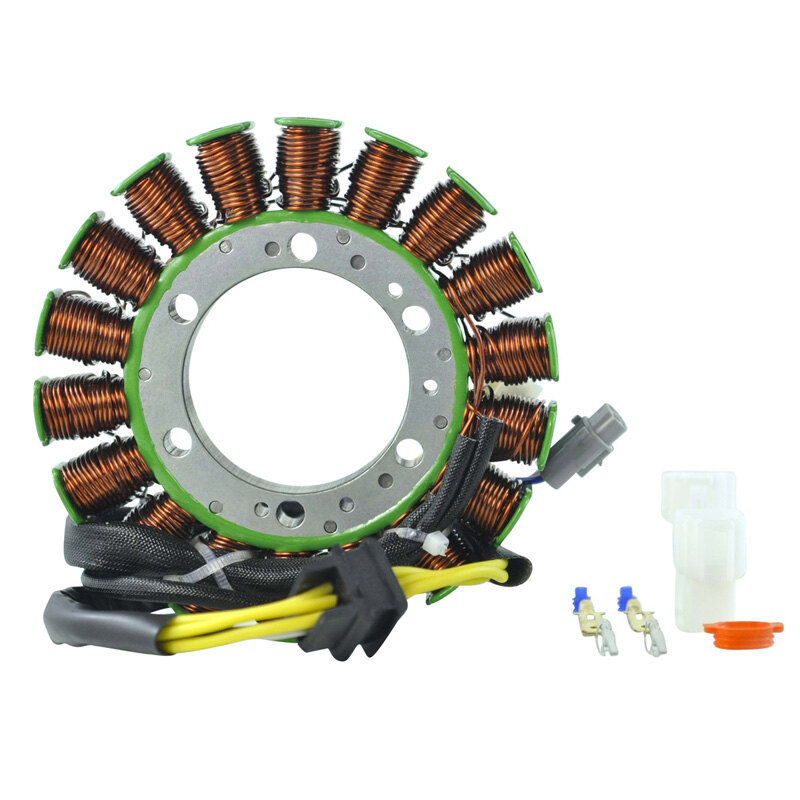

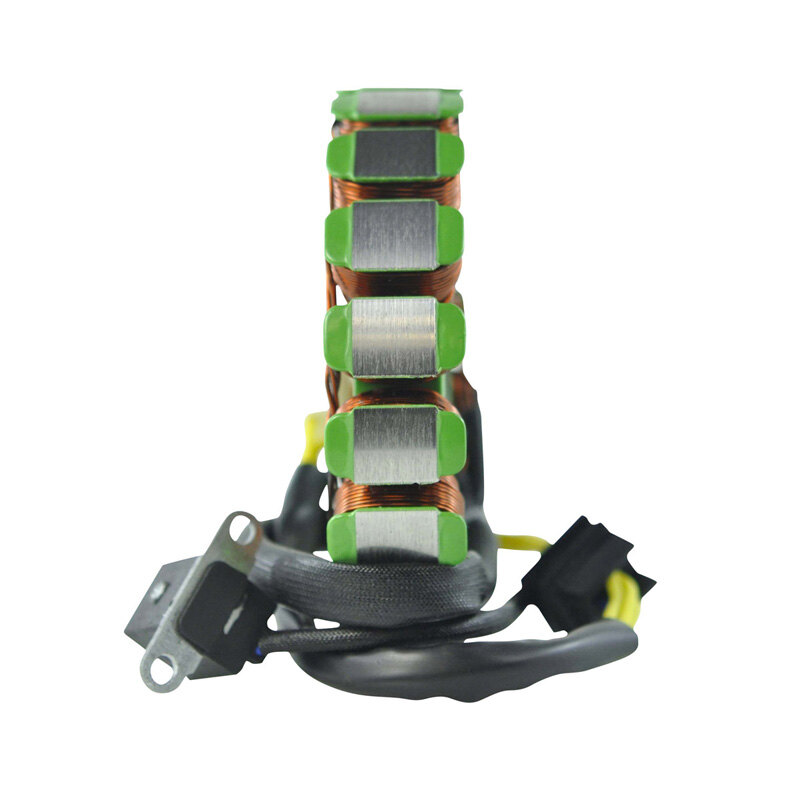

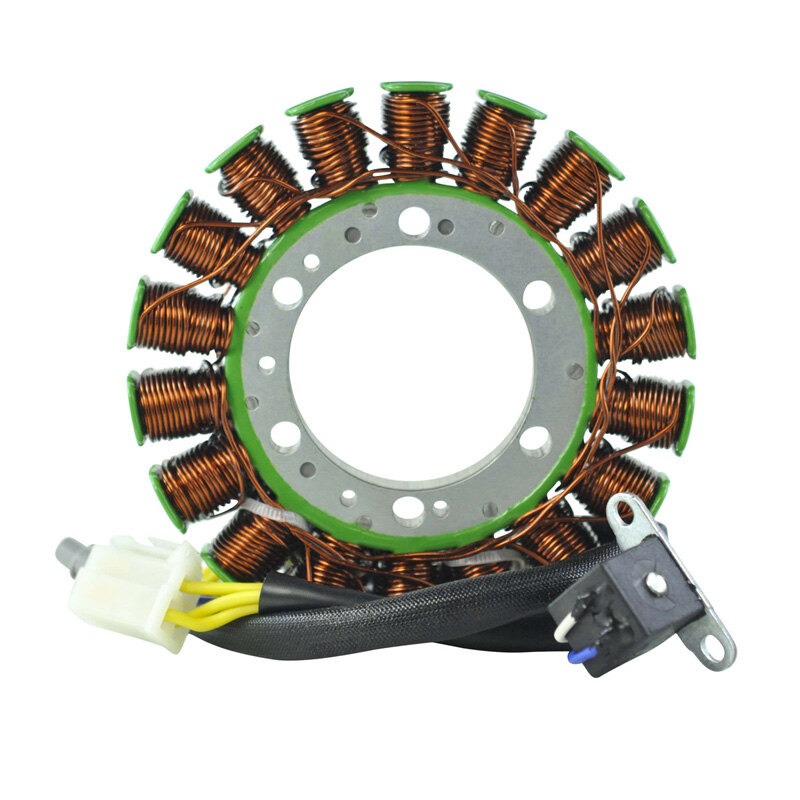

STATOR A-C WILDCAT 4/X 1000 12-19

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pickup coil included

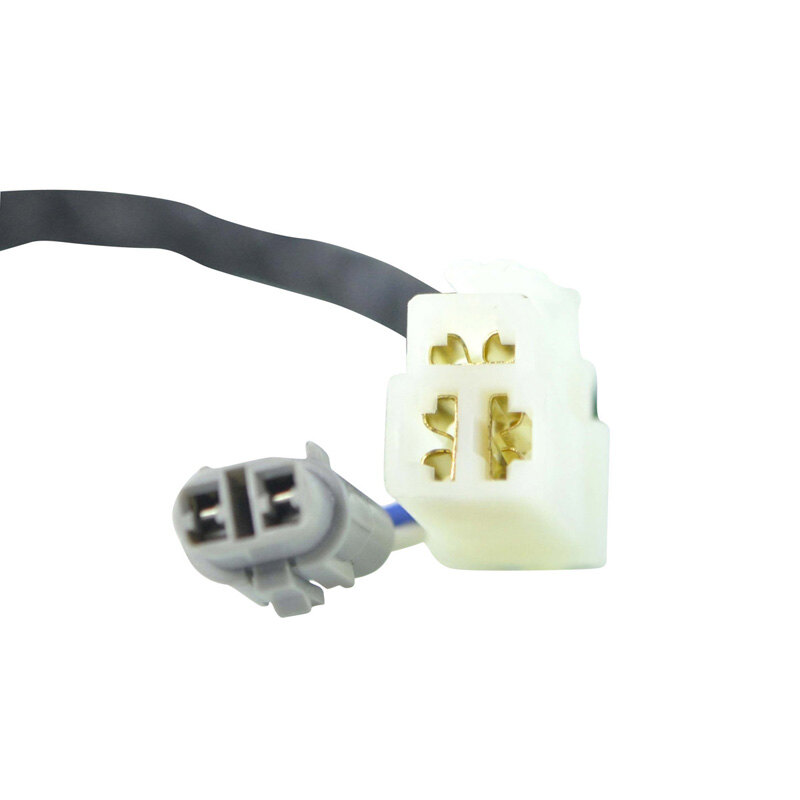

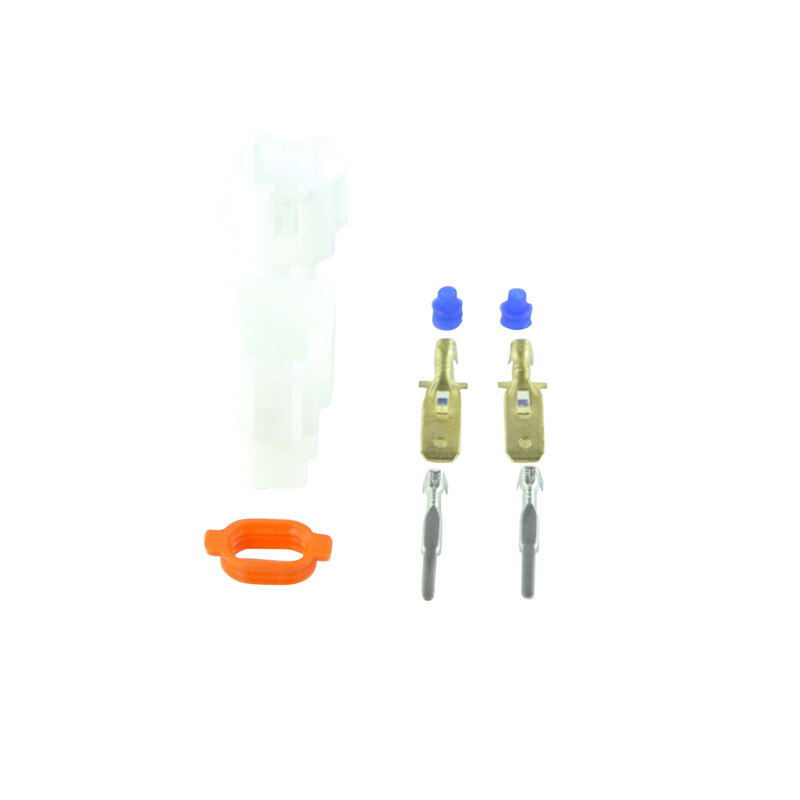

• Connector included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions

Interior Diameter : 54 mm
Exterior Diameter : 126 mm
Thickness : 20 mm
Number of wires : 5
Number of plugs : 2

Alternator : Yellow to Yellow = 0.4 ohms \/- 20 %
Pickup Coil : Blue to White = 200 ohms \/- 20 %

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
