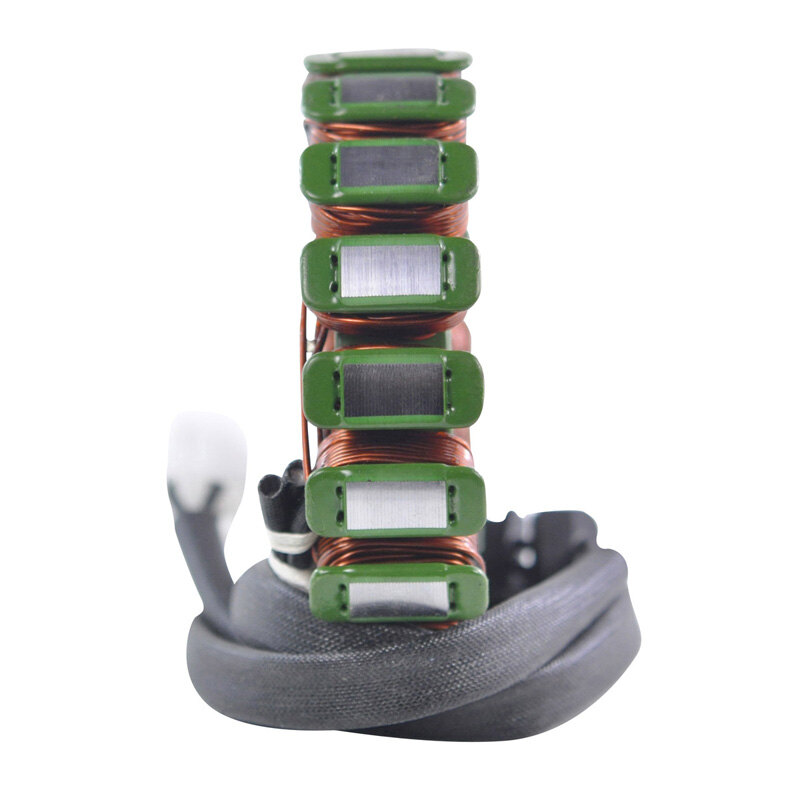

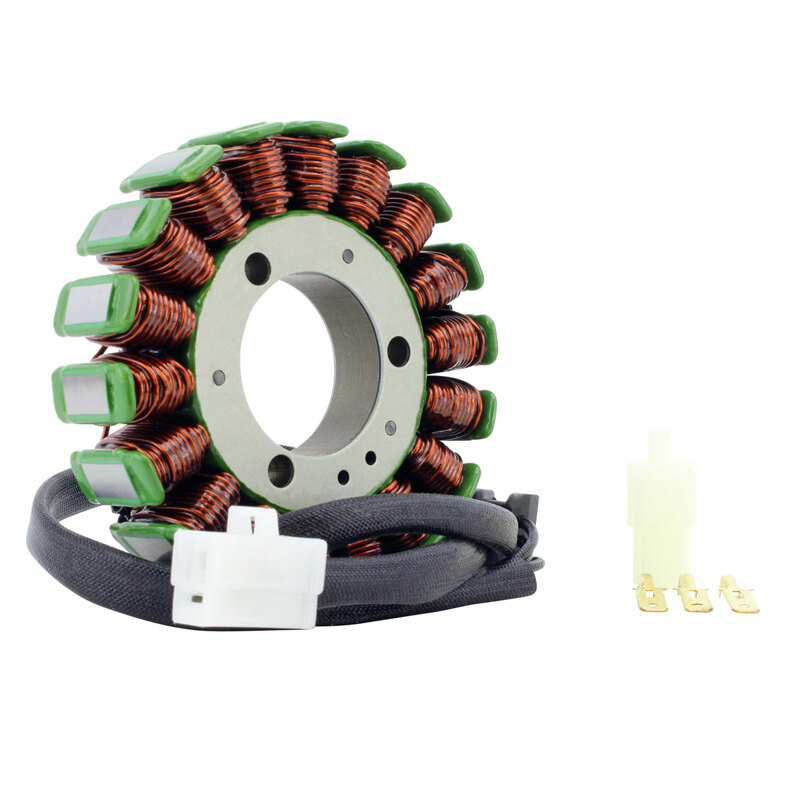

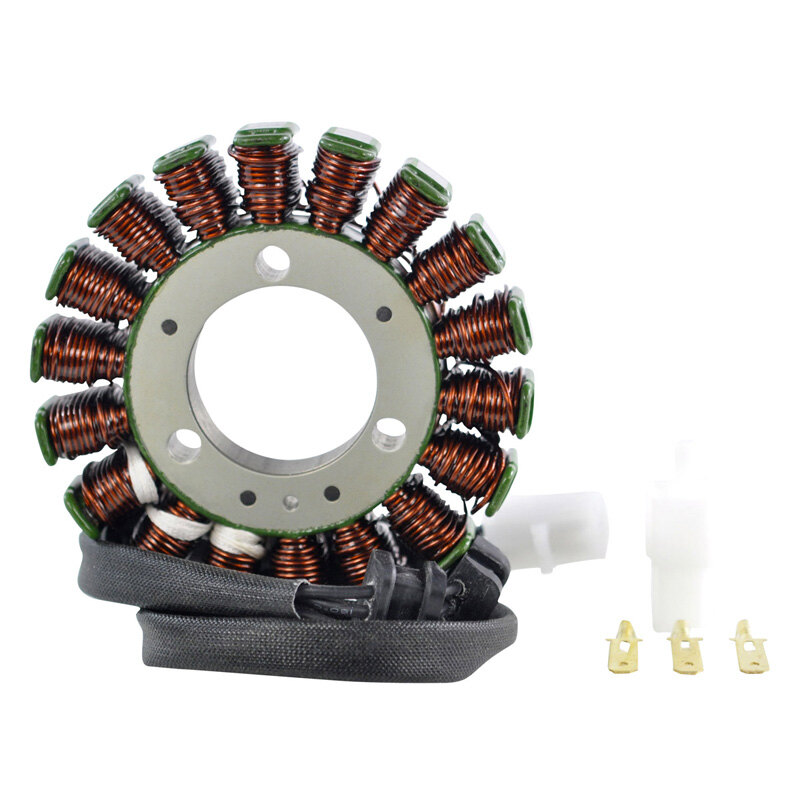

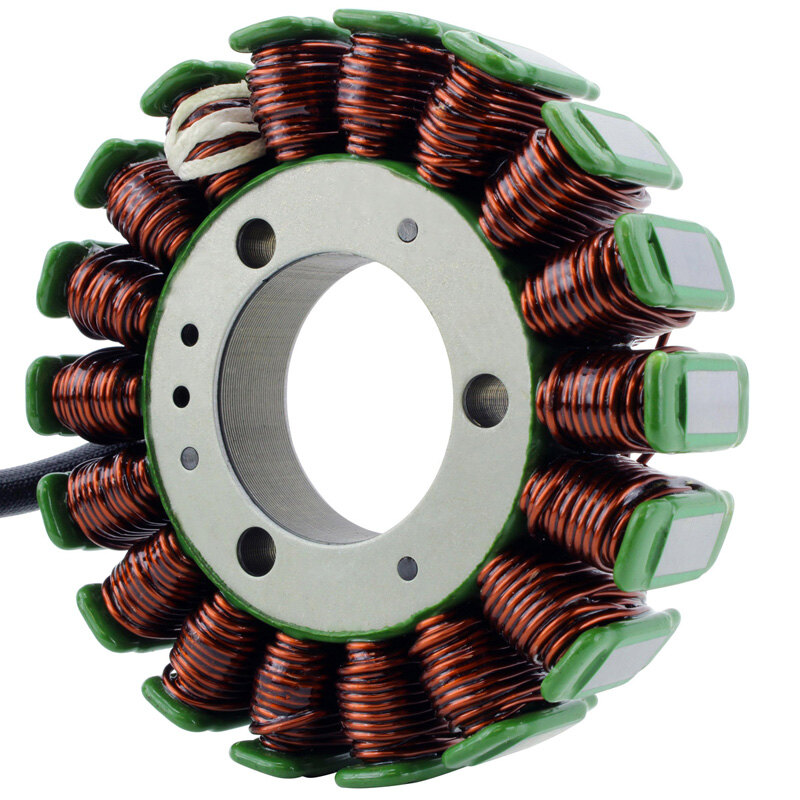

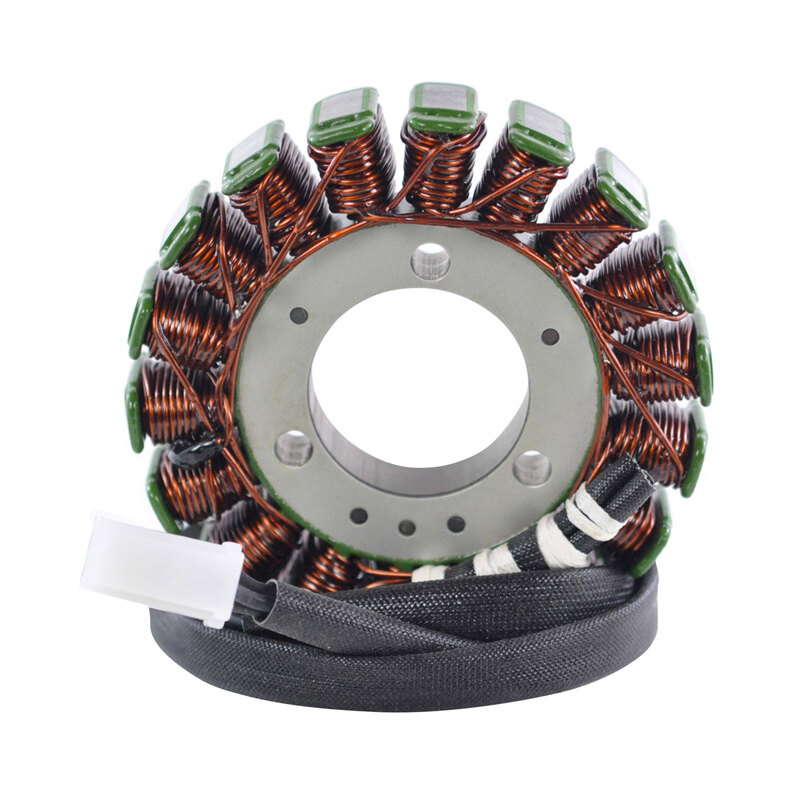

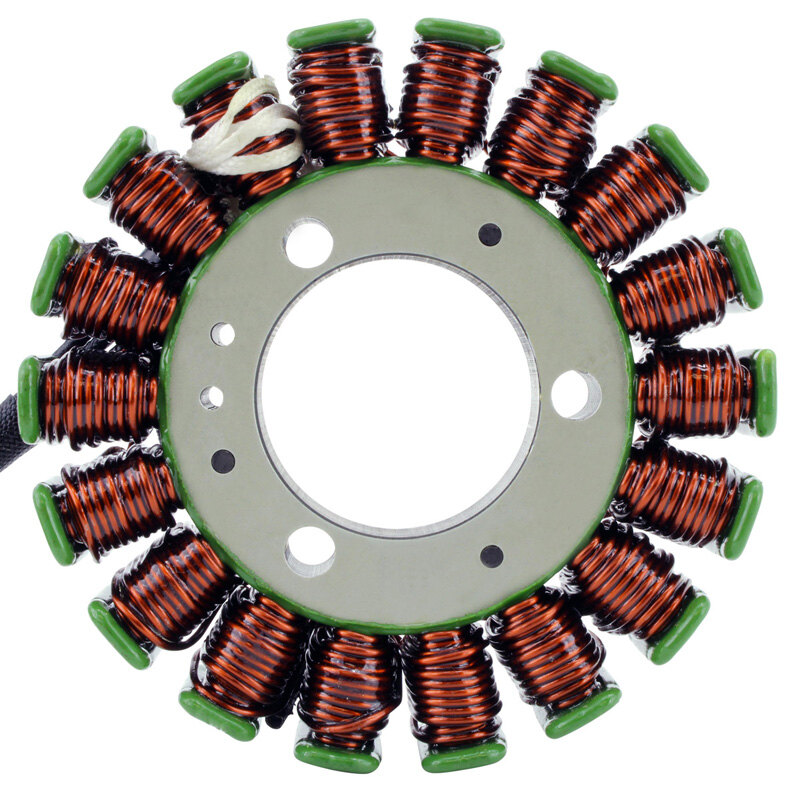

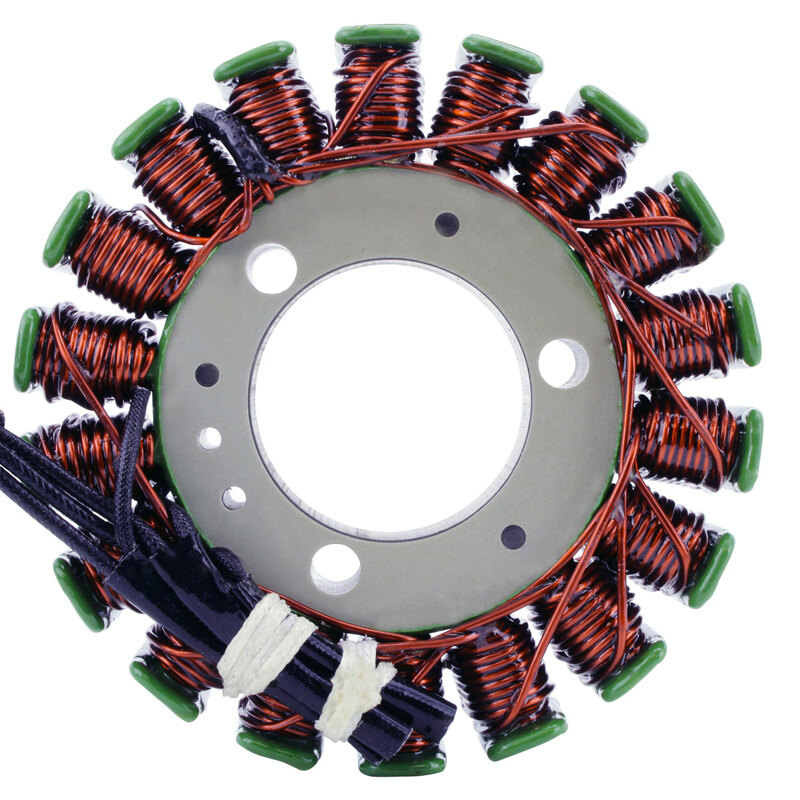

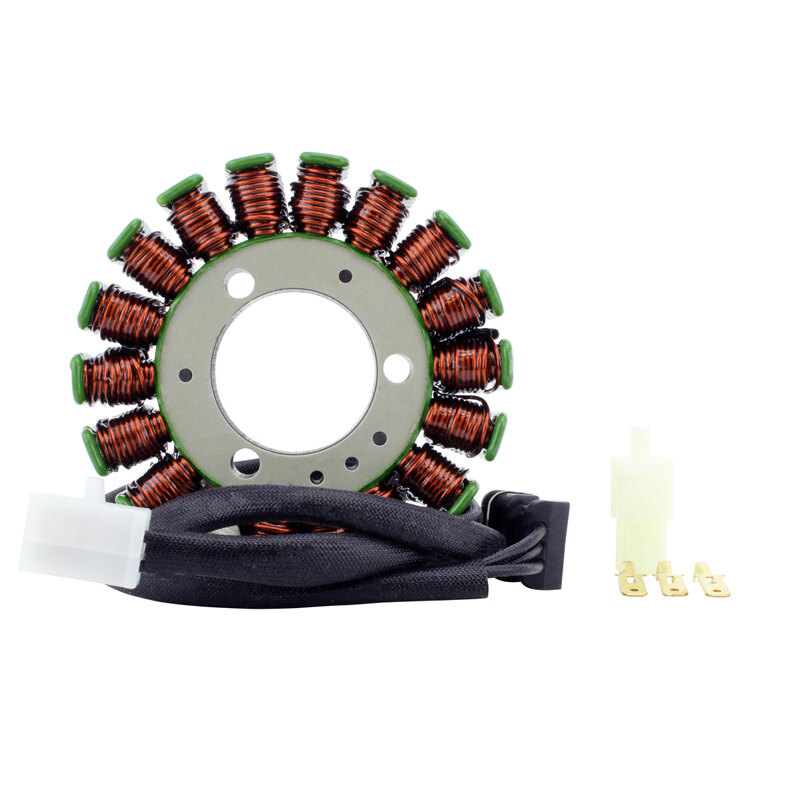

STATOR KAW KLF300 BAYOU 88-06

Brand new aftermarker stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

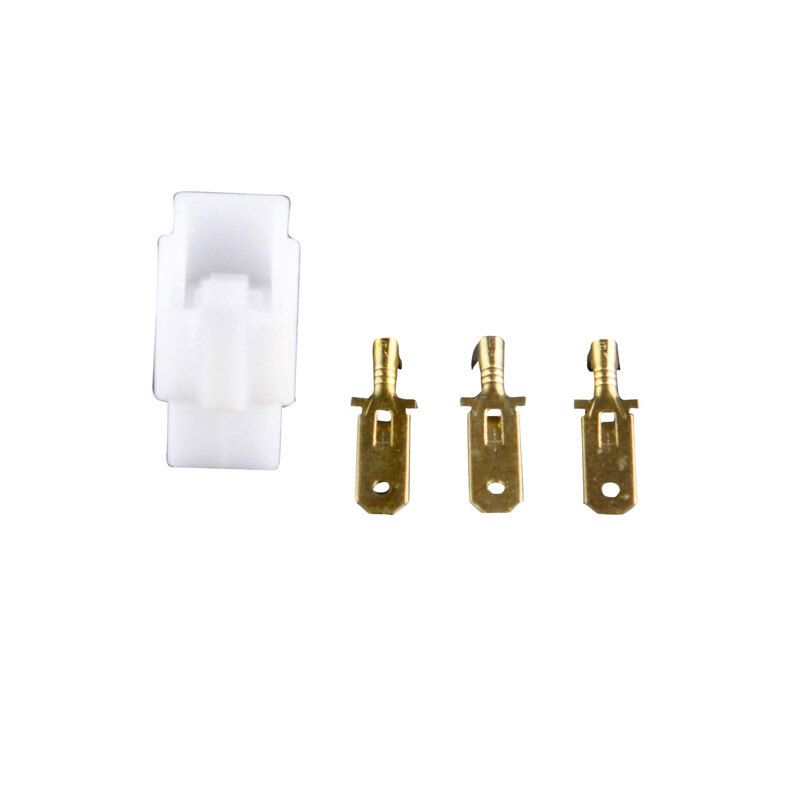

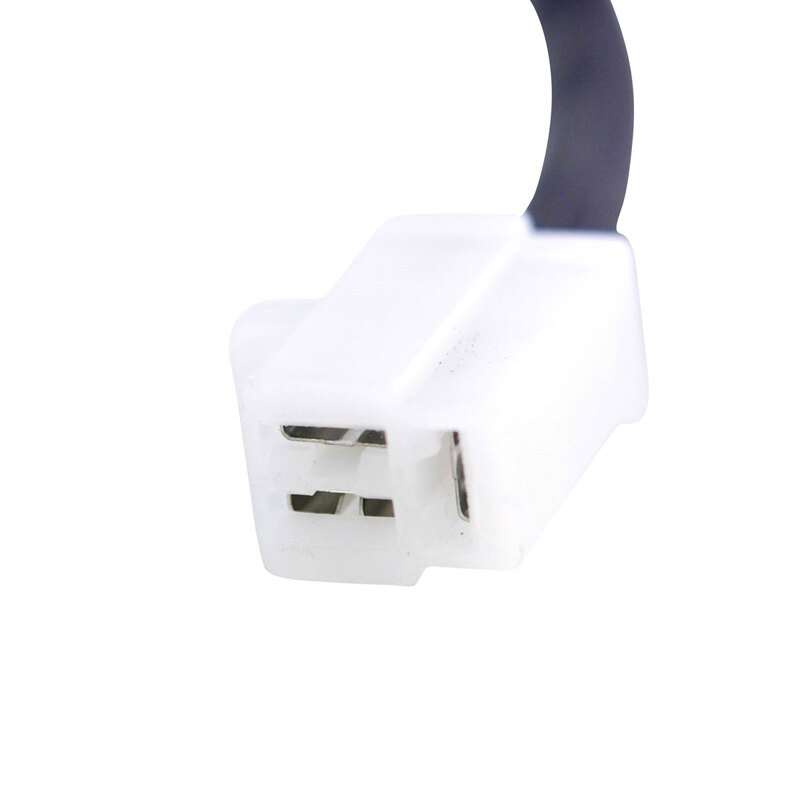

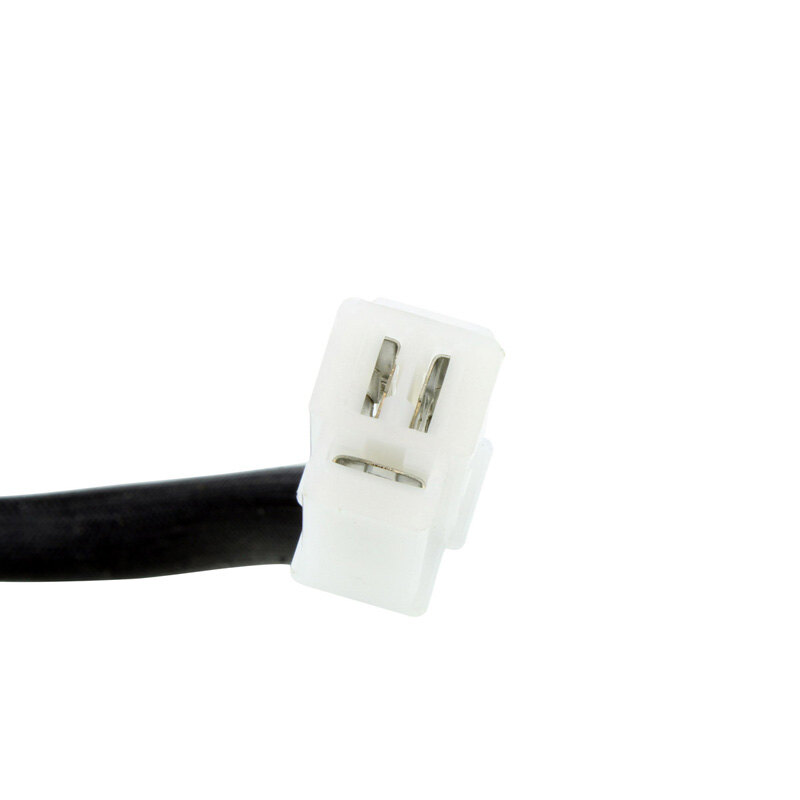

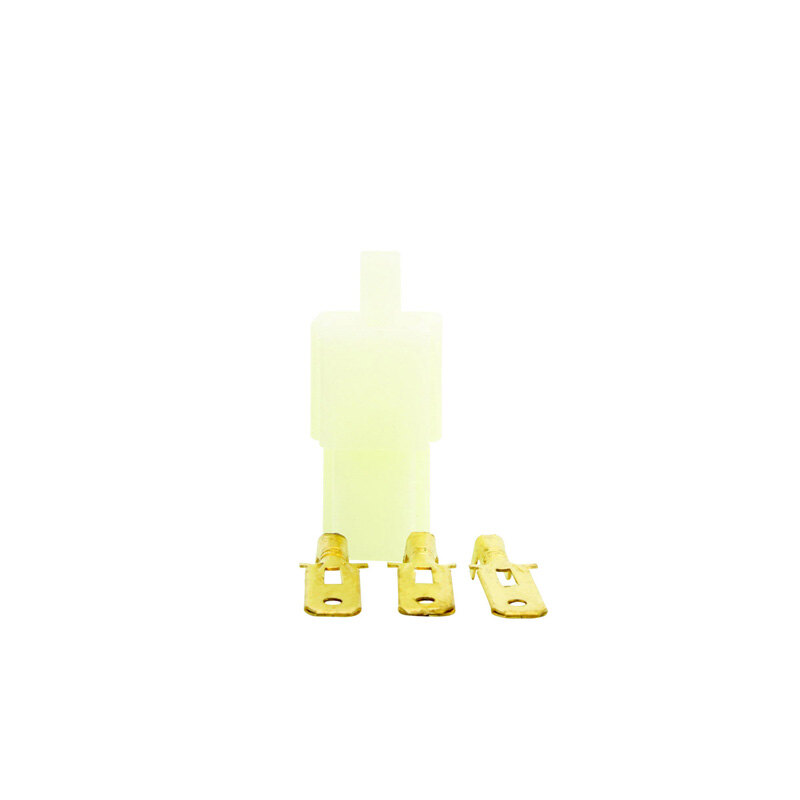

• Connector included
• Rubber grommet included
• All product shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 28mm
Exterior diameter : 102mm
Thickness : 20mm
Length of wires stator to grommet : 700mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator 1 : White between each White = 0.6ohms \/-20%
Alternator 2 : White to the Ground = 0.L

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
