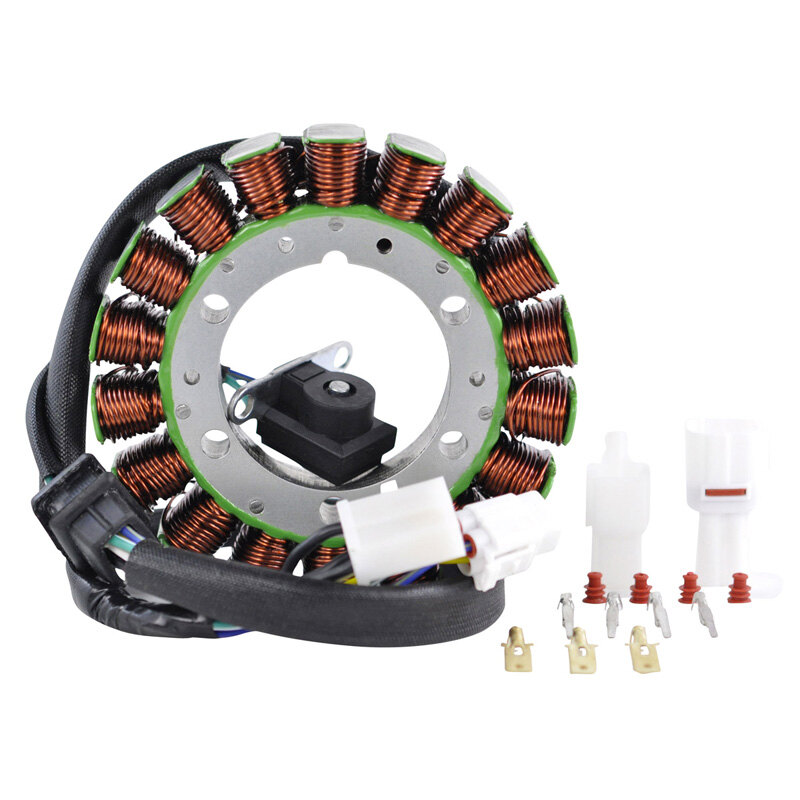

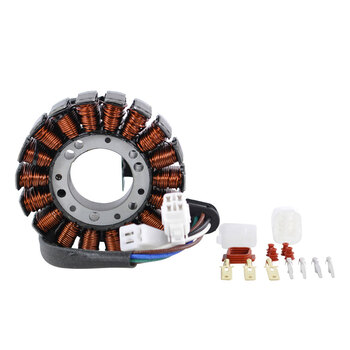

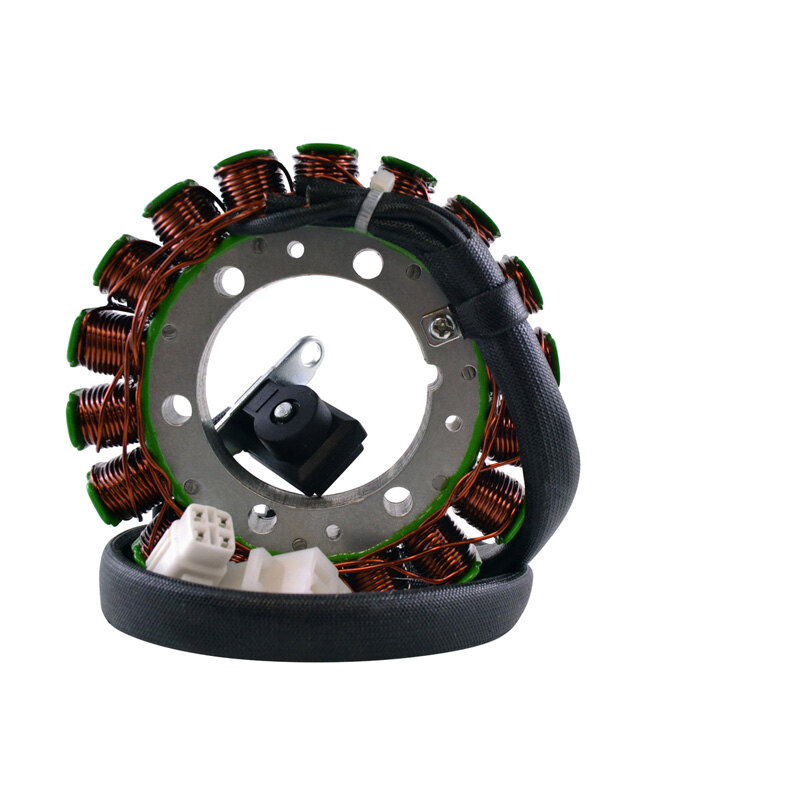

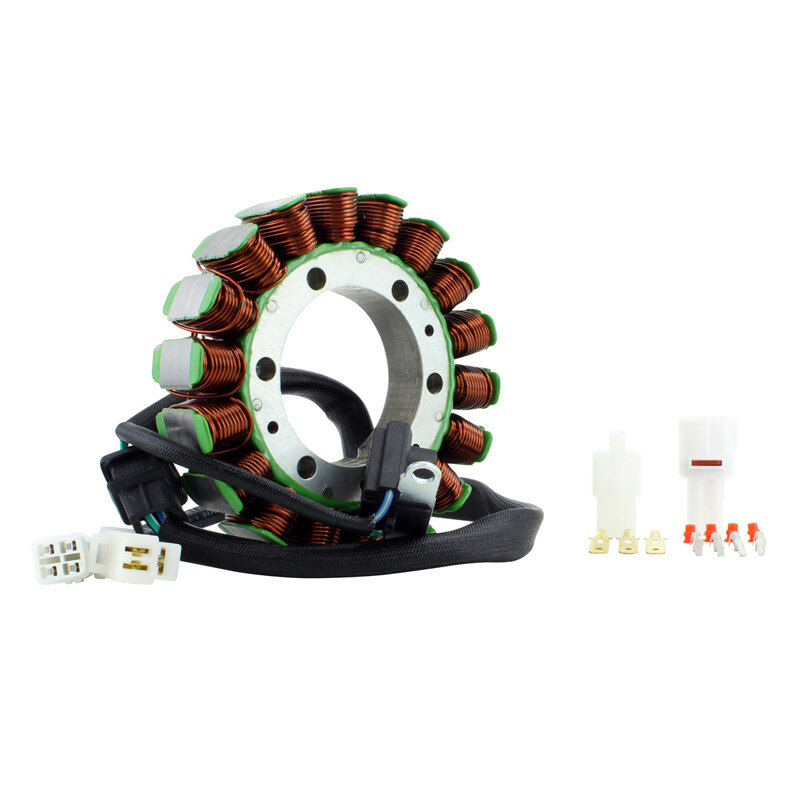

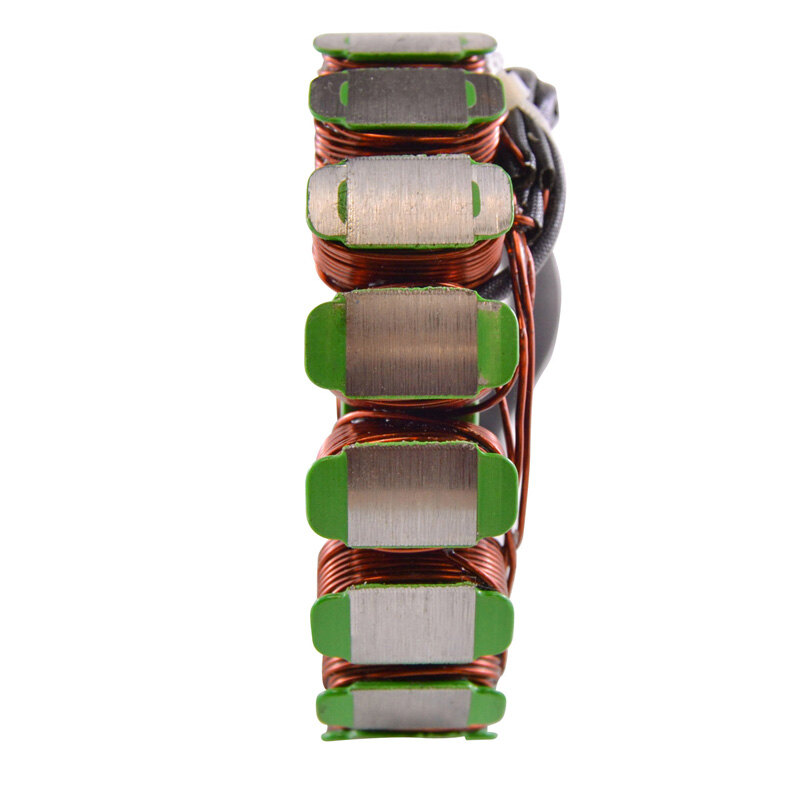

STATOR A-C 350-500|TRV 400-500 08-19

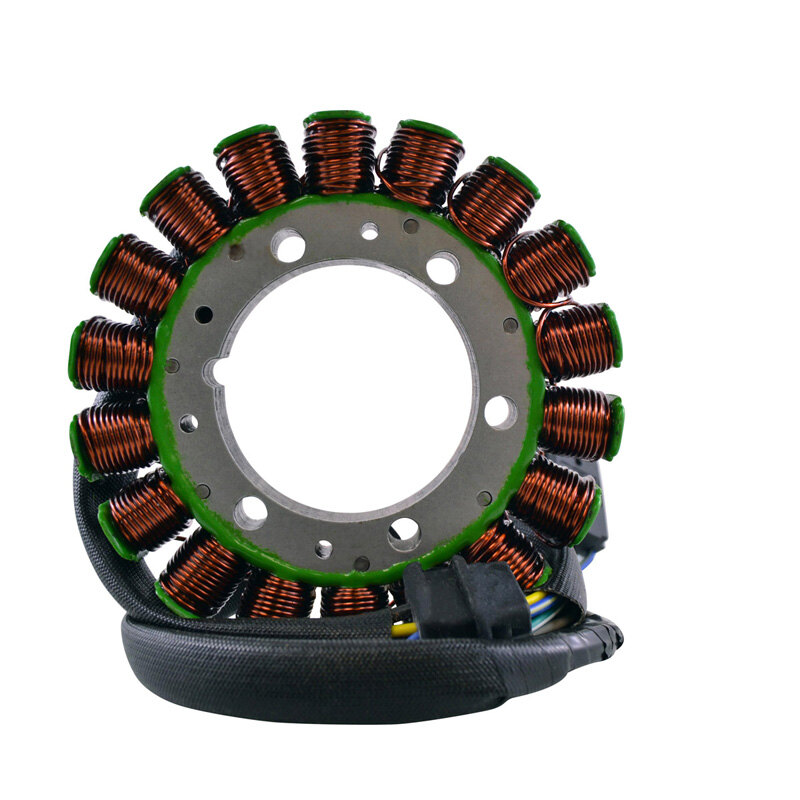

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

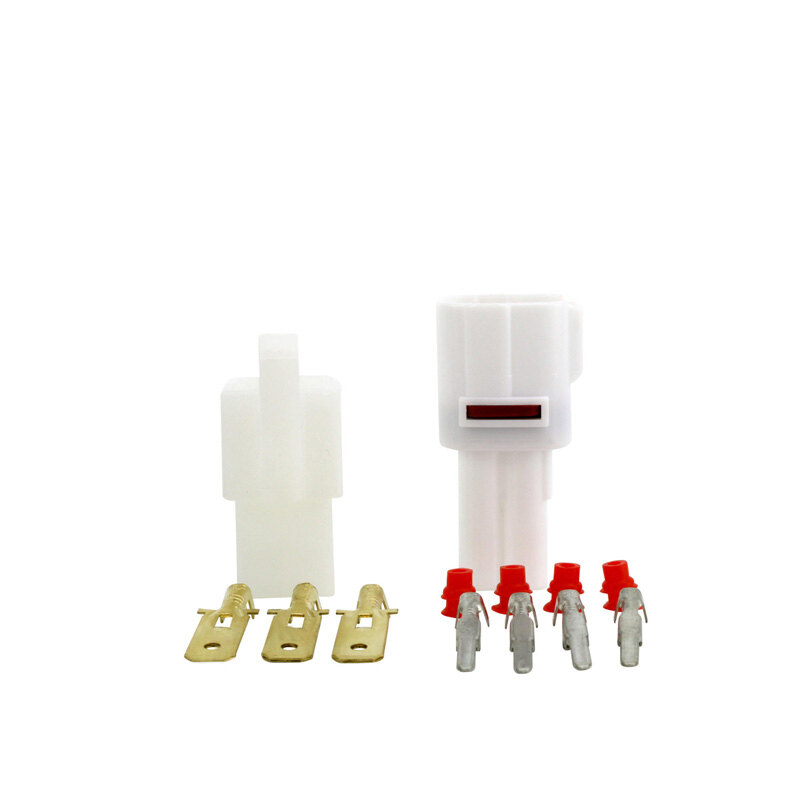

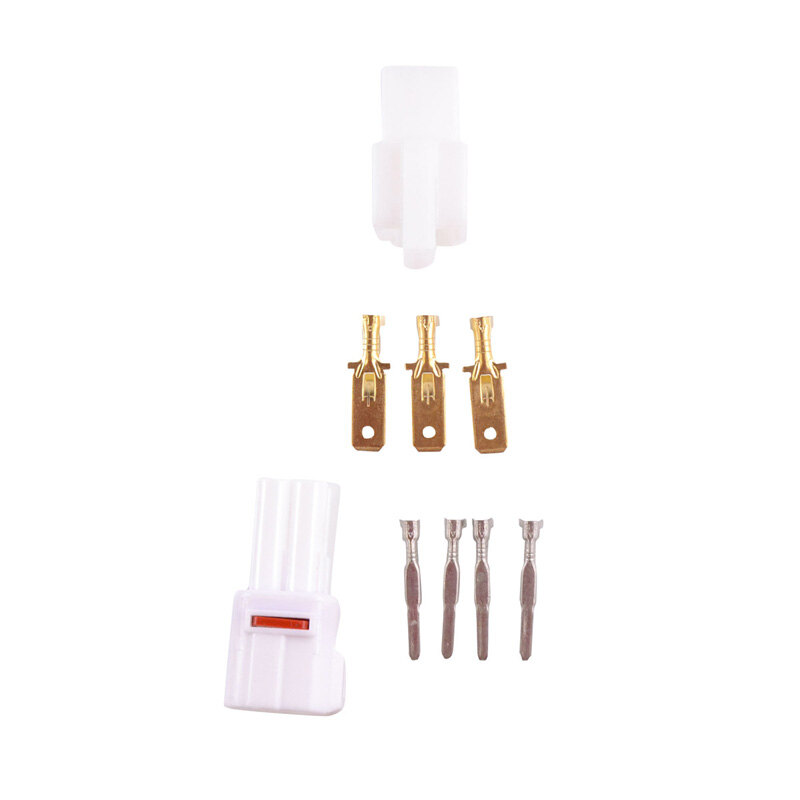

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :

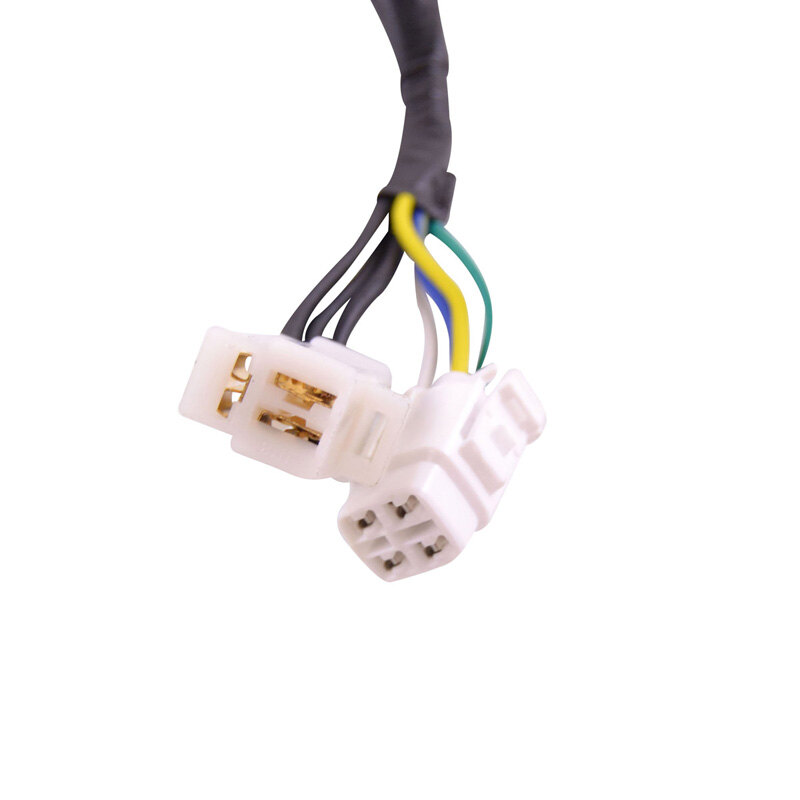

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : Black between each Black = 0.4ohms \/-20%
Pickup : Blue to Green = 185 ohms \/-20%
Position Sensor : White to Yellow = 0.2ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
