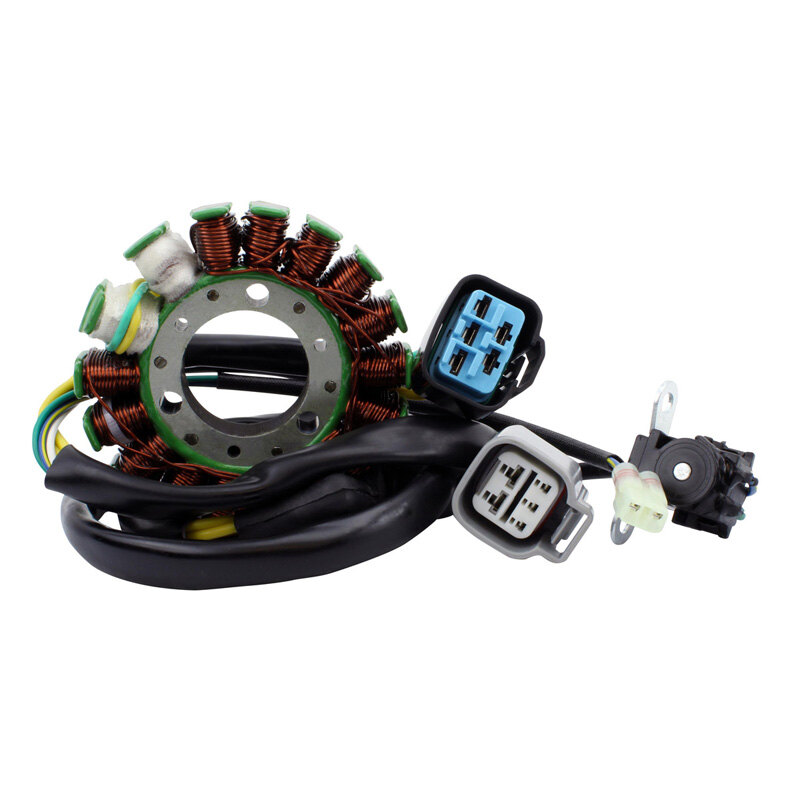

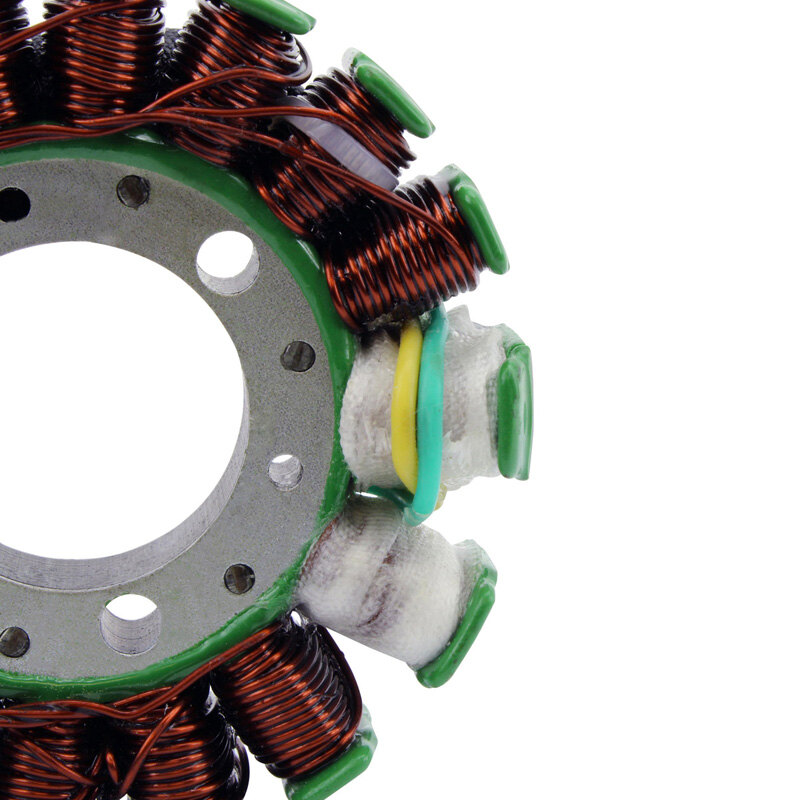

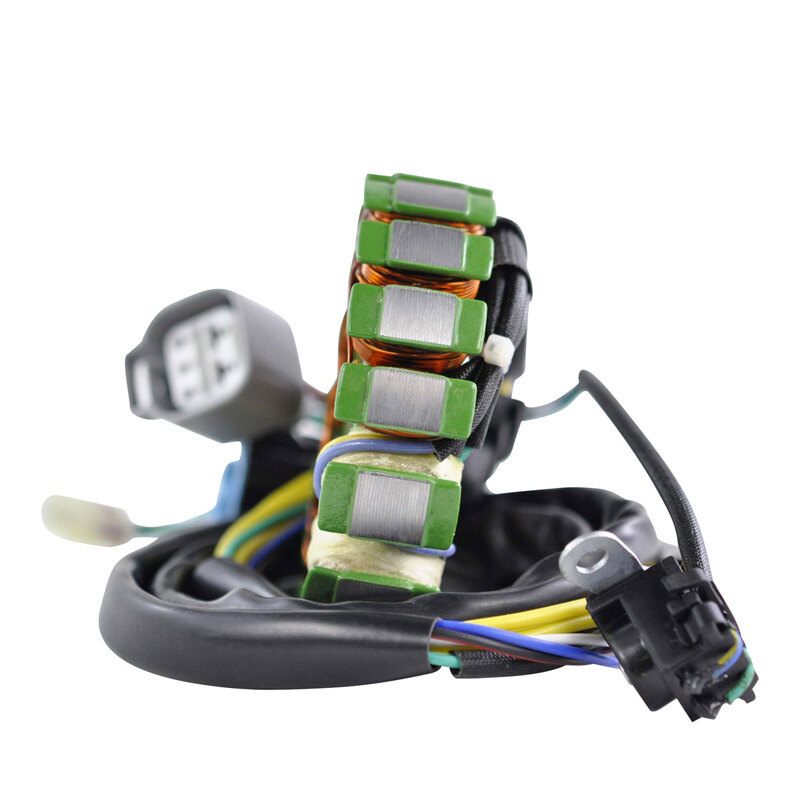

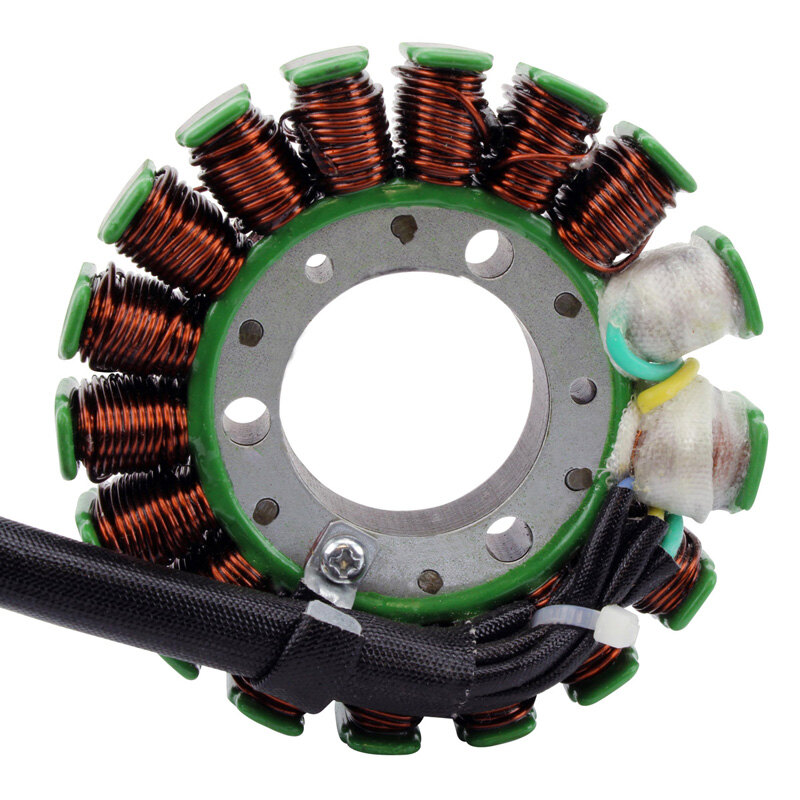

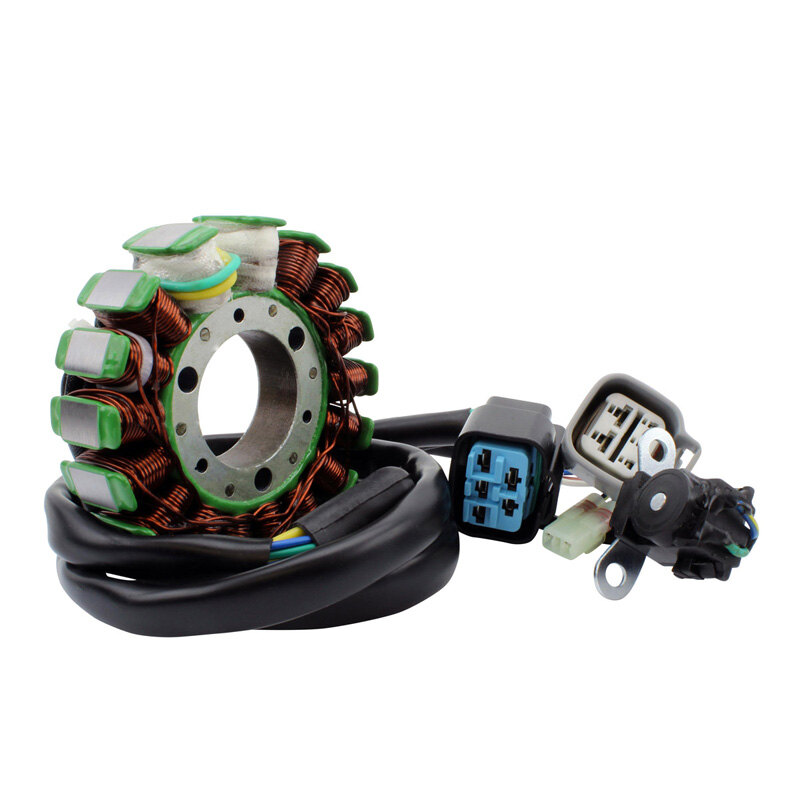

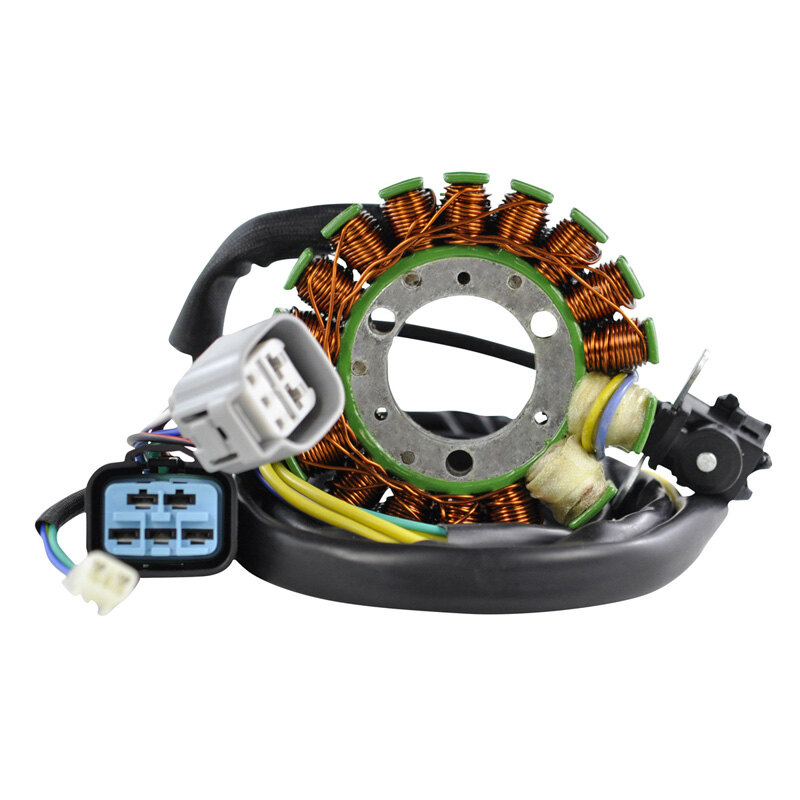

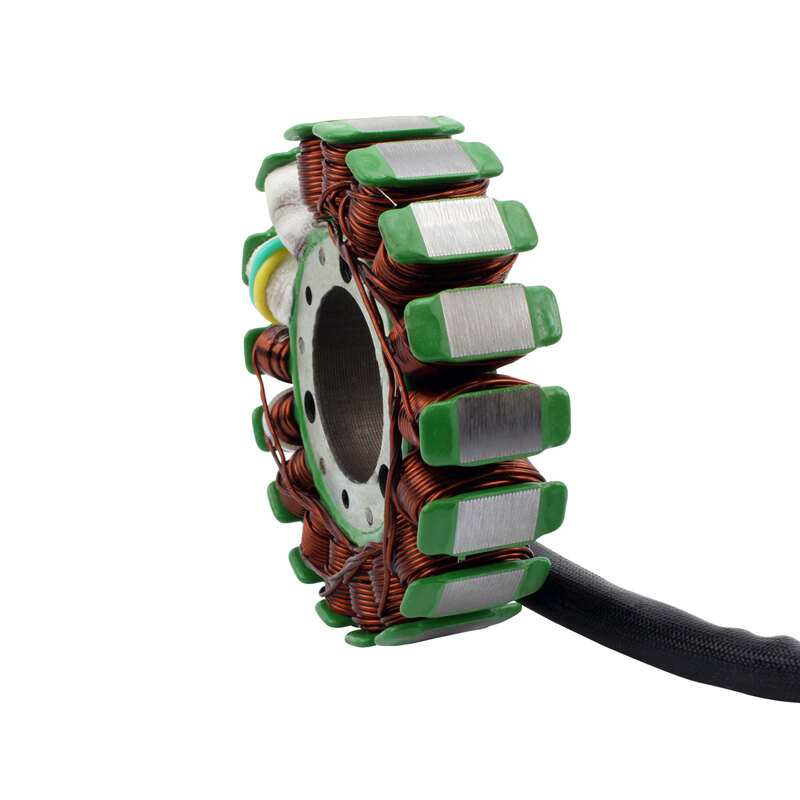

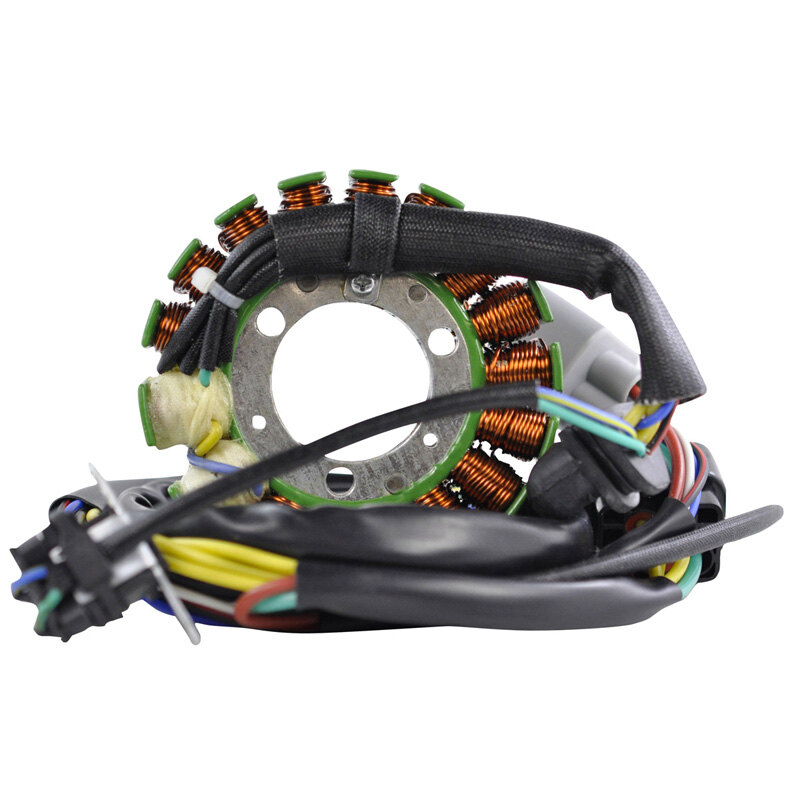

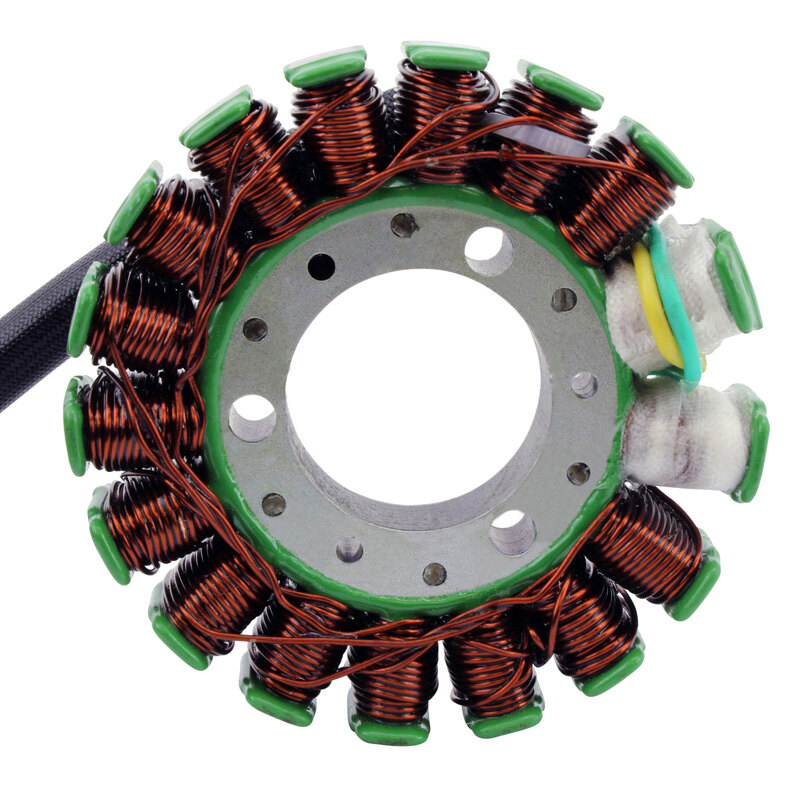

STATOR HON TRX450R/ER 06-14

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

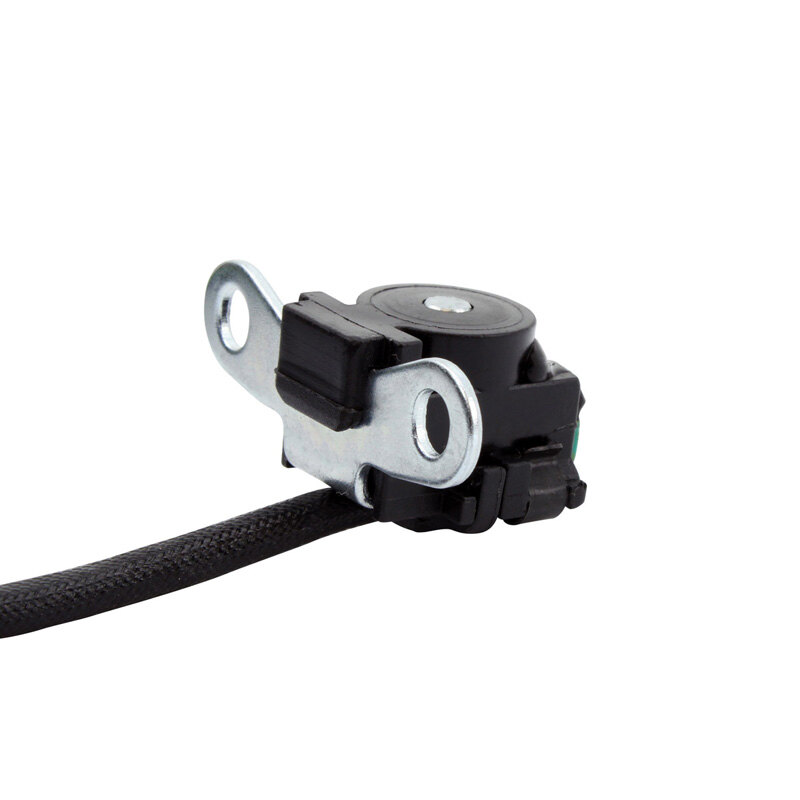

• Pick up pulsar coil included

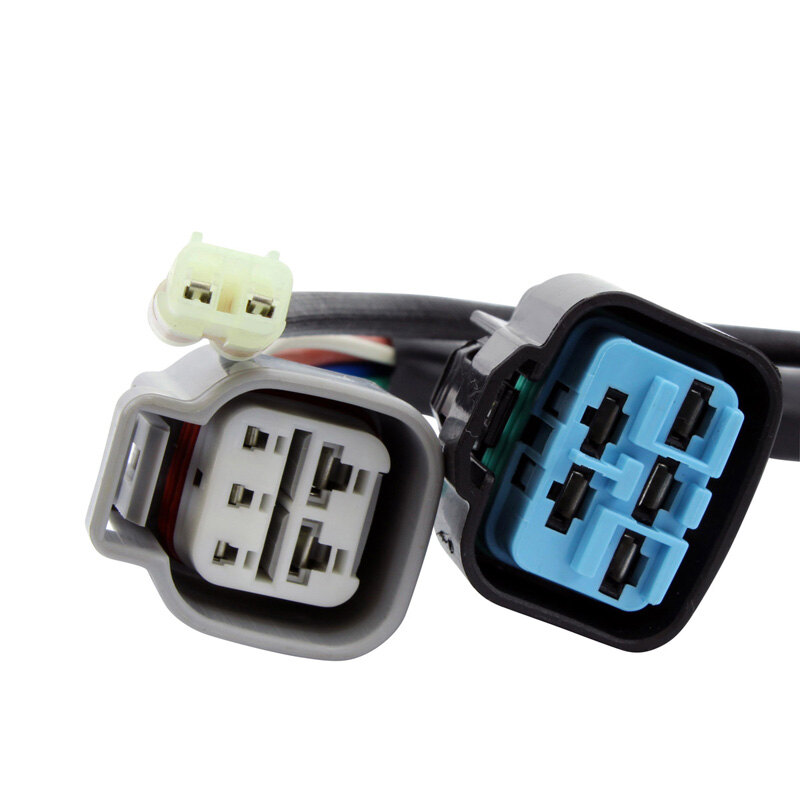

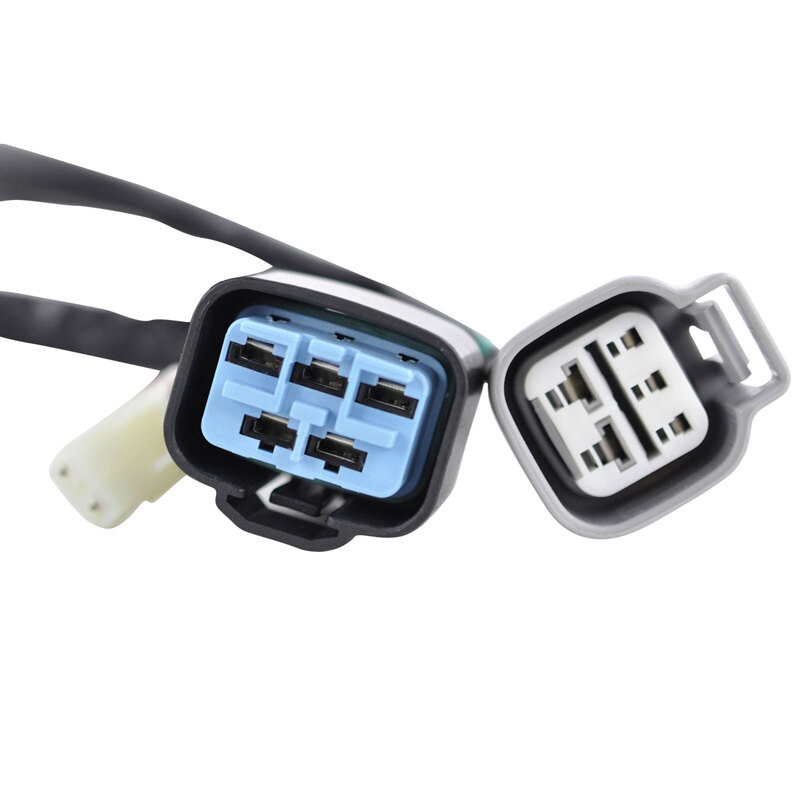

• Connector included
• Rubber grommet included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires : 12
Number of plugs : 3
Number of pins : 12

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms \/-20%
Pickup : Green to Blue = 250 ohms \/-20%
Source 1 : Black / Red to Blue = 36 ohms \/-20%
Source 2 : Blue to White = 9 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
