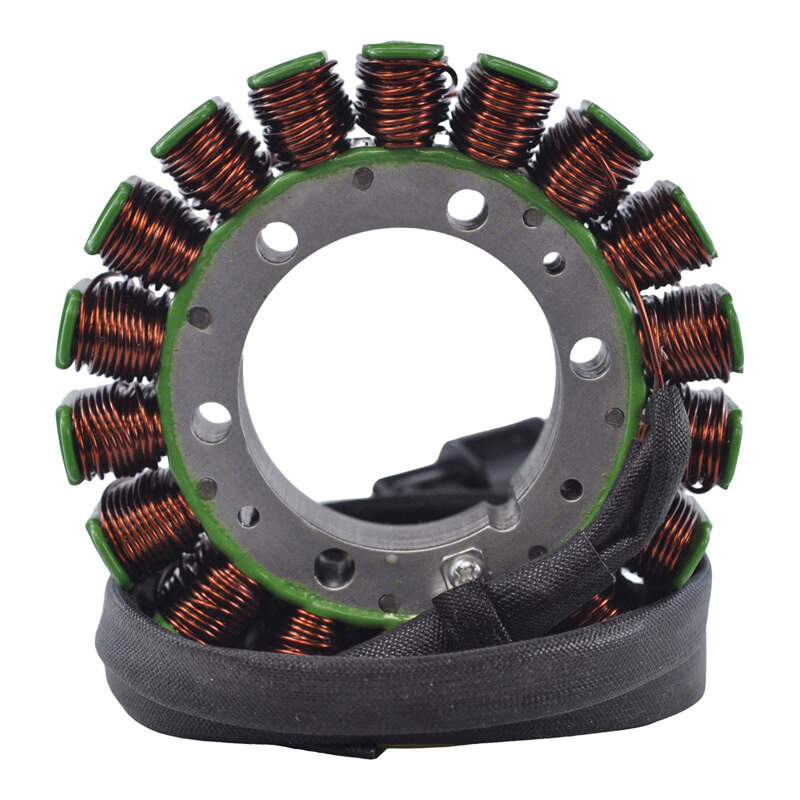

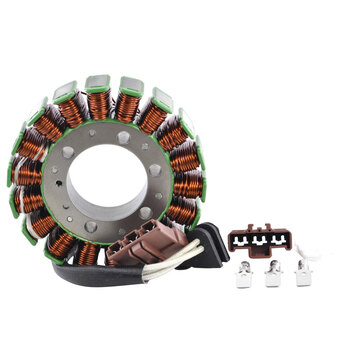

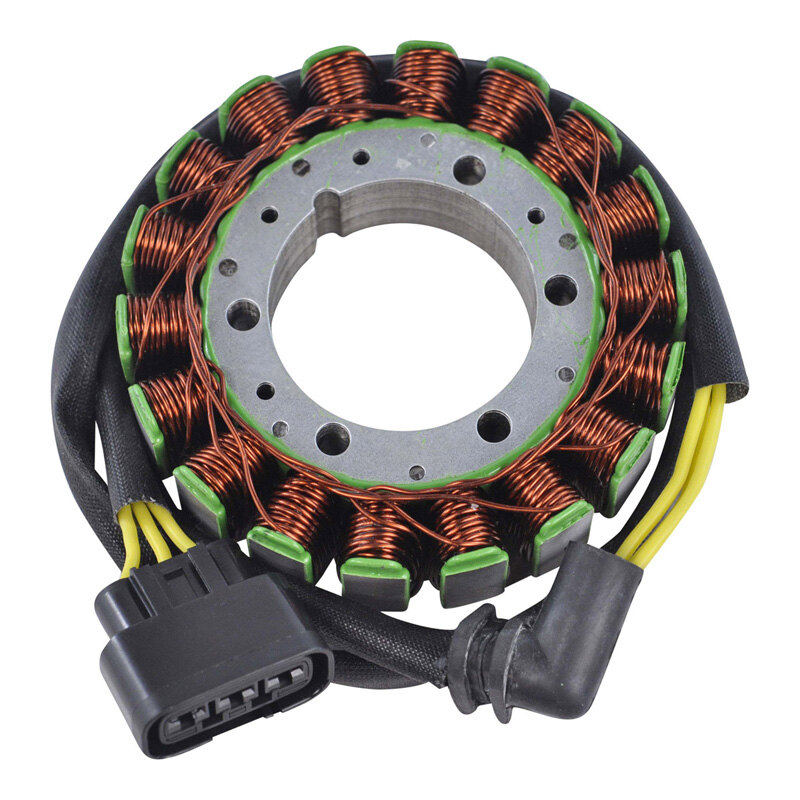

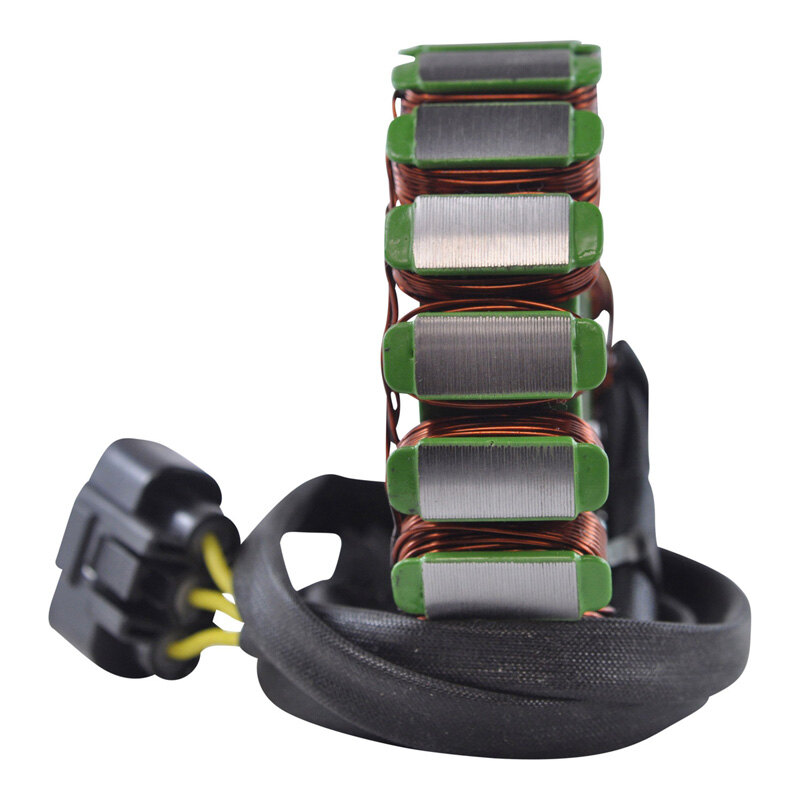

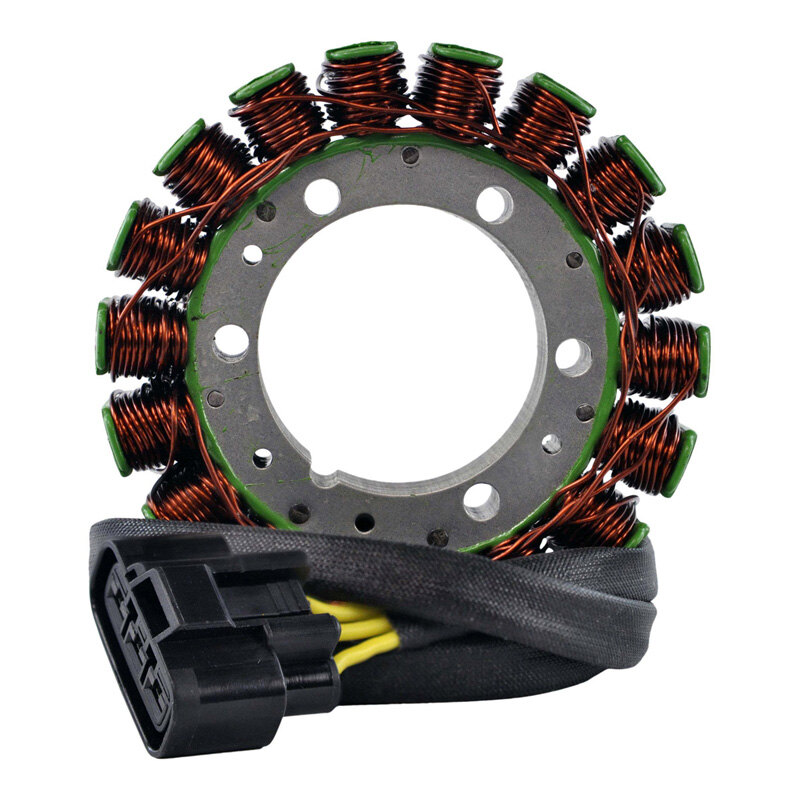

STATOR CAN-AM SPYDER RS-S ROADSTER 990 08-13

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

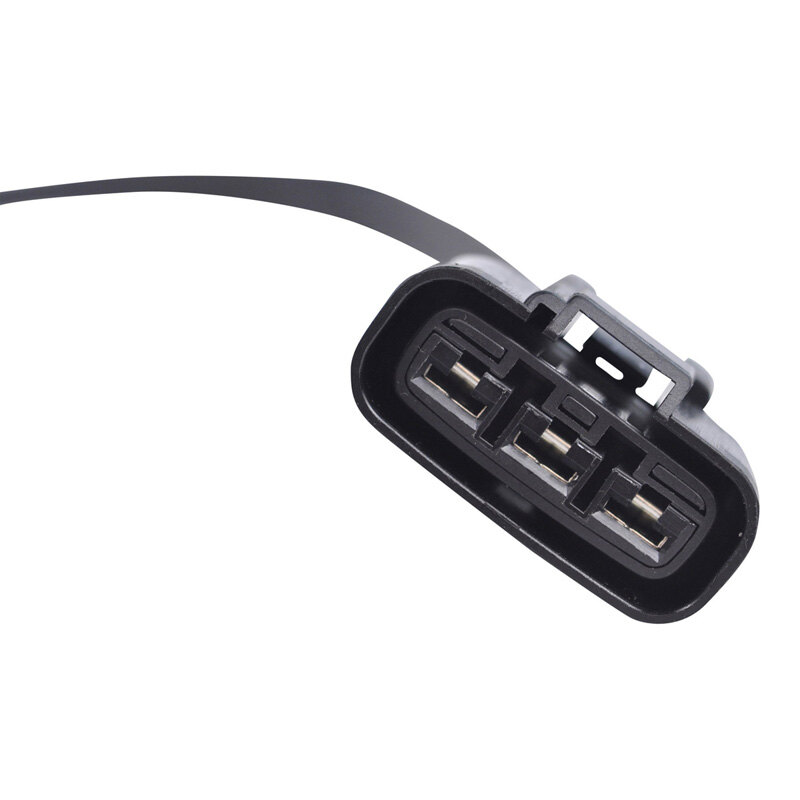

• Connector included
• Rubber grommet included
• All product shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimension :
Interior diameter = 54 mm
Exterior diameter = 115 mm
Width = 25 mm

Other specifications :
Number of wires = 3
Number of plug = 1
Number of terminals = 3
Harness length Stator to grommet = 140 mm
Harness length grommet to plug = 780 mm

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.5 ohms \/- 20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
