Stock #  351010344

STATOR KAW KVF750|KRF800|KRT750/800 12-23

Dealer Price $310.99 CAD
Overview

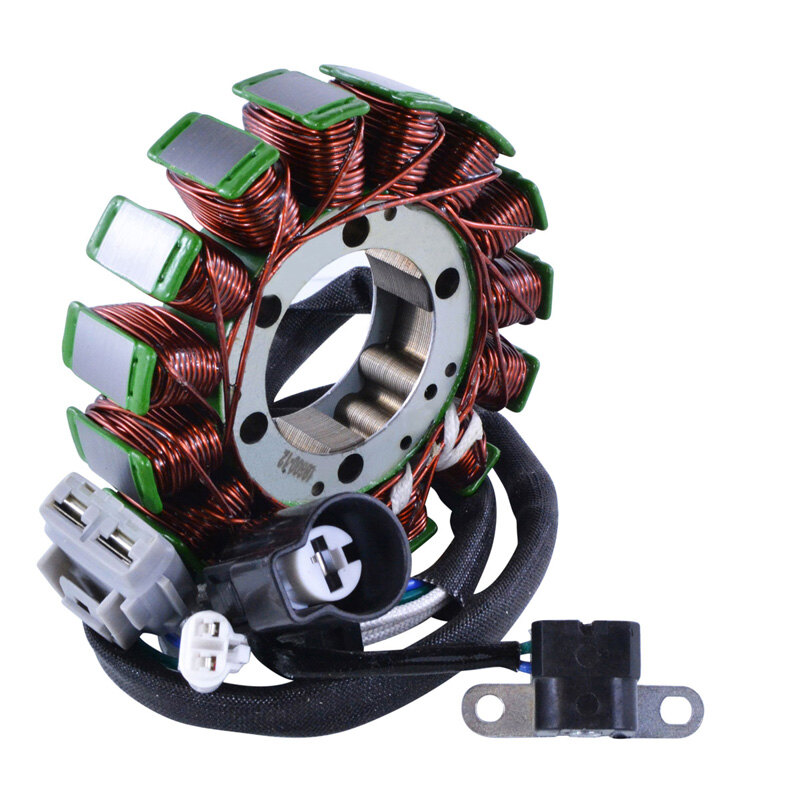

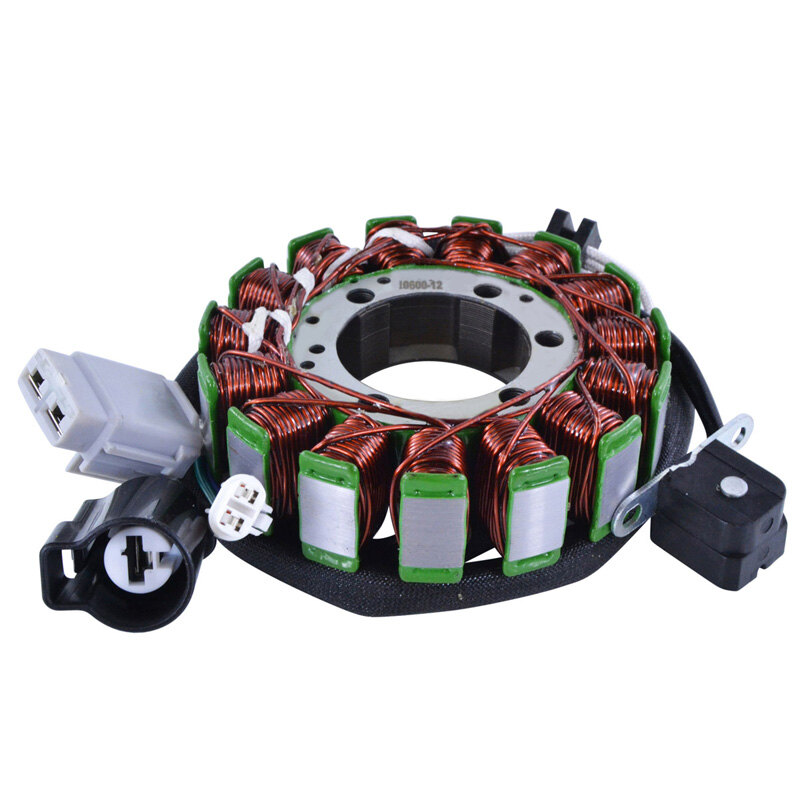

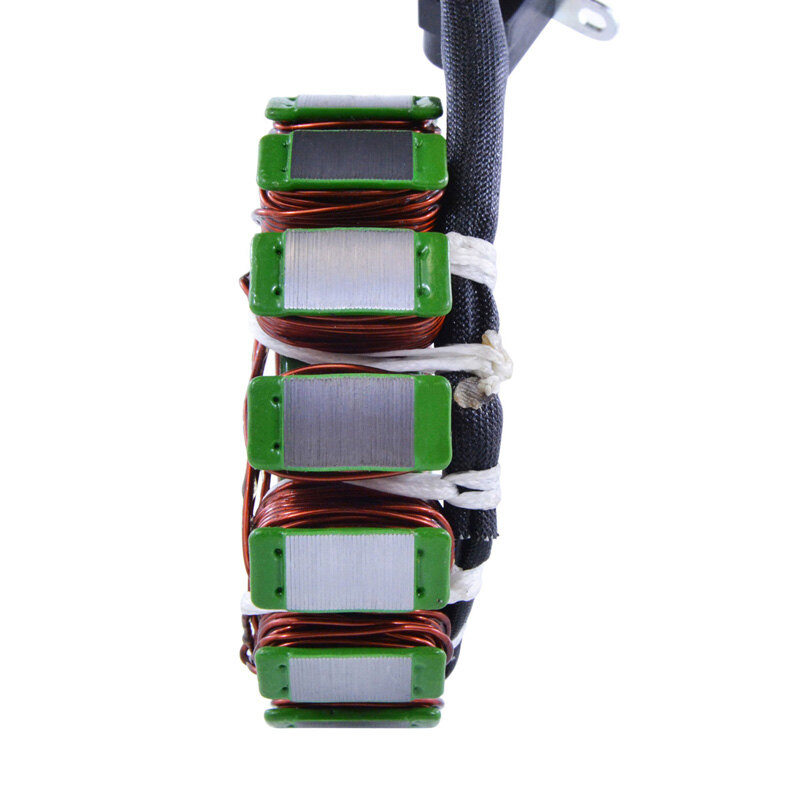

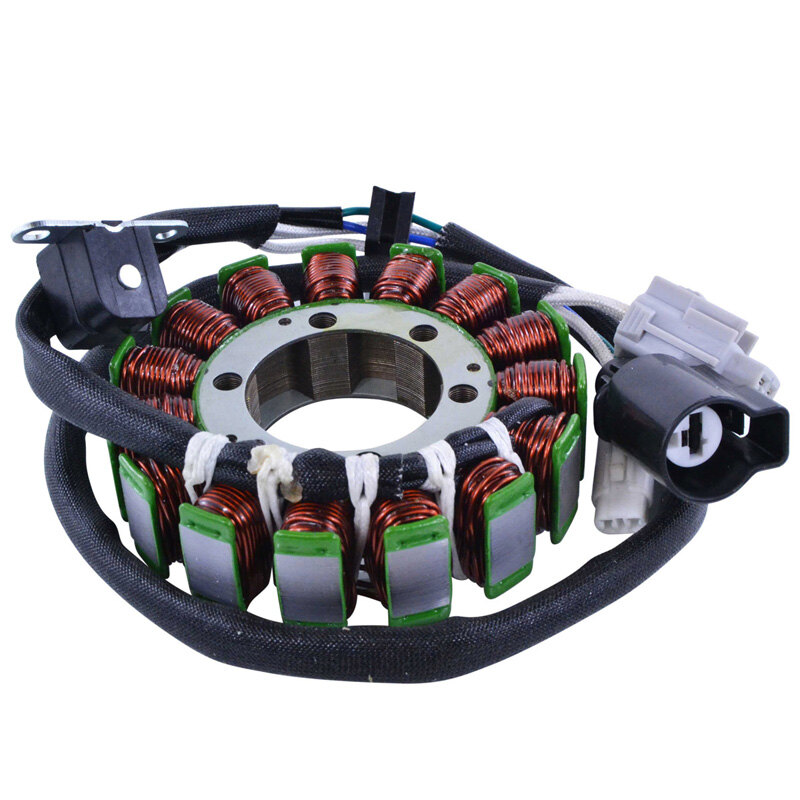

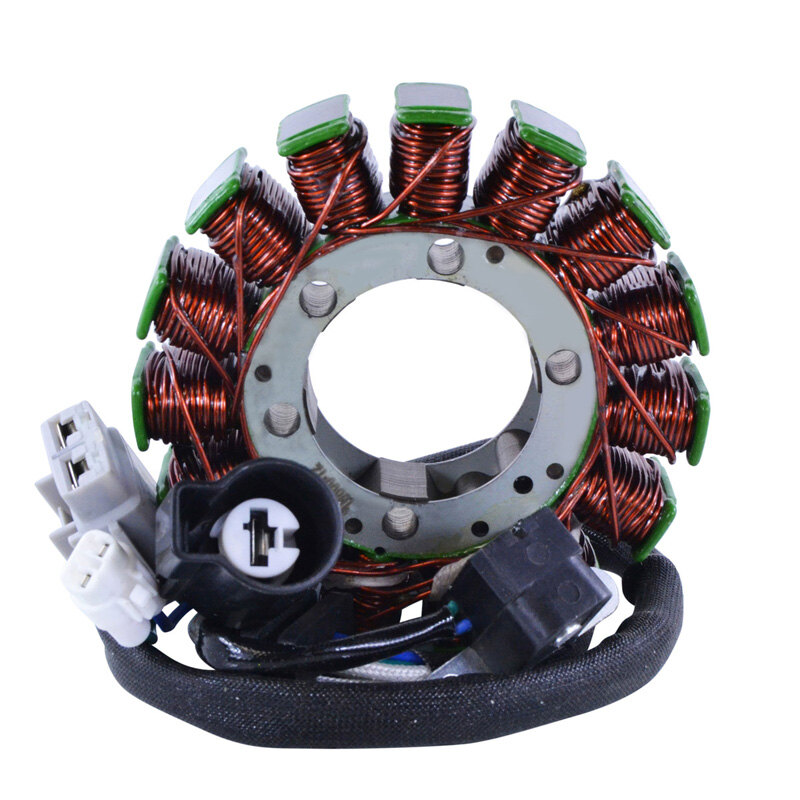

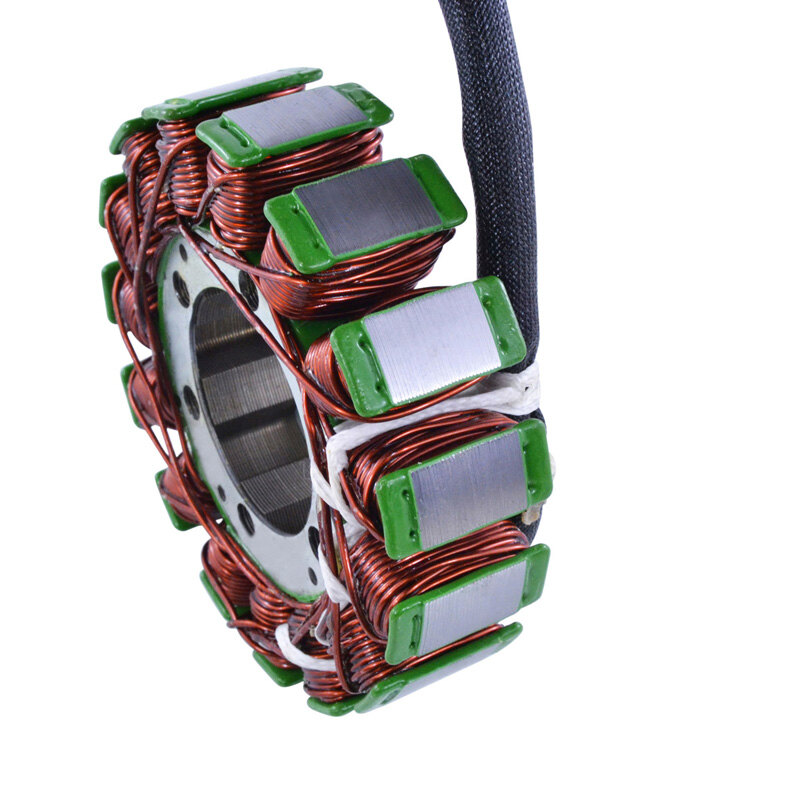

Brand new aftermarket Generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

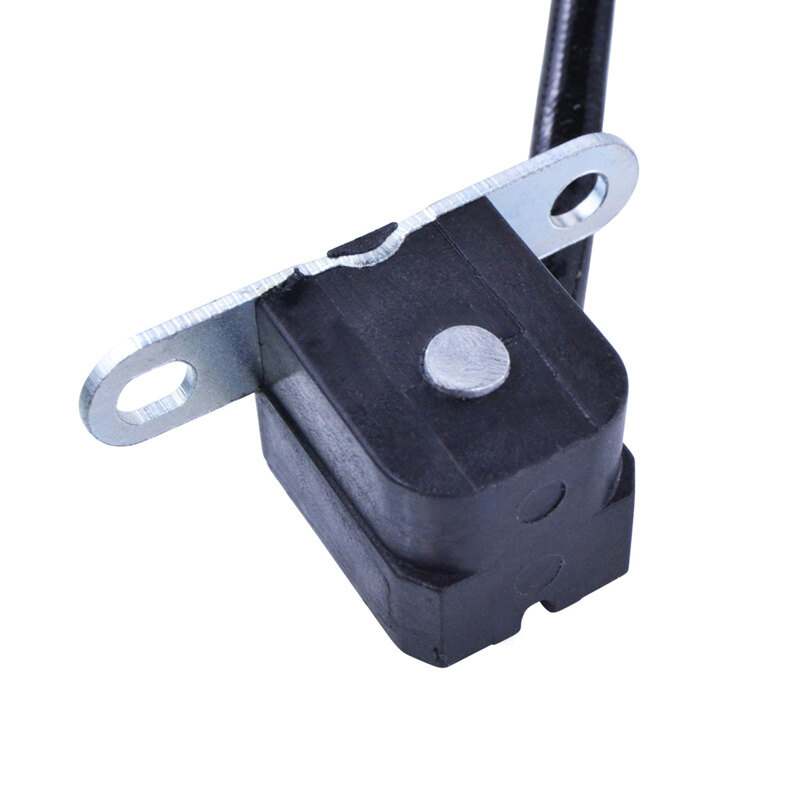

  • Pick up pulsar coil included

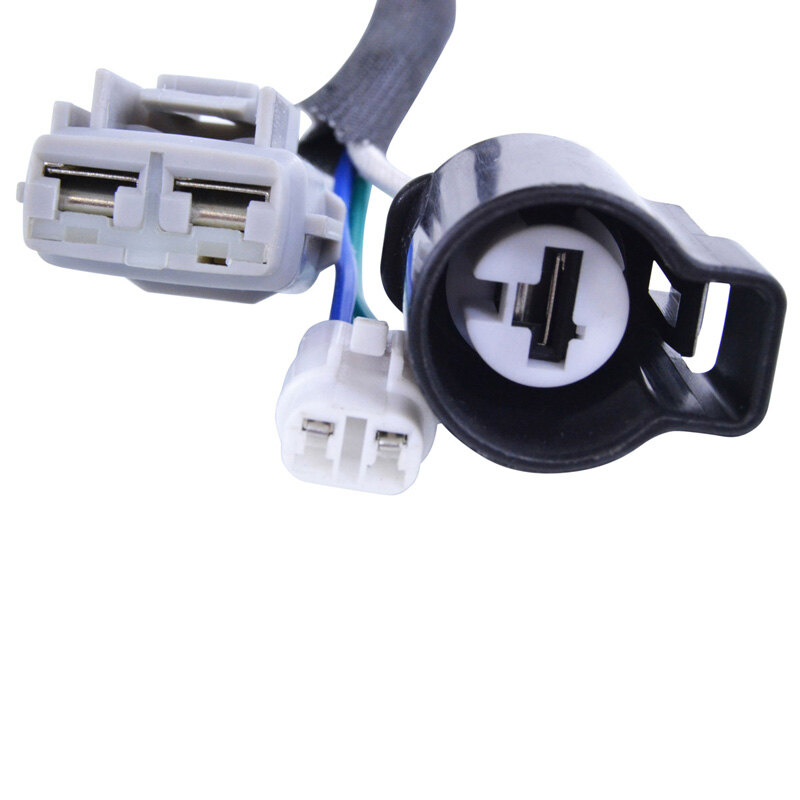

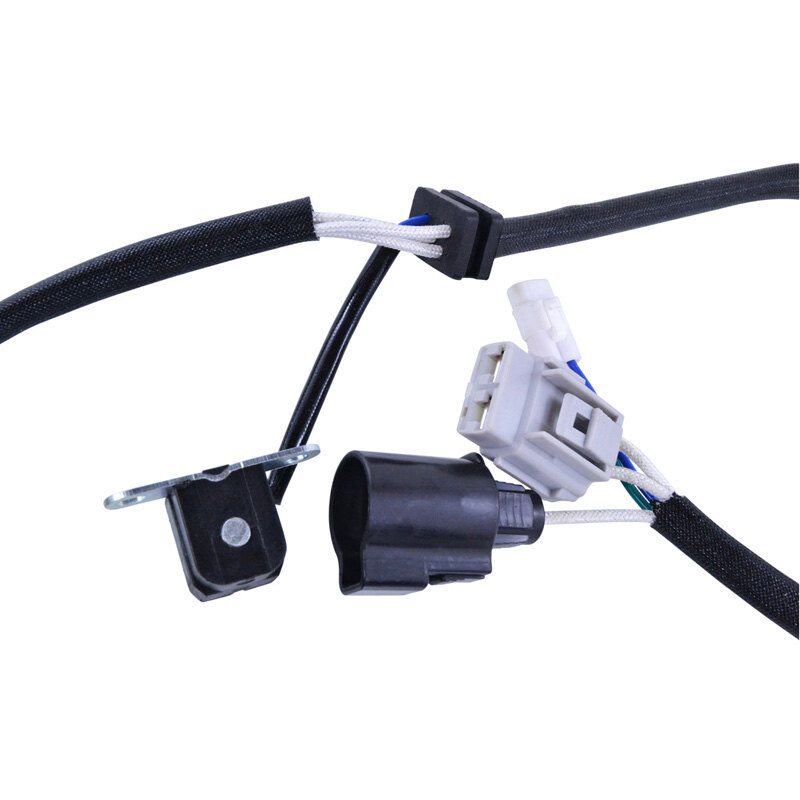

  • Connector included

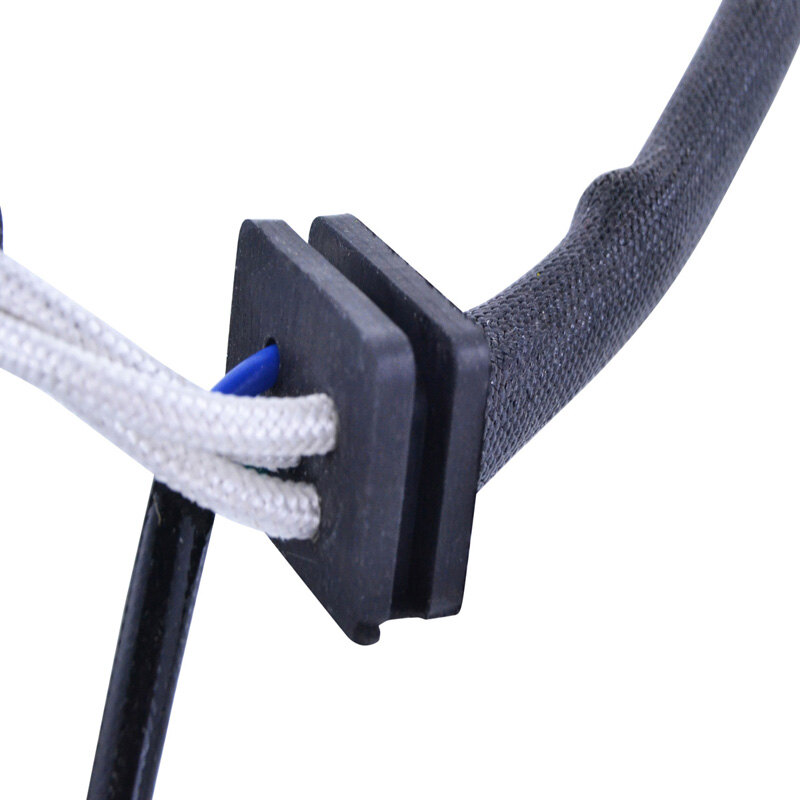

  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil\'s wire to grommet : 90 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.6 ohms \-20%
Pickup : Green to Blue = 500 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Specifications
Category Name
Systeme_de_charge
Sale Type
New
Etiquette En
STATOR KAW KVF750|KRF800|KRT750/800 12-23
No Produit Fournisseur
RMS010-104006
