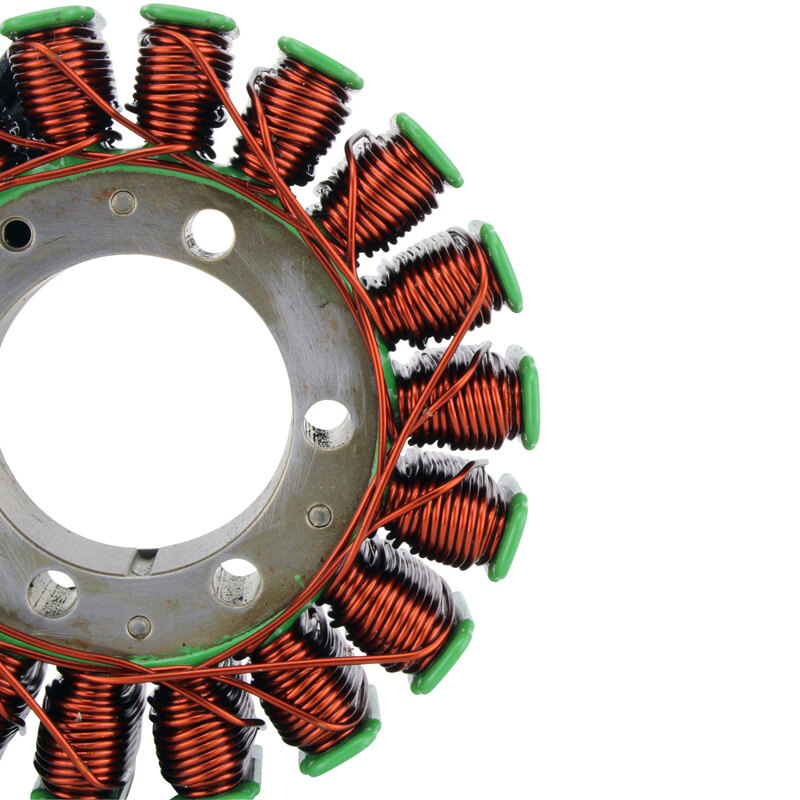

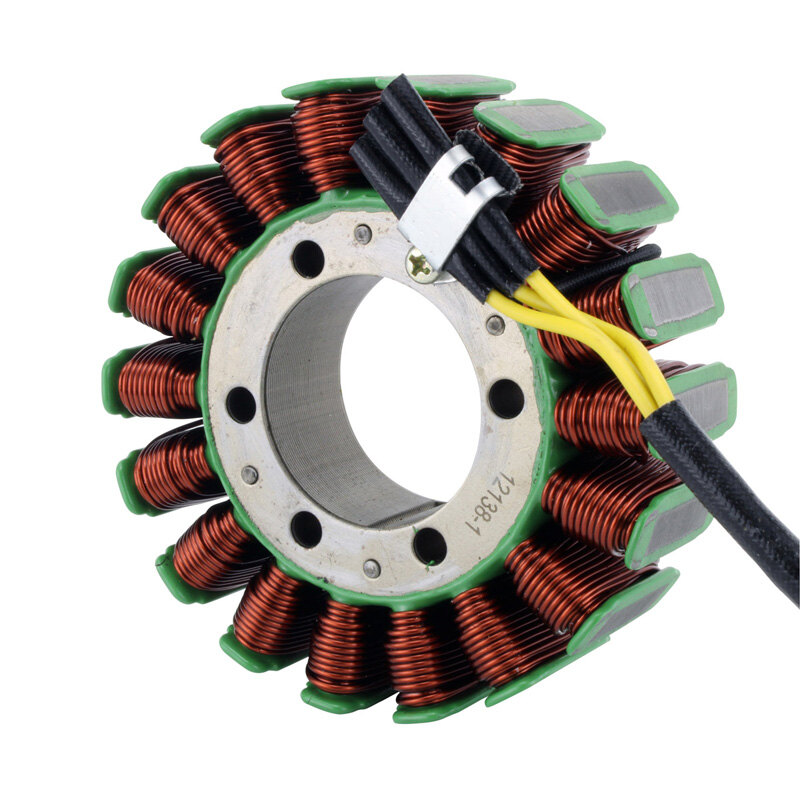

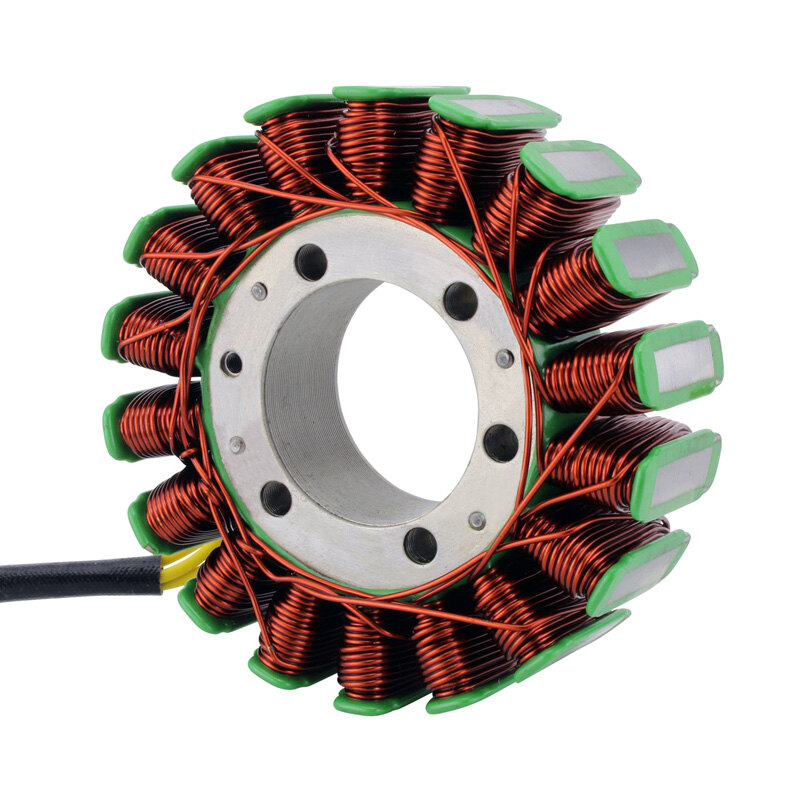

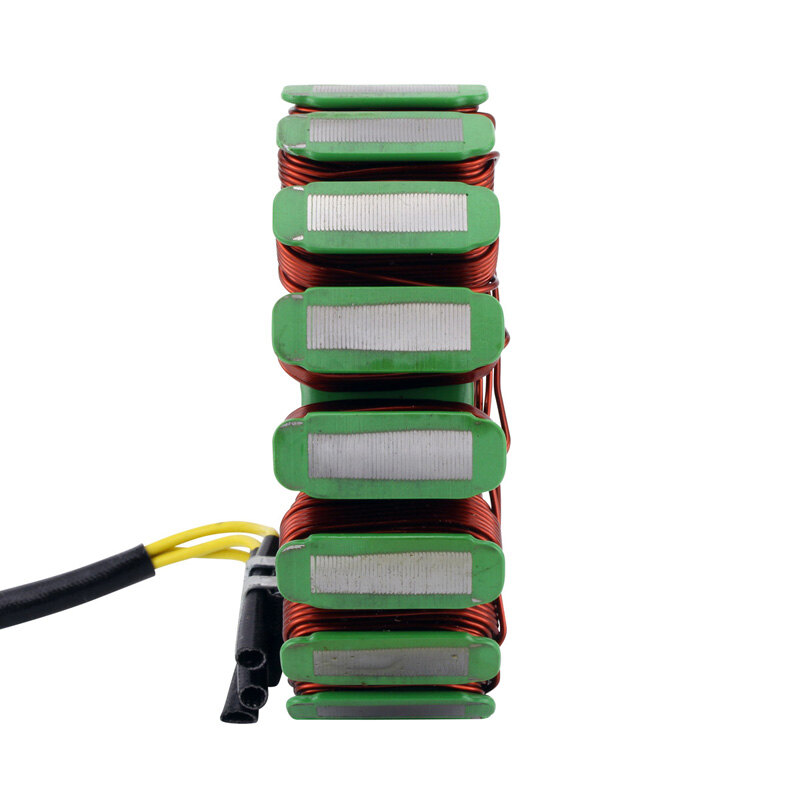

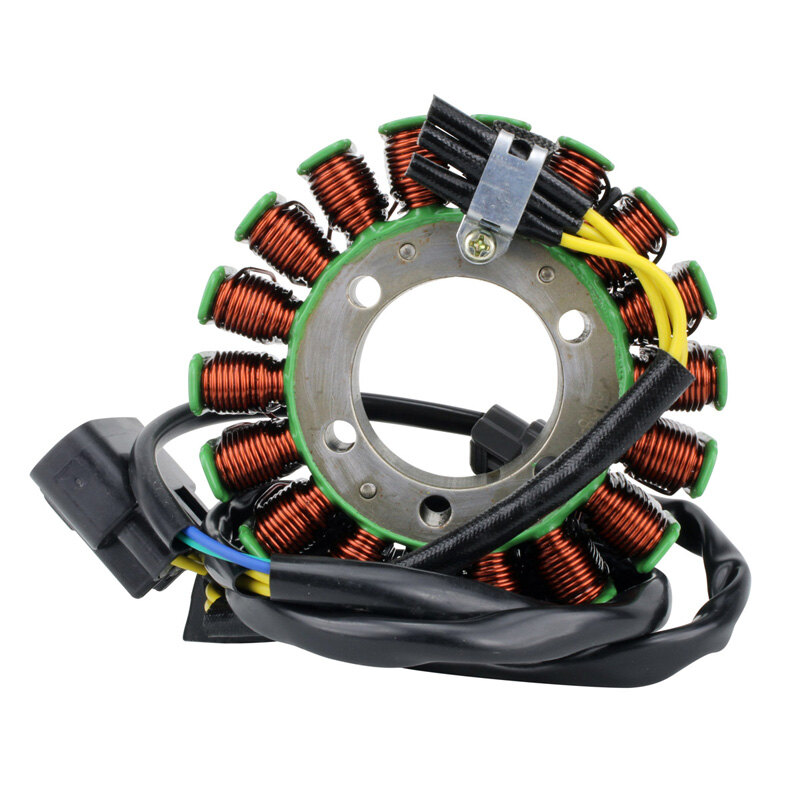

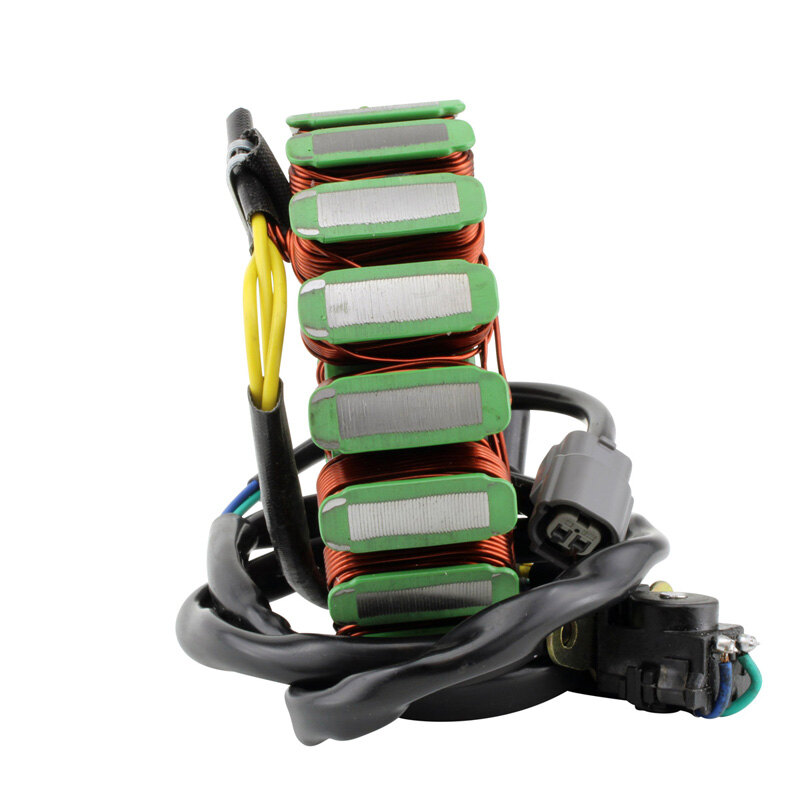

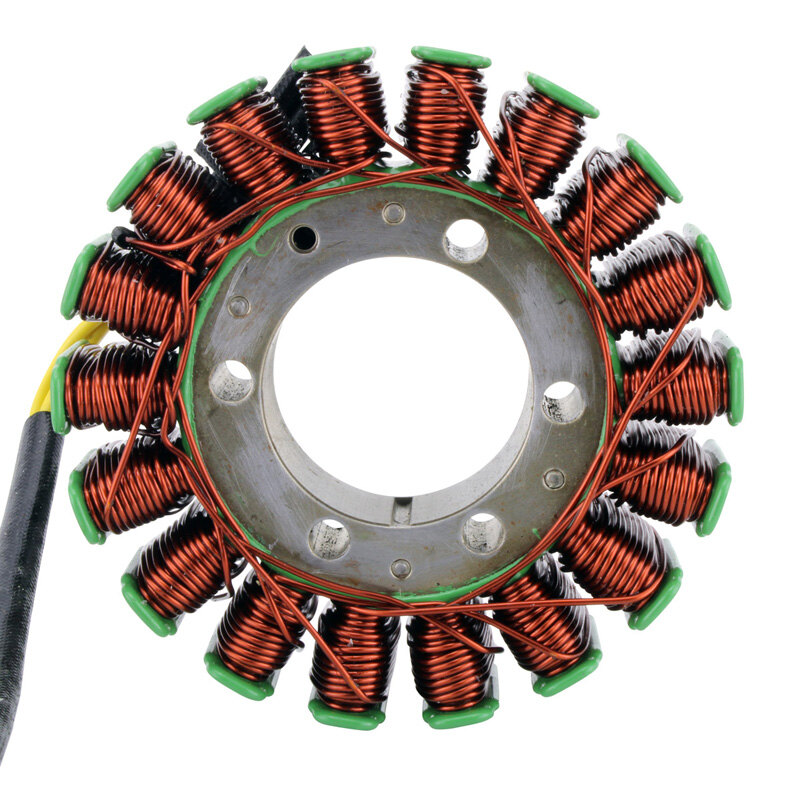

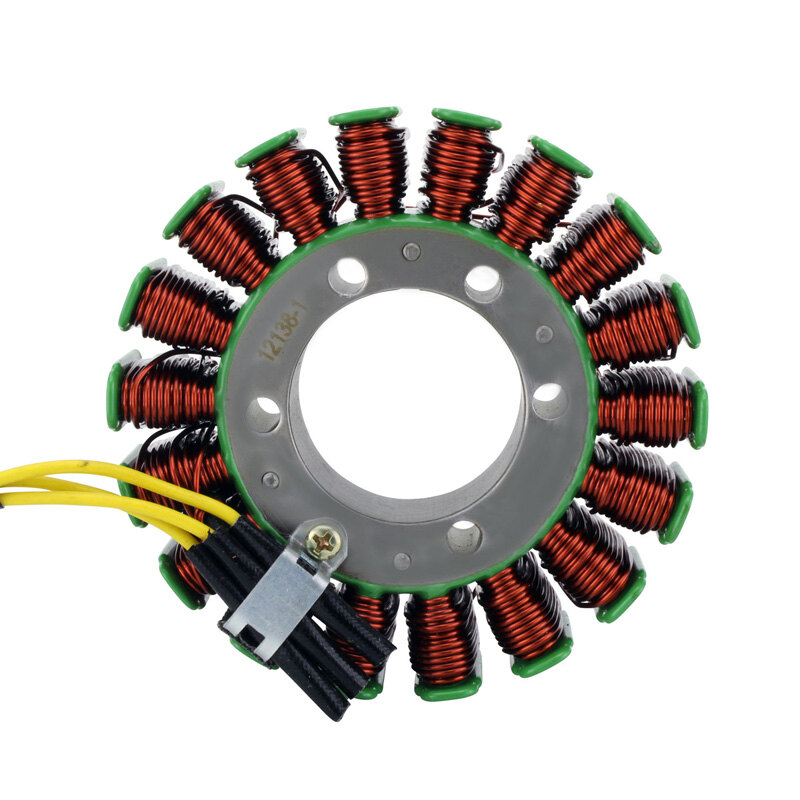

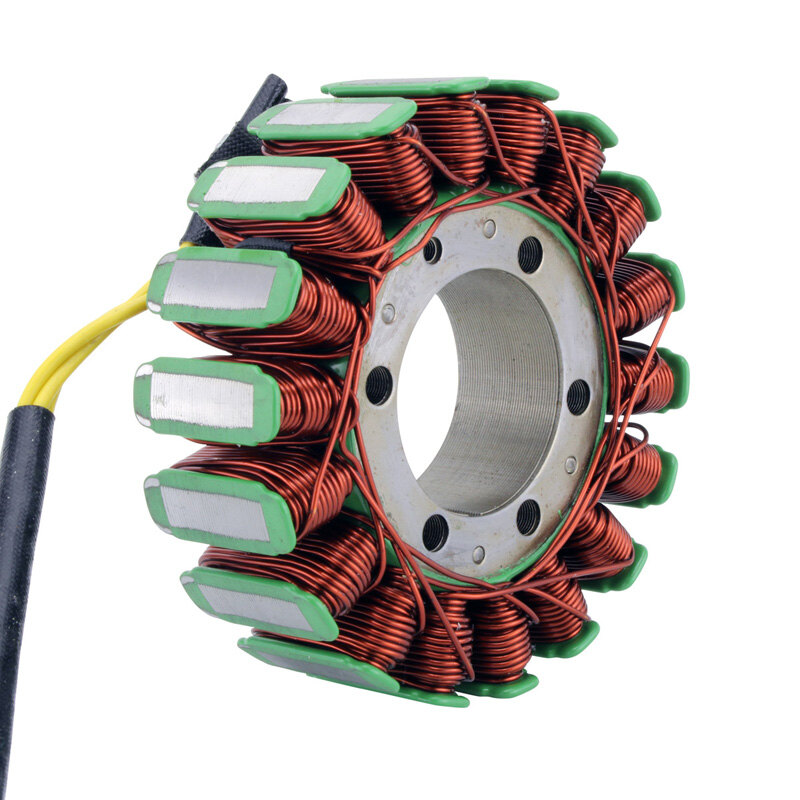

STATOR HON TRX420FE|FM|TE|TM 14-21

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

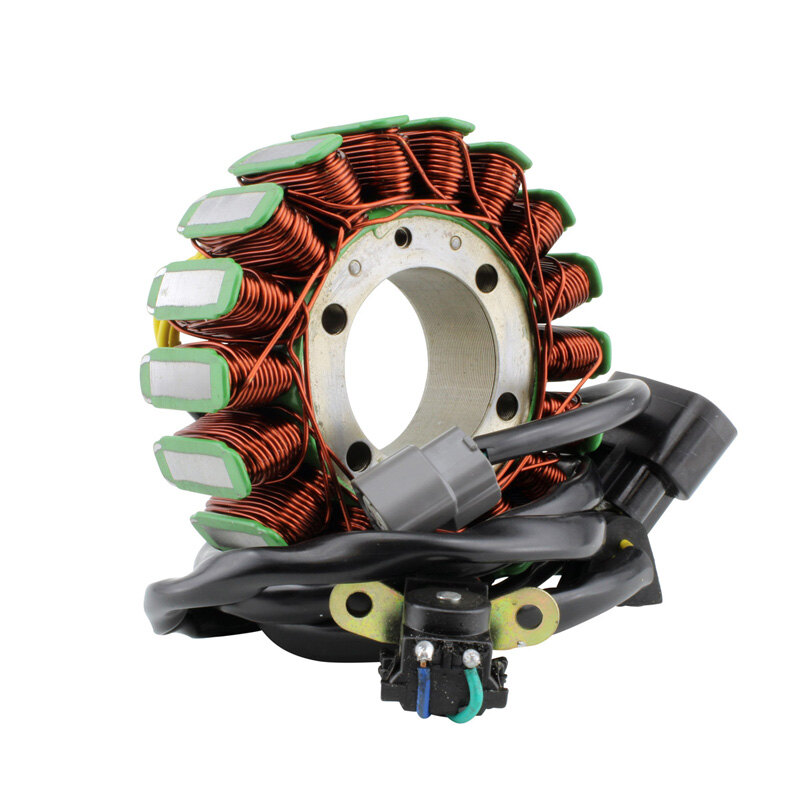

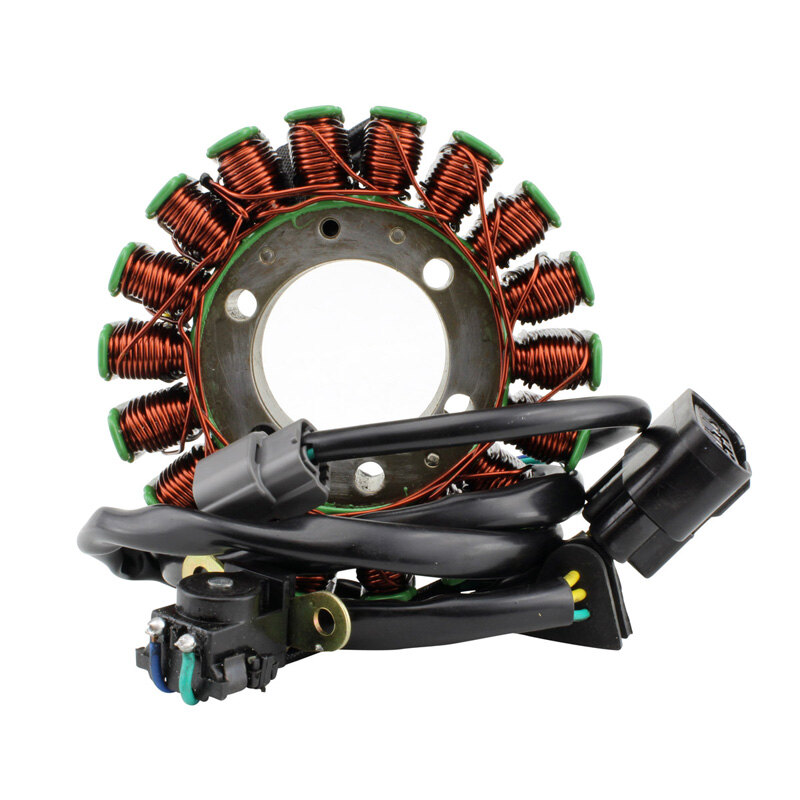

• Pick-up coil included

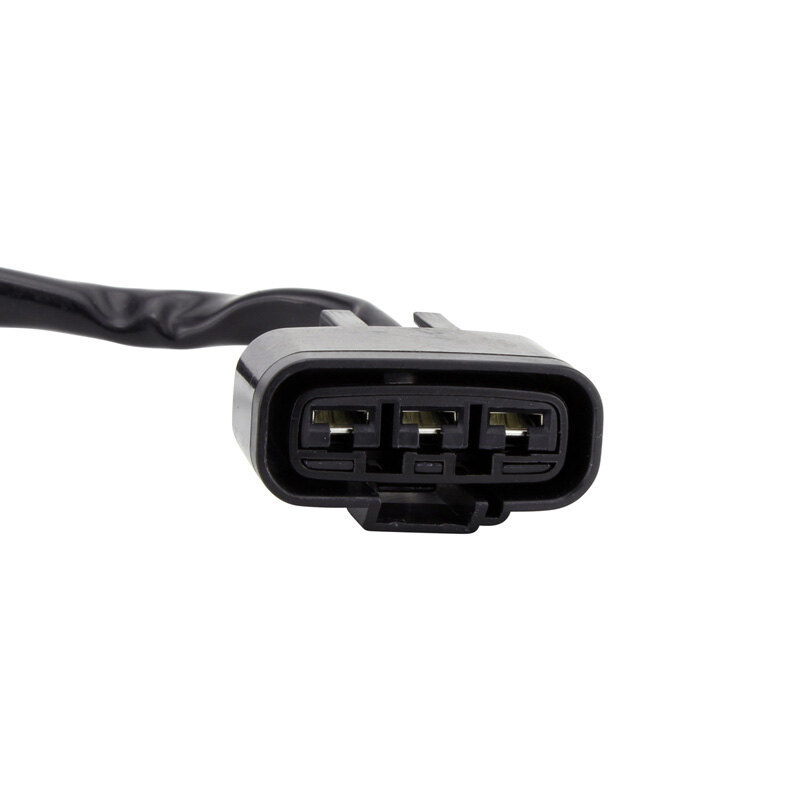

• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 20 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug # 1 : 385 mm
Length of wires grommet to plug # 2 : 835 mm
Length of pickup coil\'s wire to grommet : 80 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.6 ohms \-20%
Pickup : Blue to Green = 241 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
