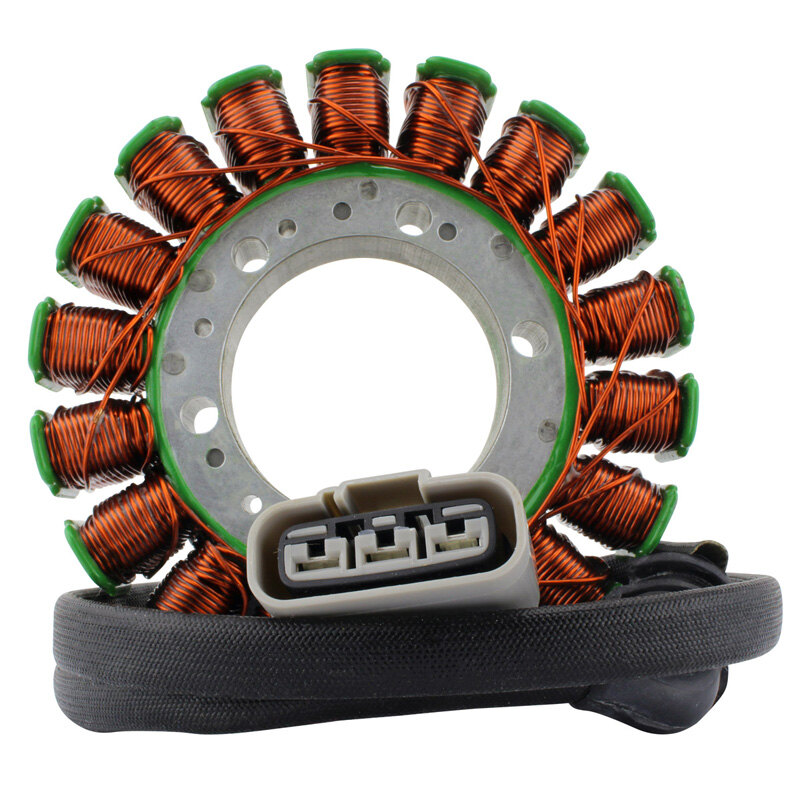

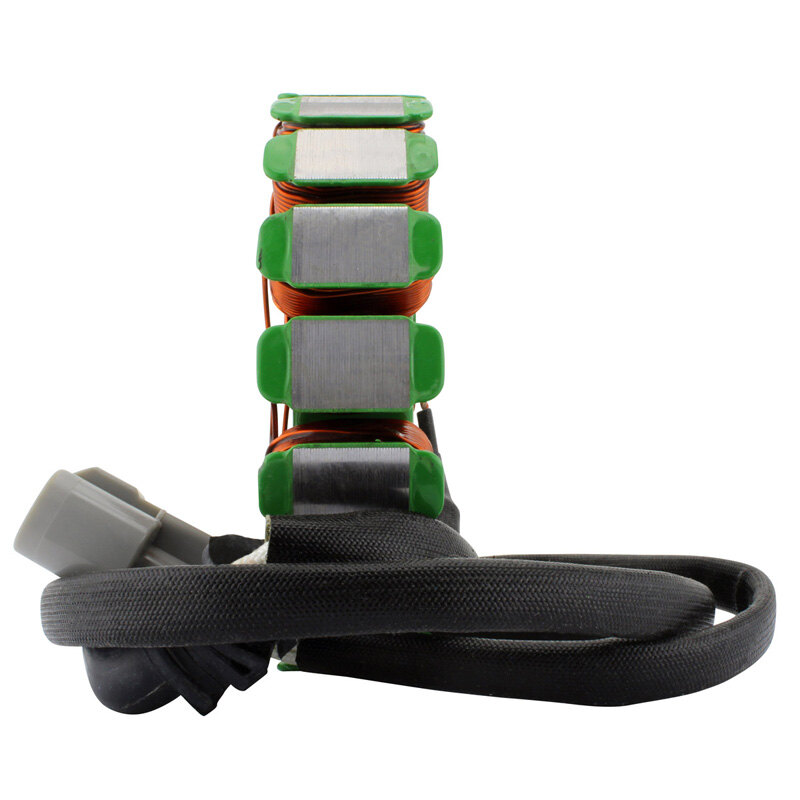

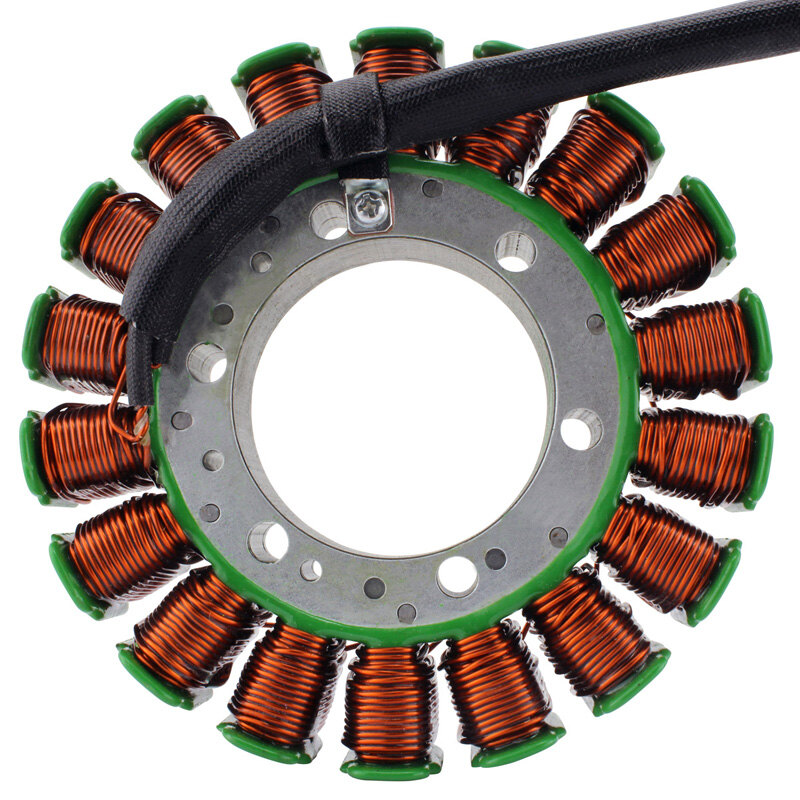

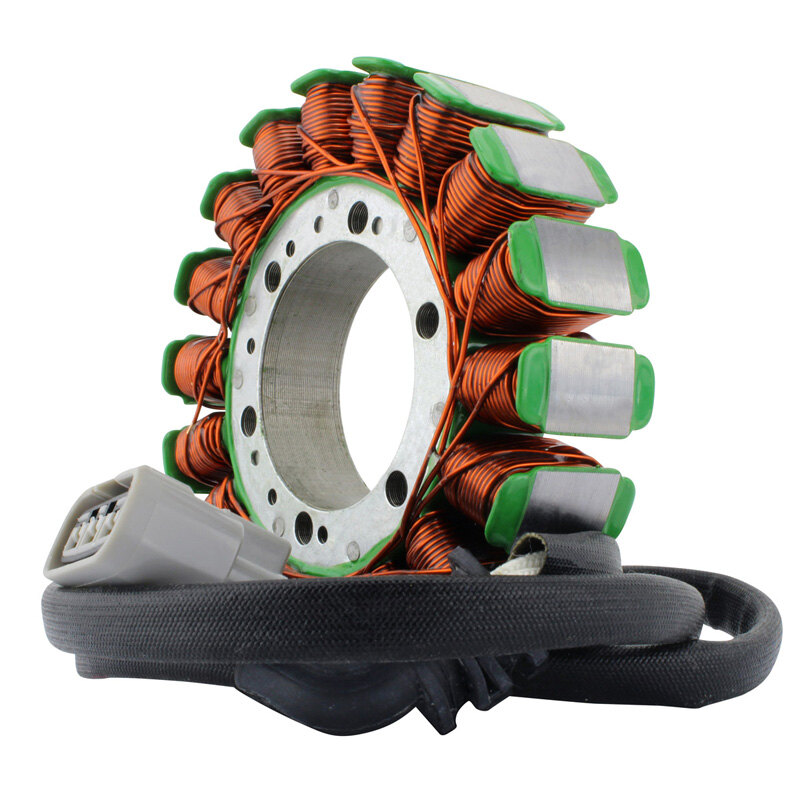

STATOR YAM FJR1300 06-12

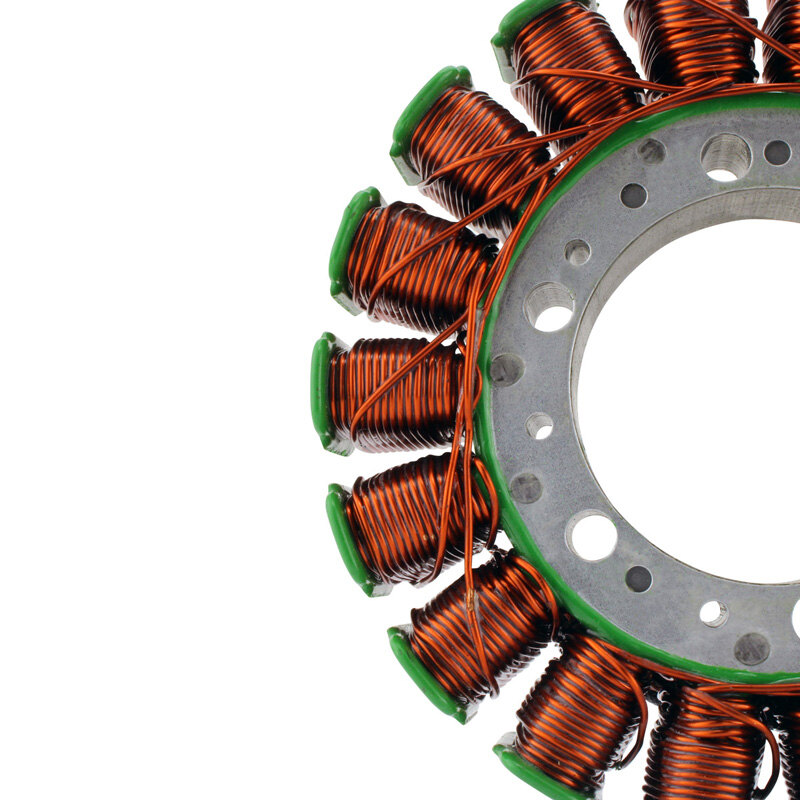

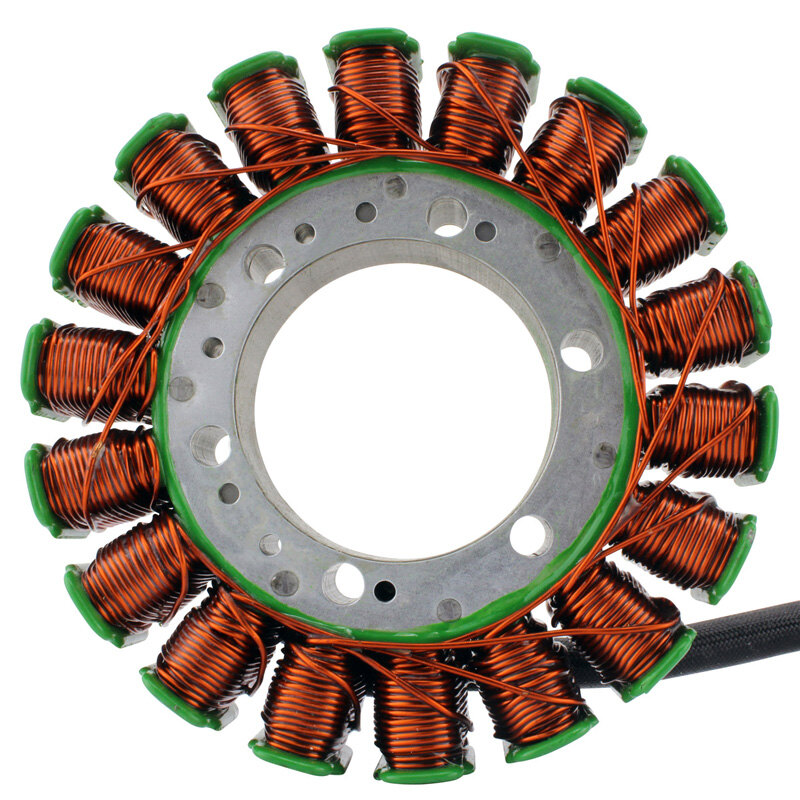

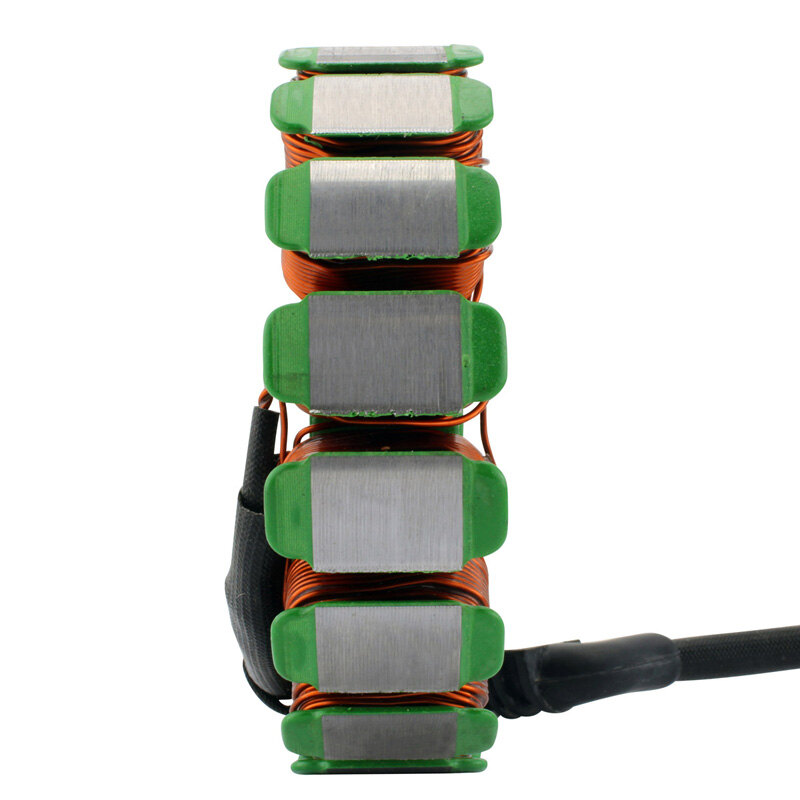

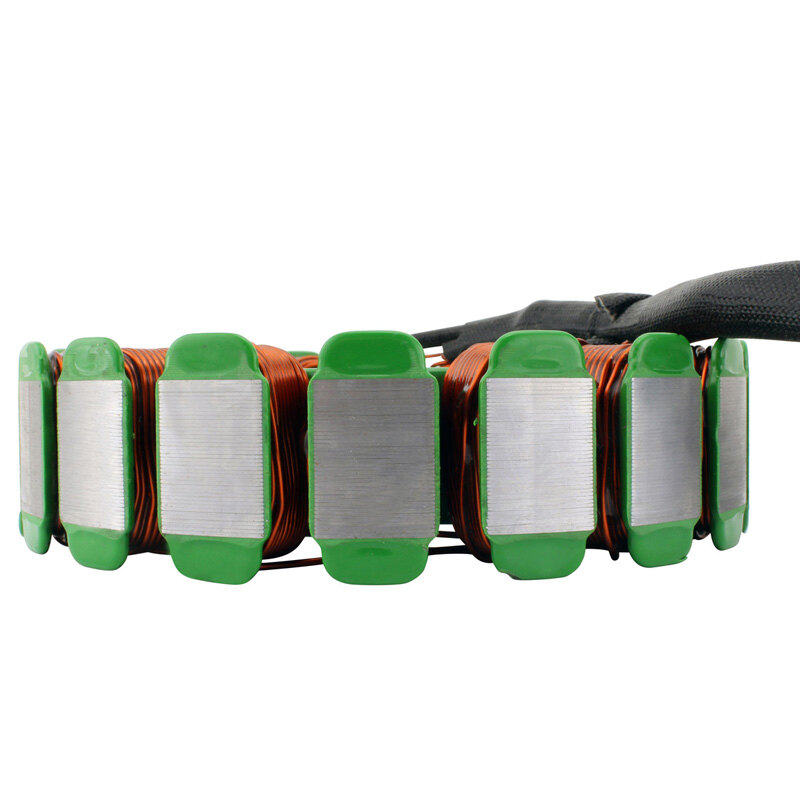

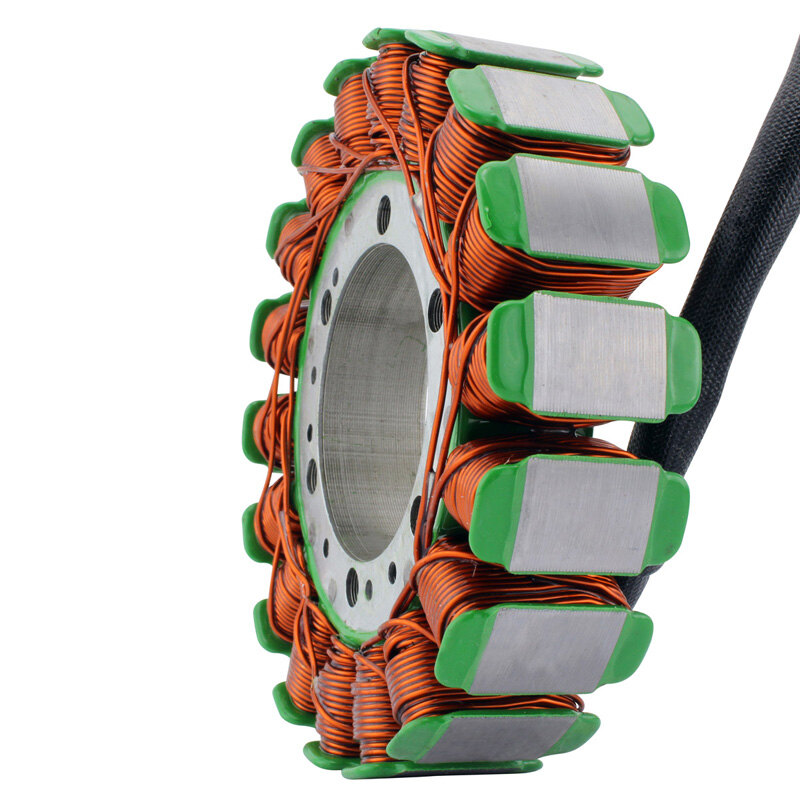

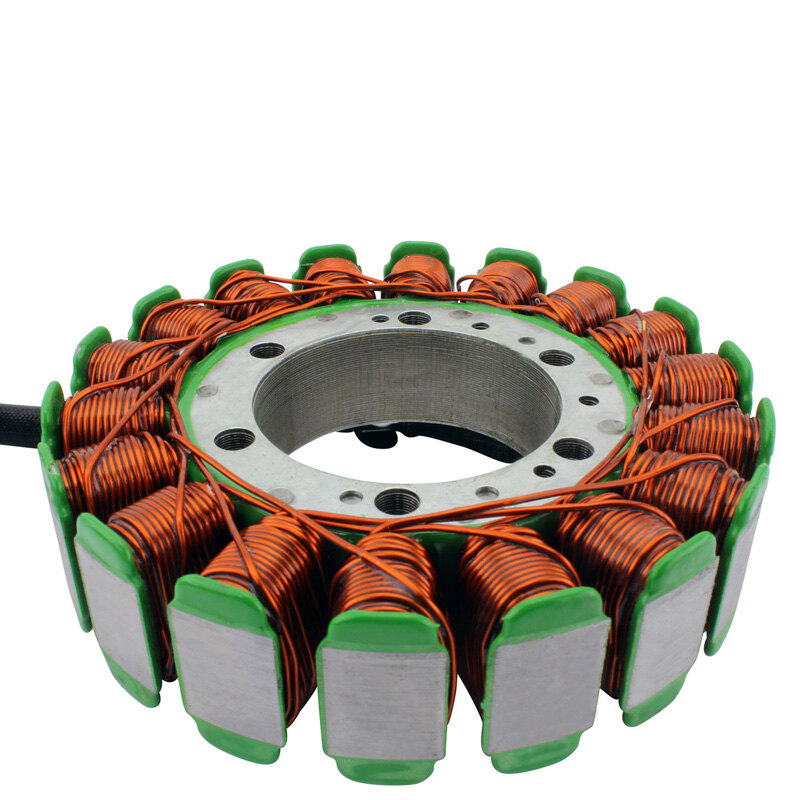

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

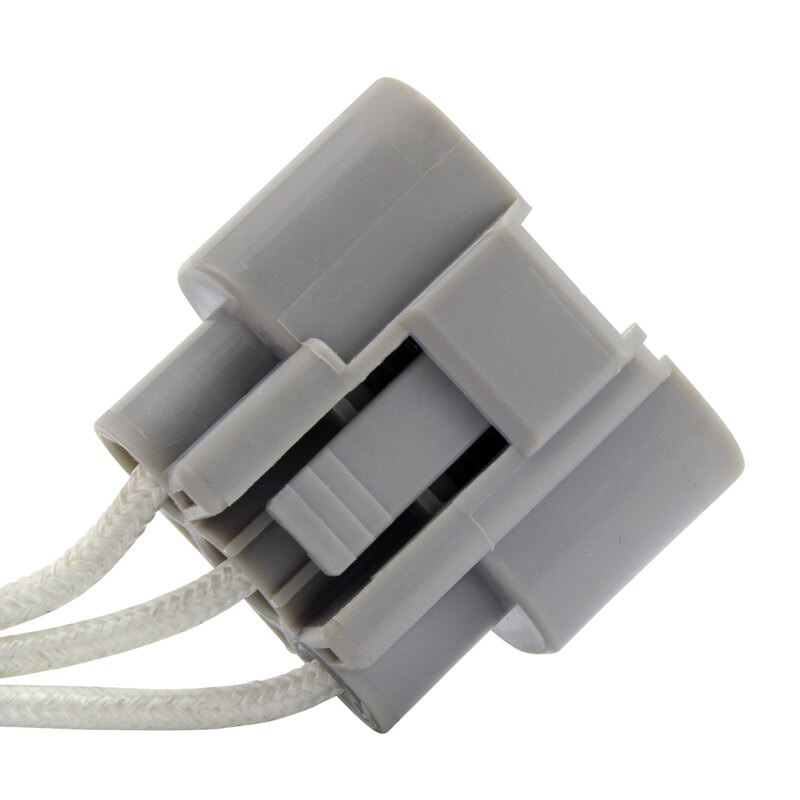

• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54mm
Exterior diameter: 126mm
Thickness: 22mm
Length of wires clamp to grommet: 120mm
Length of wires grommet to plug: 800mm

Other specifications:
Number of wires: 3

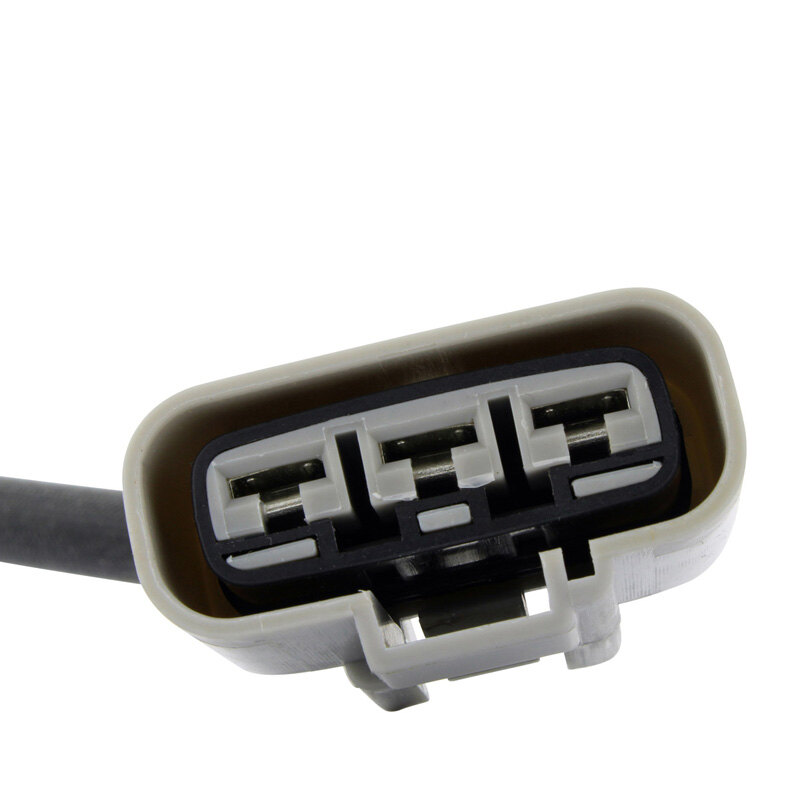

Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.6 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
