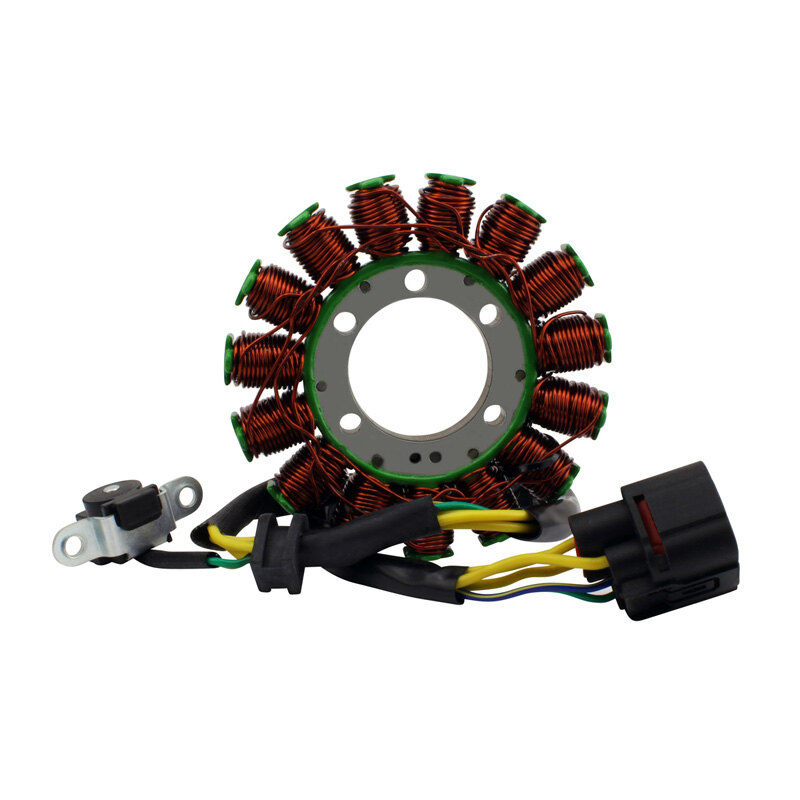

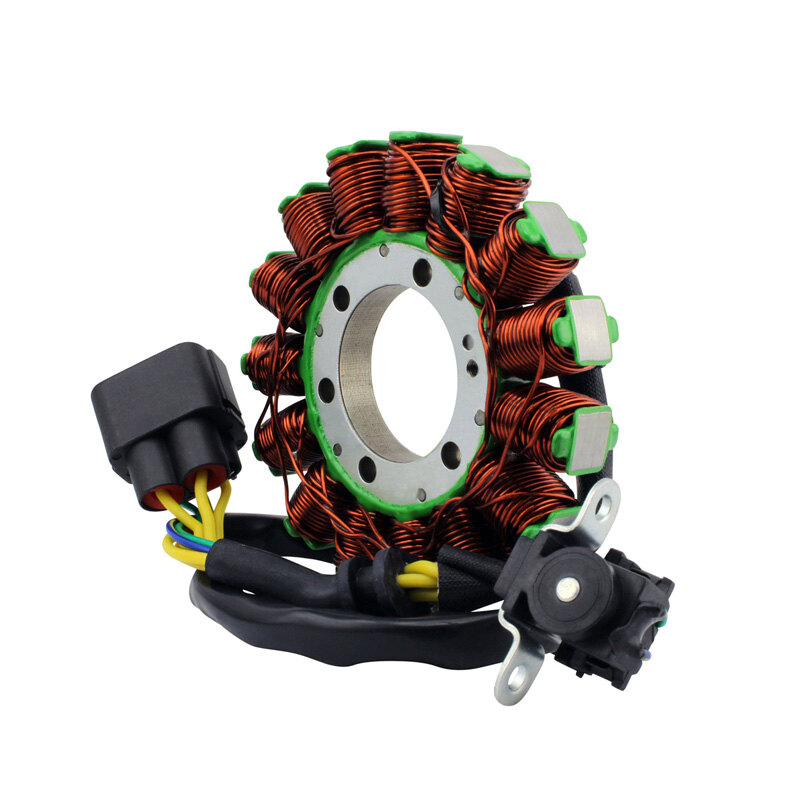

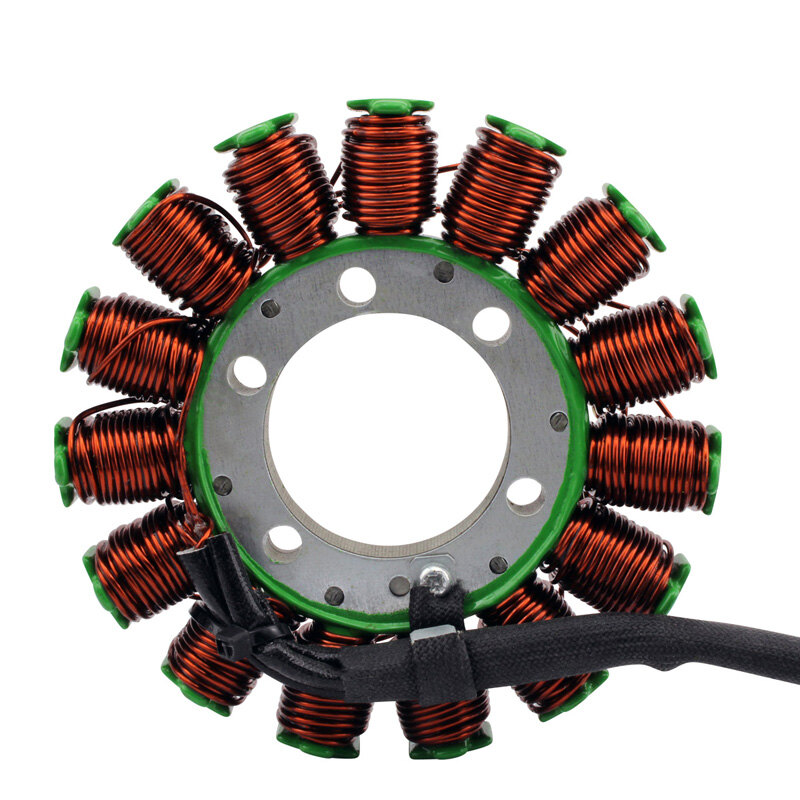

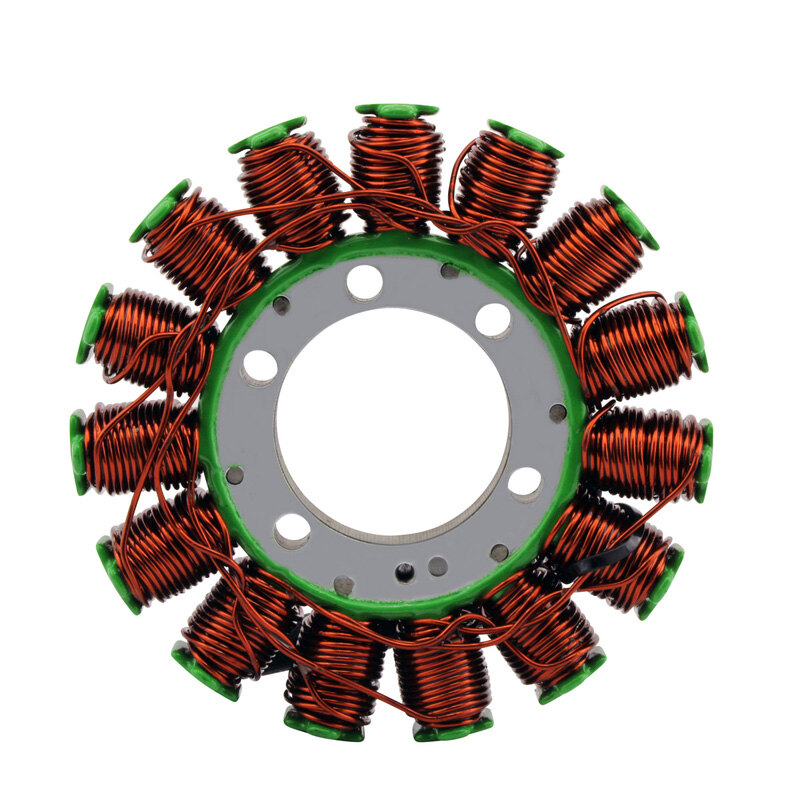

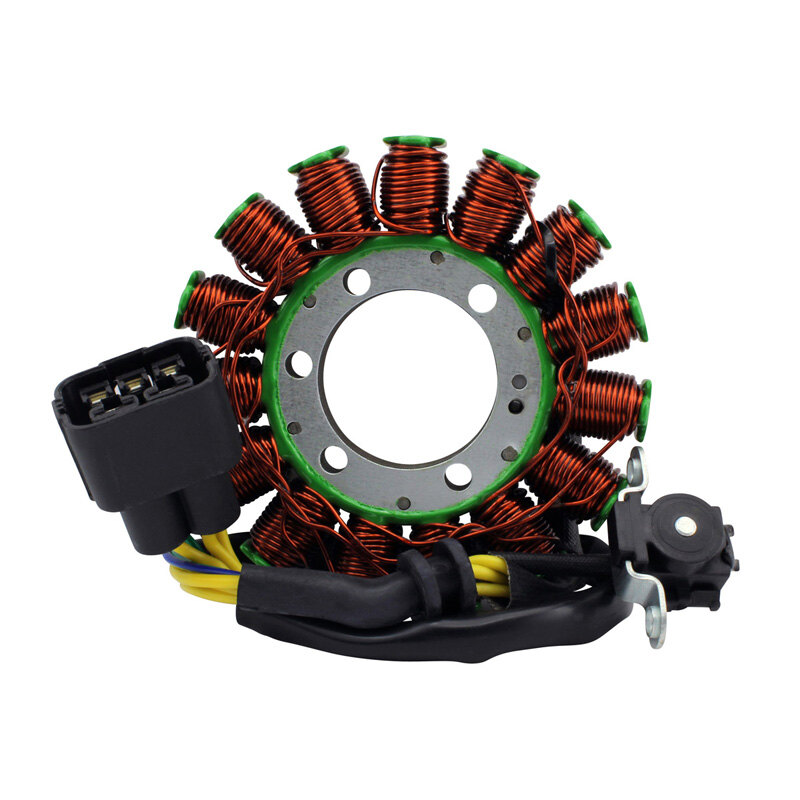

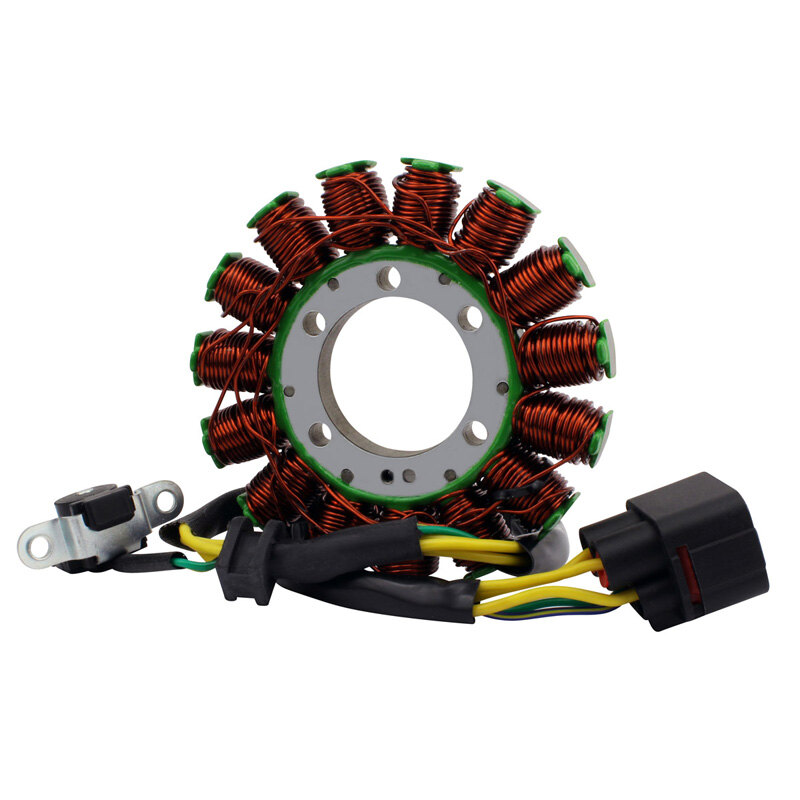

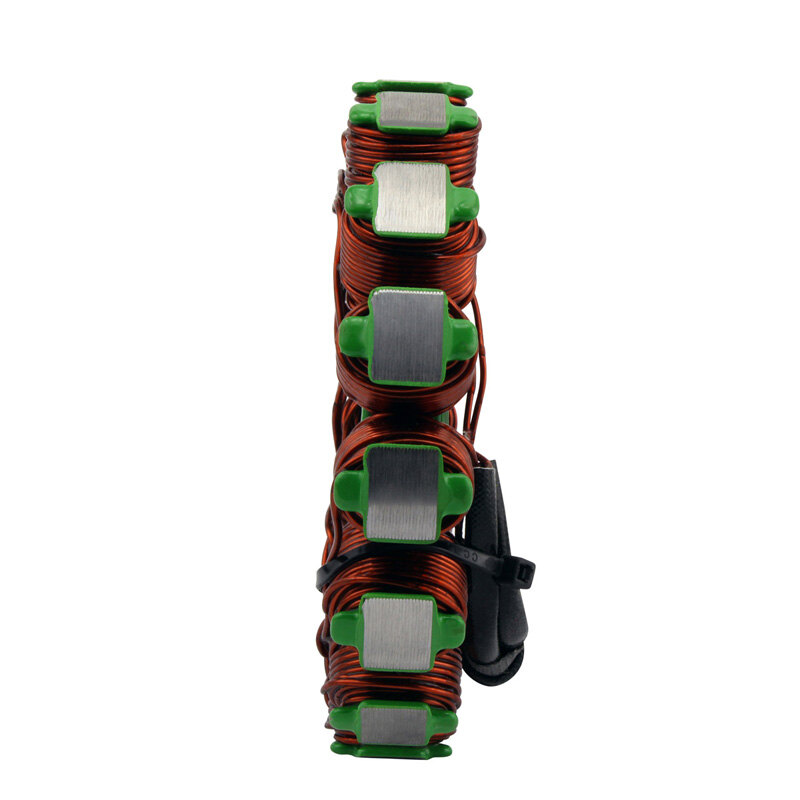

STATOR HONDA SXS700 PIONEER 700 14-24

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials

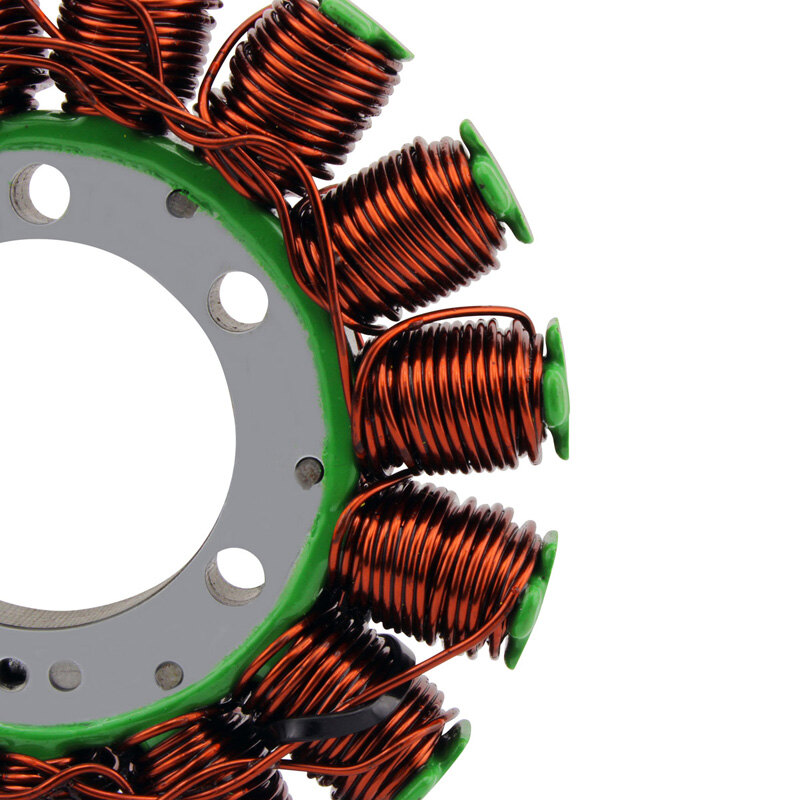

• Highest grade of copper winding, resistant to 200 degrees Celsius

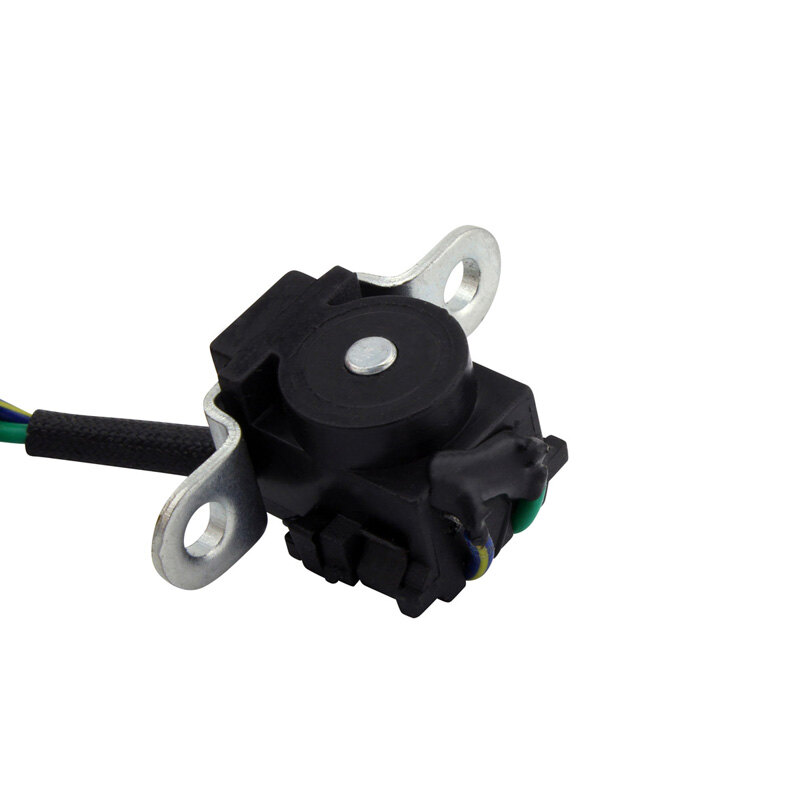

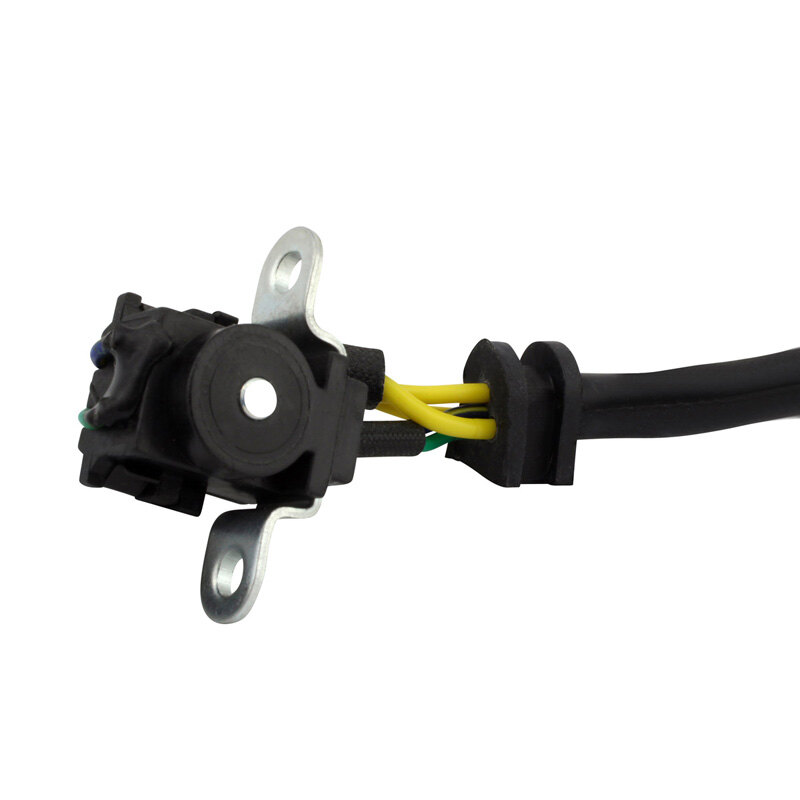

• Pick up pulsar coil included

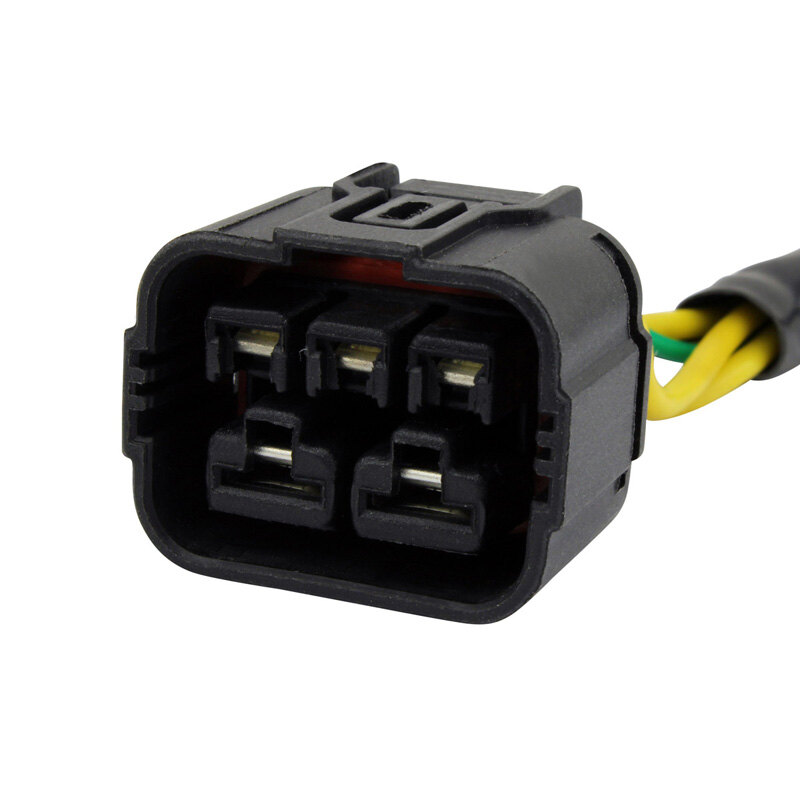

• Connectors included

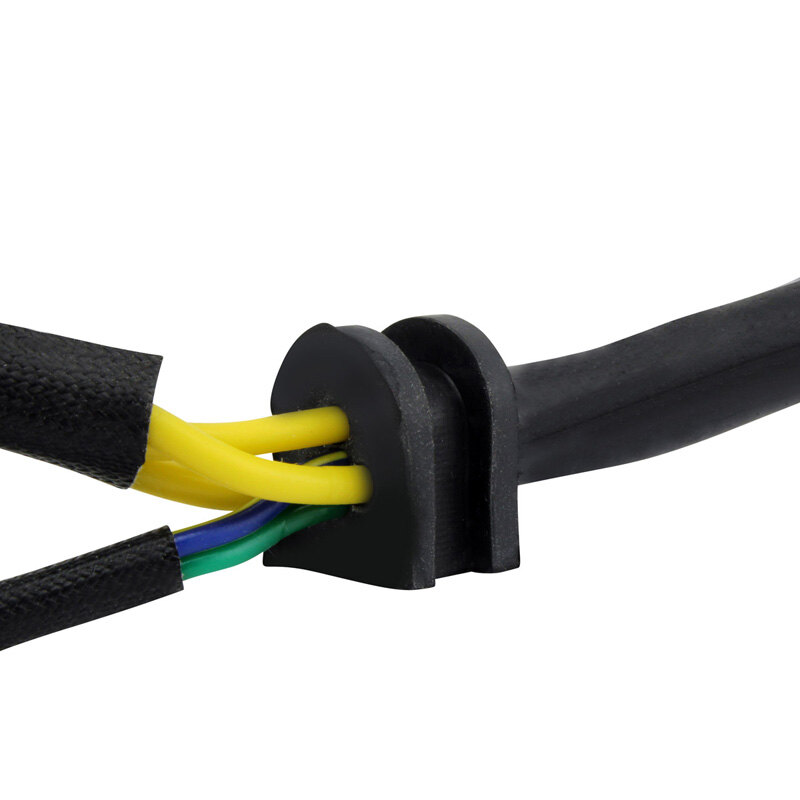

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 10 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 40 mm
Length of pickup coil\'s wire to grommet: 320 mm

Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 5
Number of poles: 15
Alternator: Yellow to Yellow = 0.4 ohms \-20%
Pickup: Blue/Yellow to Green = 240 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
