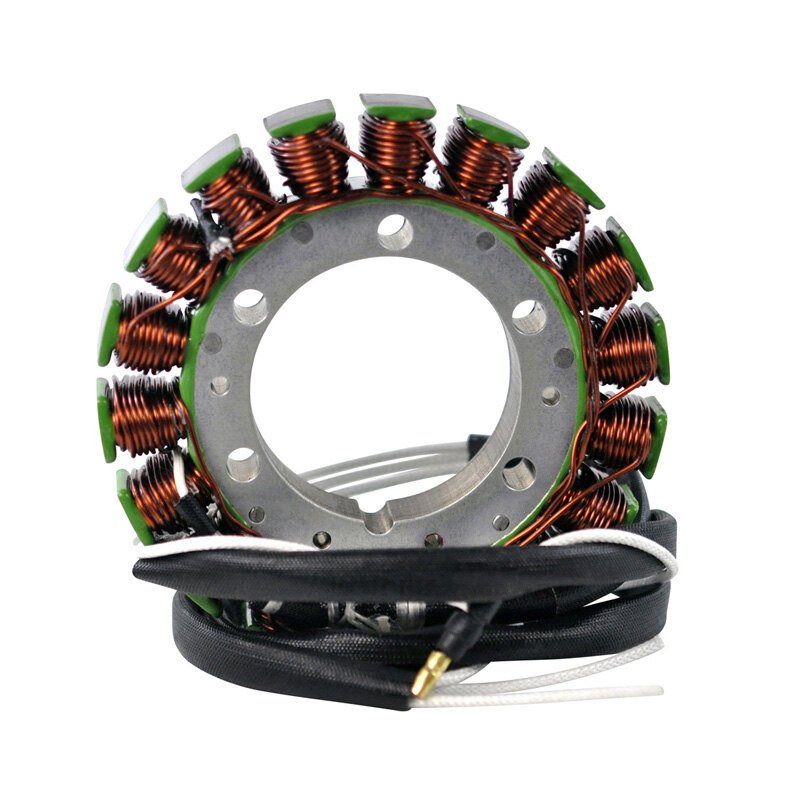

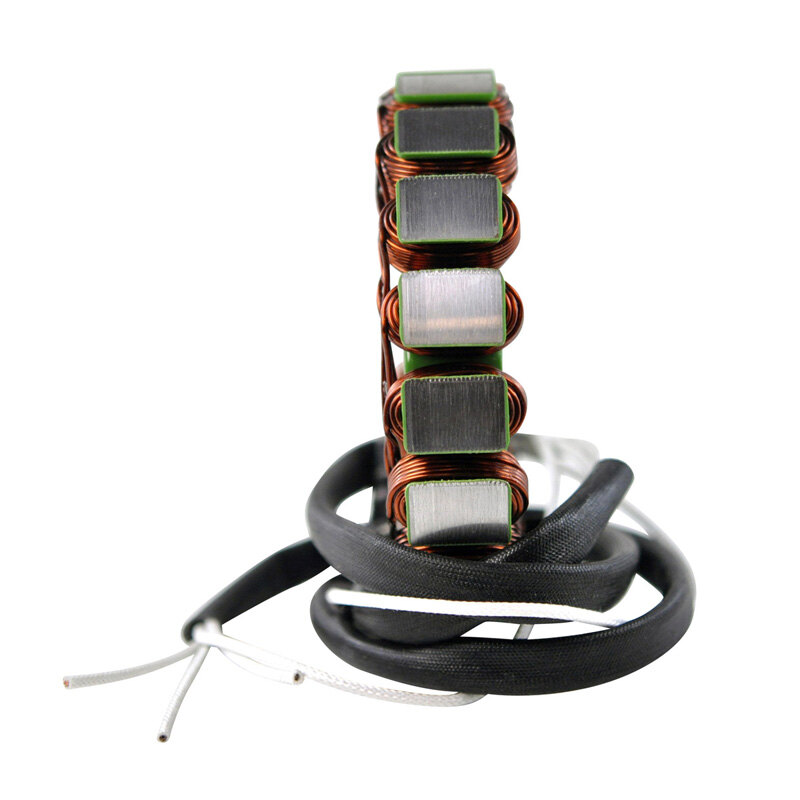

STATOR YAM VIRAGO 750-1100 86-99

Brand new stator

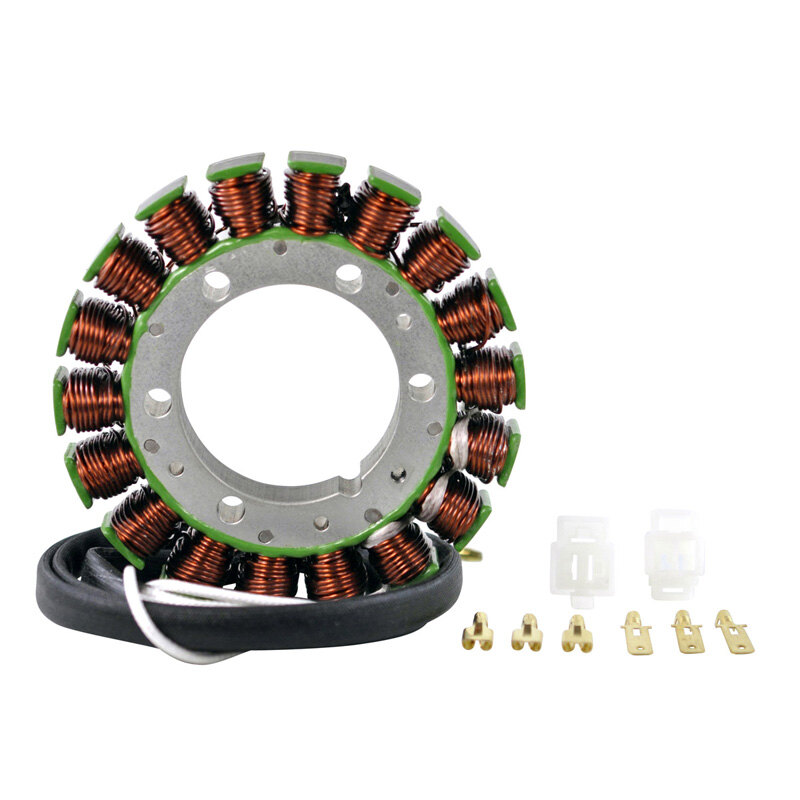

• You must re-install your original grommet and the new connector (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 17 mm
Length of wires stator : 700 mm

Other specifications :
Number of wires : 4
Number of pins : 4

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
