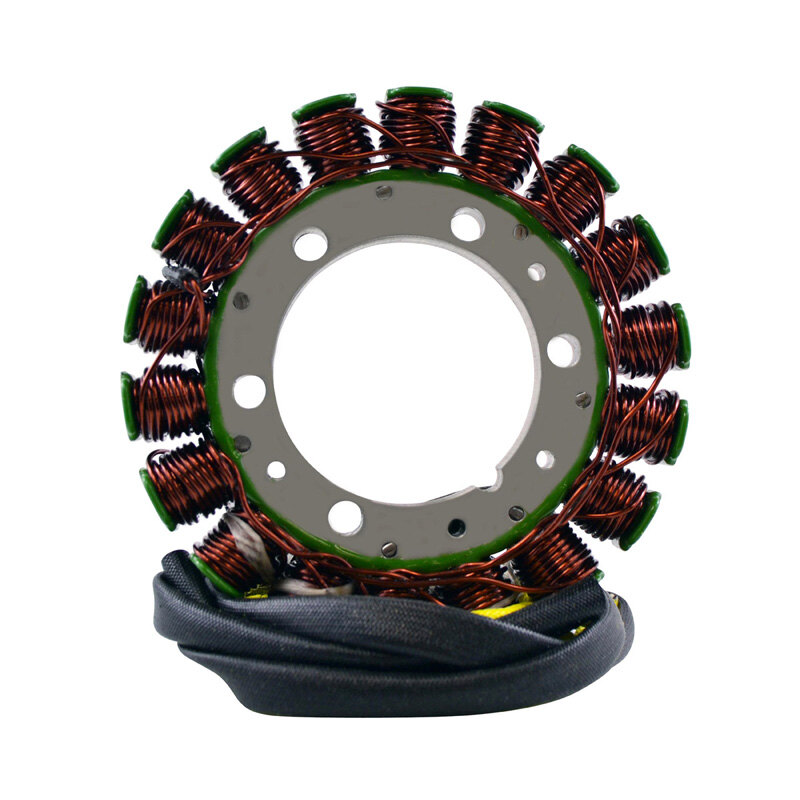

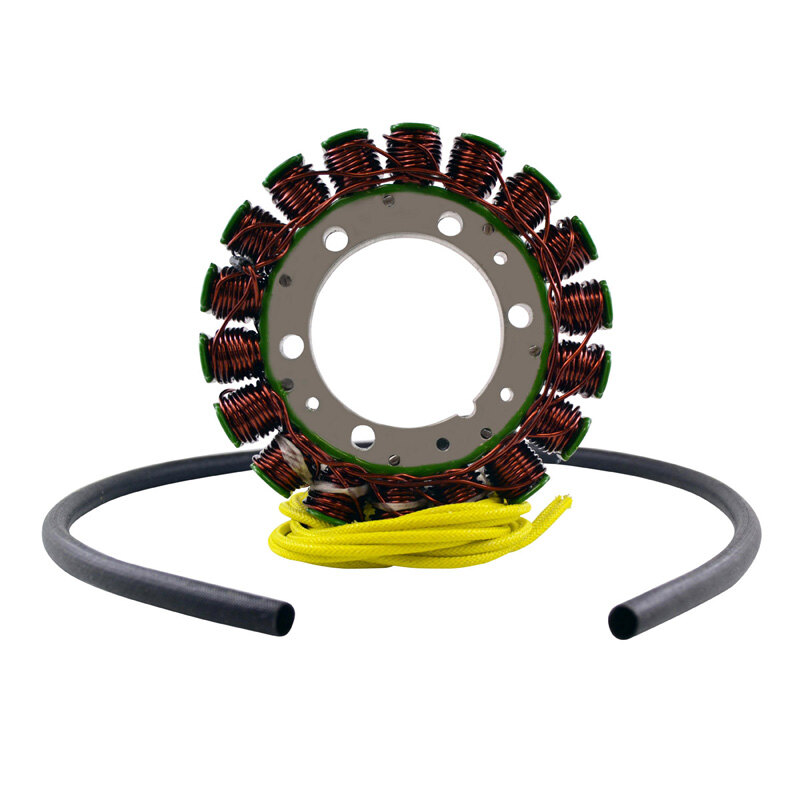

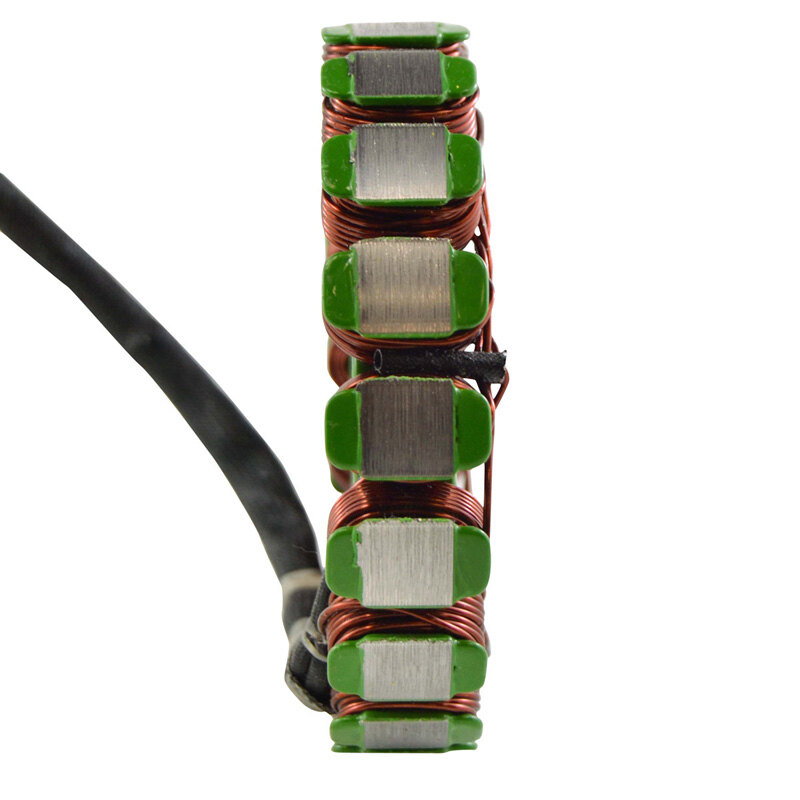

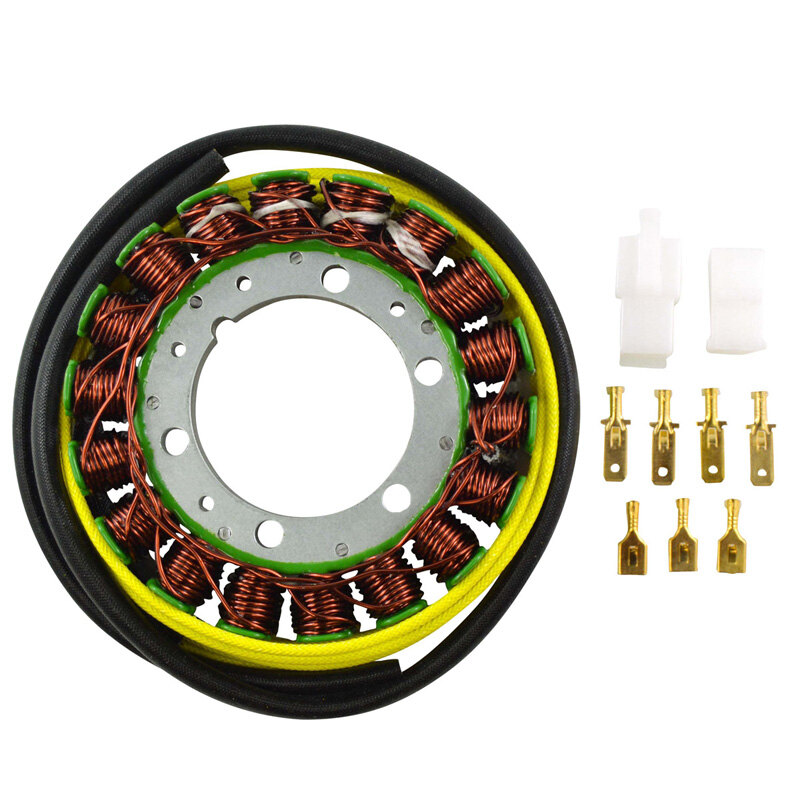

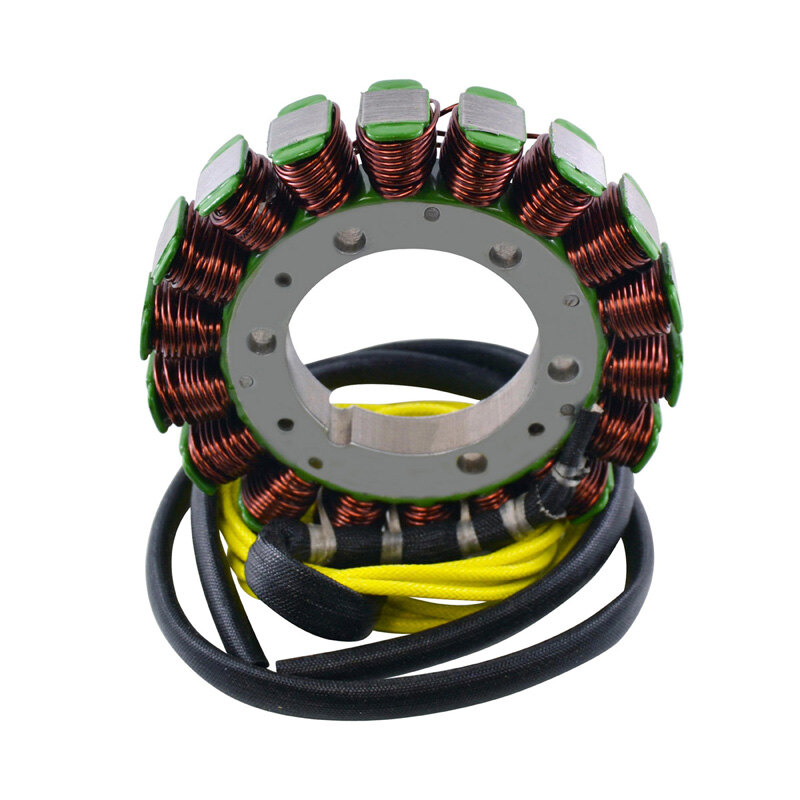

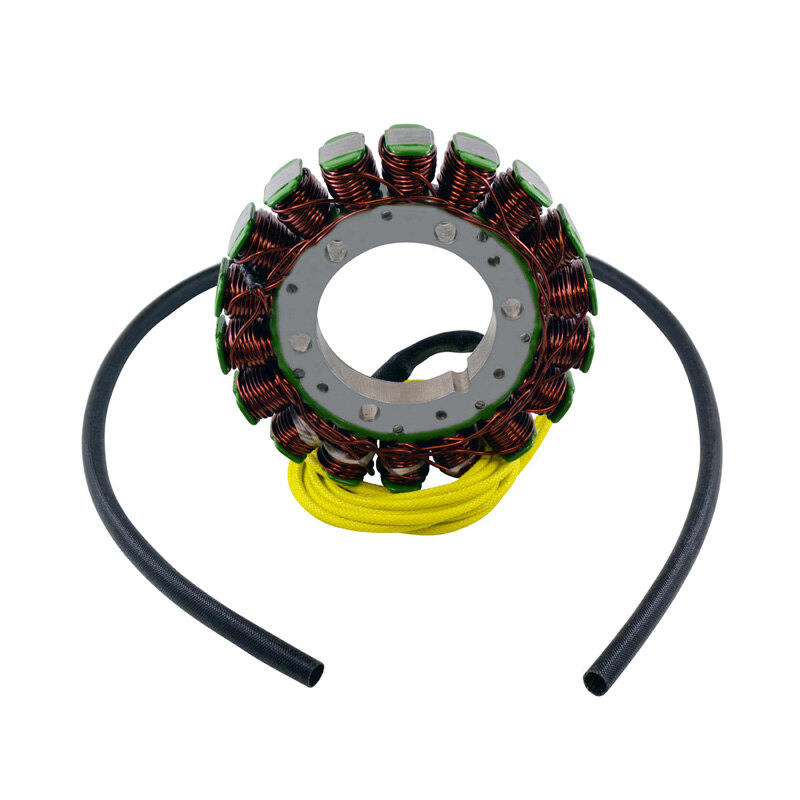

STATOR KAW VN1500|SUZ LS650|HON XR650L 86-20

Brand new stator

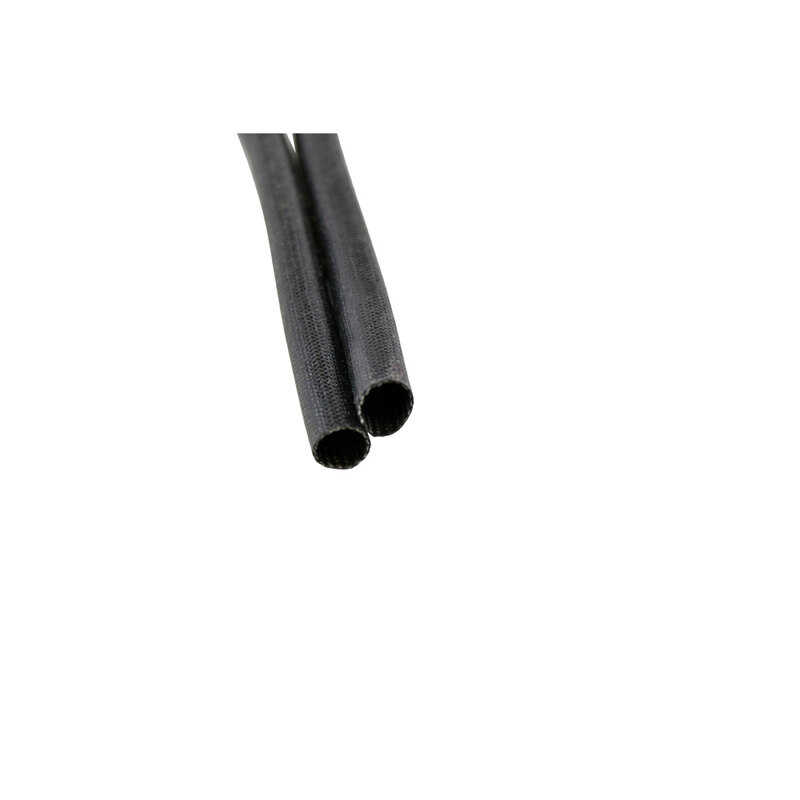

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• All products shipped are tested

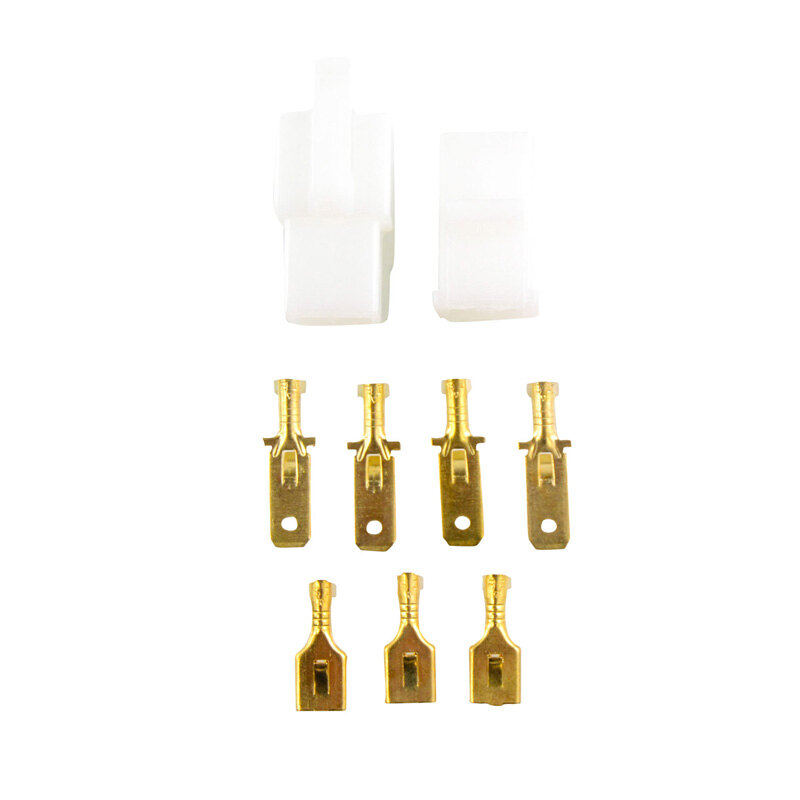

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 28 mm

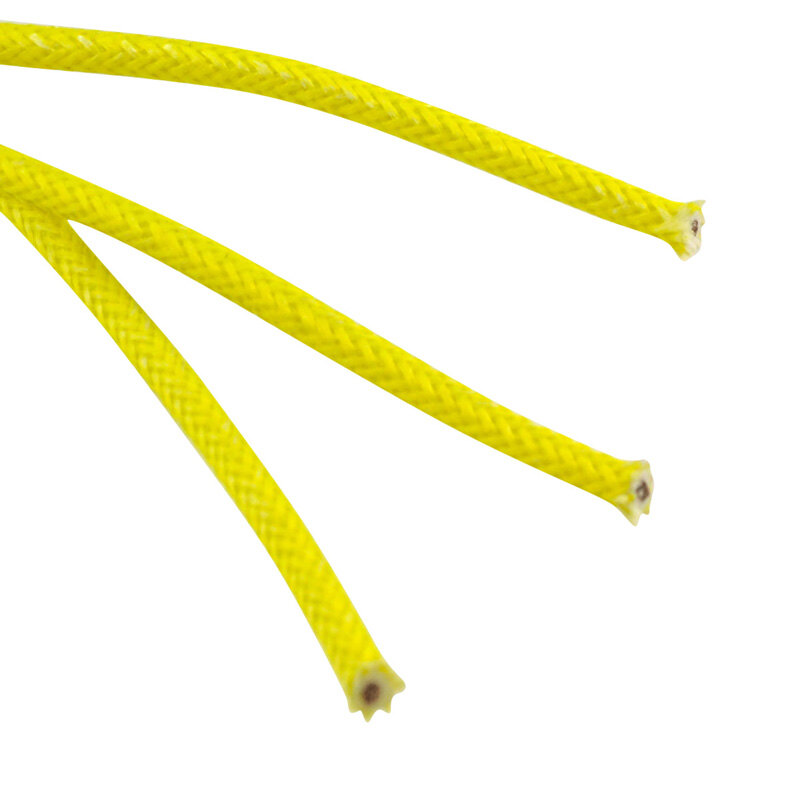

Length of wires stator to terminals: 700 mm

Other specifications:
Number of wires:3
Number of pins:3

Wire to wire resistance:
Alternator: Between each White = 0.4 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
