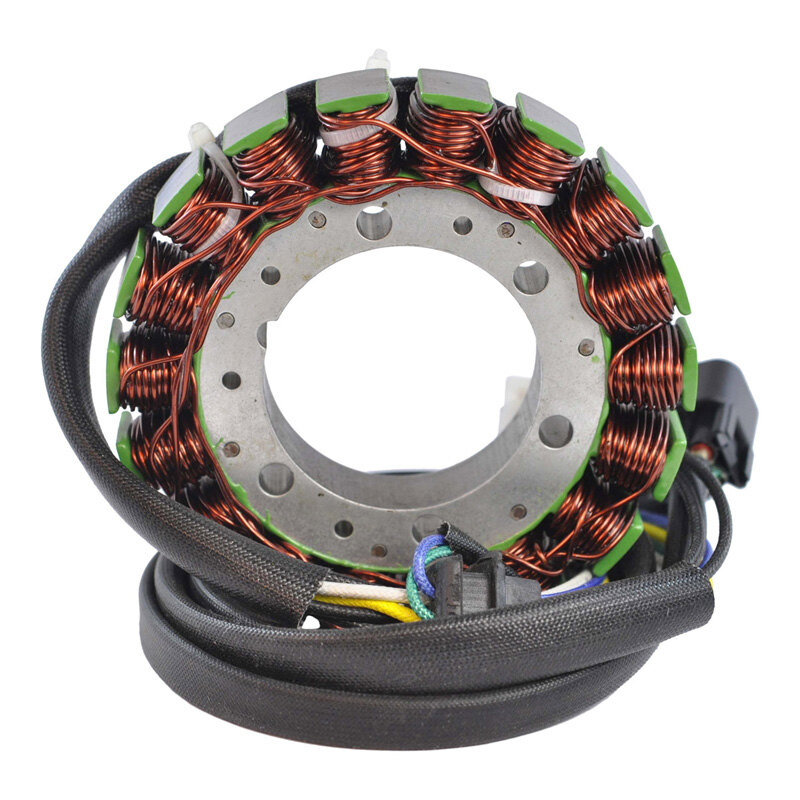

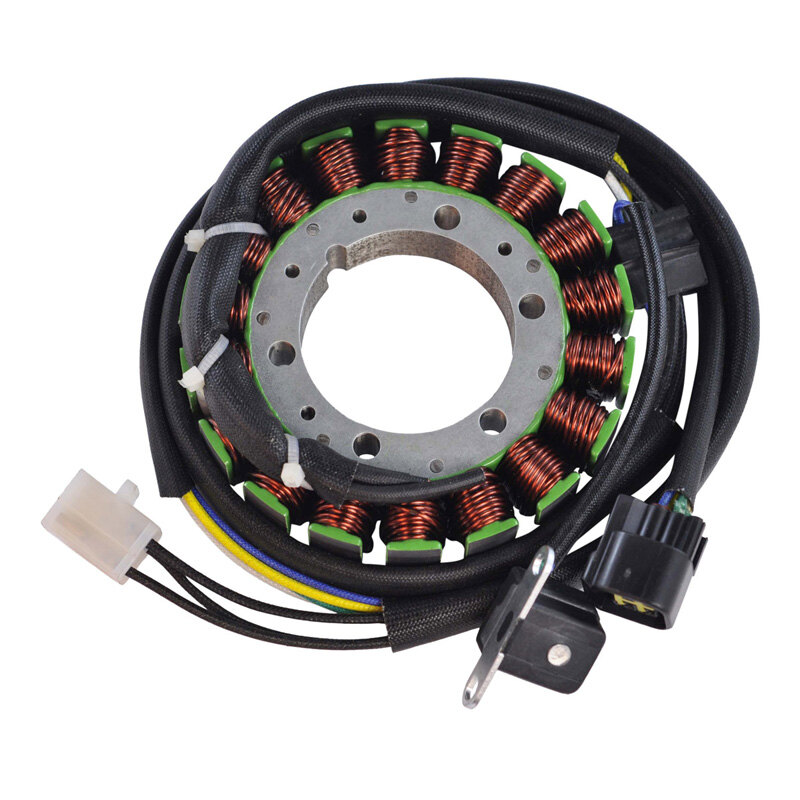

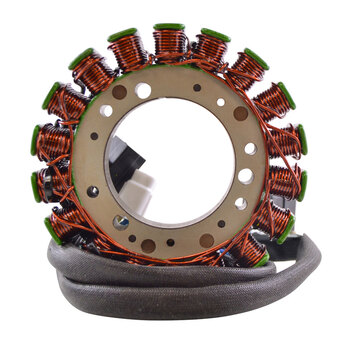

STATOR A-C 400/500 BEARCAT|SUZ LT-A/F500F 96-02

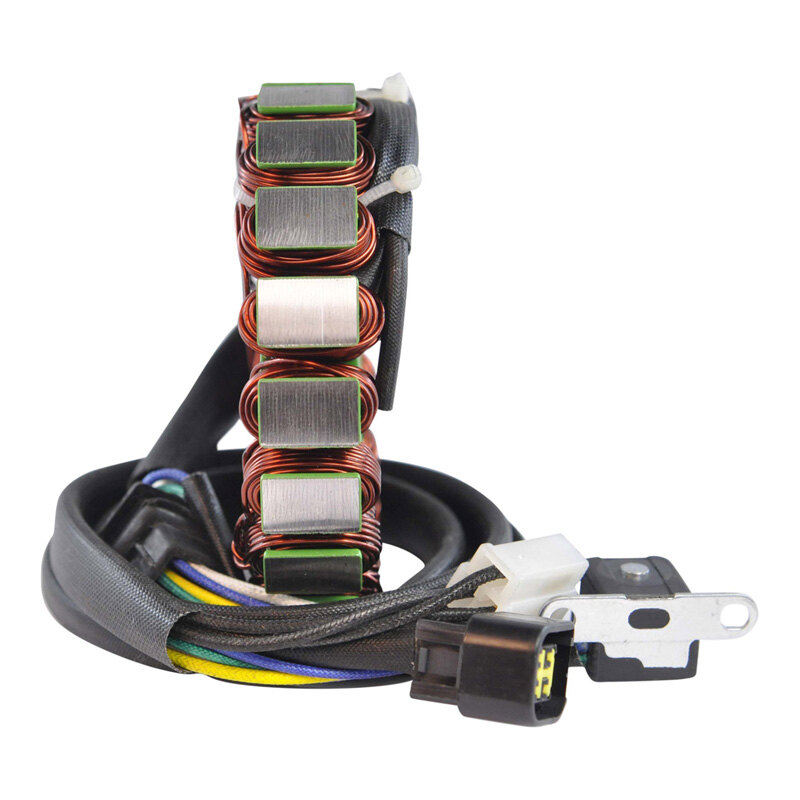

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

**The diameter of this stator is small to reduce heat.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 53mm
Exterior diameter: 114mm
Thickness: 18mm
Length of wires stator to grommet: 130mm
Length of wires grommet to plug: 600mm and 900mm
Length of pickup coil\'s wire to grommet: 95mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator: Black between each Black = 0.4ohms \/-20%
Pickup: Blue to Green = 200ohms =\/-20%
Position sensor: White to Yellow = 0.4ohms =\/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

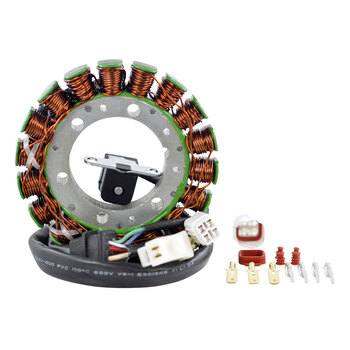

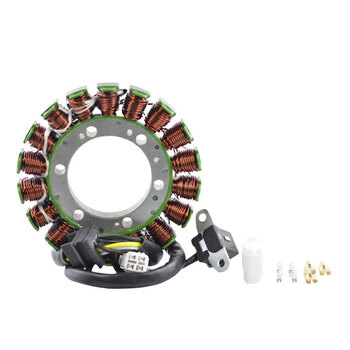

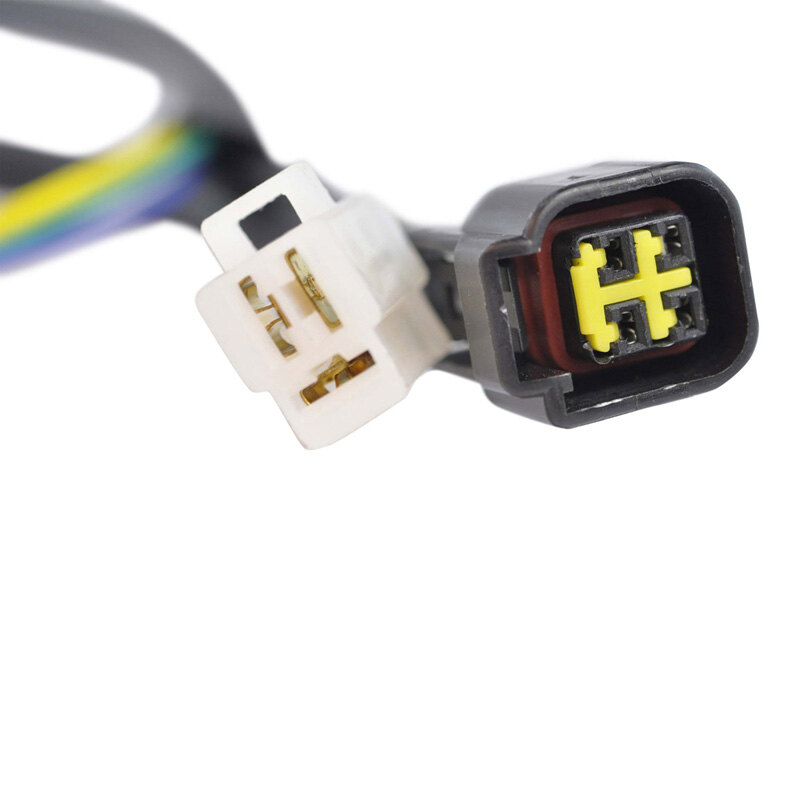

Two stators are possible for the Quadrunner Suzuki LFT 500 F 1998-2002. Please compare the connectors of your original part with our product photos.

• RM01054: 4-terminal female gray rounded connector with female locking ta
