STATOR HON TRX300/FW 88-00

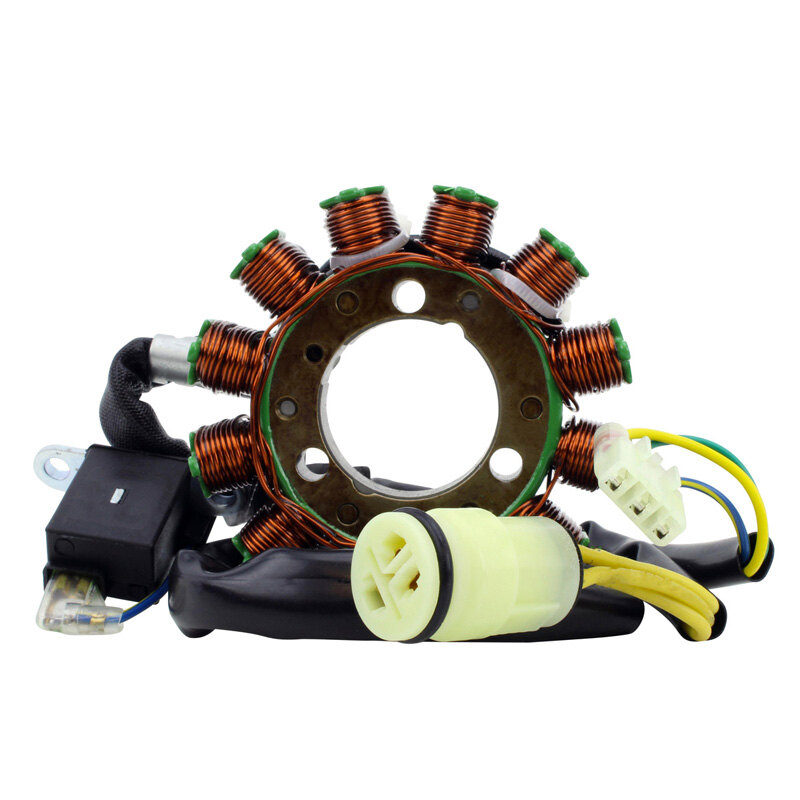

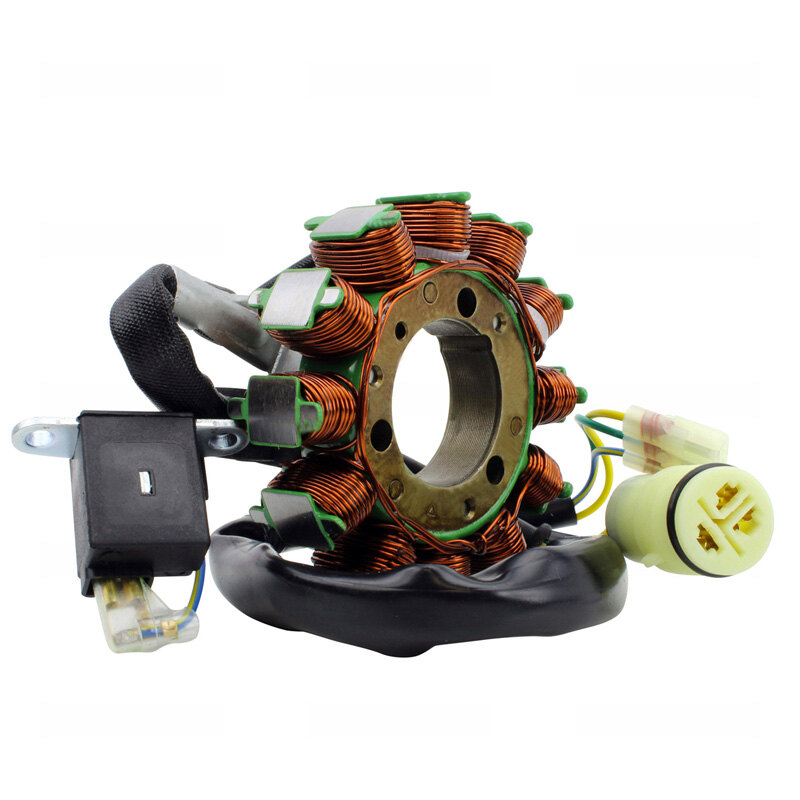

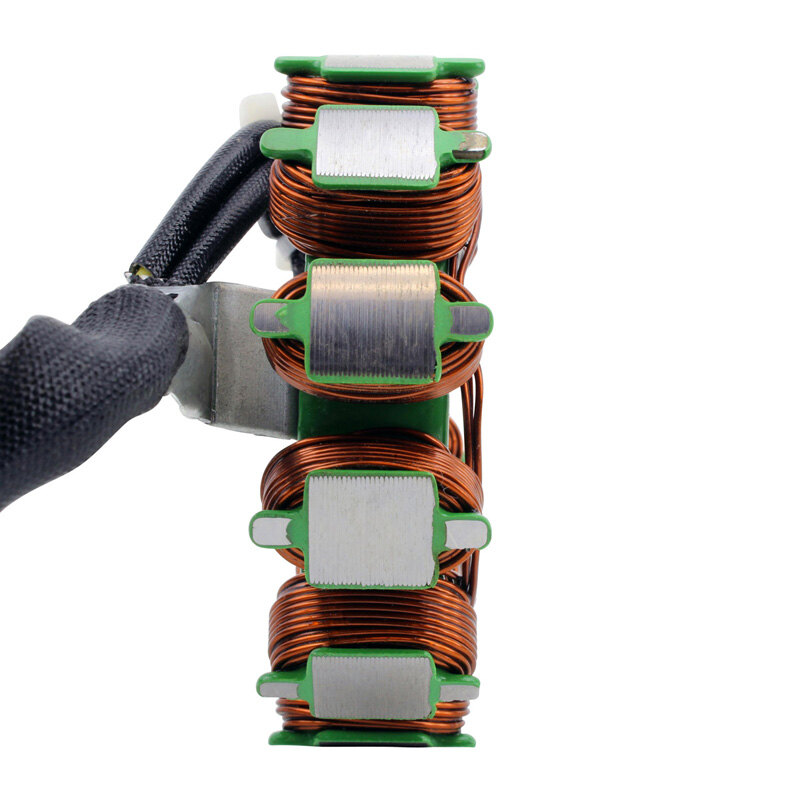

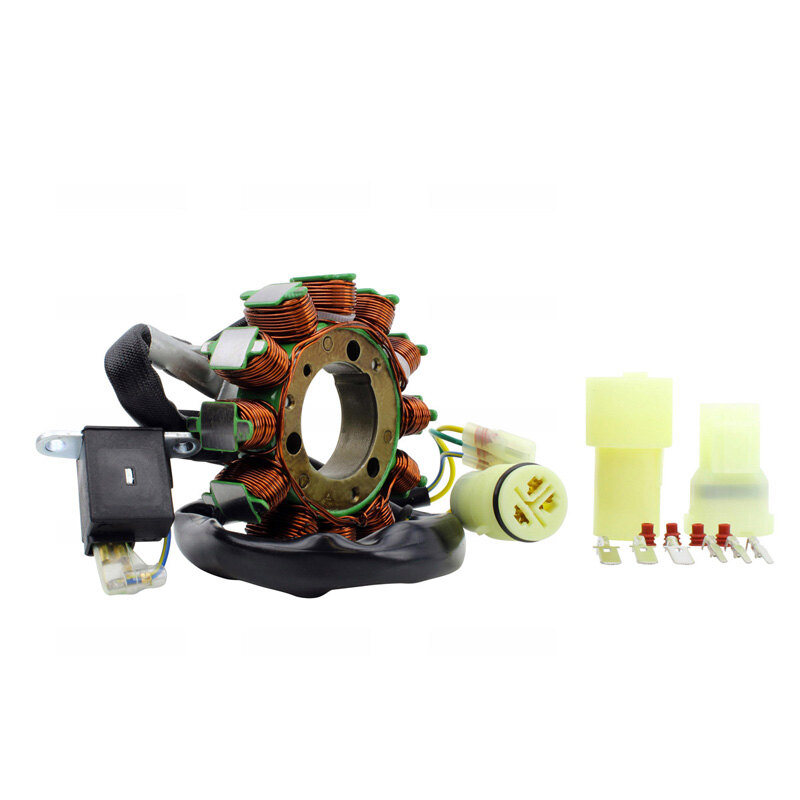

Brand new 12-Poles replacement stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

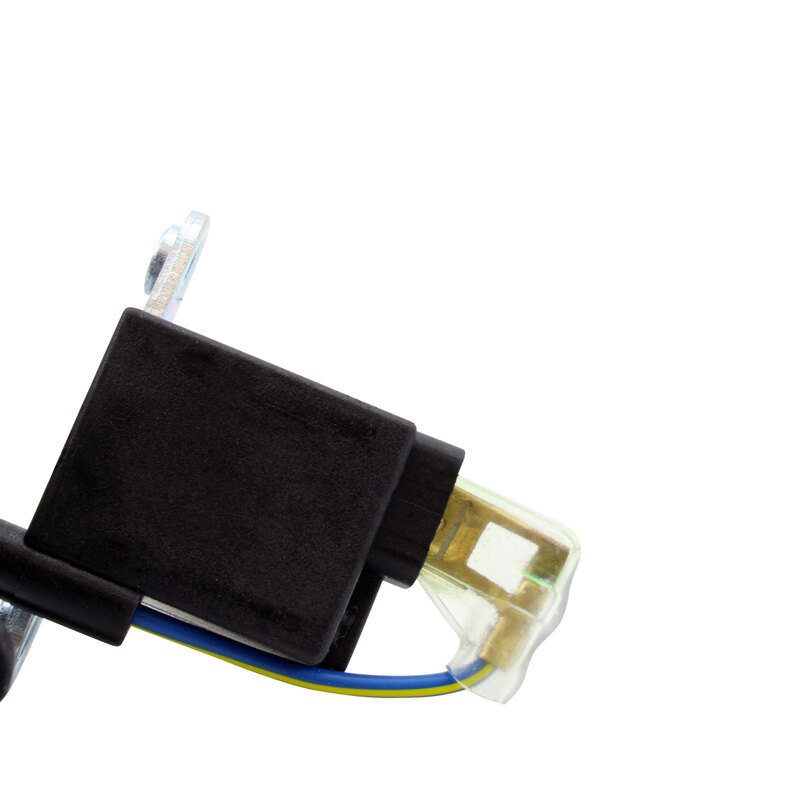

• Pick up pulsar coil included

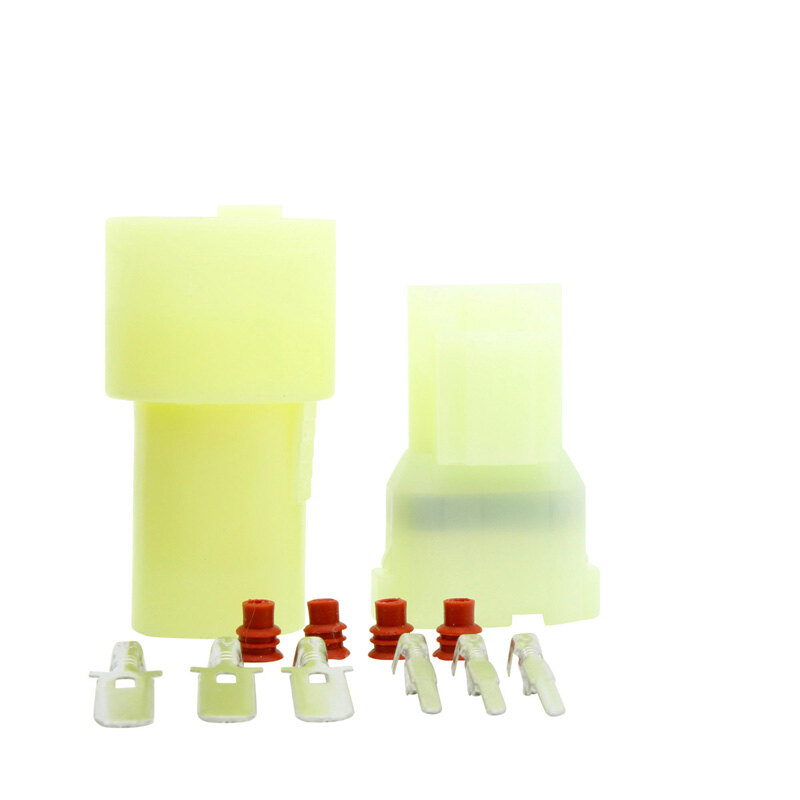

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6

Wire to wire resistance :
Alternator: Yellow between each Yellow = 0.4 ohms \/-20%
Pickup: Blue/Yellow to Green = 335ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Two stators exists for the TRX 300 Fourtrax (12-Poles & 18-Poles). Our stator replaces the 12-Poles stator. Please check your original stator before buying.
