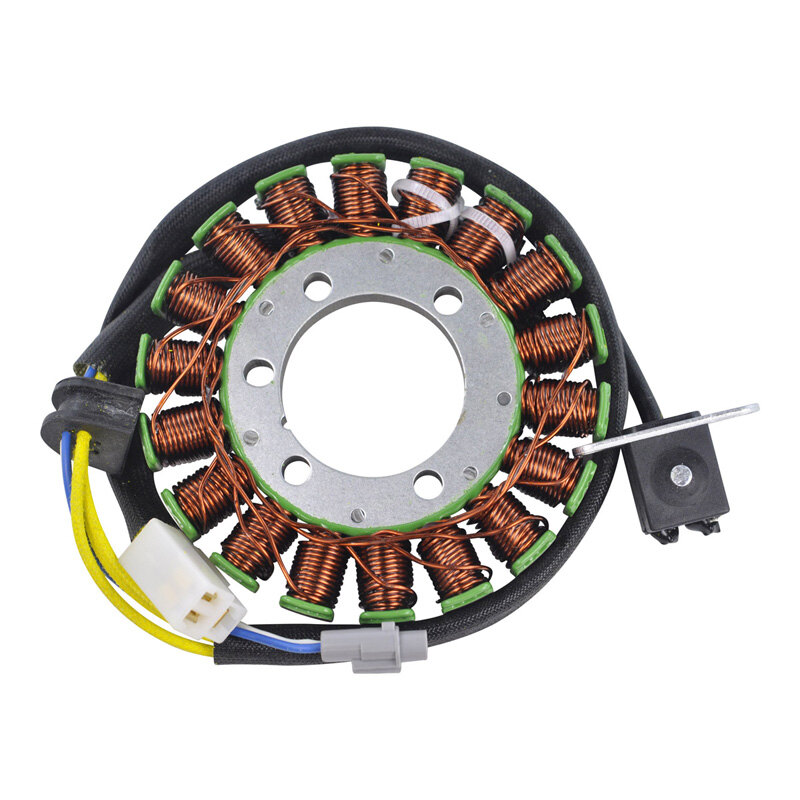

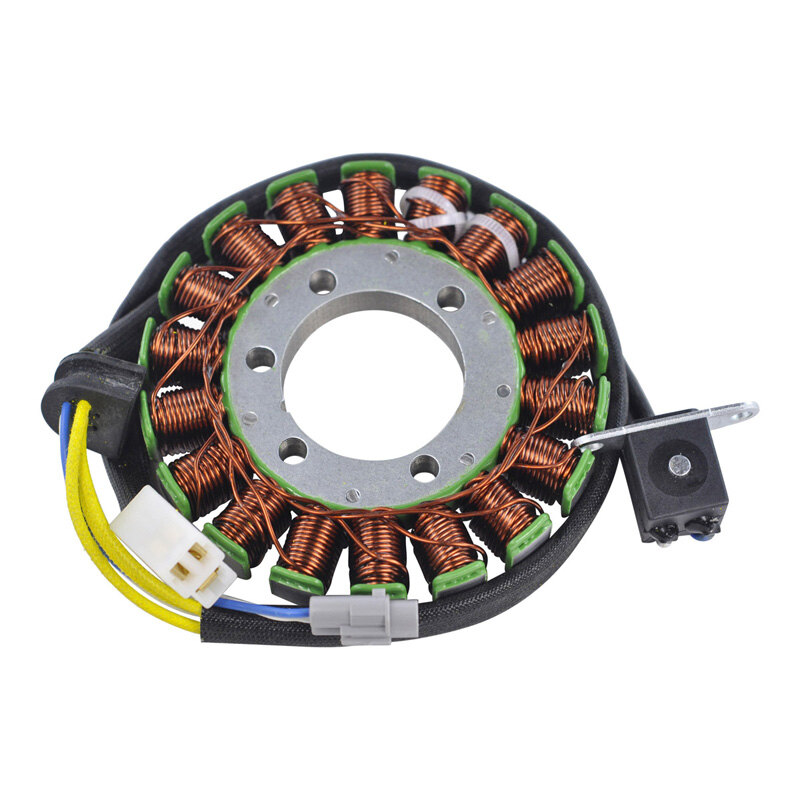

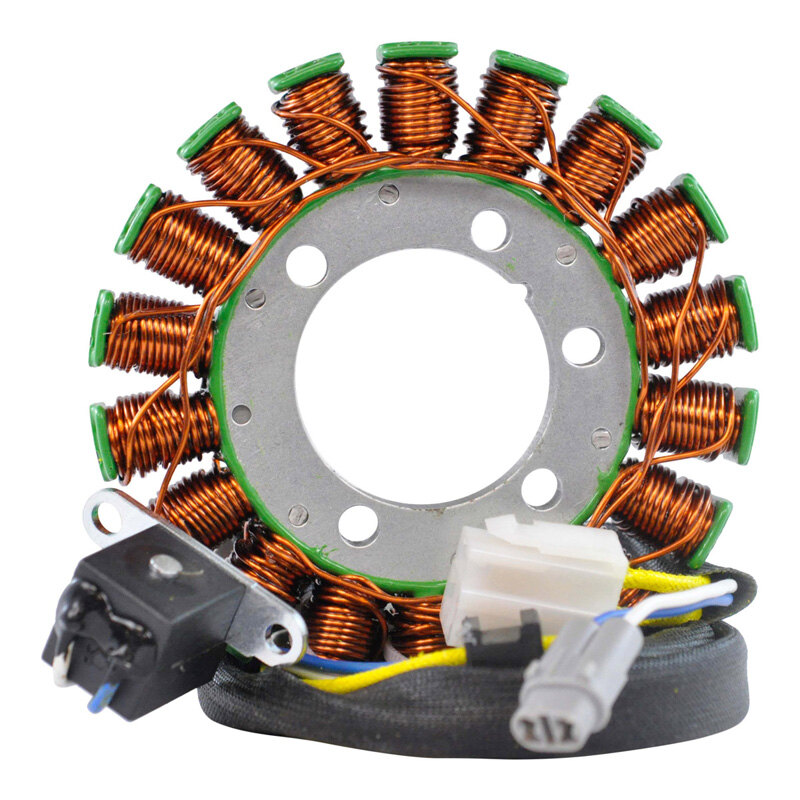

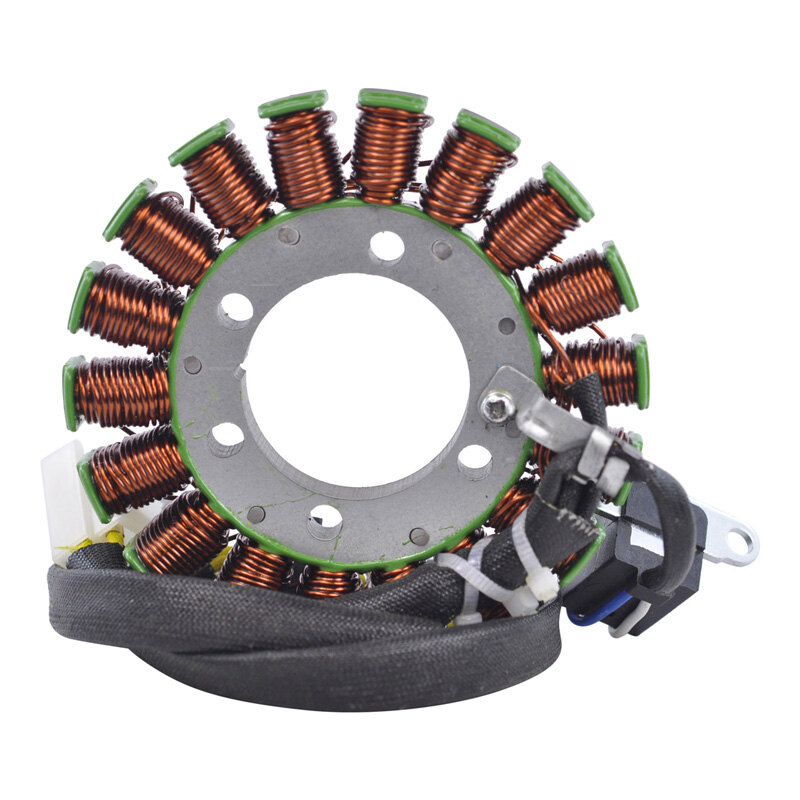

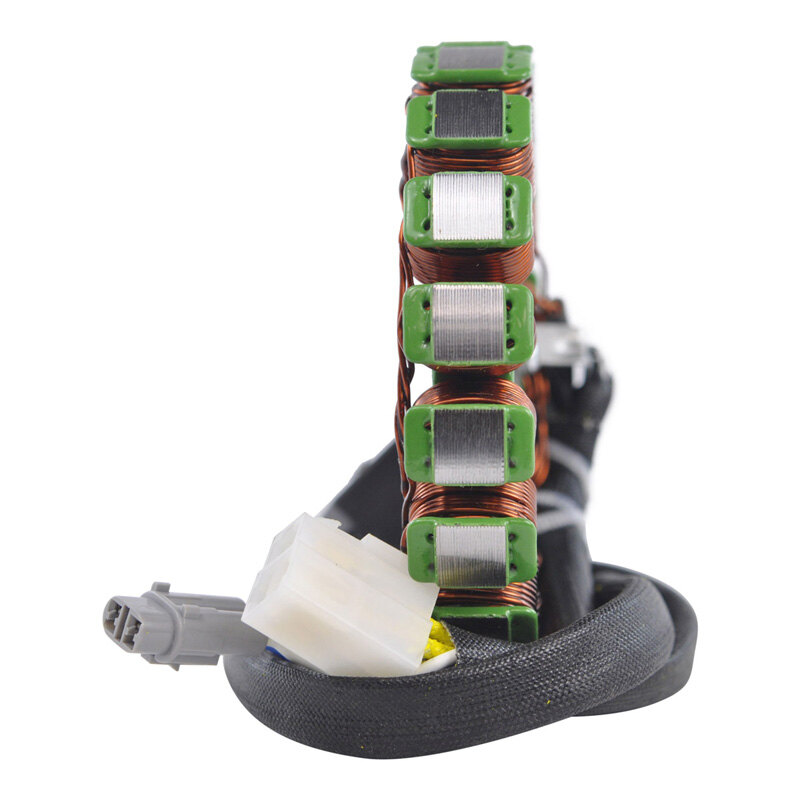

STATOR SUZ LT-R450 QUADRACER 06-09

PLEASE NOTE : Our product is slightly different that the OEM part
OEM Part : 107.30mm
Our Part : 102.80mm

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All product shipped are tested

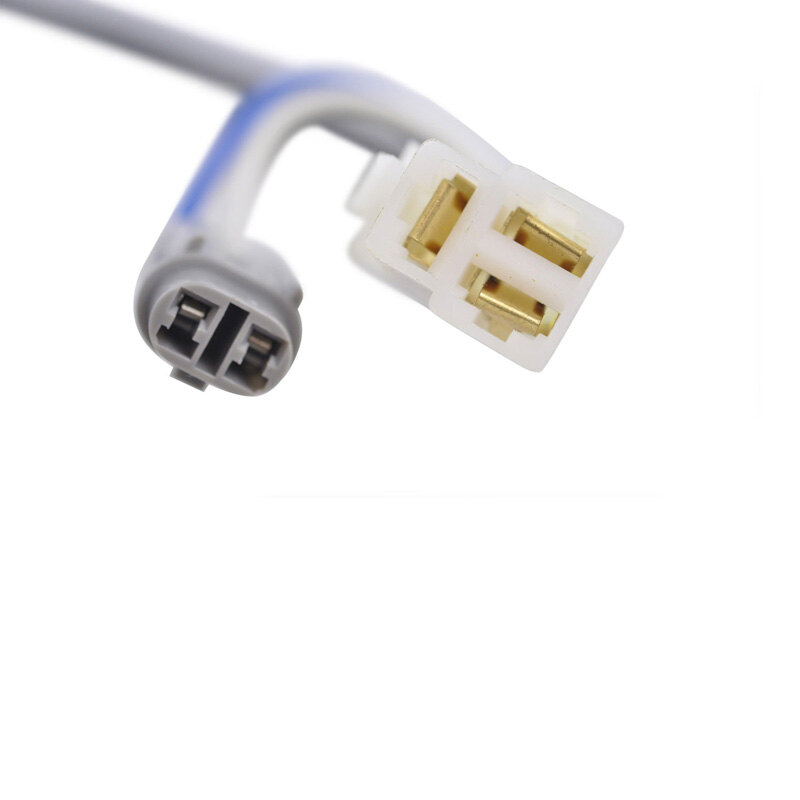

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 12 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 380 mm
Length of pickup coil\'s wire to grommet : 45 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms \-20%
Pickup : Blue to Green = 200 ohms \-20%

PLEASE NOTE : Our product is slightly different that the OEM part
OEM Part : 107.30mm
Our Part : 102.80mm

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
