STATOR HUS FE|FX|HUSQ TE|KTM XC-W|SX-F 08-20

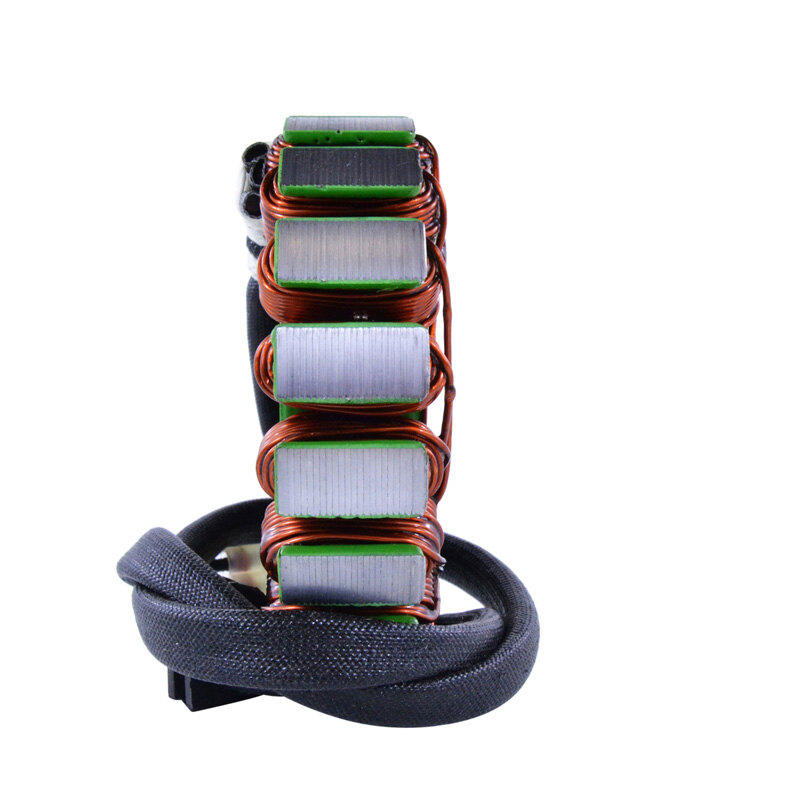

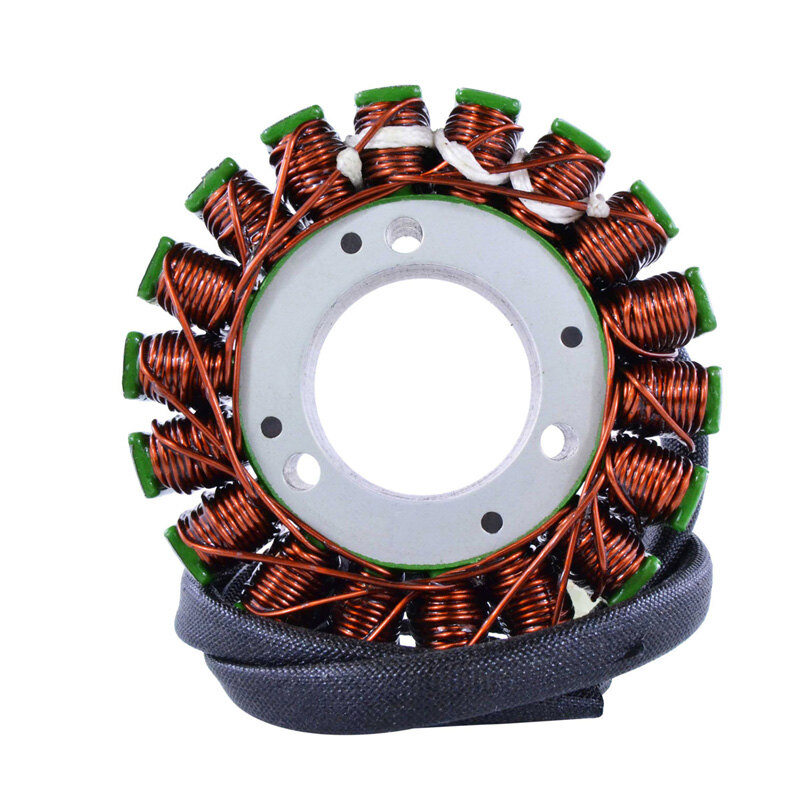

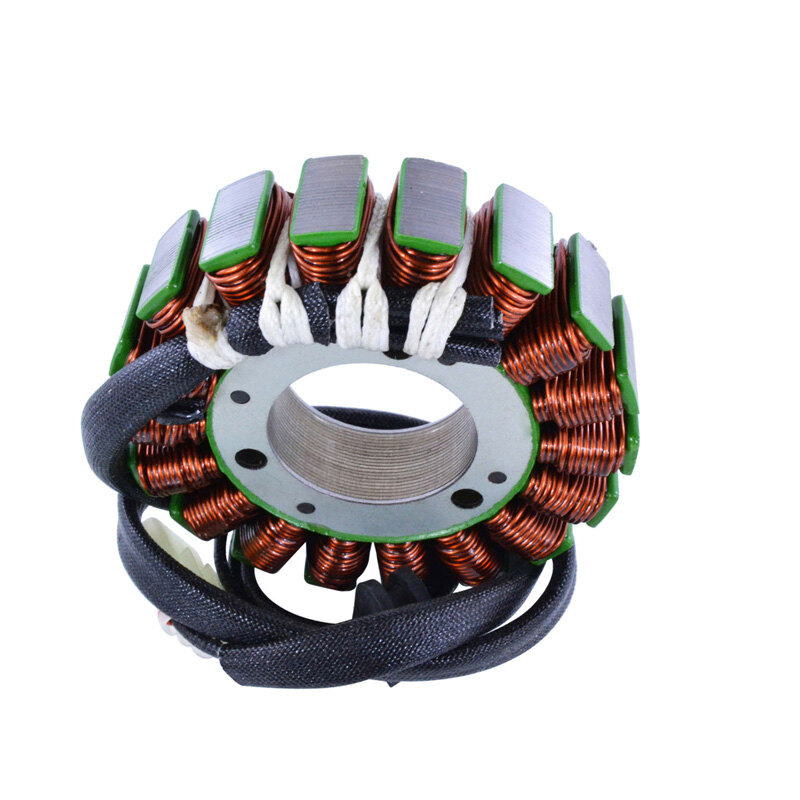

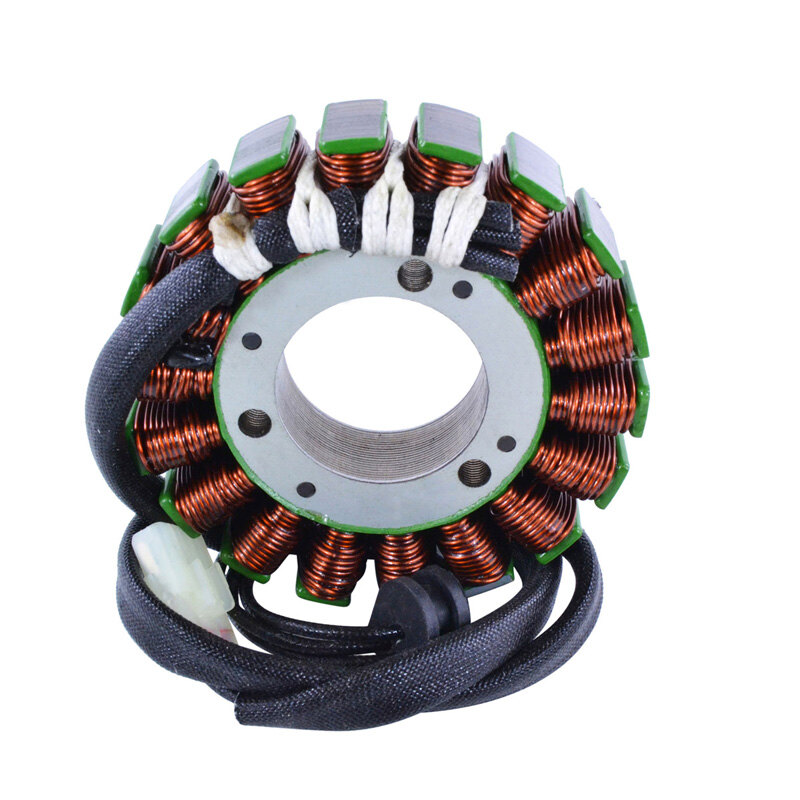

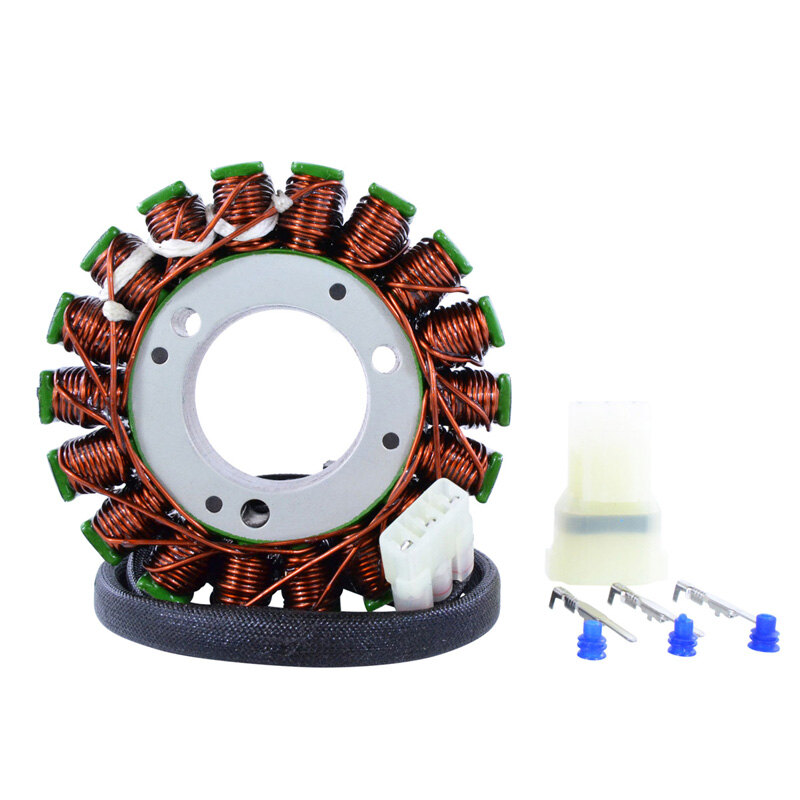

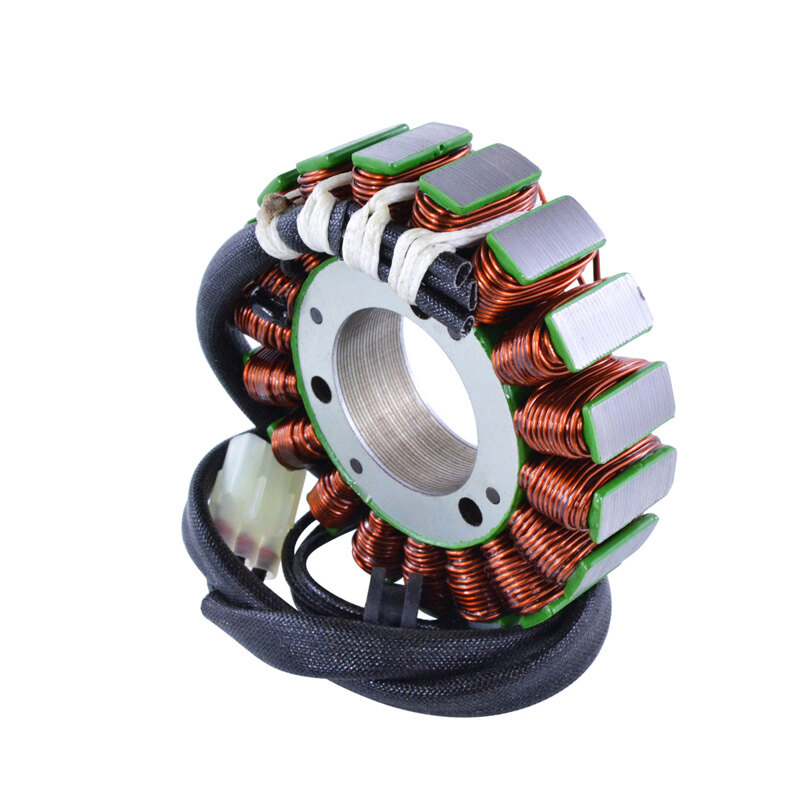

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials

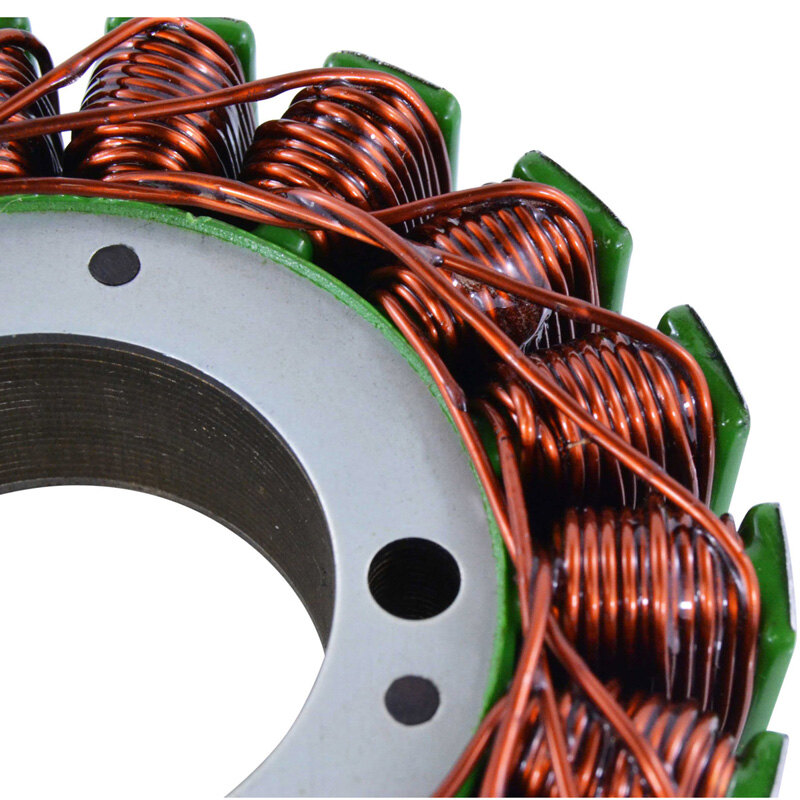

• Highest grade copper windings, resistant to 200 degrees Celsius.

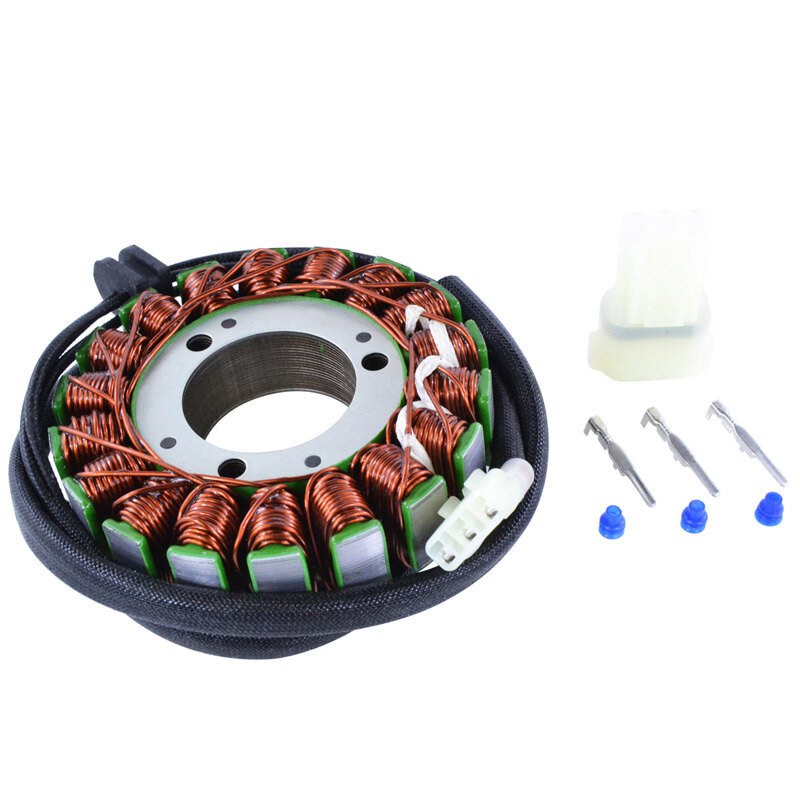

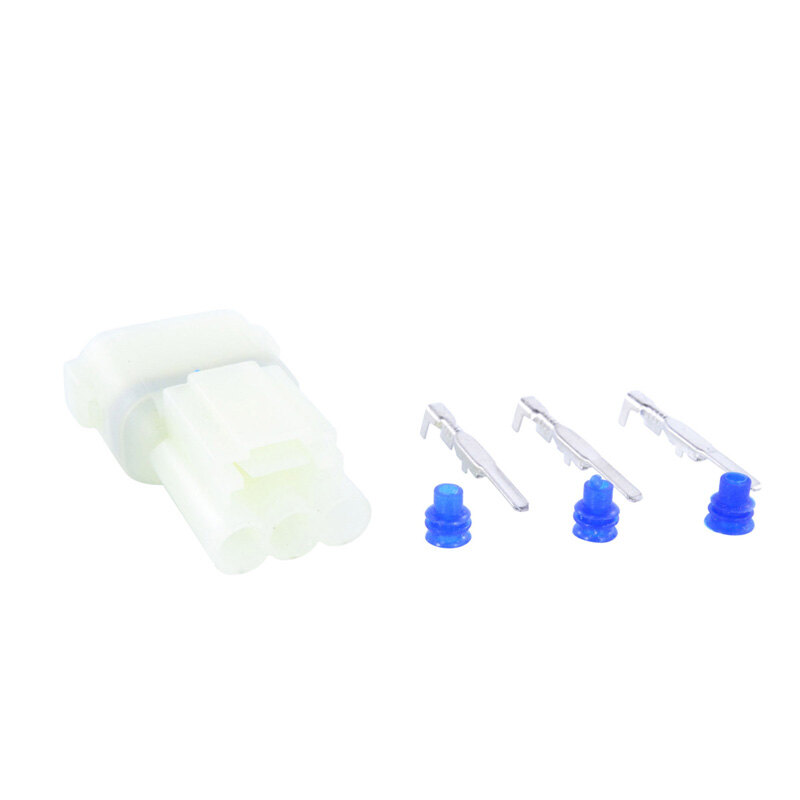

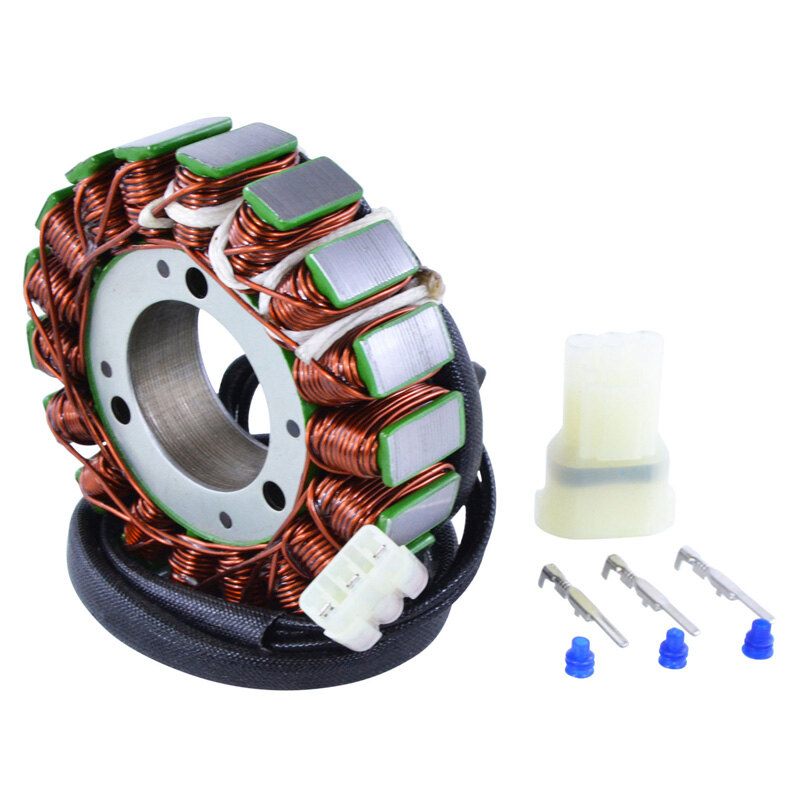

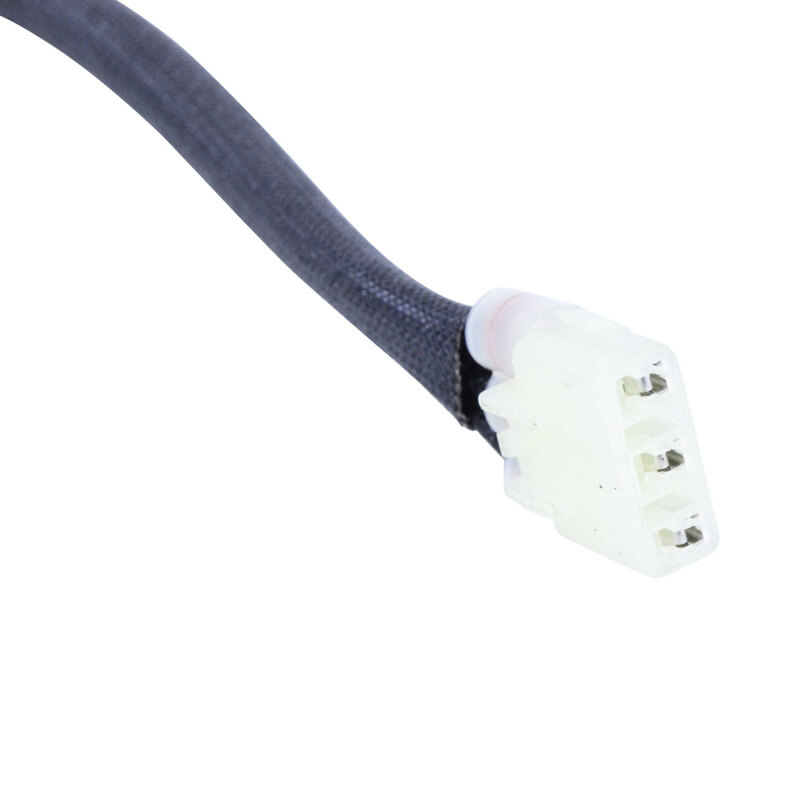

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 89 mm
Thickness : 18 mm
Length of wires stator to grommet : 94 mm
Length of wires grommet to plug : 406 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Black between Black = 0.4 ohms \-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
