STATOR HON TRX500|TRX520 FE|FM 14-20

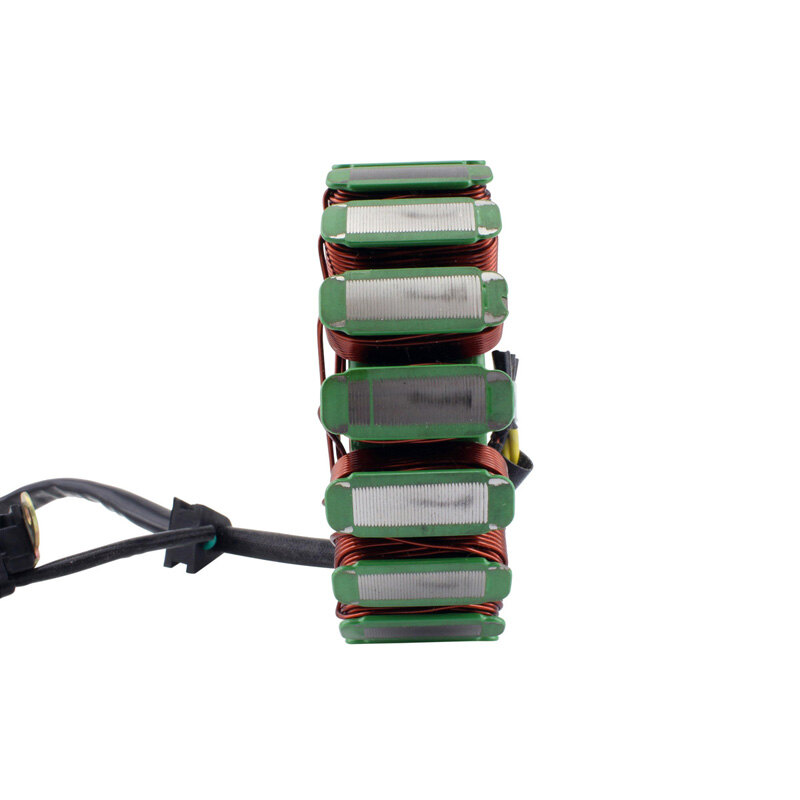

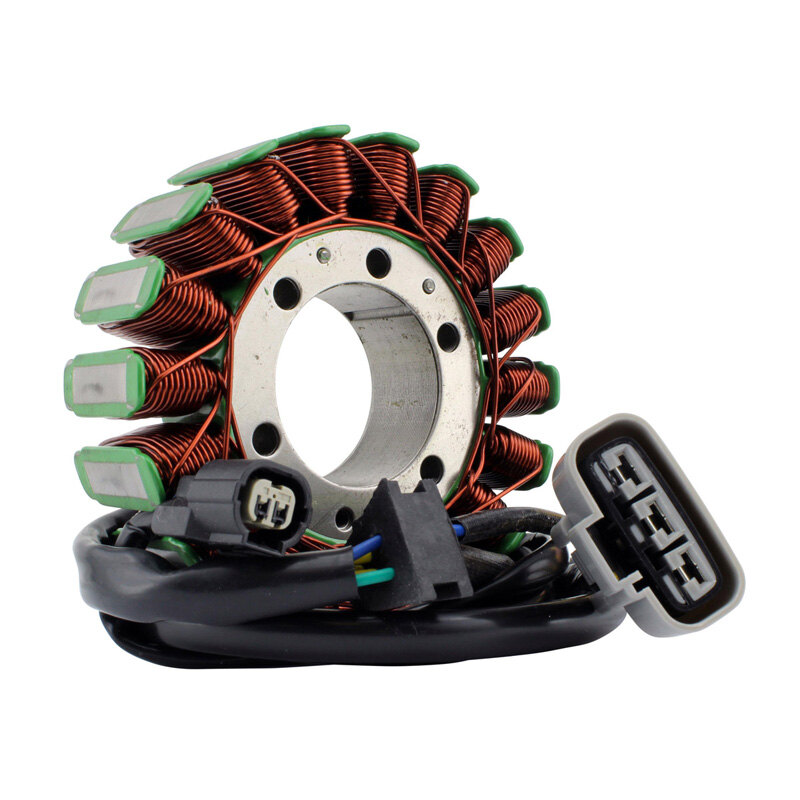

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.

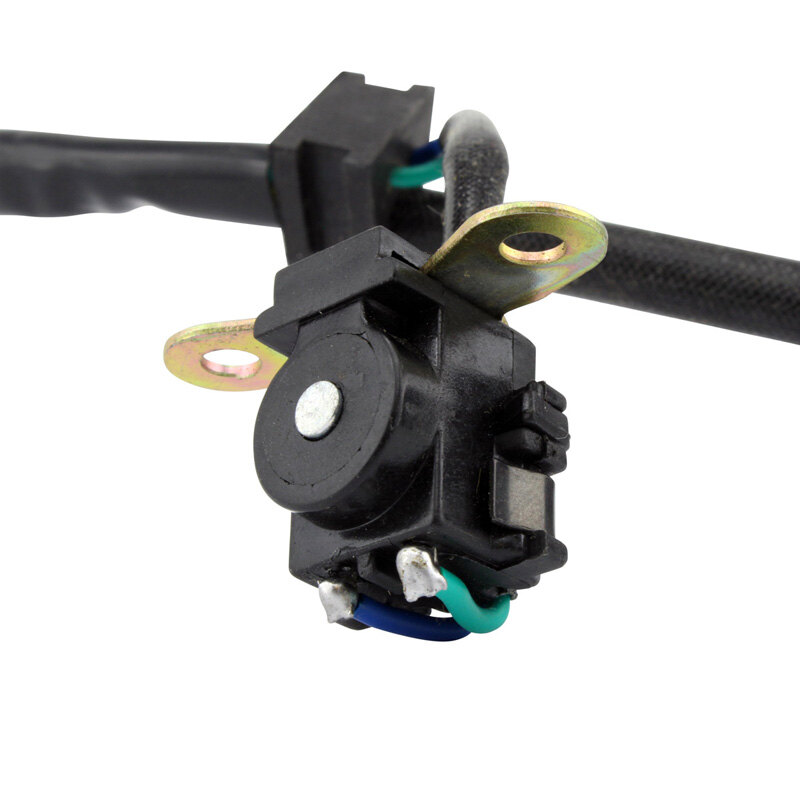

• Pick up pulsar coil included
• Connectors included

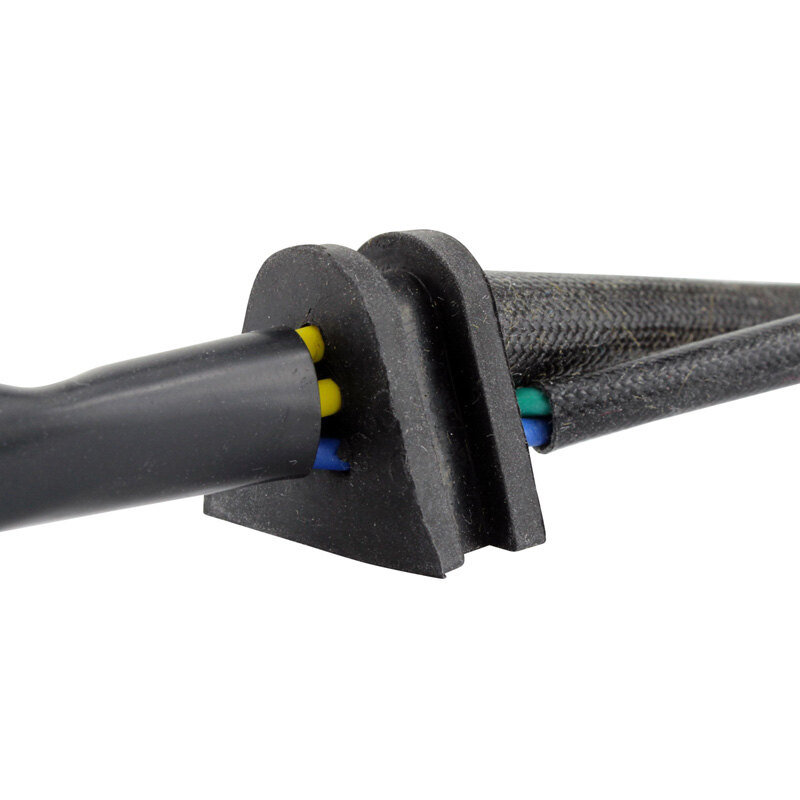

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 40 mm
Exterior diameter : 105 mm
Thickness : 35 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 940 mm
Length of pickup coil\'s wire to grommet : 60 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.5 ohms \-20%
Source : Blue/Yellow to Green = 240 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
