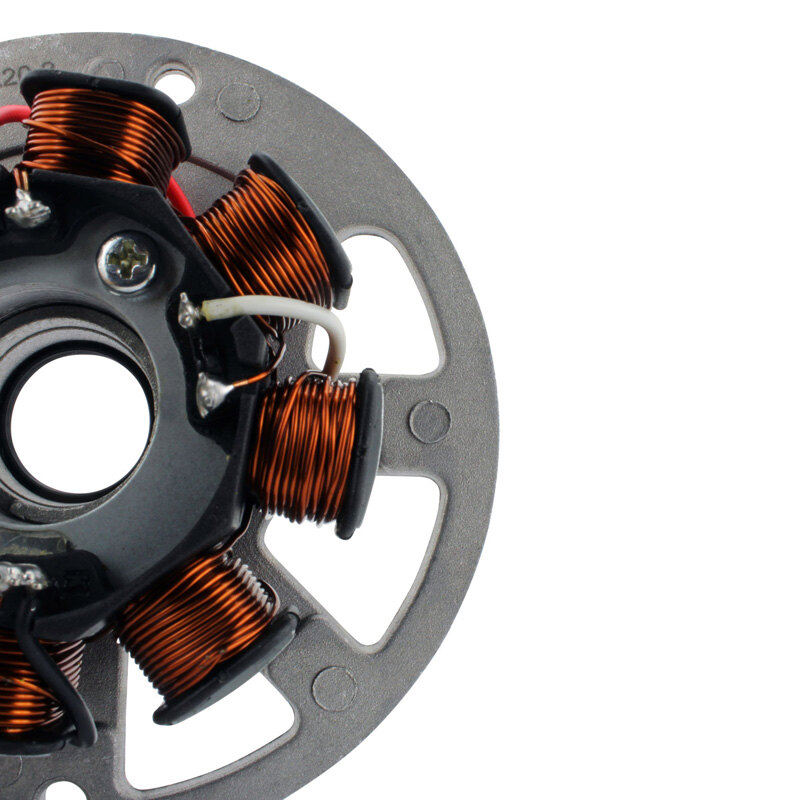

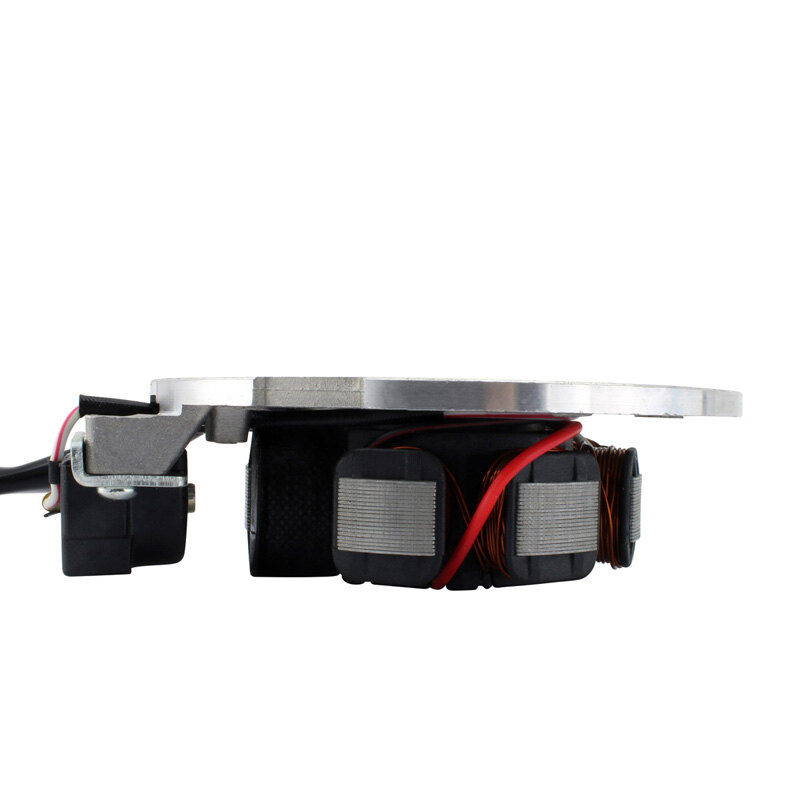

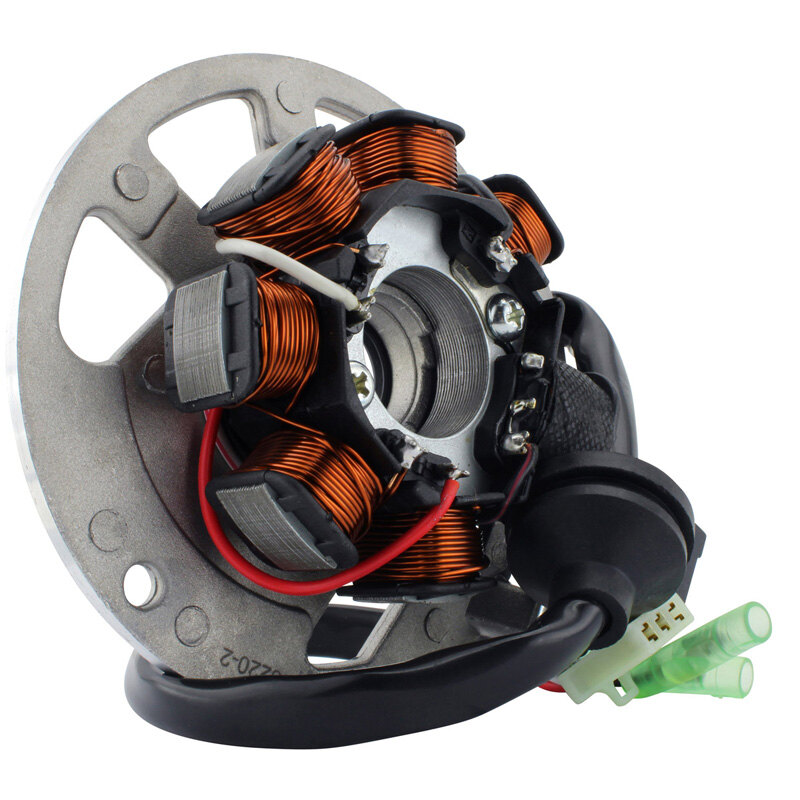

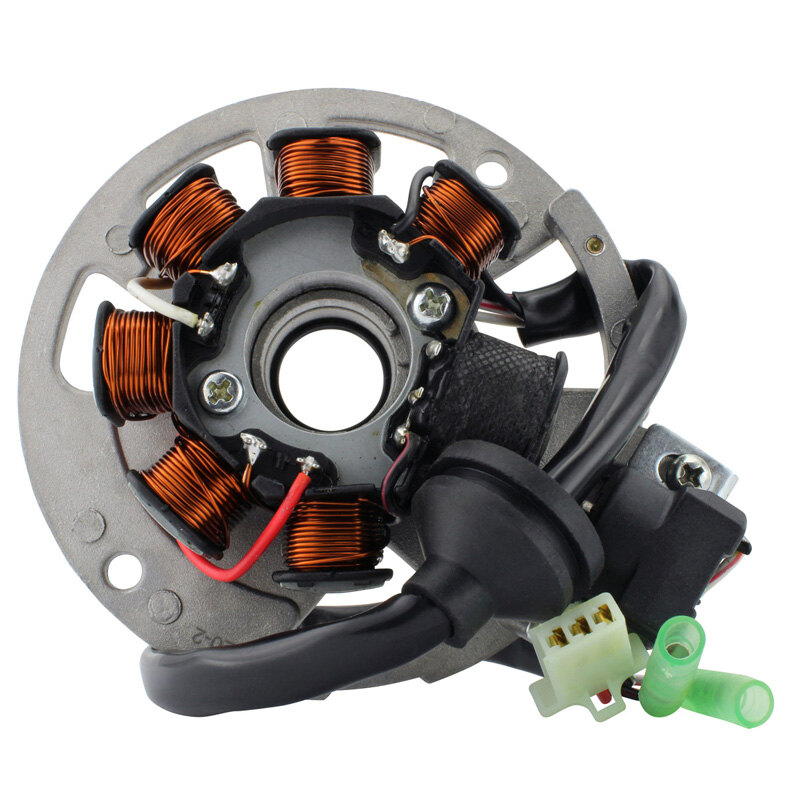

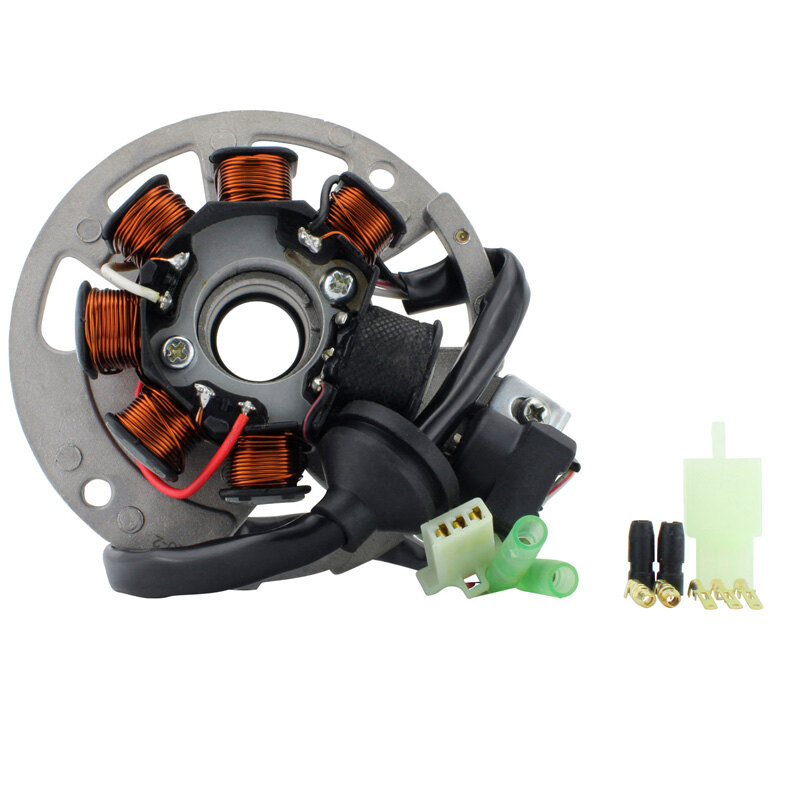

STATOR YAM ZUMA 50 02-05 08-11

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

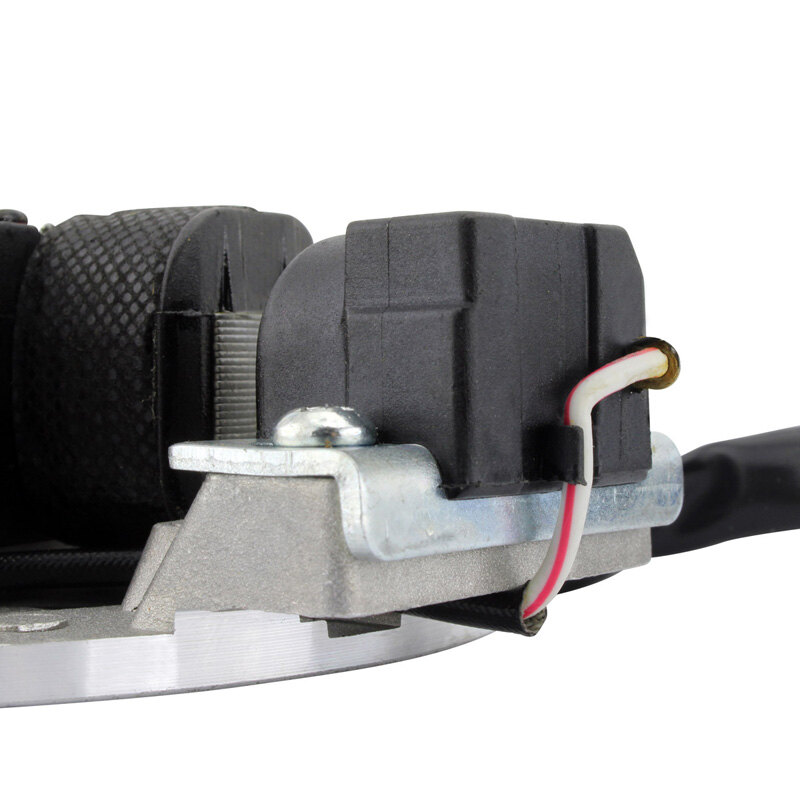

• Pick up pulsar coil included

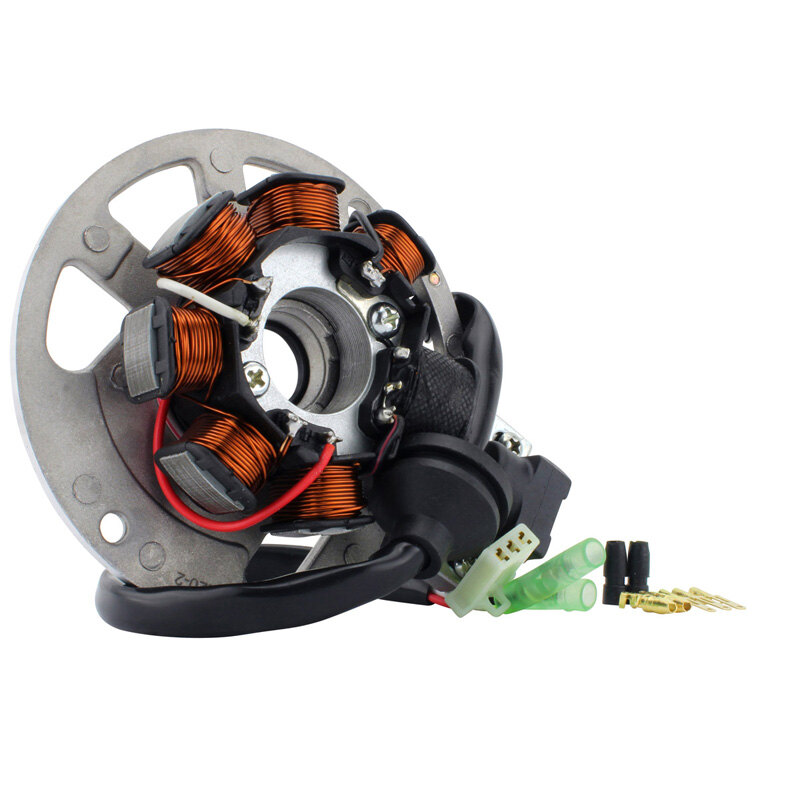

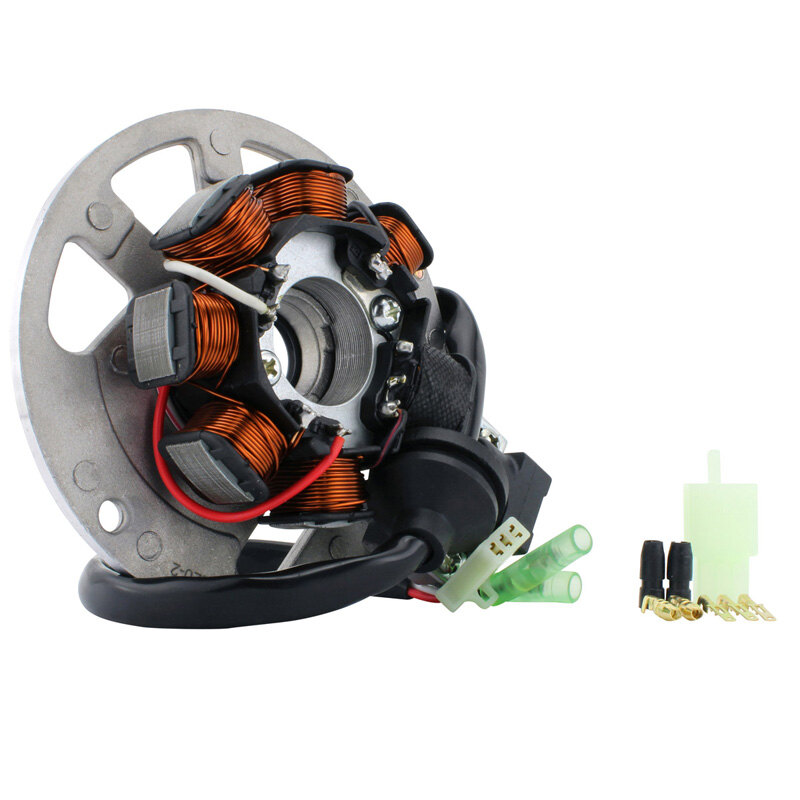

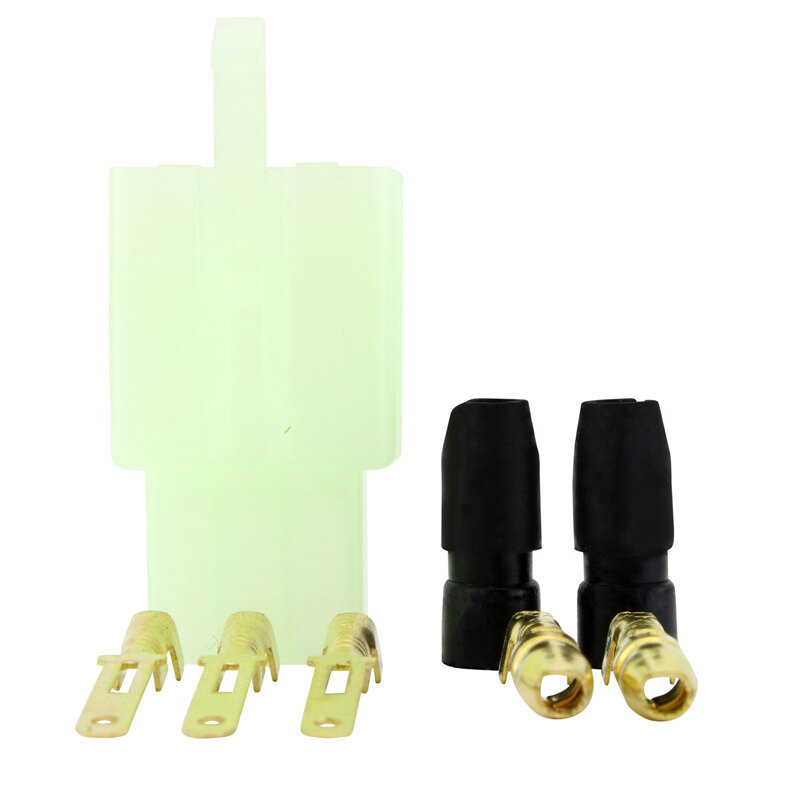

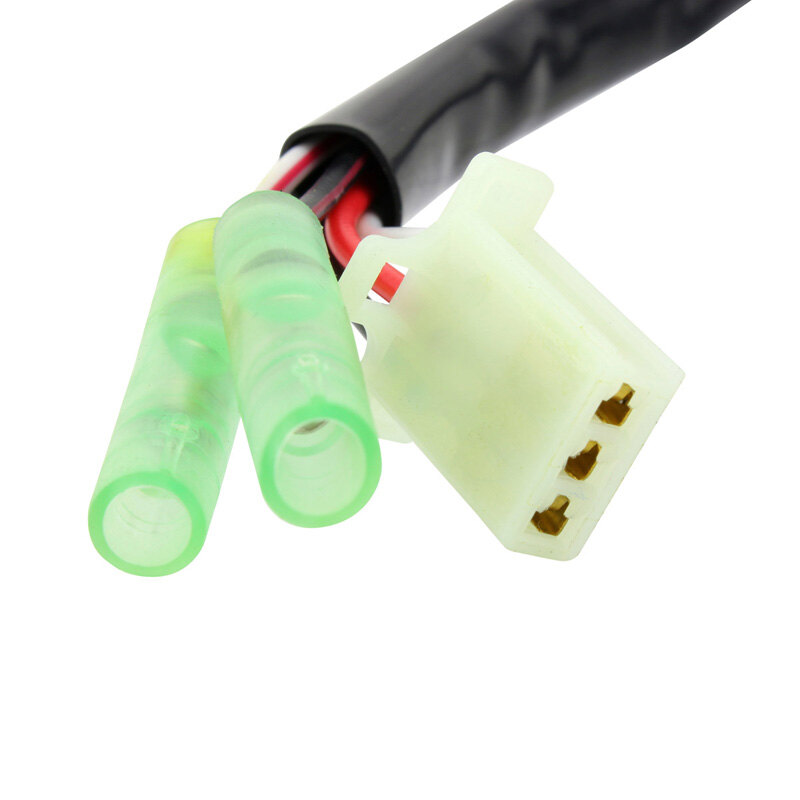

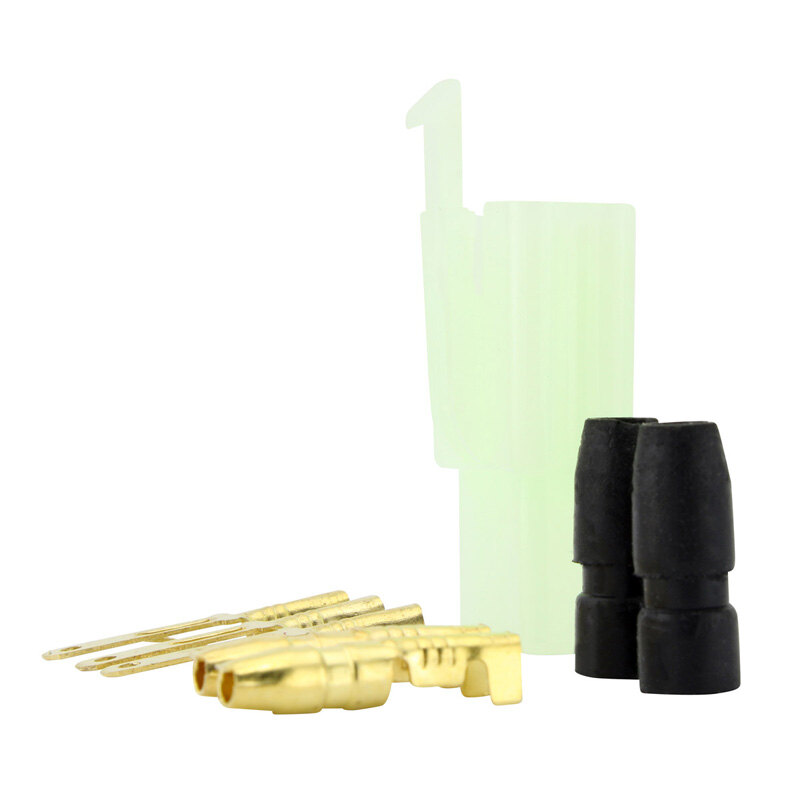

• Connectors included
• Rubber grommet included

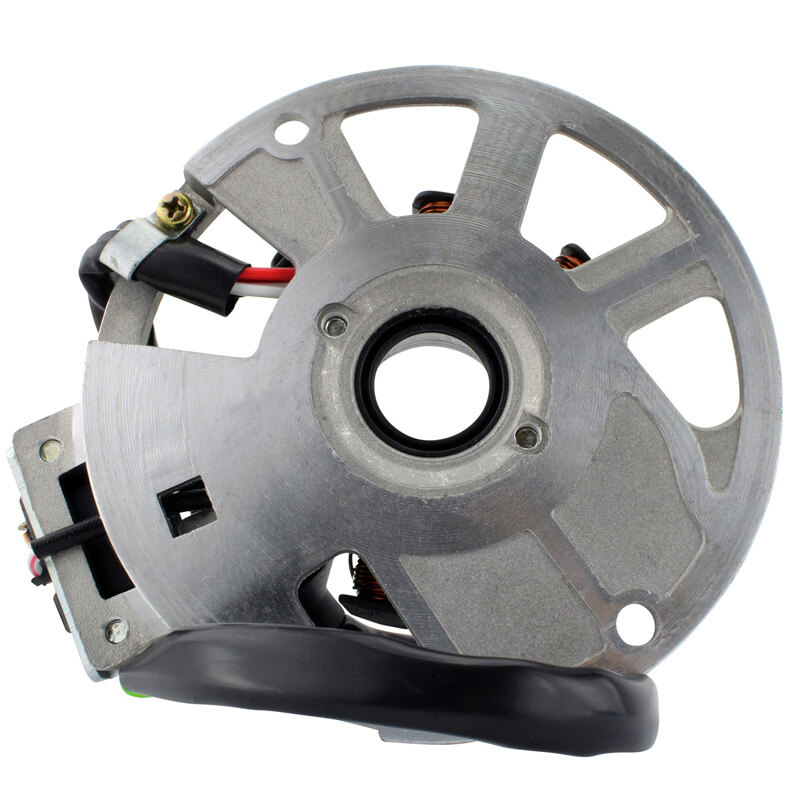

• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 28 mm
Exterior diameter: 80 mm
Thickness: 12 mm
Length of wires stator to grommet: 30 mm
Length of wires grommet to plug: 280 mm

Other specifications:
Number of wires: 5
Number of plugs: 3
Number of pins: 5
Number of poles: 7
Wire to wire resistance:
Alternator: White to Yellow/Red = 0.7 ohms \-20%
Pickup: White/Red to to Black (ground) = 478 ohms \-20%
Source: Black/Red to Black (ground) = 800 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
