Stock #  351010429

STATOR YAM YZF-R1 15-22|FZ10|MT-10 17-21

Dealer Price $176.99 CAD
Overview

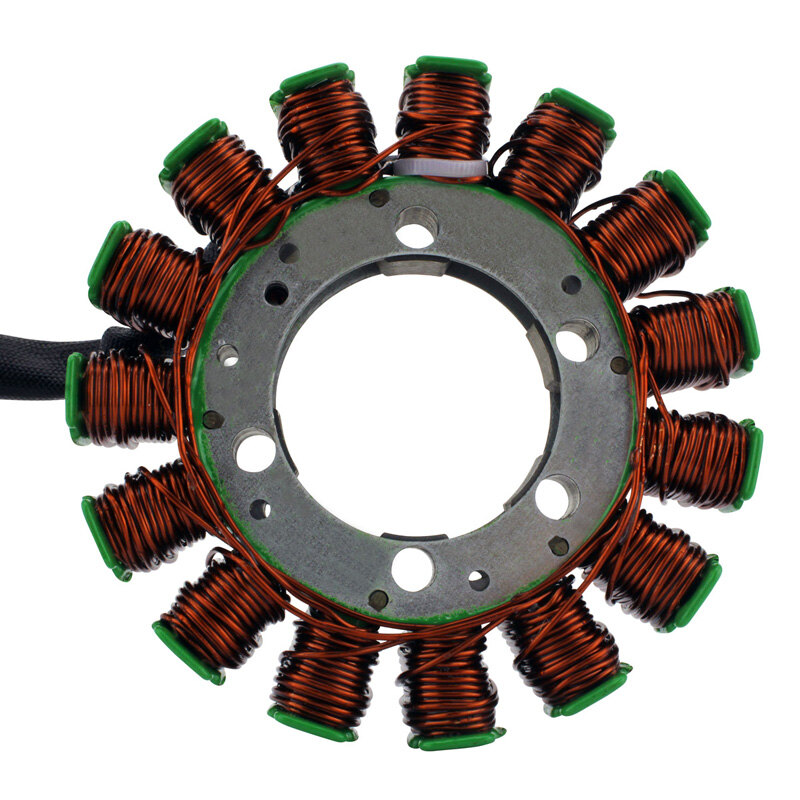

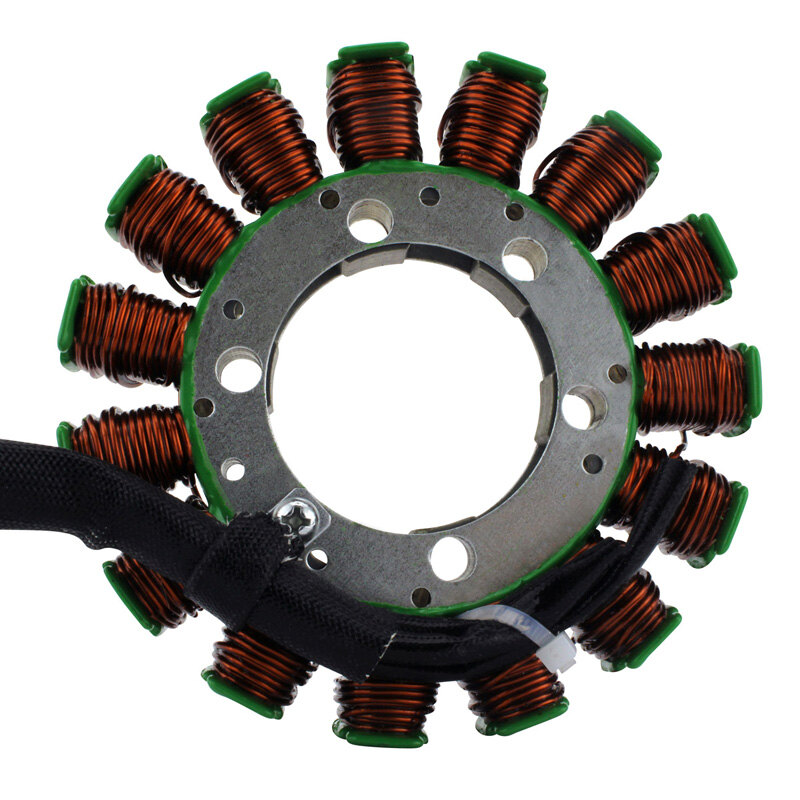

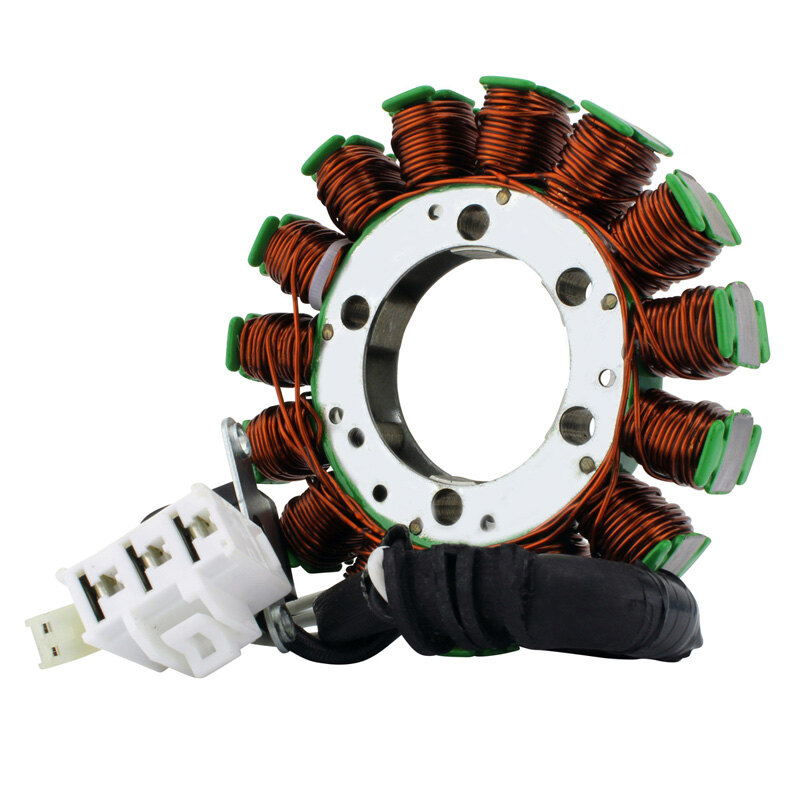

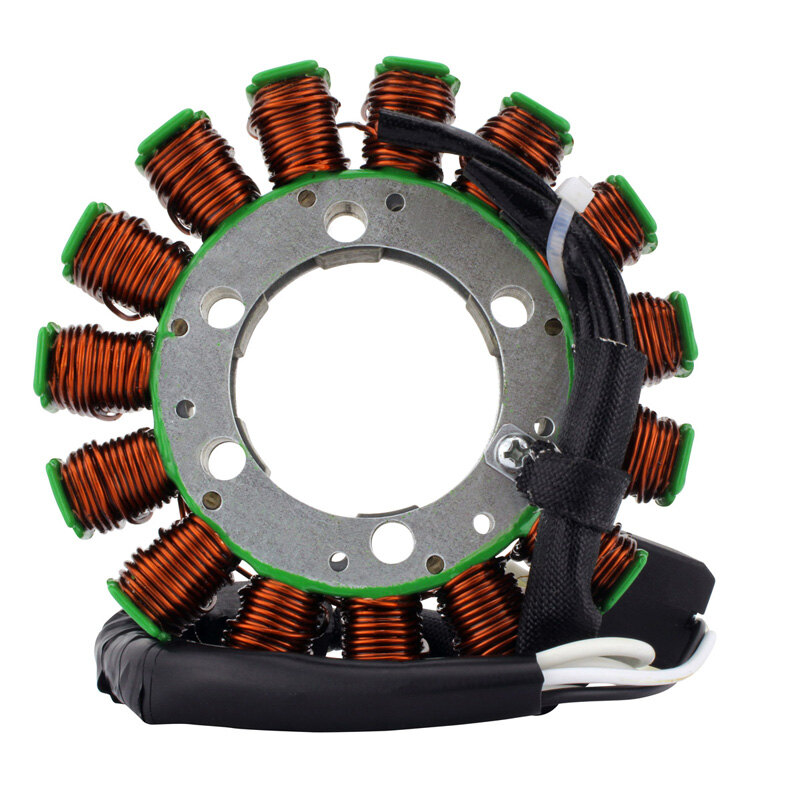

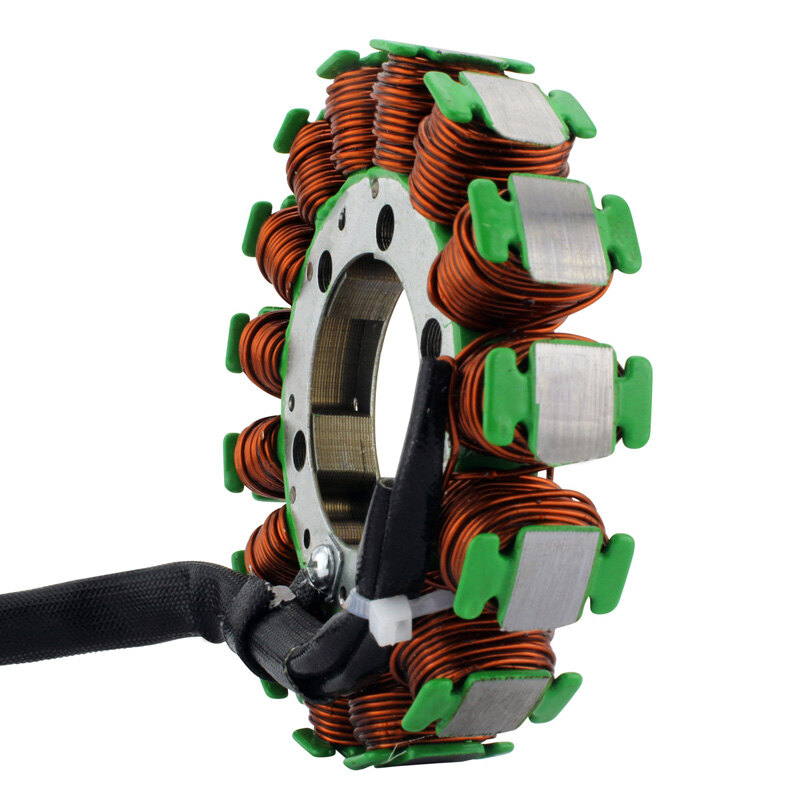

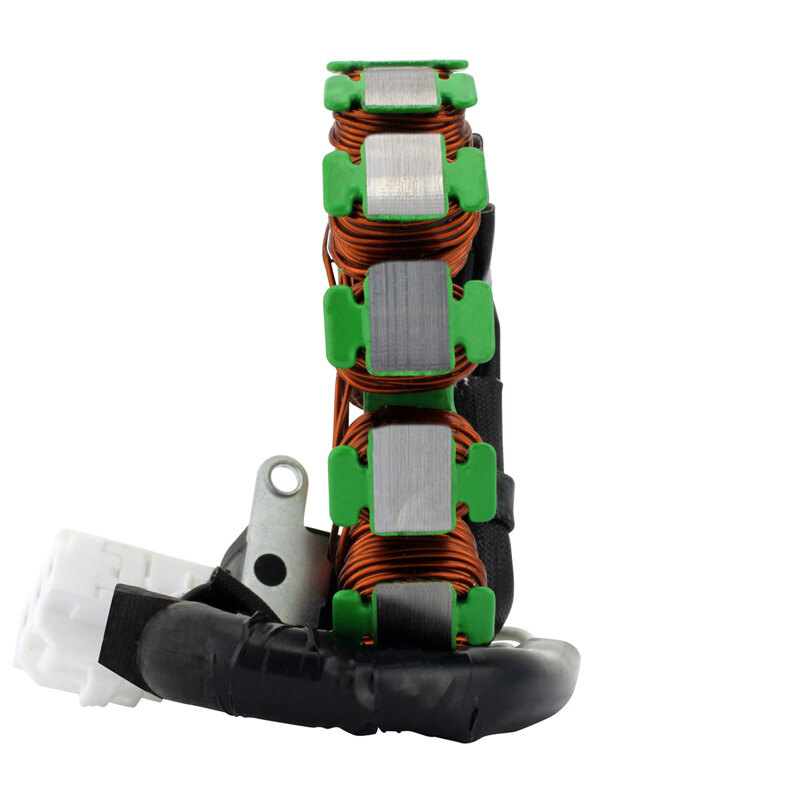

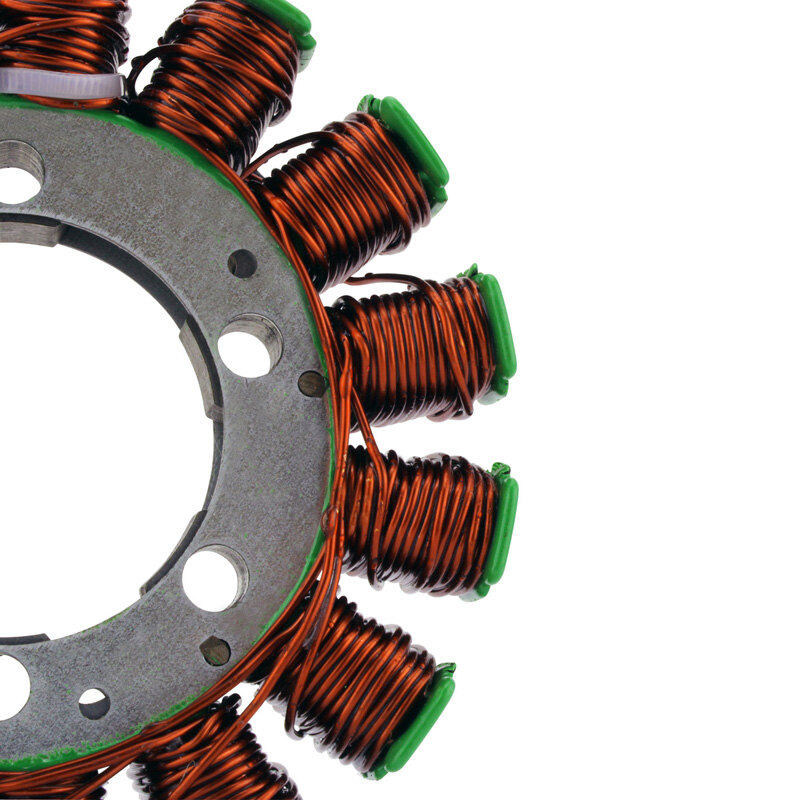

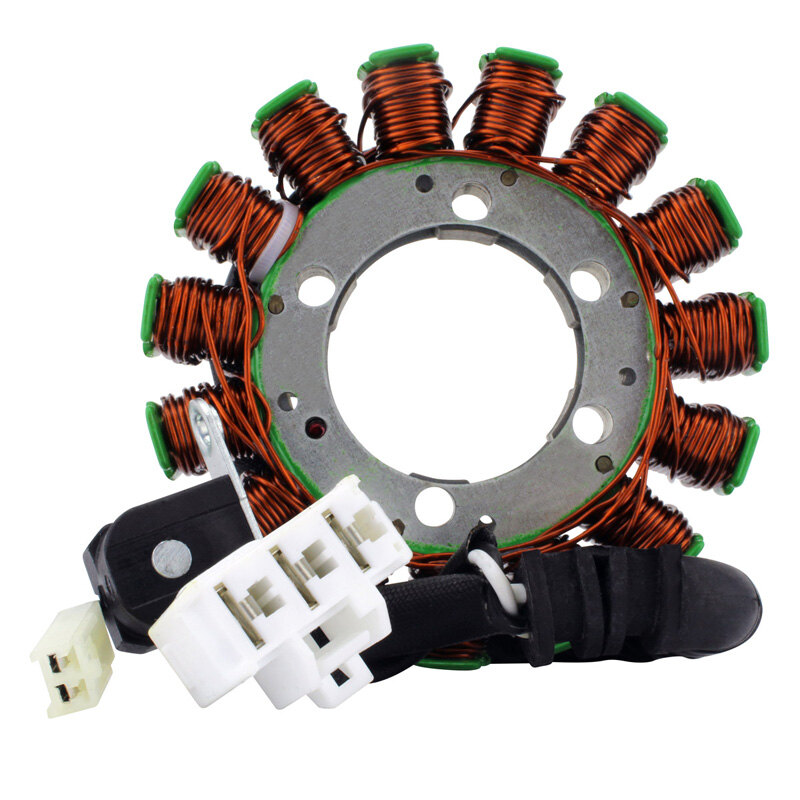

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

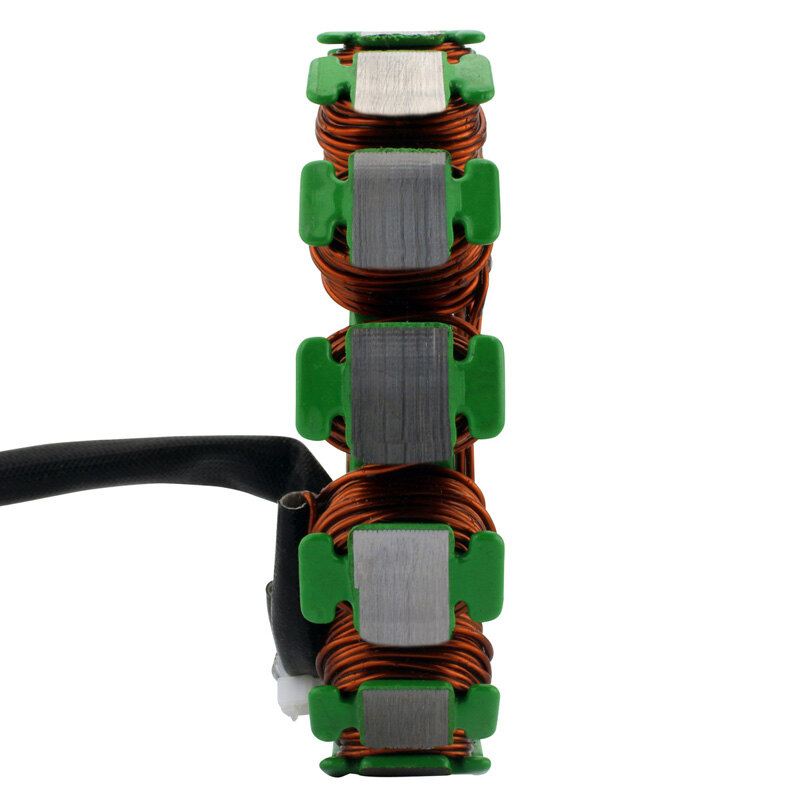

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

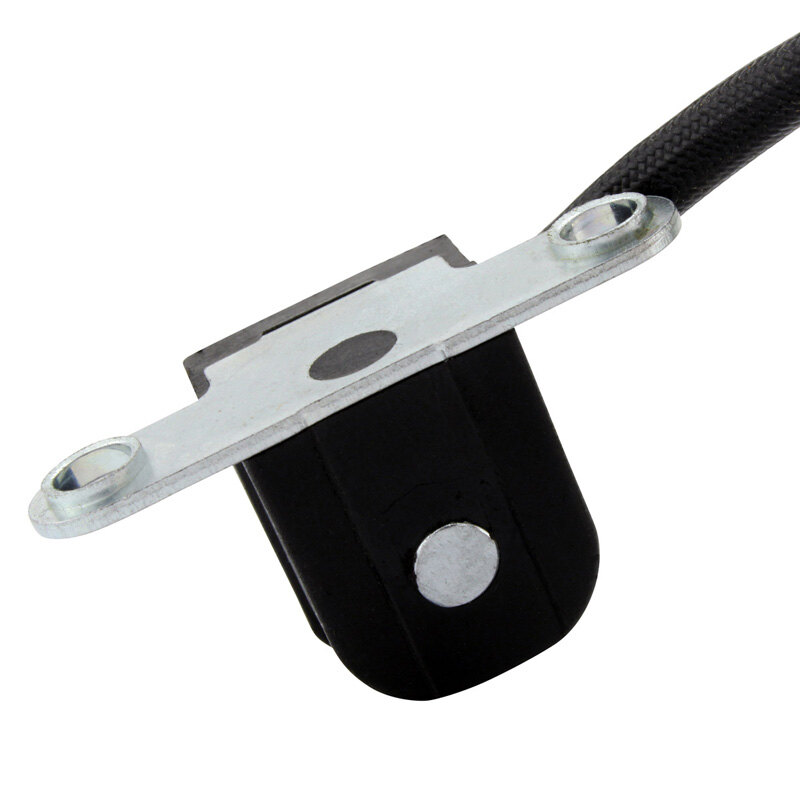

  • Pick up pulsar coil included

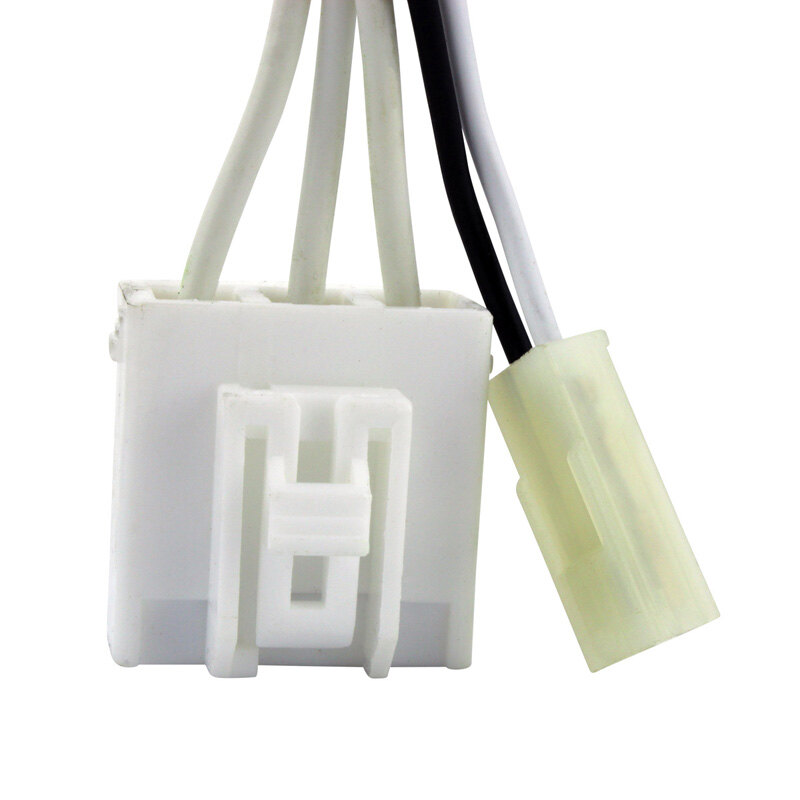

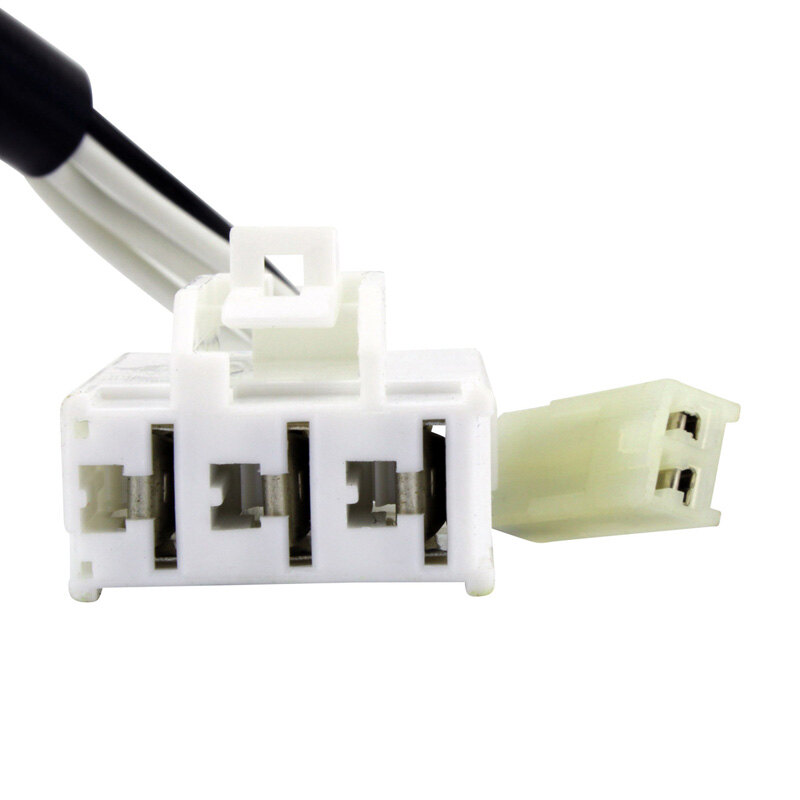

  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 43 mm
Exterior diameter: 105 mm
Thickness: 13 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug #1: 135 mm
Length of wires grommet to plug #2: 170 mm
Length of pickup coil\'s wire to grommet: 60 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 15
Wire to wire resistance:
Alternator: White to White = 0.4 ohms \-20%
Source: Grey to Black = 208 ohms \-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Specifications
Category Name
Systeme_de_charge
Sale Type
New
Etiquette En
STATOR YAM YZF-R1 15-22|FZ10|MT-10 17-21
No Produit Fournisseur
RMS010-107373
