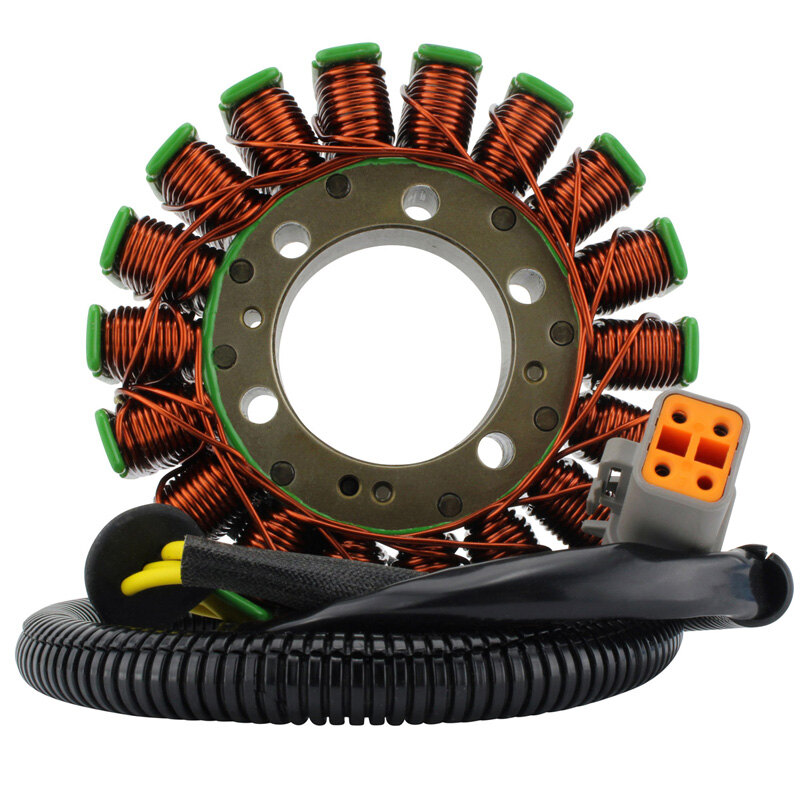

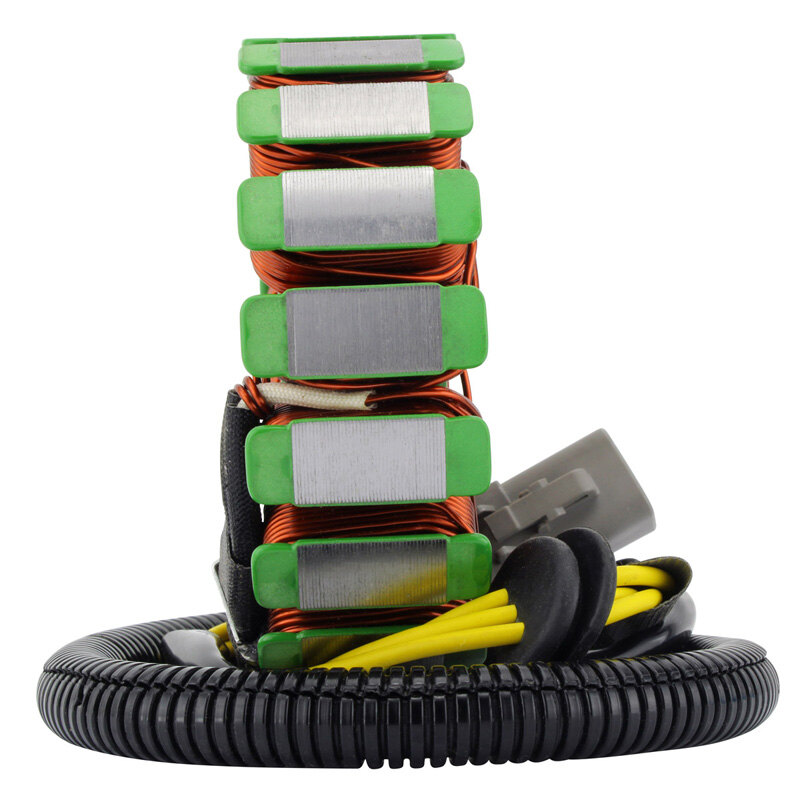

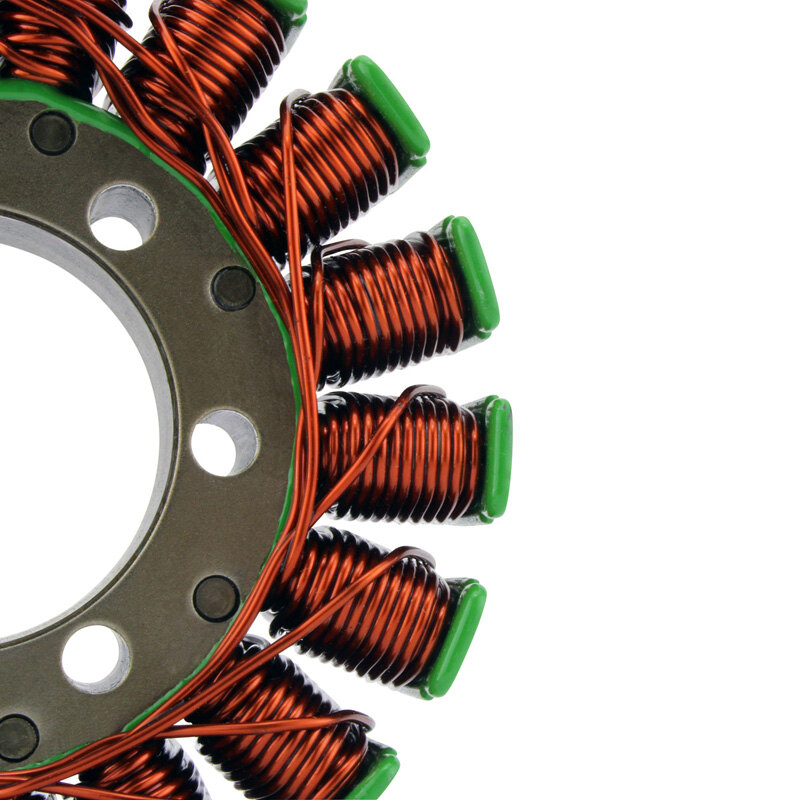

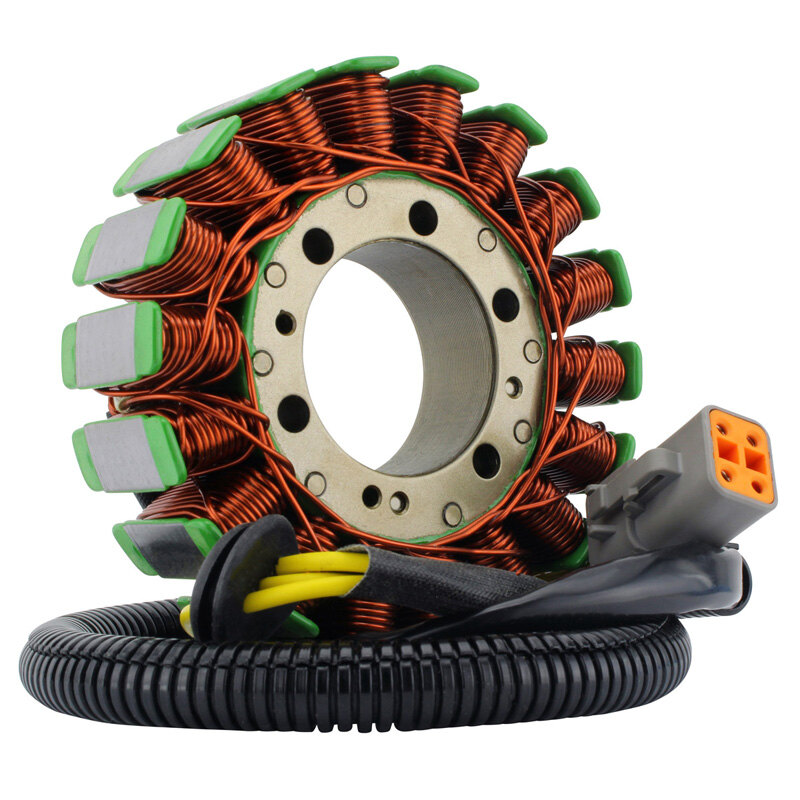

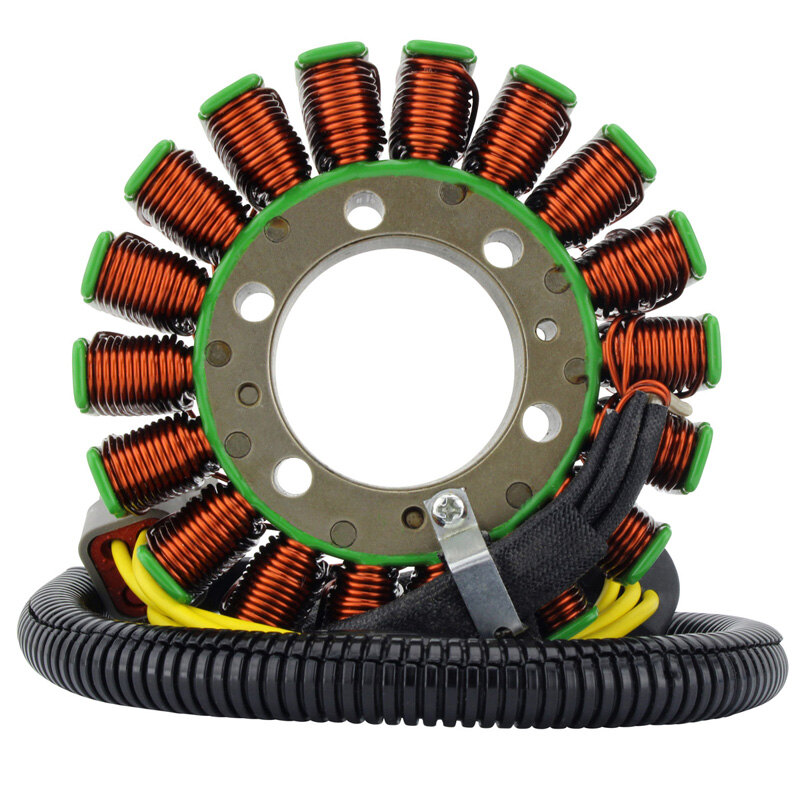

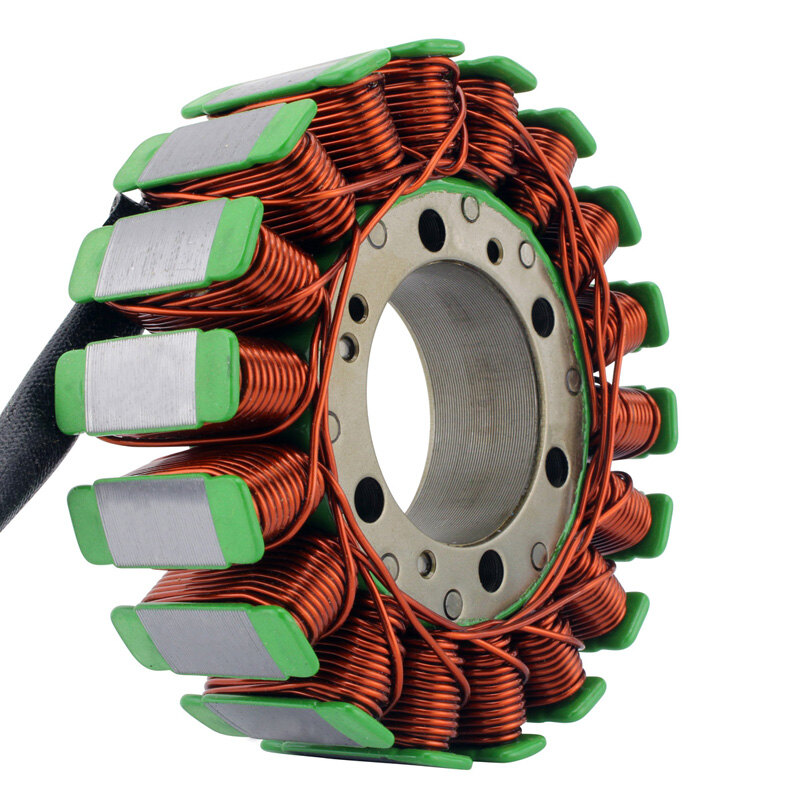

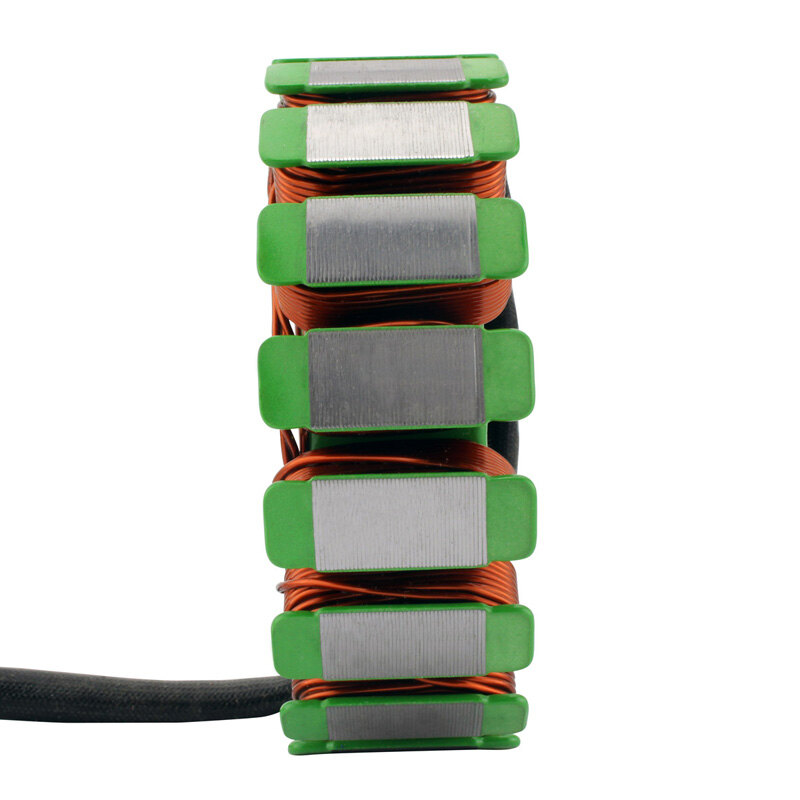

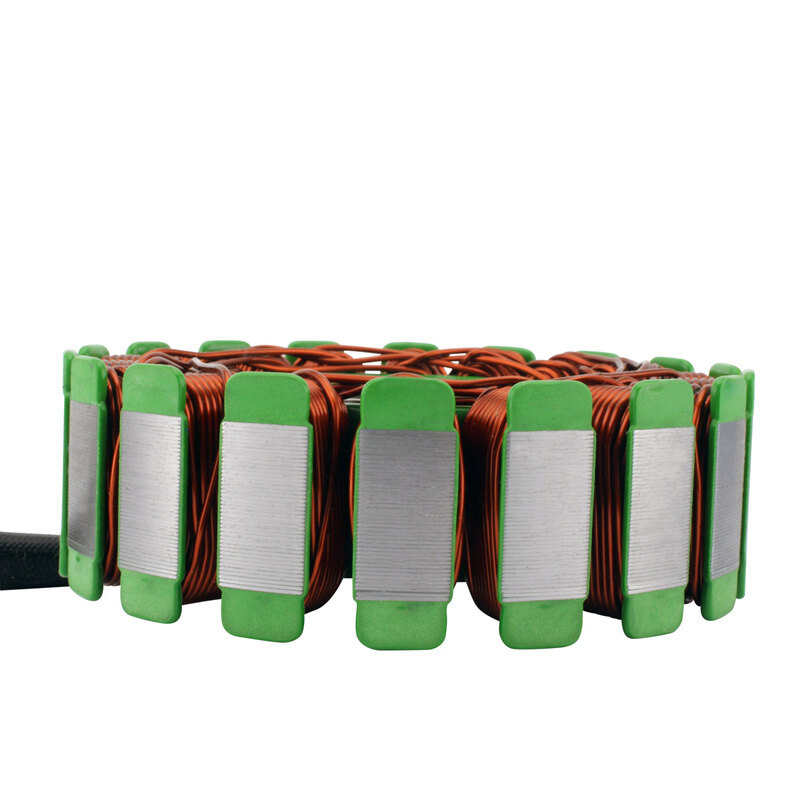

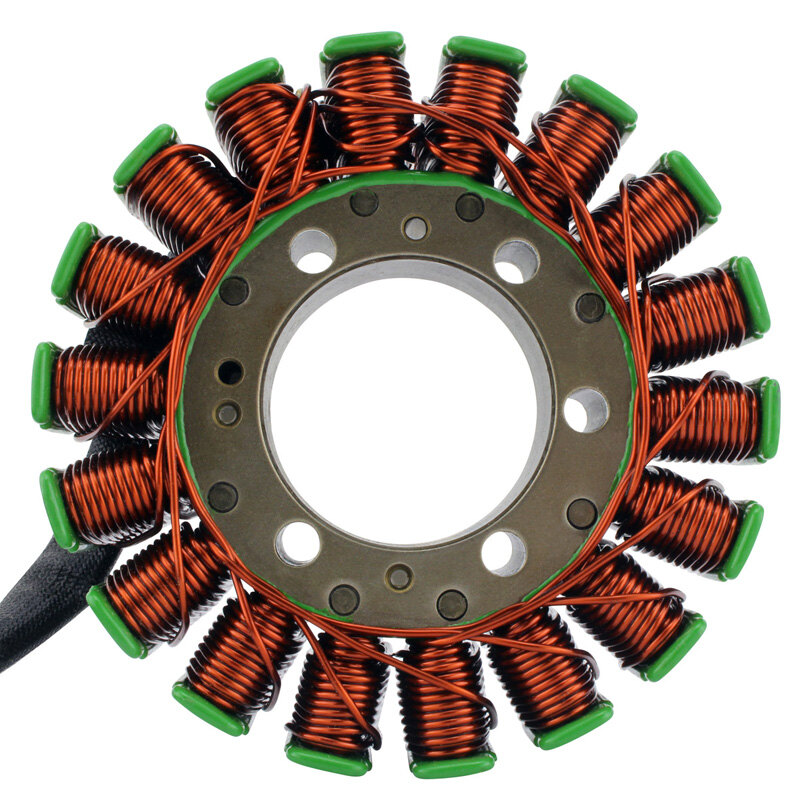

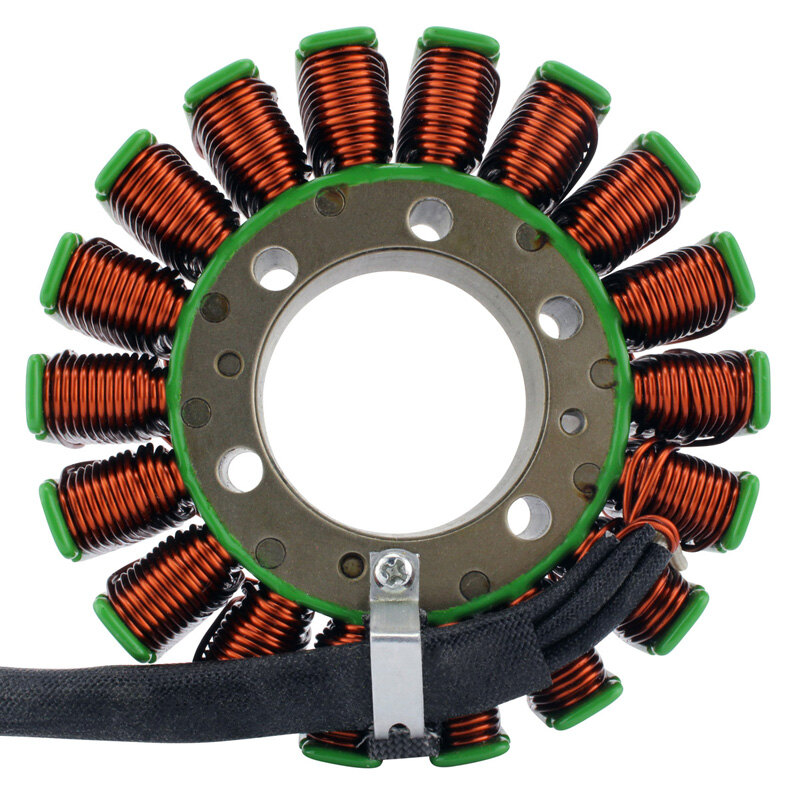

STATOR CAN-AM OUTLANDER 330/400|MAX 400 04

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 24 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 780 mm

Other specifications:
Number of wires: 3

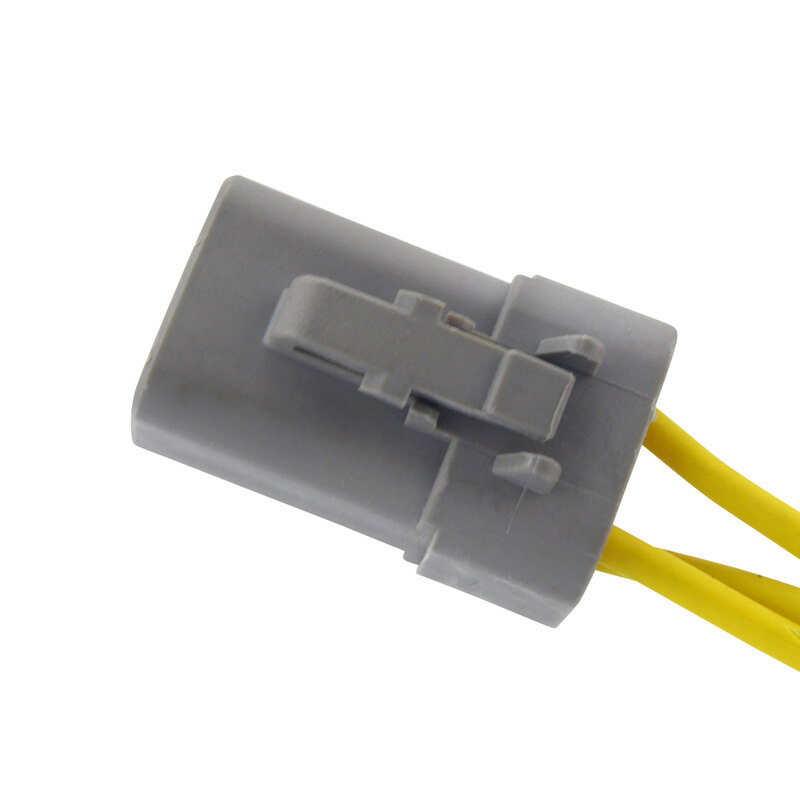

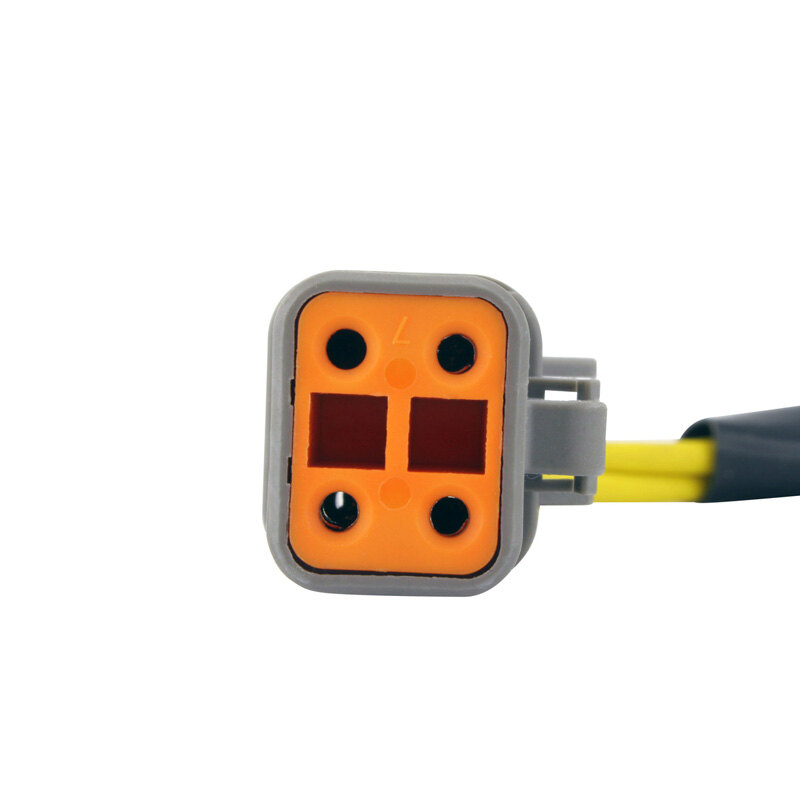

Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.5 ohms \-20%
Alternator: to ground = O.L

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
