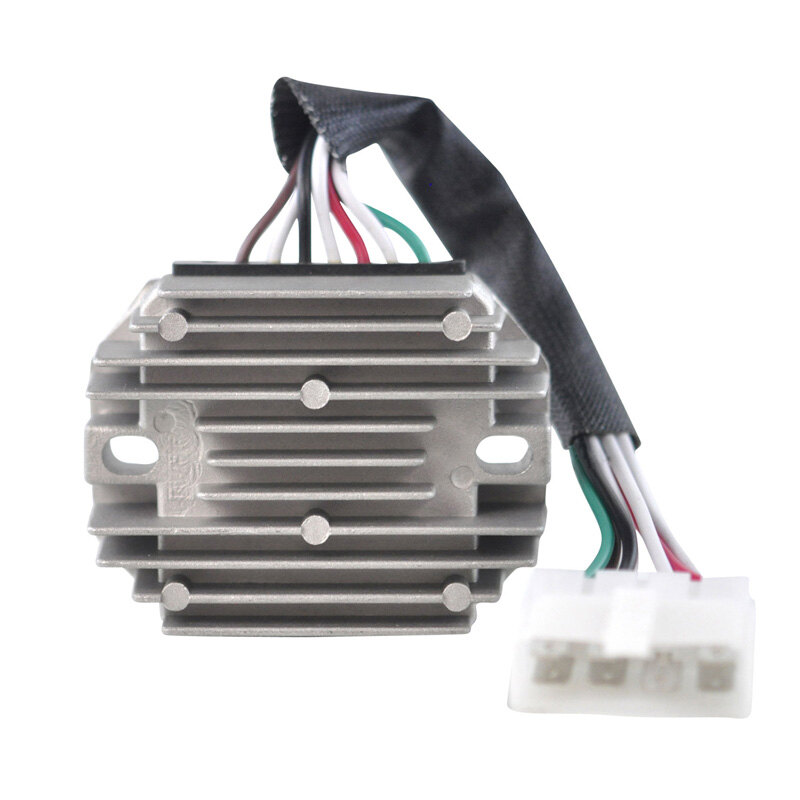

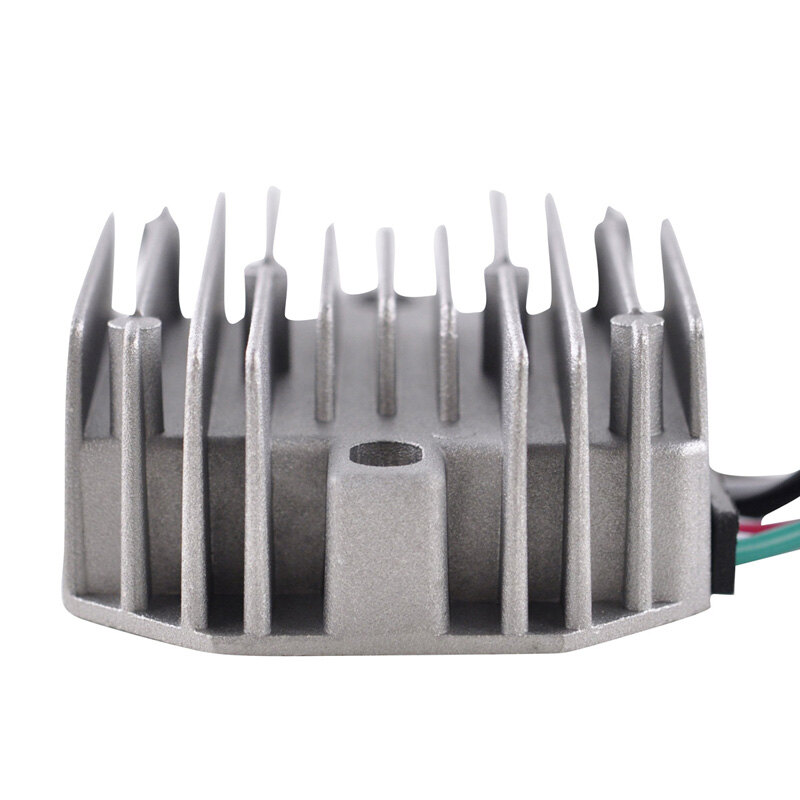

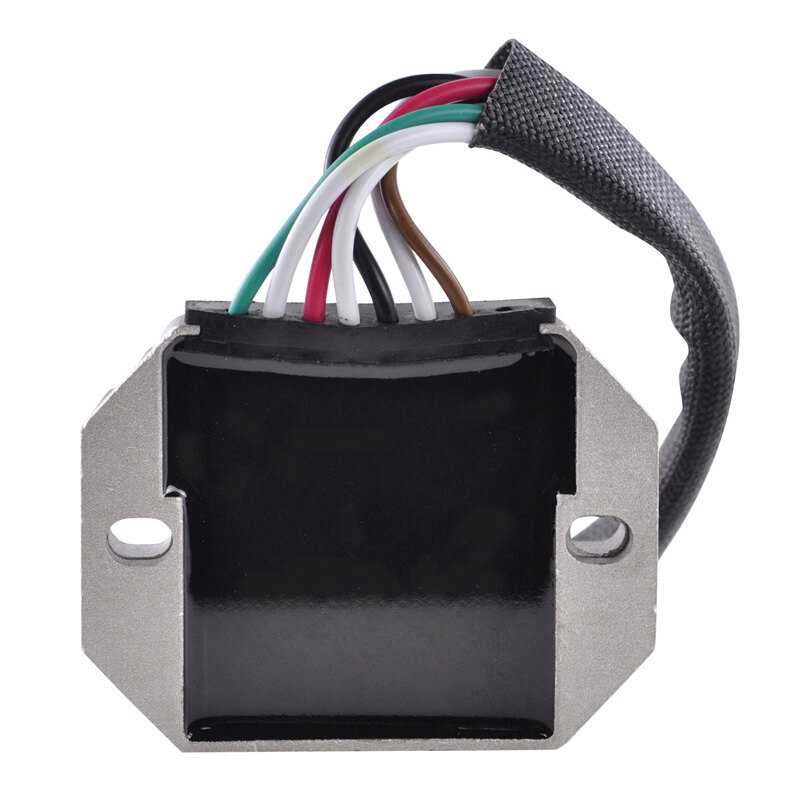

REGULATOR YAM YX600|XJ550-900 XS400/650 78-88

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

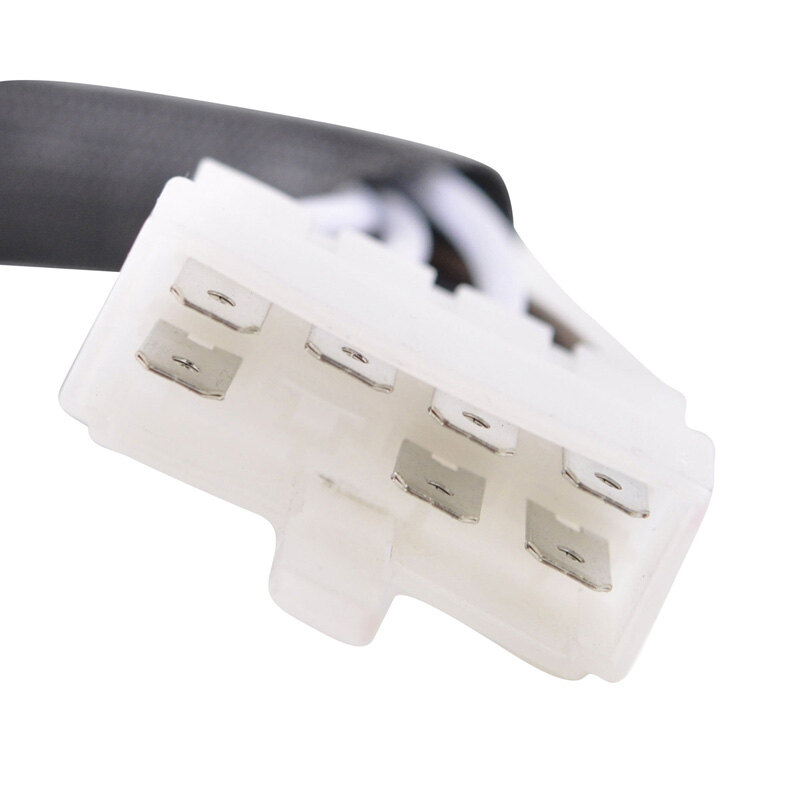

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 80mm
Length: 65mm
Height: 30mm
Wires length: 230mm
Fixation holes center to center: 68mm

Other specifications:
Number of plugs: 1
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5V \/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15v
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

PLEASE NOTE: There is two possible regulator rectifiers for some vehicules. Please compare your connectors with our picture.
