DL VOLT METER

DL-01V | Volt meter

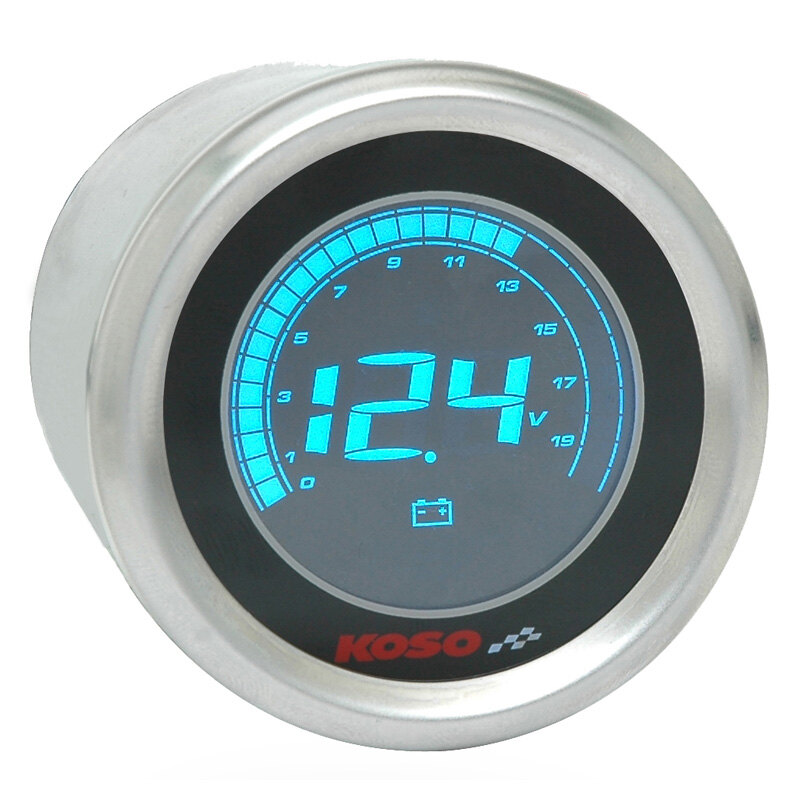

The DL-01V Volt meter will give you the status of your battery at all time. This voltage meter’s backlight makes it easy to read even at night. The meter use a reverse LCD display so when the meter is turned off, the screen is deep black.

 Specifications (R= Range U=Unit)

• Volt level
  R: DC 8 ~ 19.9 V
  U: 1 level = DC 0.66 V
• Digital volt meter
  R: DC 8 ~ 19.9 V
  U: 1 level = DC 0.1 V
• Voltage warning
  R: DC 8 ~ 12 V
  HI displayed when over voltage
• Effective temperature range
  14 ~ 140 °F (10 ~ 60 °C)
• Power
  DC 12 V
• Meter standard
  JIS D 0203

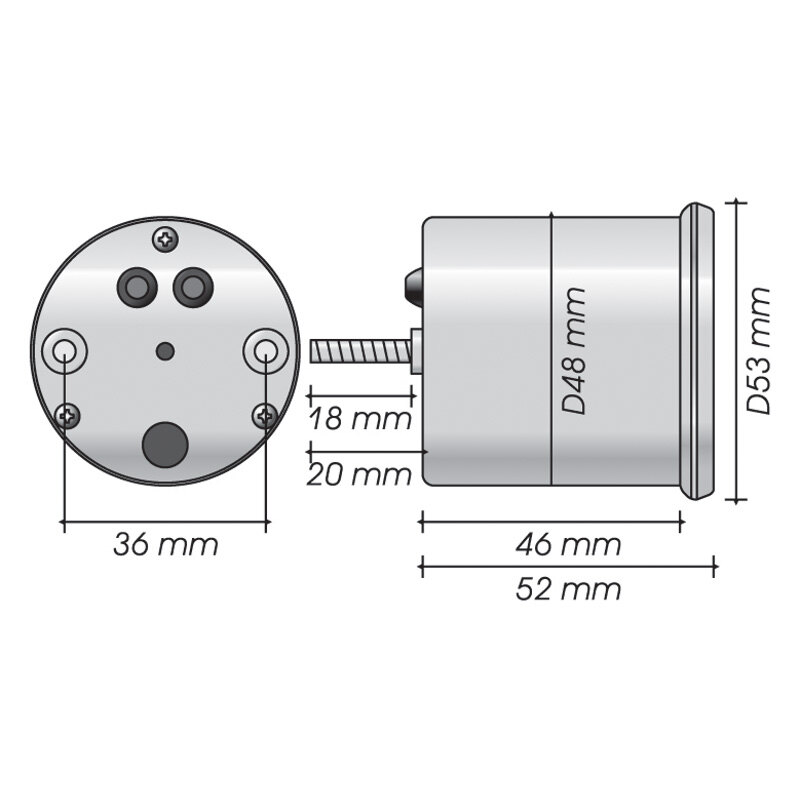

• Meter size
  D48 x 52 mm
• Meter weight
  ±117g
