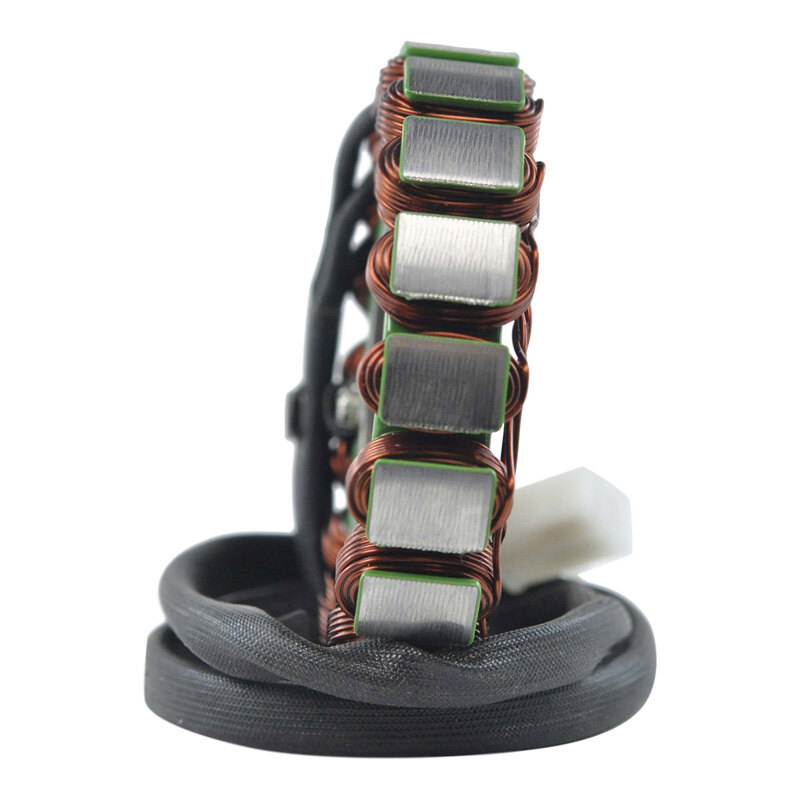

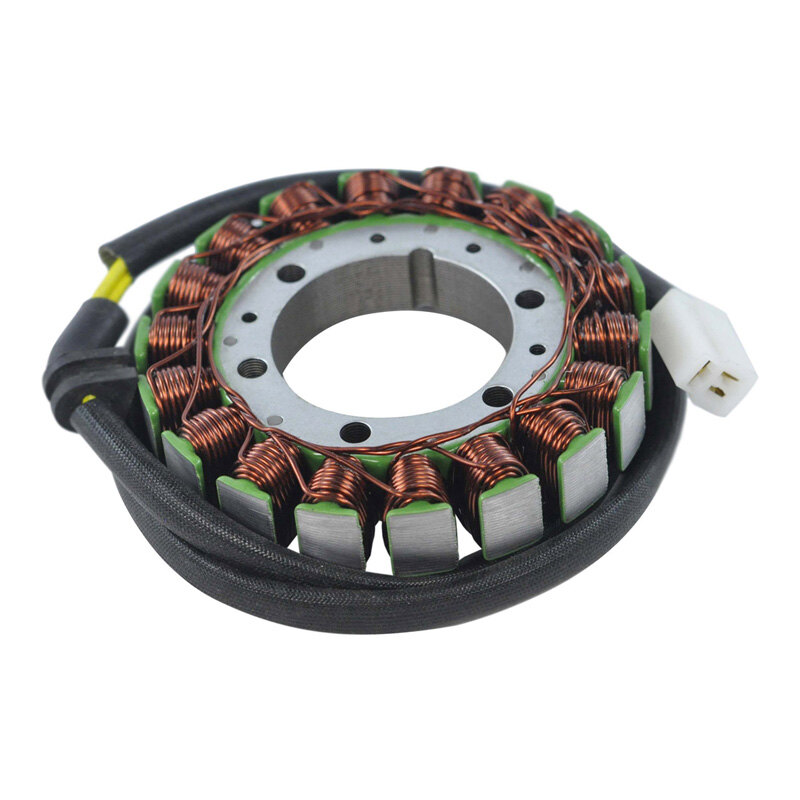

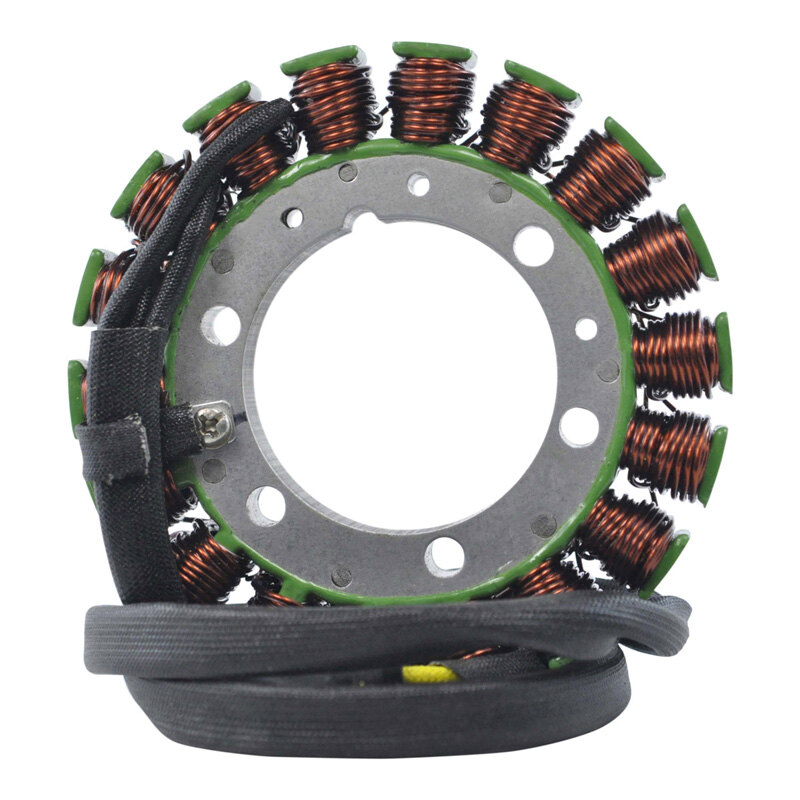

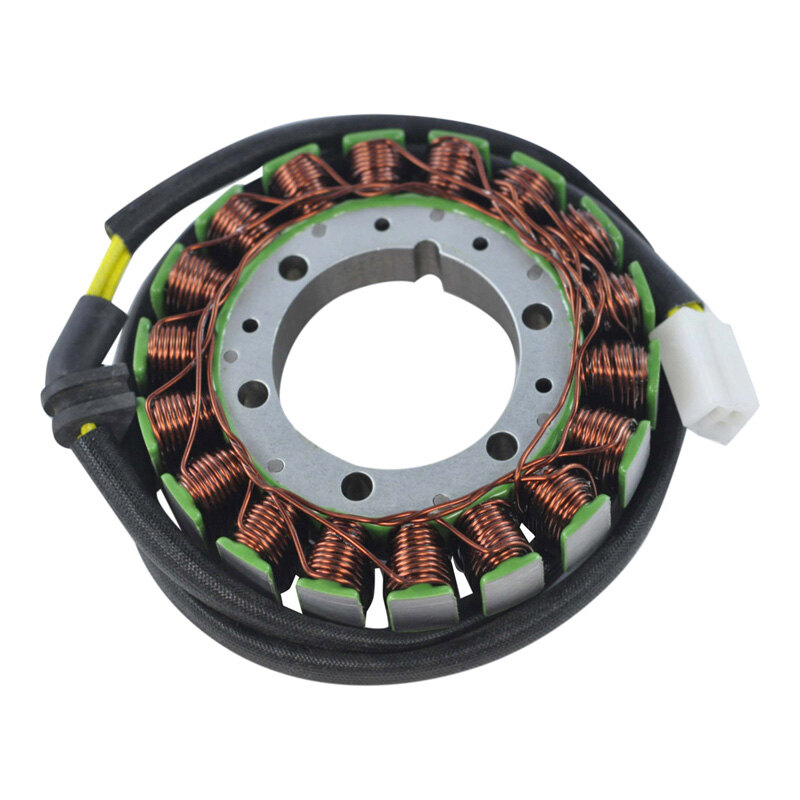

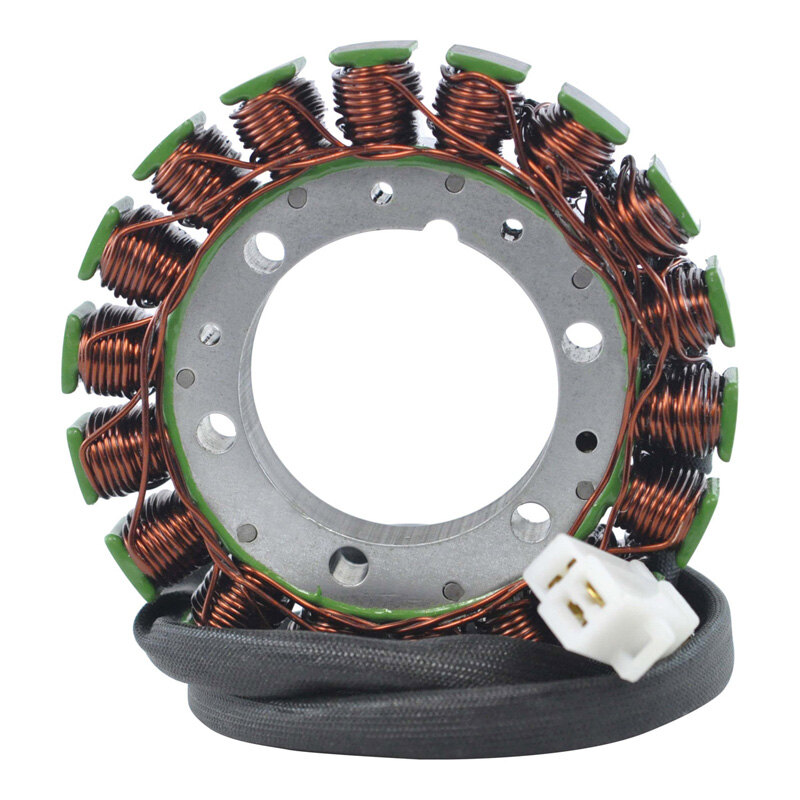

STATOR HON VT750C 04-09

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

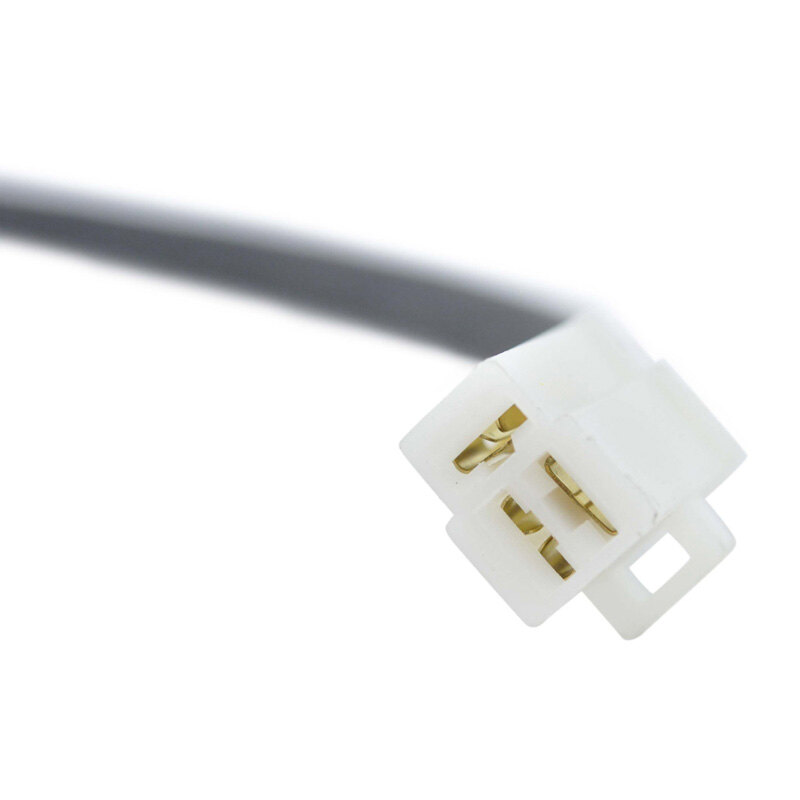

• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54mm
Exterior diameter : 119.5mm
Thickness : 18.3mm
Length of wires stator to grommet : 120mm
Length of wires grommet to plug : 600mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.3ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two possible stators for the VT 750 Shadow Spirit 2007 model. This stator fits model C2 (OEM# 31120-MEG-003). For the stator that fits model DC, the right part is OEM# 31120-MBA-004. Always check in the \'Fits models\' section and please compar
