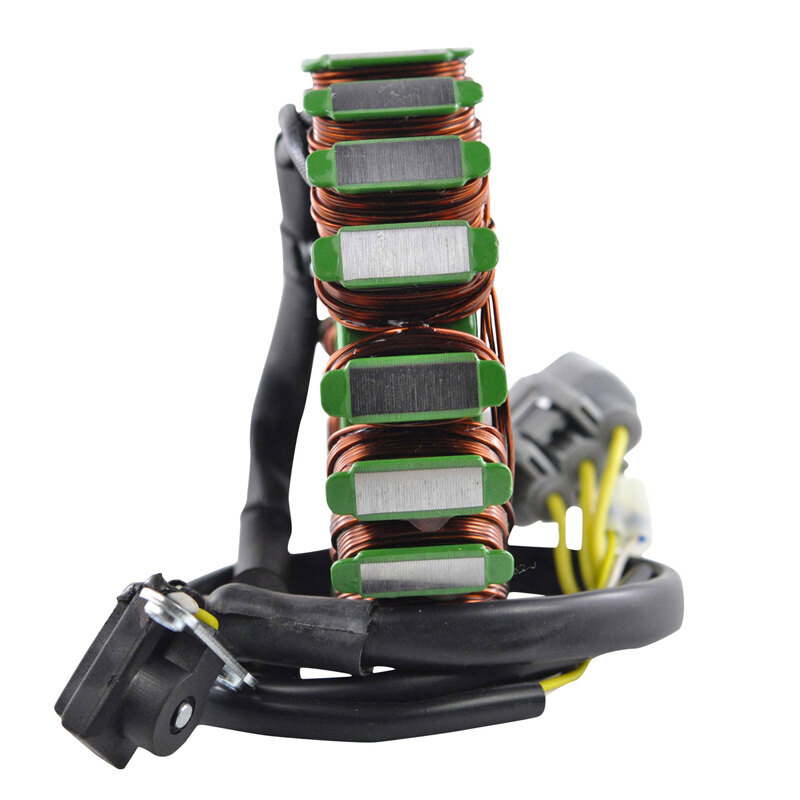

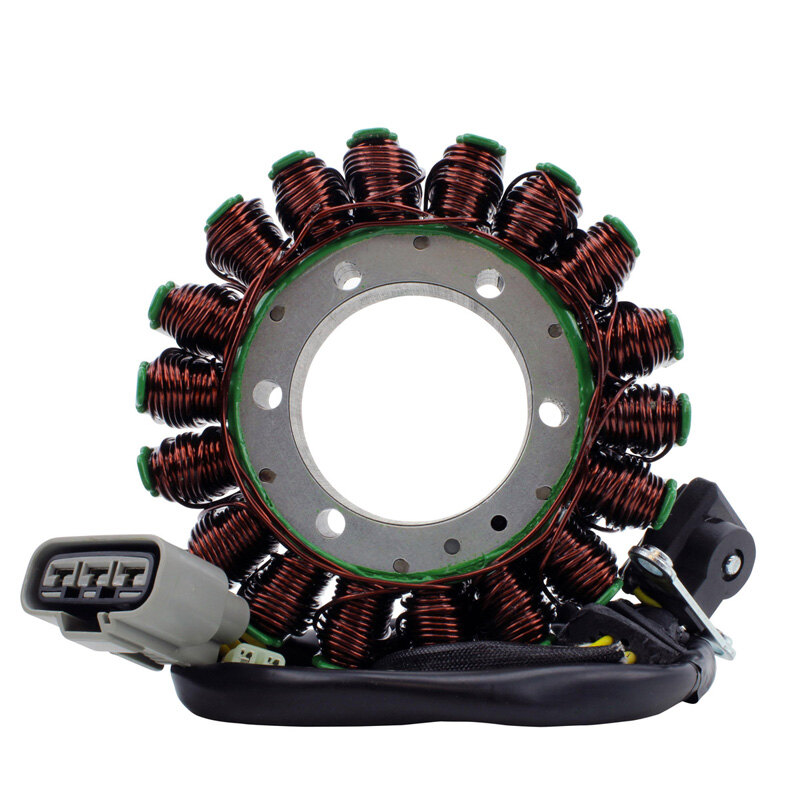

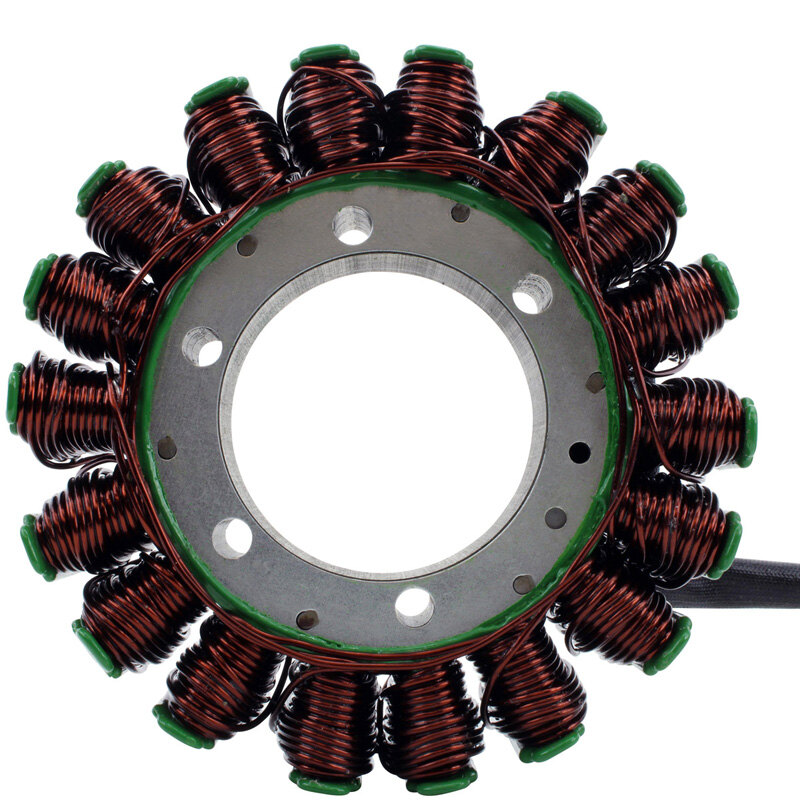

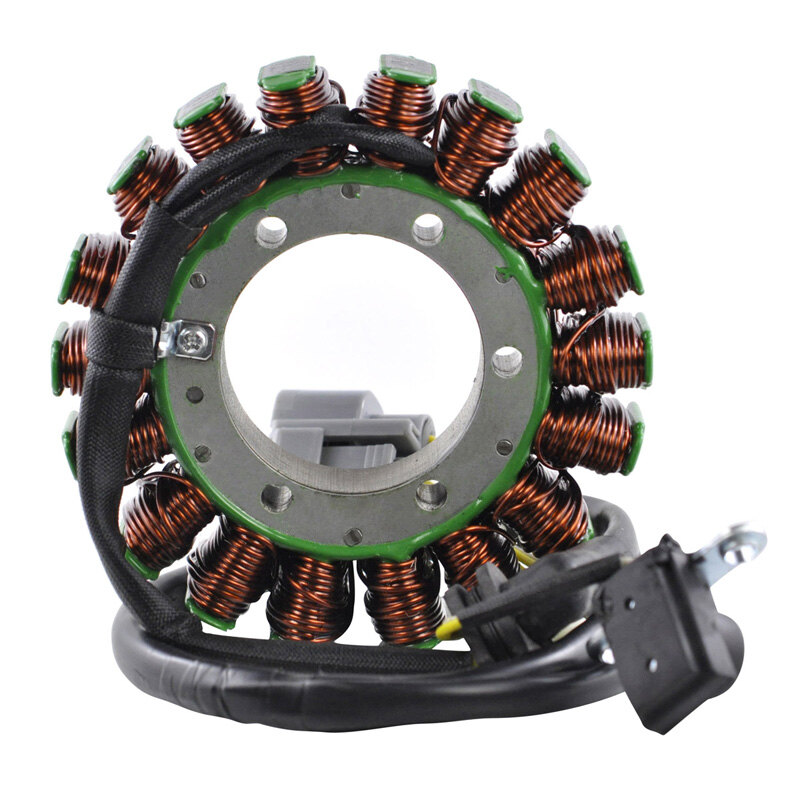

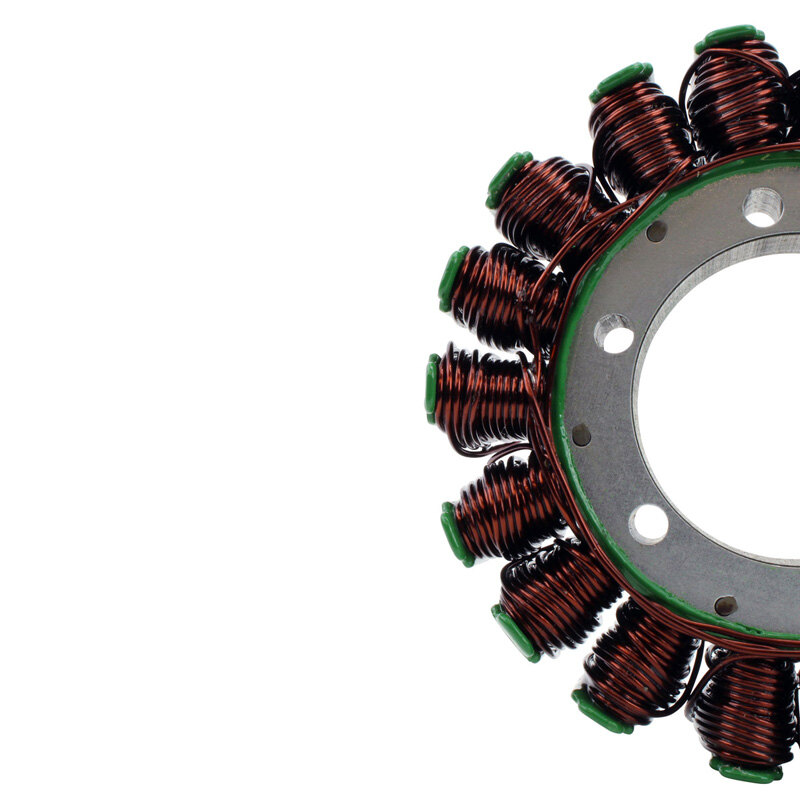

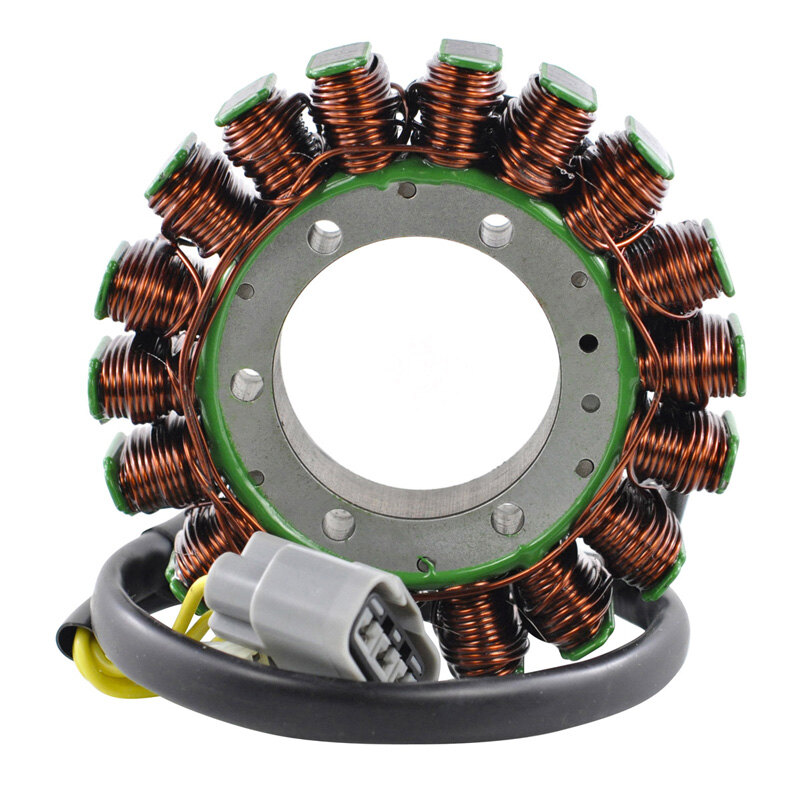

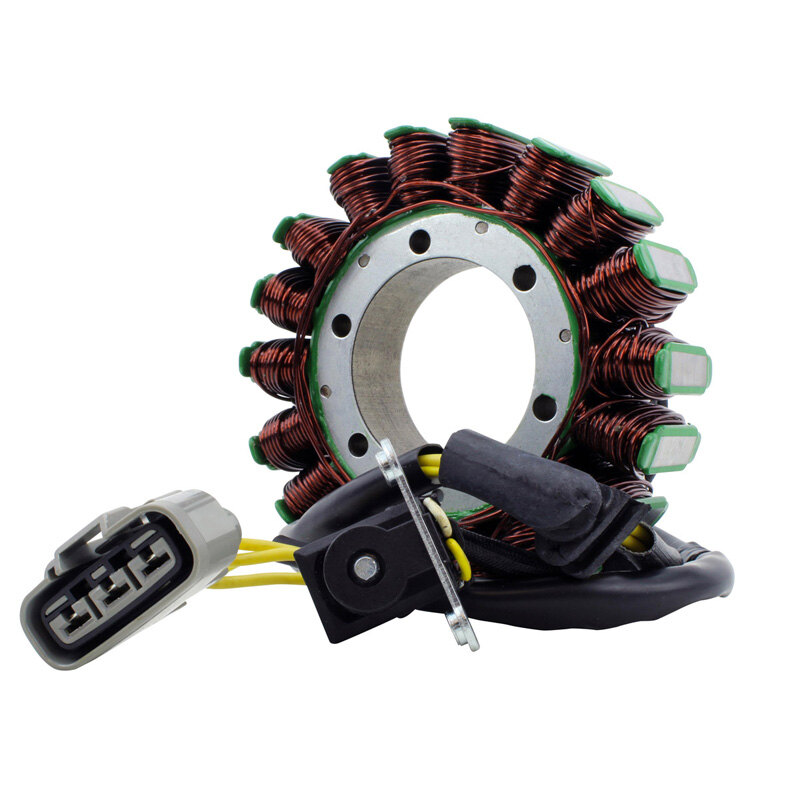

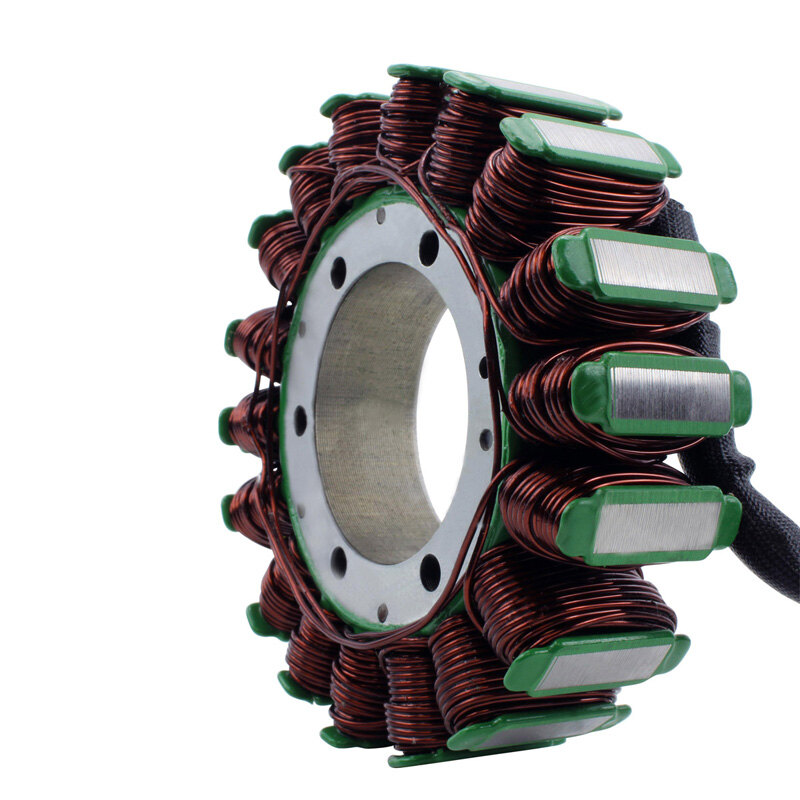

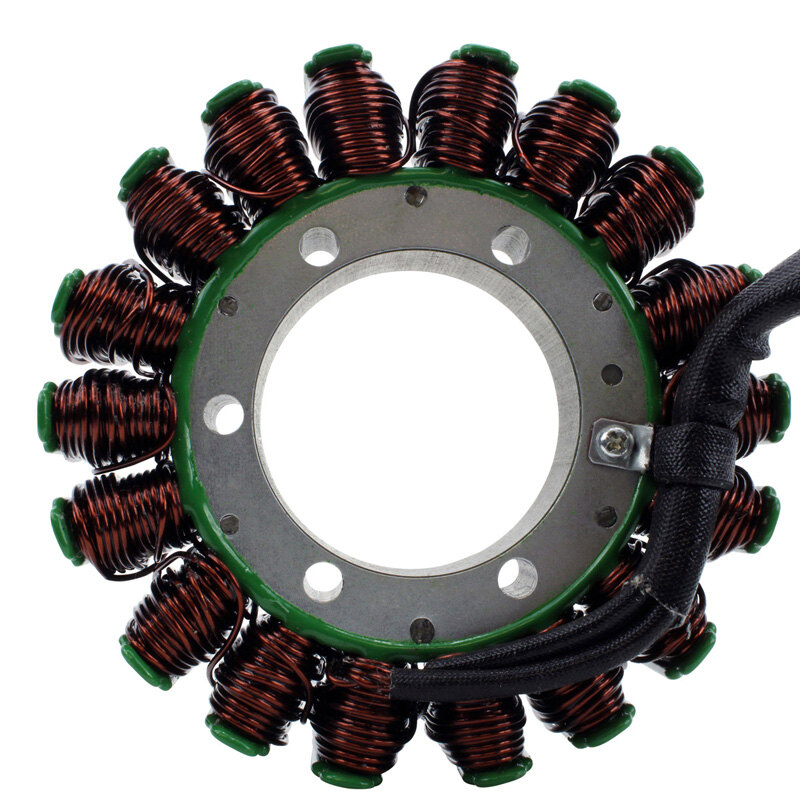

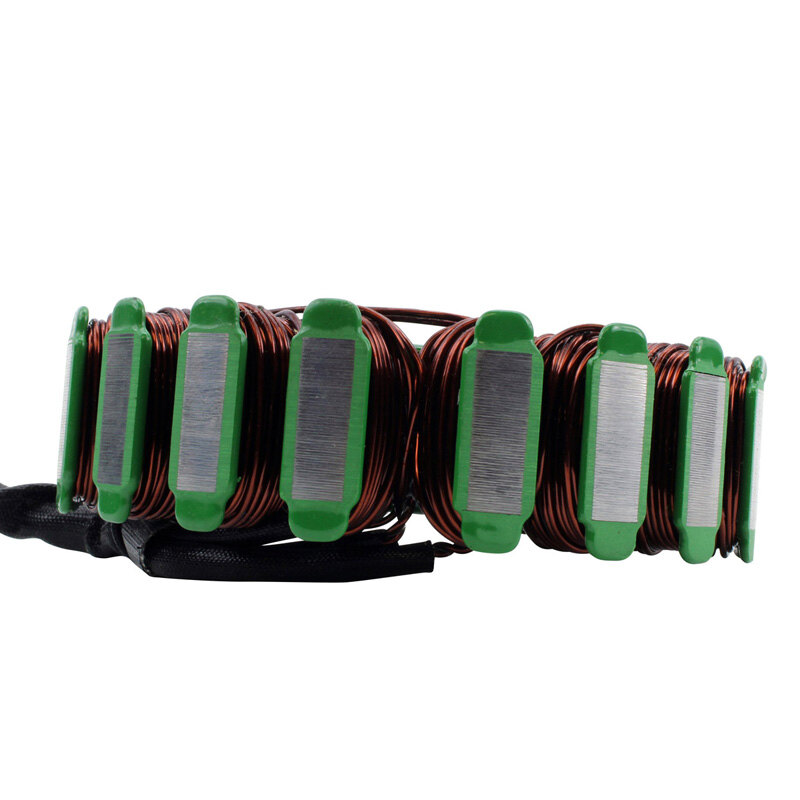

STATOR HON CB500F/X|CBR500R 2013-18

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

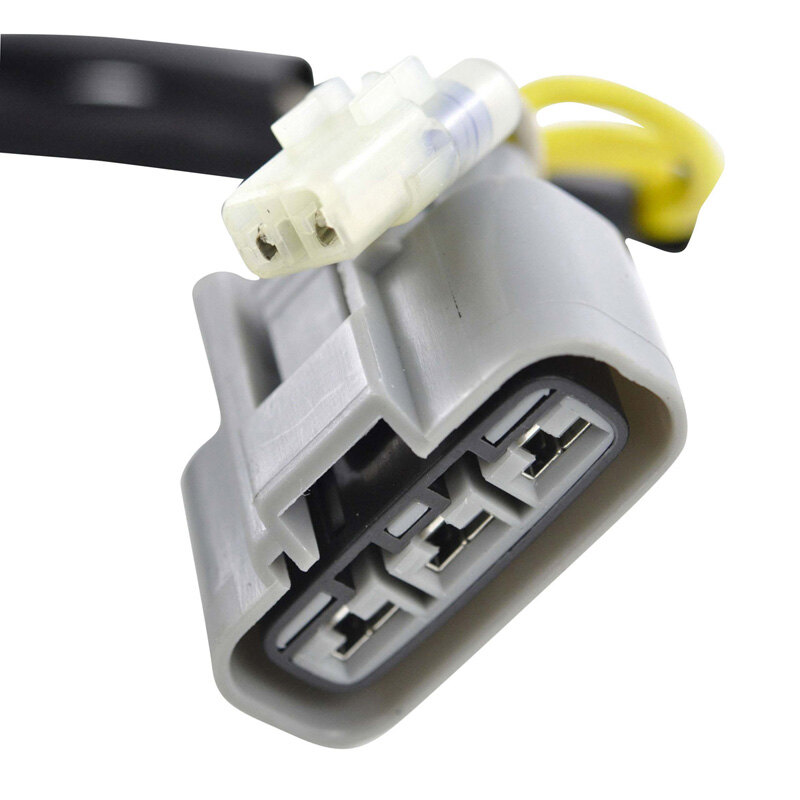

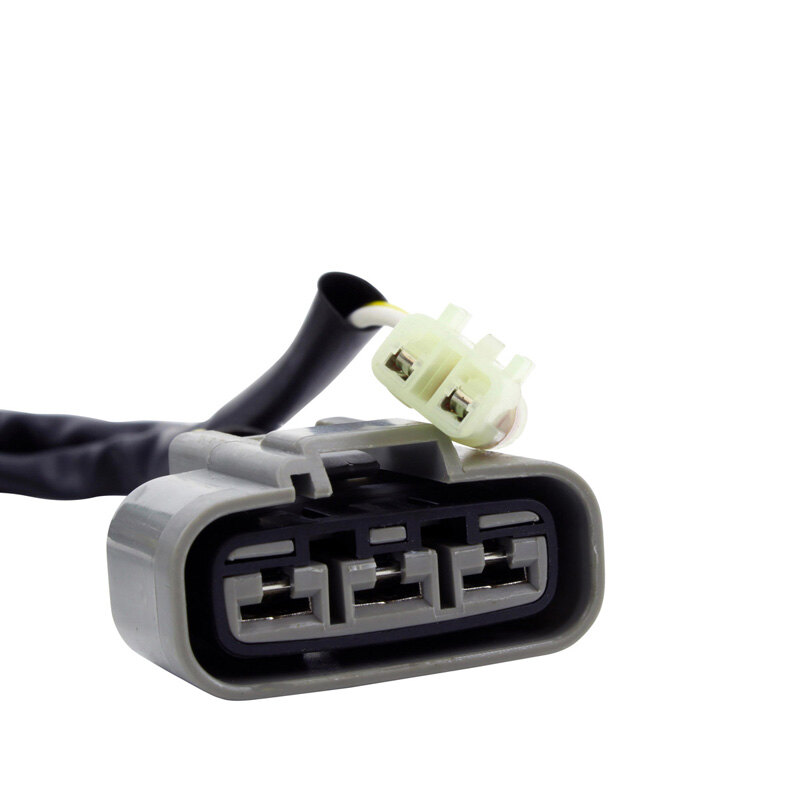

• Connector included
• Rubber grommet included
• All products shipped are tested

Fits Mitsuba charging systems

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 125 mm
Thickness : 25 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 50 mm
Length of pickup coil\'s wire to grommet : 35 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms \-20%
Pickup : Yellow to White = 120 ohms \-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
