DUAL EGT W/RPM & WATER TEMP. DATA LOGGER FAST REP.

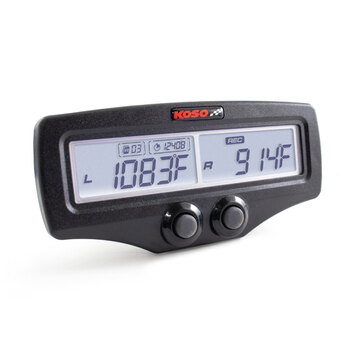

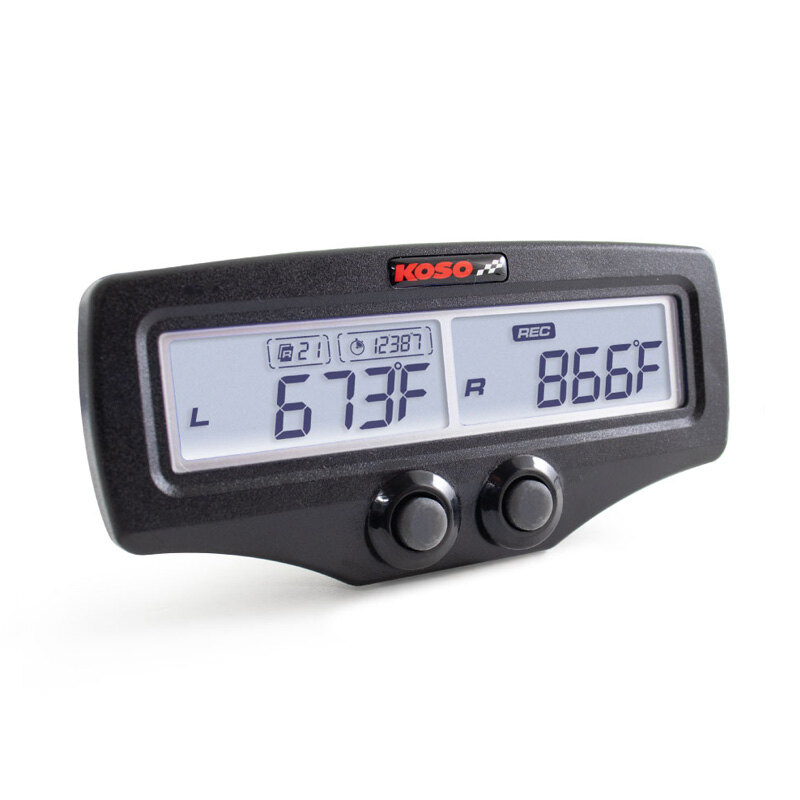

EGT-02R EVO | Dual EGT data logger | with RPM & water temperature

Continuing with the evolution of our dual EGT-02 meter, Koso is proud to offer the dual EGT-02R with RPM and water temperature. This meter allows you to tune the engine more precisely and prevent engine damages. The settable warning and maximum recall functions for both EGT, RPM and water temperature are easy to use and show you vital engine information.

The color-changing backlight makes it very easy to see even at night. This cool instrument can save your engine from expensive repairs!

 Specifications (R= Range U=Unit)

• Digital EGT temperature A/B
  R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
  U: 1 °F or °C (alternative)

• Over EGT temp. warning
  R: 392 ~ 1,832 °F (200 ~ 1,000 °C)
  U: 1 °F (°C)

• Max EGT temp. record
  R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
  U: 1 °F (°C)

• Volt meter
  R: DC 0.8 ~ 18 V | U: DC 0.1 V

• Volt meter warning
  R:  low voltage: DC 8.0 ~ 13.0 V
  R:  high voltage: DC 13.0 ~ 16.0 V

• RPM
  R: 0 ~ 15,000 RPM

• RPM input signal number setting
  R: 0.5, 1 , 1.5, 2, 2.5, 3~ 24

• RPM input pulse
   R: HIACT (positive wave pulse)
    LOACT (negative wave pulse)

• RPM warning / shiftlight
  R: 1,000 ~ 15,000 RPM | U: 100 RPM

• Max RPM record
  R: 1,000 ~ 15,000 RPM

• Water temperature
  32 ~ 482 °F (0 ~ 250 °C)
  U: 1 °F or °C (alternative)
• Water temperature warning
  R: 140 ~ 482 °F (60 ~ 250 °C)
• Max Water temperature record
  R: 140 ~ 482 °F (60 ~ 250 °C)
• Backlight brightness
  R: 1/5(Darkest) ~ 5/5(Brightest)
• Max recorded runs
  50 runs
• Recording time
  R: 99’59’’99 seconds | TR: approx 3.18 Hr
• Play mode speed
  1 x play / pause | 3 x play / pause
  1/3 x play / pause | 1 x rewind / pause
• Effective temperature range
  R: 14 ~ 140 °F (-10 ~ 60 °C)
• Effective voltage
  AC/DC 12 V
• Sensor type
  EGT standard: 28-CKTYPE9
  EGT fast response: 28-CKTYPEX
