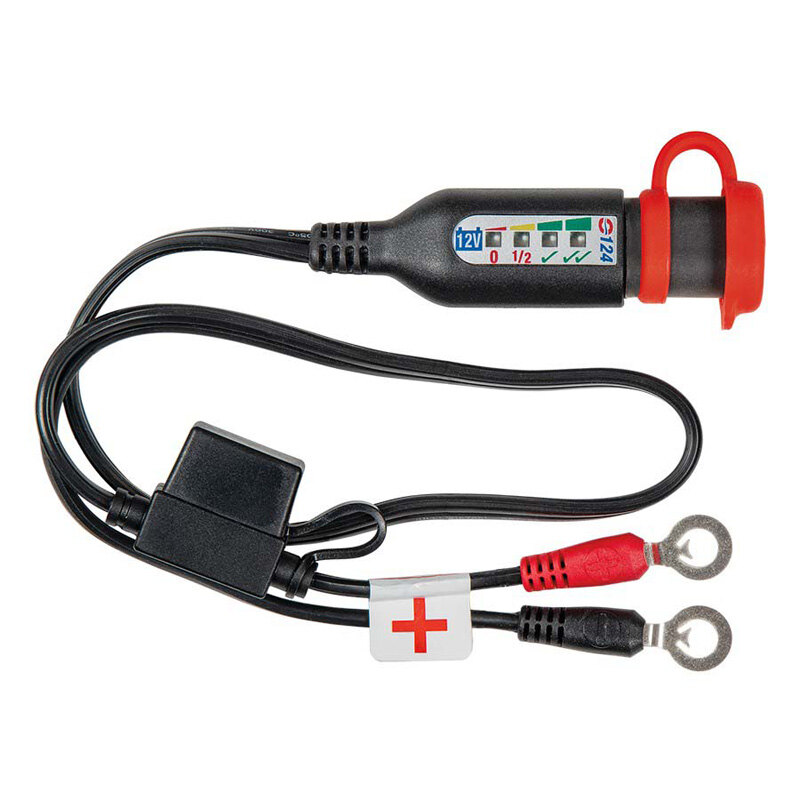

OPTIMATE CABLE 1/4\"- 5/16\" (M6-M8) WITH LED DISP

Smart battery lead that measures voltage; monitors charge of a stored 12V lead-acid powersports battery and confirms if the vehicle charging system is working correctly.

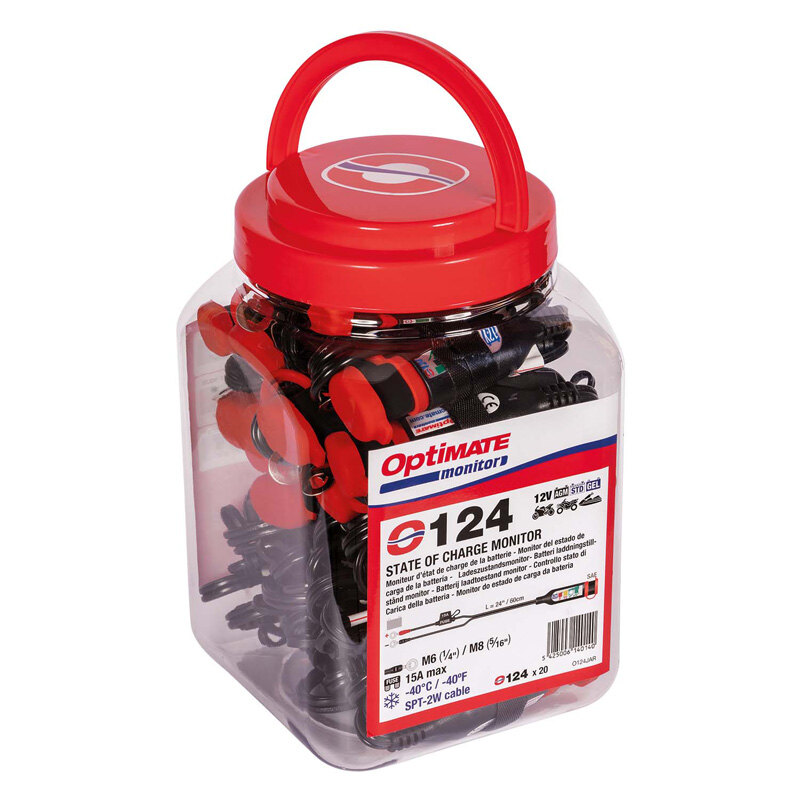

LENGTH: 24″/60cm (x20)

BATTERY CONNECTOR: 1/4″ (M6) / 5/16” (M8) ringlets

CHARGE CONNECTOR: 2-pin SAE, protected from dirt and liquid with rubber sealing cap and shroud.

OPERATION: 2 automatic Modes – Battery charge level monitor (single LED blink mode) & Charging system test (arrow mode).

• Vehicle storage: 4 LEDs cover ‘full to empty’ voltage range of all 12V batteries, including higher voltage AGM for power sport (4th √√LED ≥ 12.7V ). LED matching charge level blinks every 3  seconds (long term draw less than 0.2mA).
• Vehicle running: LED arrow mode activates when charge voltage reaches ideal charging voltage; up to minimum 13.5V (√ green LED) or ideal range 14V\ (√√ green LED).

CABLE RATING: 18AWG (0.82mm2) SPT-2W

FUSE: 15 Amp

USE: -40°C/-40°F very low temperature, remains flexible at ‘below freezing’ temperatures

STYLE: Fully enclosed electronic circuitry with 4 LEDs, SAE charge connector with rubber sealing cap & shroud
