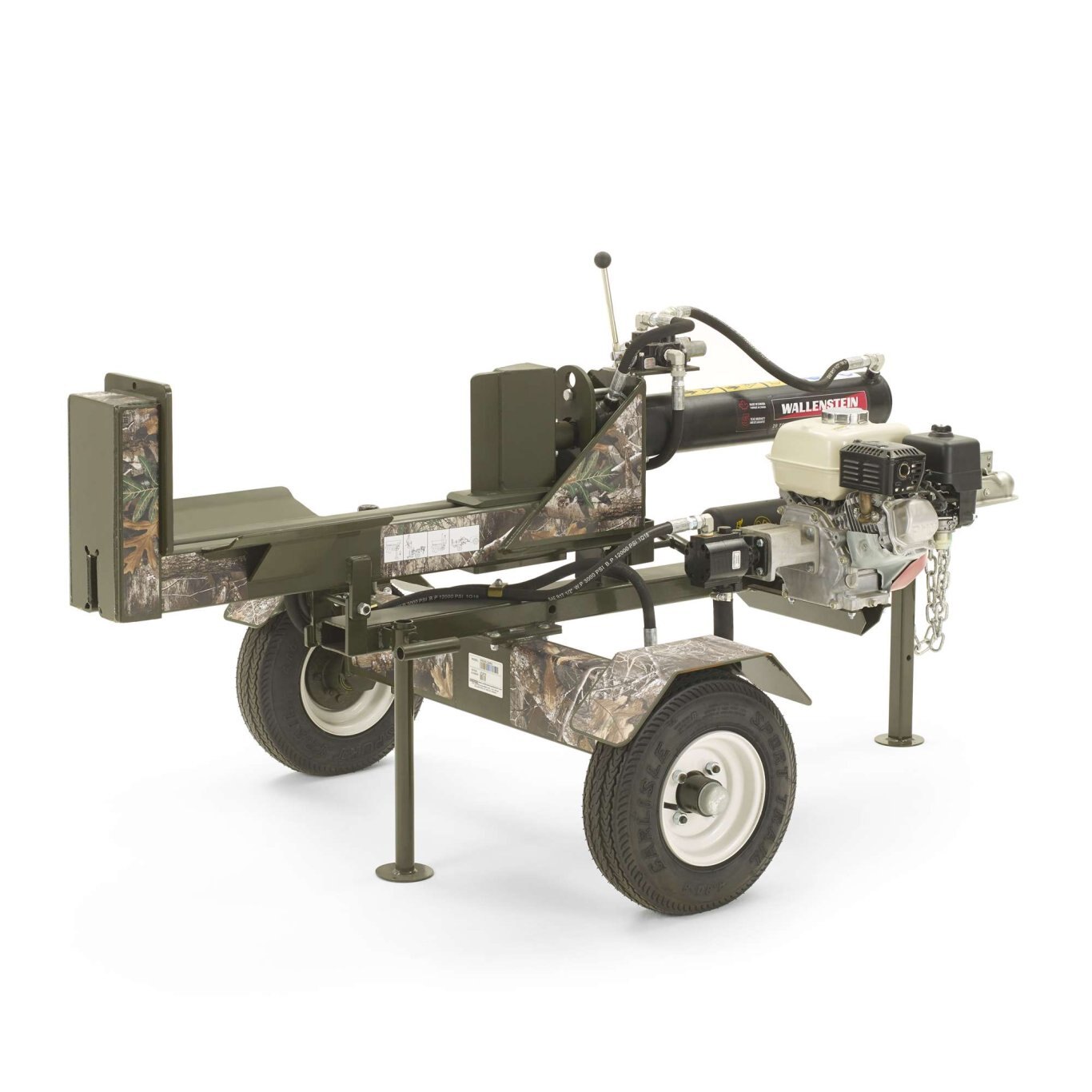

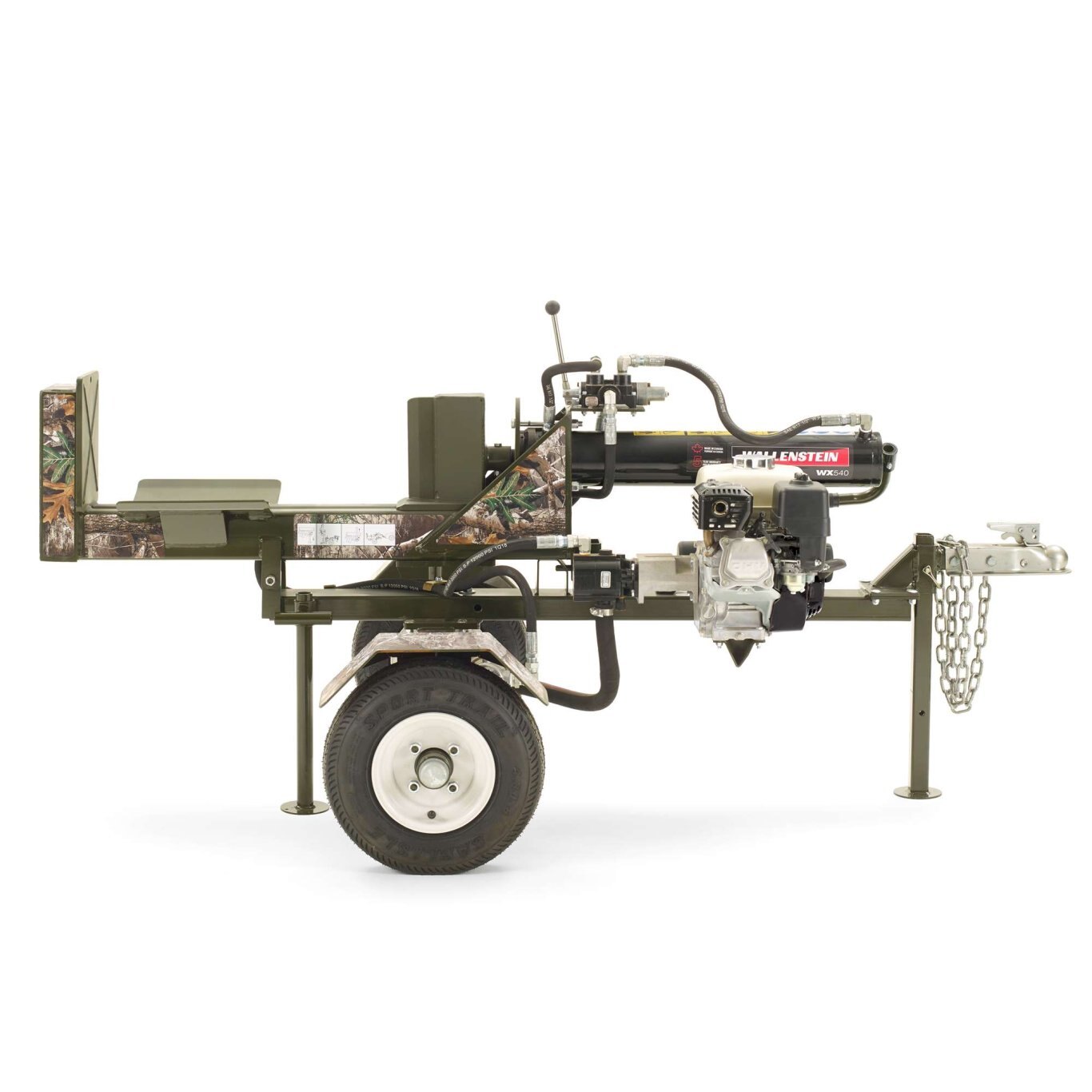

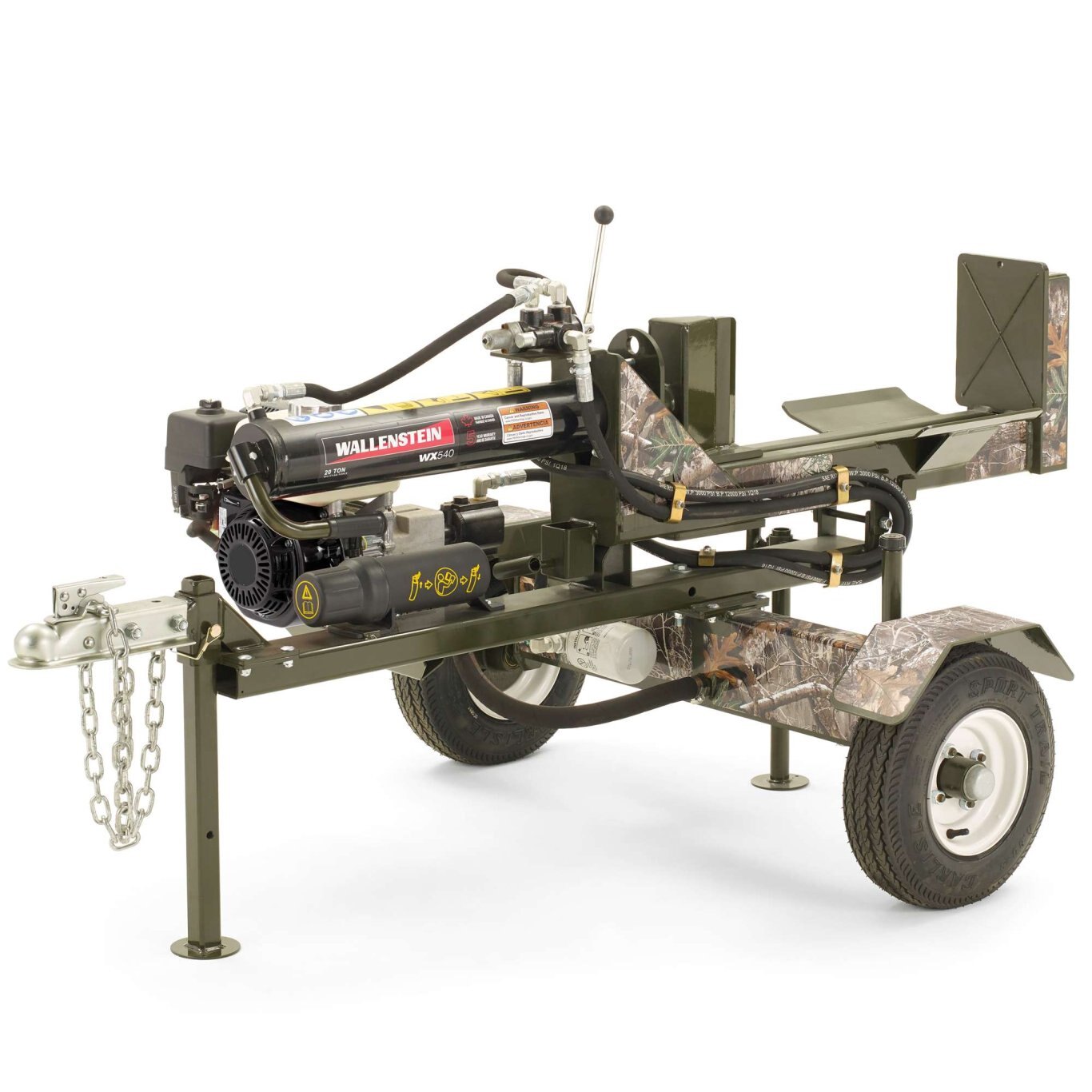

Wallenstein WX540L Horizontal/Vertical
Call for Price
Overview
Specifications
features
available colours
Videos
20 ton split force, the WX540L (lights) horizontal/vertical towable log splitter is designed with a wide wedge which makes that wood block "pop" early in the split process. The vertical position helps with those heavy logs eliminating the need to lift them up onto the splitting bed. Known as the "classic", this splitter has been selling to satisfied customers for more than 25 years. A generational log splitter with a long tradition!
Model
WX540L
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Hitch
2" Ball
Tires
4.80 x 8
Engine
Vanguard® 6.5 hp (203 cc)
Bed Height
24" (61 cm)
Full Cycle
13.24 Seconds
Orientation
Horizontal / Vertical
Split Force
20 Ton
Total Weight
470 lbs (213 kg)
Wedge Height
9" (23 cm)
Split Opening
24" (61 cm)
Cylinder Diameter
4" (10 cm)
Dimensions (LxWxH)
80" x 48" x 40" (203 cm x 122 cm x 102 cm)
Hydraulic Capacity
3.5 US gal (13 l)
Average Splitter Cycle Time
6.62 Seconds
Features
|
Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease. |
|
L Model units come with a factory installed light kit equipped with brake lights and turn signals. They use a standard 4-pin connector. |
|
Switched to reverse, the wedge returns to the start position hands free and then automatically clicks back to neutral. |
|

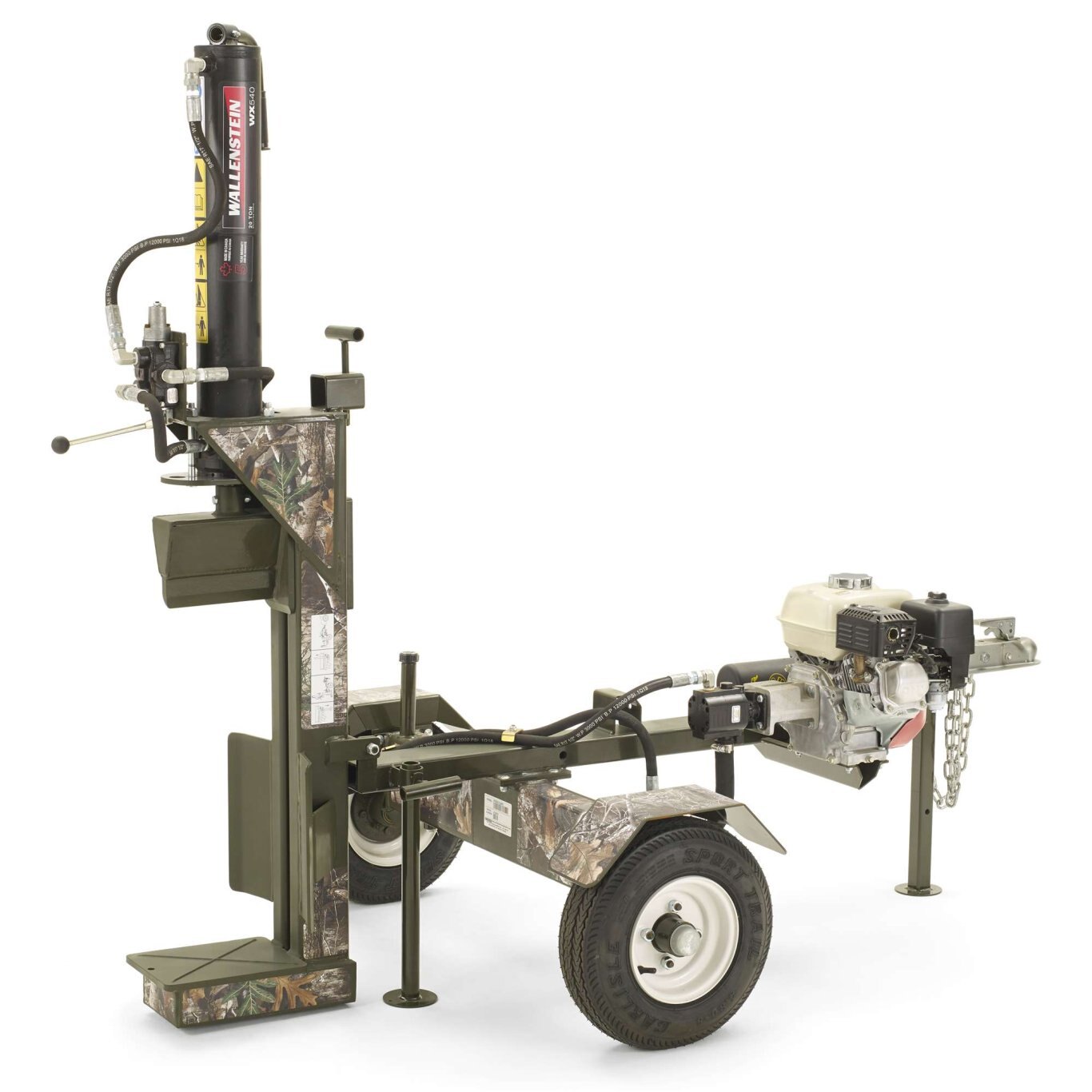

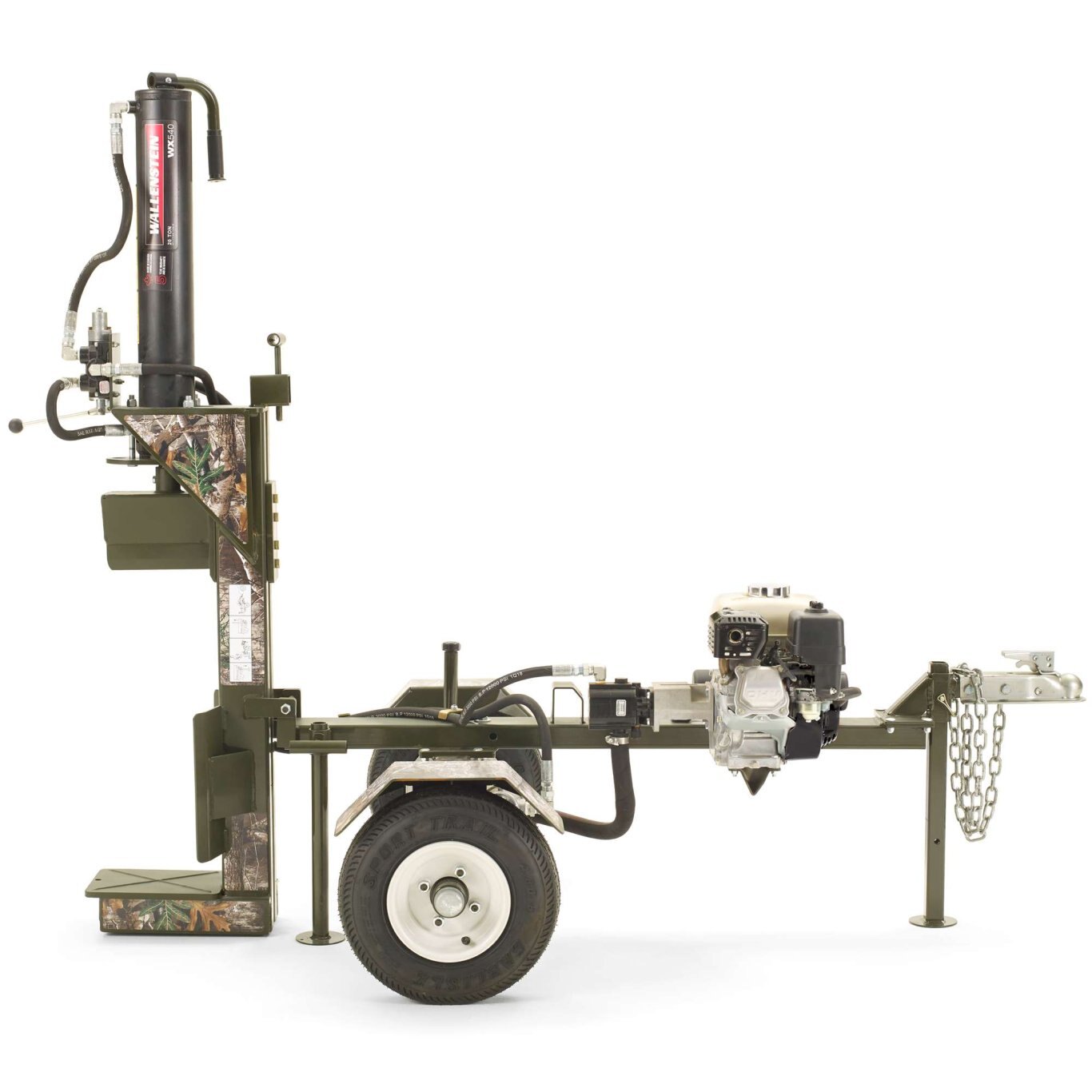

Quickly and easily switch into the vertical position to split logs too large to lift onto the splitting bed. |
|
Maximize your efficiency with the 2-stage pump that moves quickly and splits powerfully. |
|
Wide wedge spreads and pops the log in a short distance, reducing cycle time. |
|
Transport your unit with hitch, safety chains, highway tires, and full trailer lighting. |
Available Colours
 |
Videos
Model
WX540L
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Quantity
0
Hitch
2" Ball
Tires
4.80 x 8
Engine
Vanguard® 6.5 hp (203 cc)
