ID # 40346339

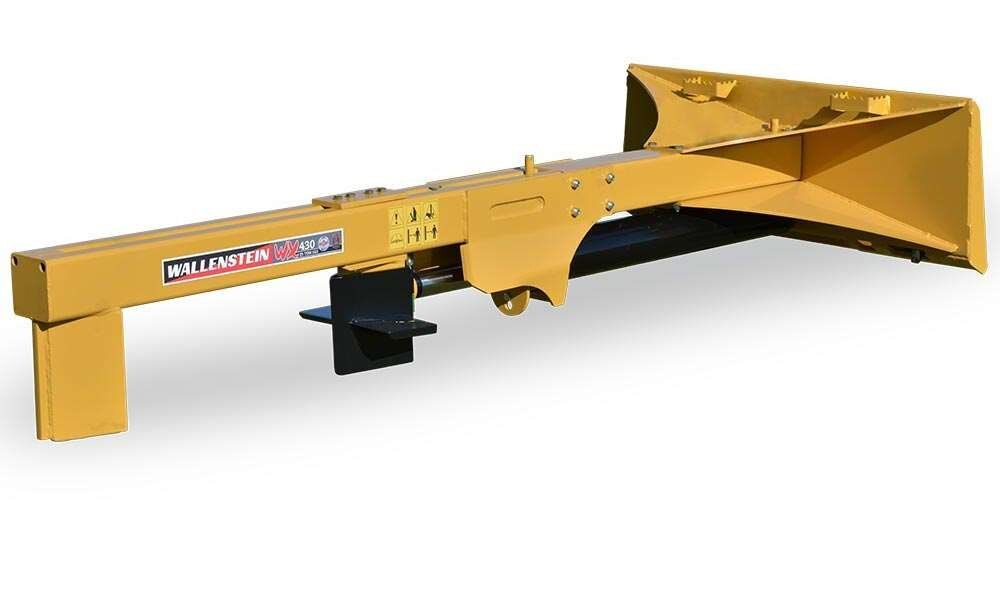

Wallenstein WX430 Inverted Horizontal

Videos
Call for Price
Overview

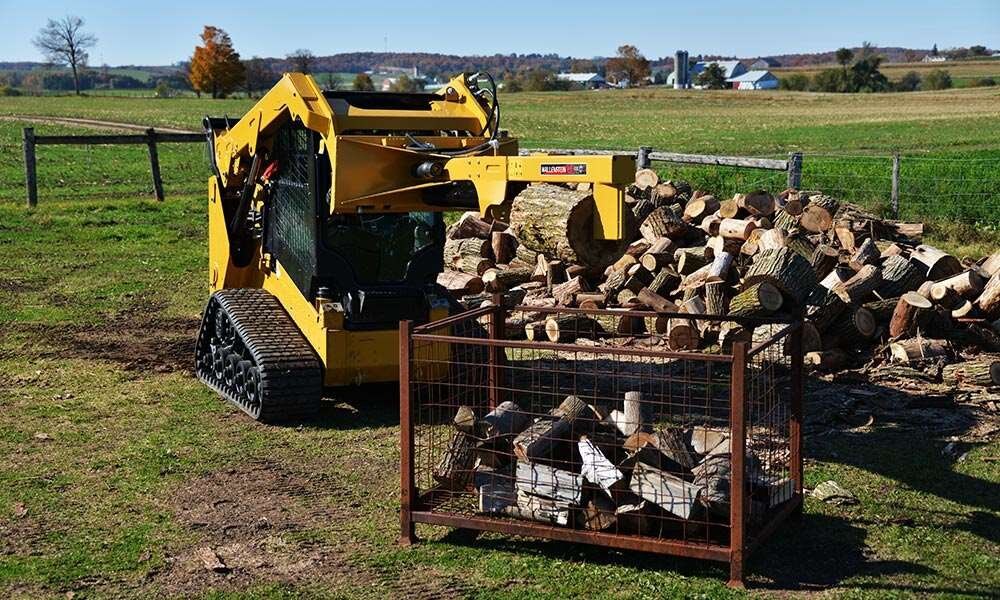

25 ton split force, your WX430 inverted horizontal skidsteer driven log splitter is designed to grab the blocked pieces and split with the wide wedge which makes that wood block "pop" early in the split process. Operated from the cab of the skidsteer, there is no need to bend over and load logs onto the splitting bed. Great for use on your rural and woodlot properties, this splitter is built for everyday use. The 36" splitting bed also makes this a great choice for your outdoor wood furnace.

Specifications
Model
WX430
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Full Cycle
22.86 Seconds *depends on flow from skidsteer
Orientation
Inverted Horizontal
Split Force
25 Ton
Total Weight
320 lbs (146 kg)
Wedge Height
10" (25 cm)
Split Opening
36" (91 cm)
Mounting System
Universal Quick Attach
Cylinder Diameter
4.5" (11 cm)
Dimensions (LxWxH)
96" x 36" x 22" (244 cm x 91 cm x 56 cm)
Recommended Hydraulic Flow
13 gpm (50 lpm)
Average Splitter Cycle Time
11.43 Seconds *depends on flow from skidsteer
features

https://www.wallensteinequipment.com/file.aspx?id=a62f34cf-eec2-472d-a4a8-5631db18a77e&h=500&w=500 Direct Pressure

Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.

https://www.wallensteinequipment.com/file.aspx?id=1b969764-c198-4963-8458-71e690aceb93&h=500&w=500 Block Stripper Plates

Easily remove gnarly blocks that stick to the splitting wedge.

https://www.wallensteinequipment.com/file.aspx?id=d3462b60-ca14-4a9c-8d3b-5f592eafd86a&h=500&w=500 Wide Wedge

Wide wedge spreads and pops the log in a short distance, reducing cycle time.

Wallenstein WX430 Inverted Horizontal Skidsteer Mount

The universal quick attach plate connects easily to most skidsteers.
