ID # 40346366

Wallenstein LXG320S 180° Spring Return

Videos
Call for Price
Overview

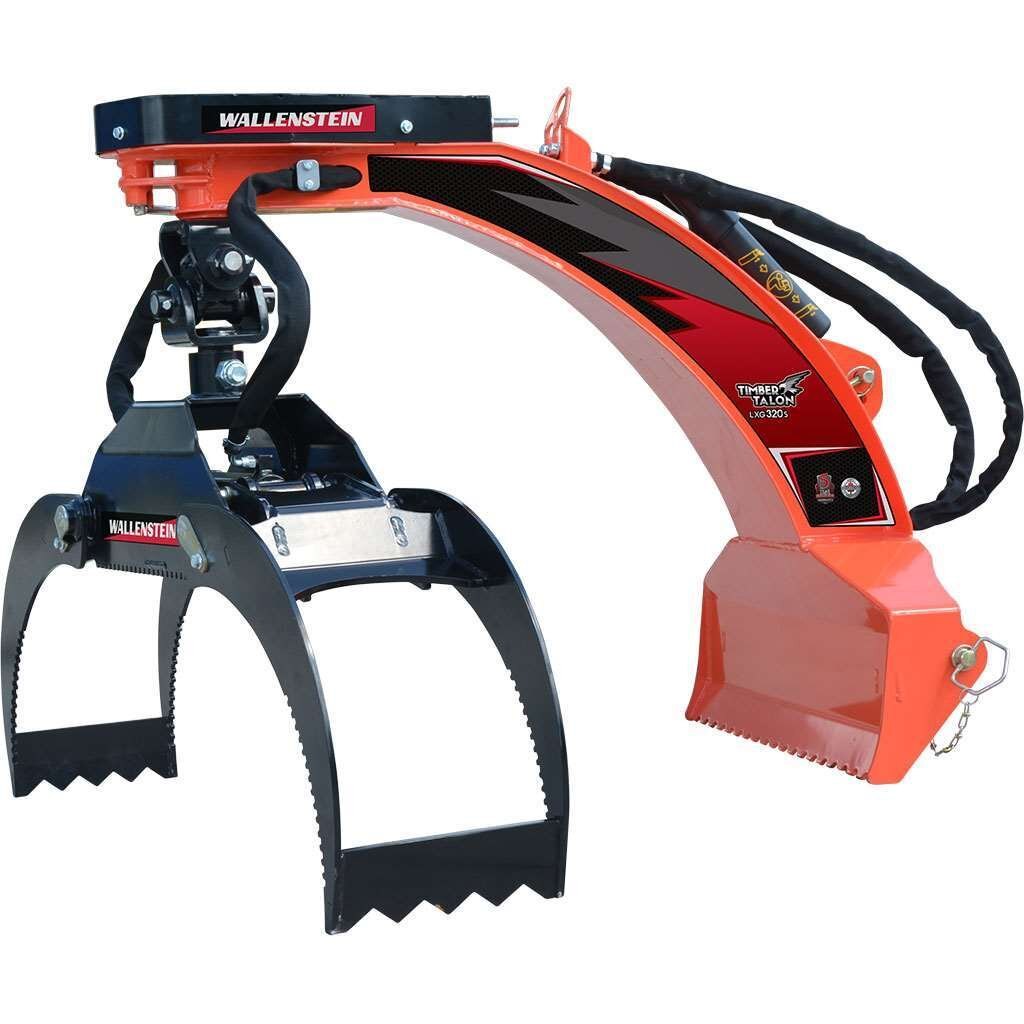

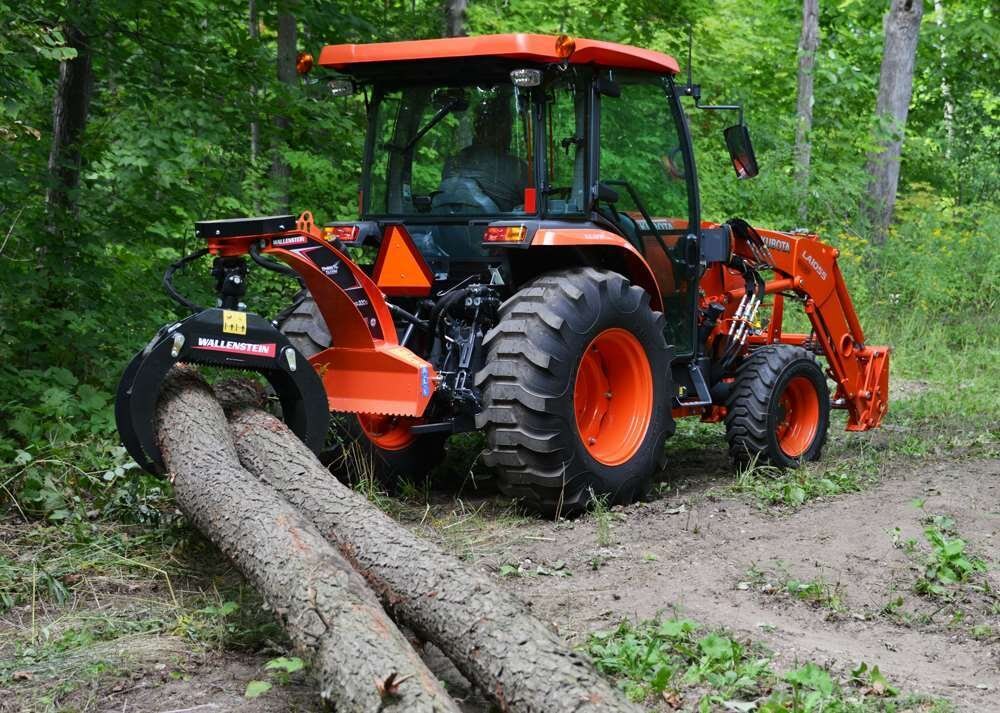

48" opening, the LXG320S 3-point hitch mount, spring-centered log grapple twists when turning corners but stays straight when grabbing logs. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.

Specifications
Model
LXG320S
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Clamp Force
9400 lbs (4264 kg)
Total Weight
350 lbs (159 kg)
Engine HP Range
25 - 65
Grapple Opening
3" - 48" (8 cm - 122 cm)
Lift Capacity
3000 lbs (1360 kg)
Mounting System
Cat I
Grapple Rotation
180°
Dimensions (LxWxH)
51" x 52" x 43" (130 cm x 132 cm x 110 cm)
Recommended Hydraulic Flow
5 gpm (19 lpm)
features

Wallenstein LXG320S 180° Spring Return Bypass Grapples

Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.

Wallenstein LXG320S 180° Spring Return Cantilever Cradle

Leverage and secure your load with the serrated cradle when lifting logs in-line.

Wallenstein LXG320S 180° Spring Return Spring Centered Grapple With Locking Positions

The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.
