ID # 40346373

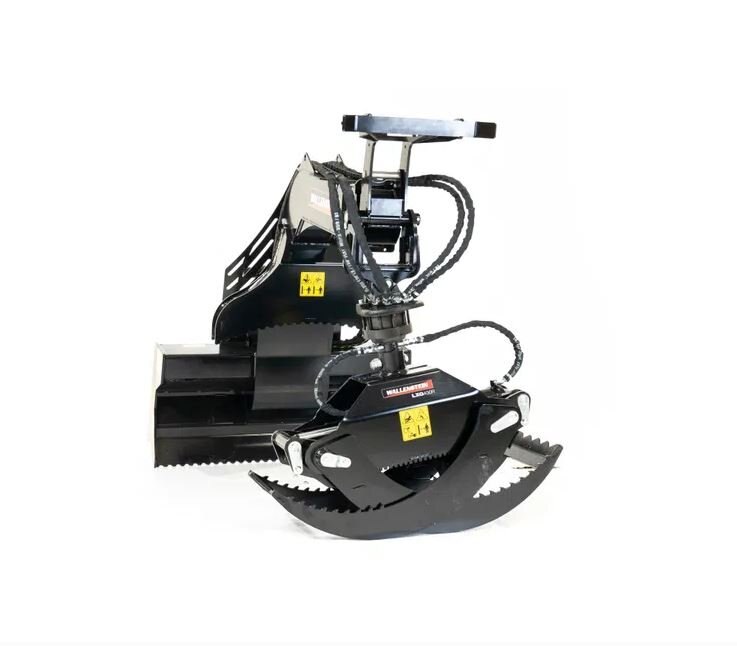

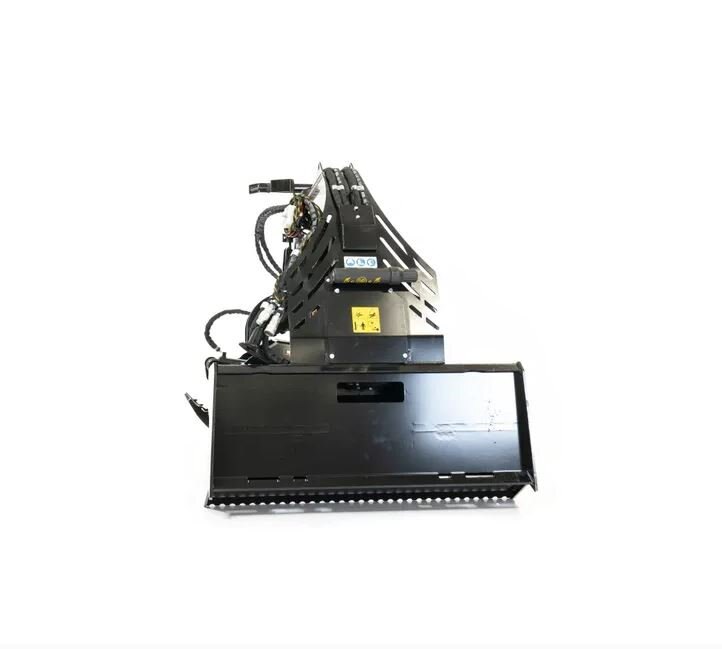

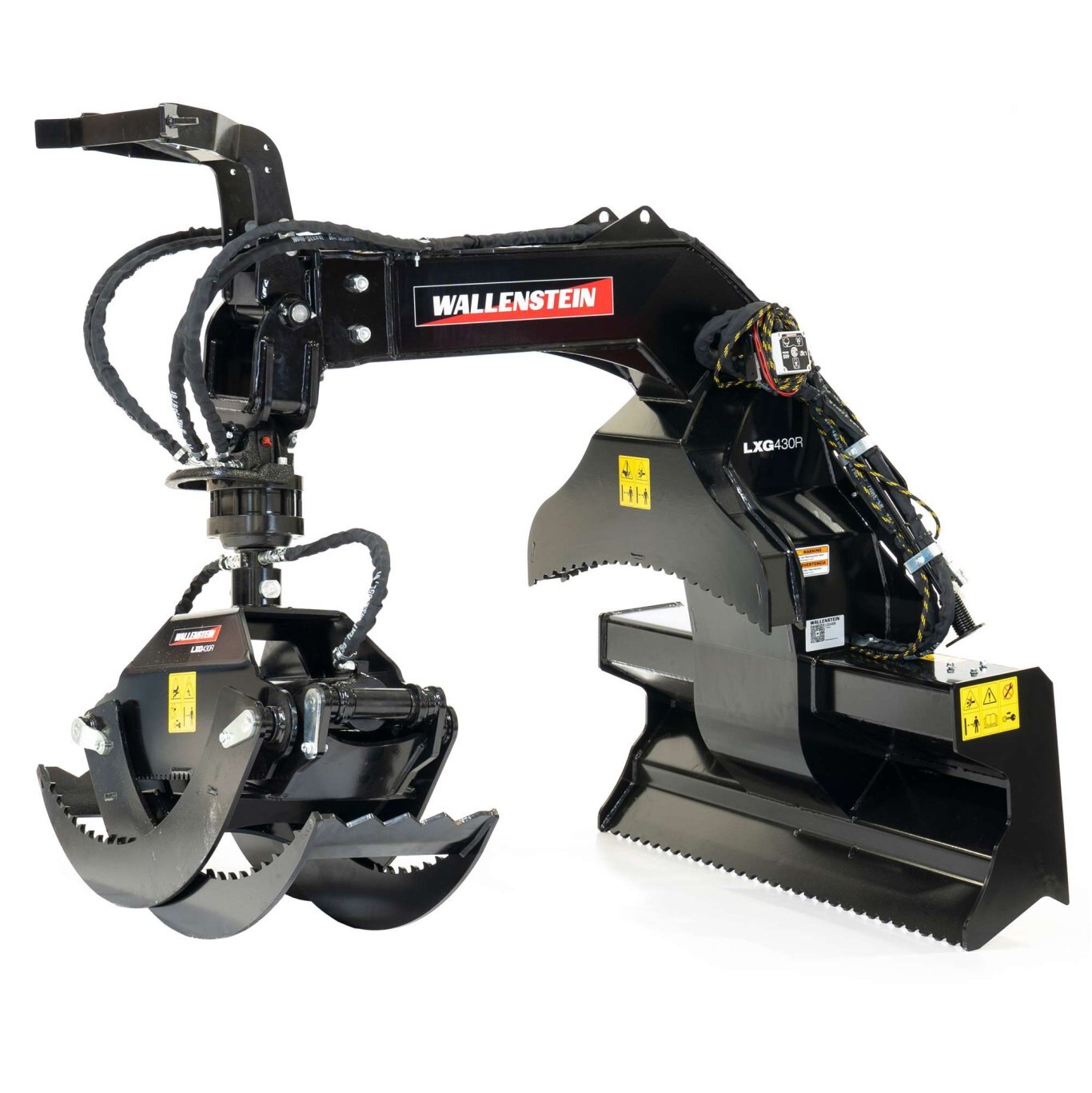

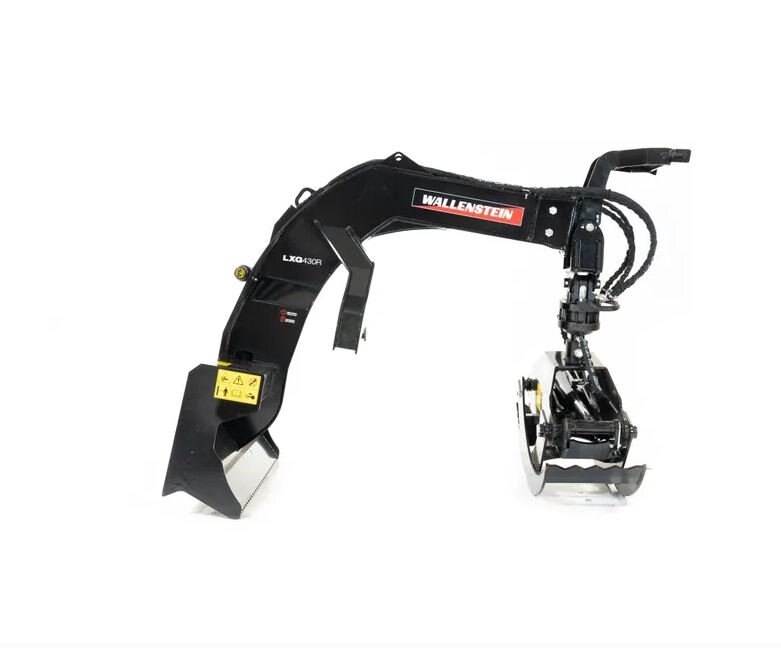

Wallenstein LXG430R 360° Hydraulic Rotator

Videos
Call for Price
Overview

72" opening, the LXG330R skidsteer, hydraulic log grapple picks up logs in any position and moves them exactly where you want with the 360 hydraulic rotator. Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.

Specifications
Model
LXG430R
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Clamp Force
21000 lbs (9525 kg)
Total Weight
1124 lbs (510 kg)
Lift Capacity
4500 lbs (2041 kg)
Grapple Opening
3" - 72" (8 cm - 182 cm)
Mounting System
Universal Skidsteer Quick Attach Plate
Grapple Rotation
360°
Push Bar Width
19" (48 cm)
Engine HP Range
60 - 100
Dimensions (LxWxH)
67" x 76" x 67" (171 cm x 193 cm x 171 cm)
Recommended Hydraulic Flow
5 gpm (19 lpm)
features

Wallenstein LXG430R 360° Hydraulic Rotator Bypass Grapples

Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.

https://www.wallensteinequipment.com/file.aspx?id=cb20b555-d2cb-4709-99dd-1e9f0d027d50&h=500&w=500 Cantilever Cradle

Leverage and secure your load with the serrated cradle when lifting logs in-line.

https://www.wallensteinequipment.com/file.aspx?id=6f80028a-cd16-49d3-a346-4c993e38a1dd&h=500&w=500 Push Bar

Control what is happening in front of you by forcing trees to fall away from your tractor or skidsteer.

Wallenstein LXG430R 360° Hydraulic Rotator 360° Hydraulic Rotation

Pick up logs in any position and orient them exactly where you want.
