ID # 40346377

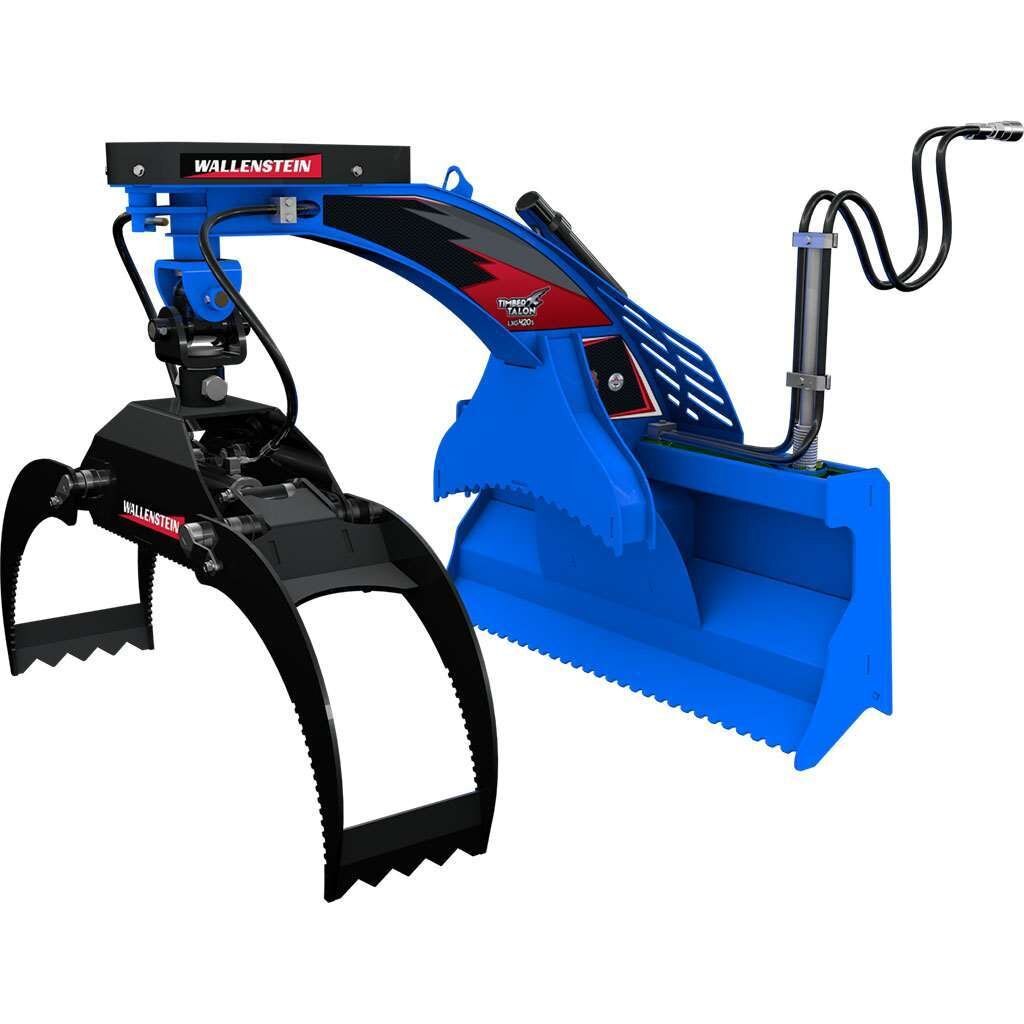

Wallenstein LXG420S 180° Spring Return

Videos
Call for Price
Overview

48" opening, the LXG420S skidsteer, spring-centered log grapple twists when turning corners but stays straight when grabbing logs.  Perfect partners for farmers, rural property owners, and logging contractors to haul logs out of the woods with confidence.

Specifications
Model
LXG420S
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Clamp Force
9400 lbs (4264 kg)
Total Weight
560 lbs (254 kg)
Lift Capacity
3000 lbs (1360 kg)
Engine HP Range
25 - 65
Grapple Opening
3" - 48" (8 cm - 122 cm)
Mounting System
Universal Skidsteer Quick Attach Plate
Grapple Rotation
180°
Dimensions (LxWxH)
51" x 52" x 44" (130 cm x 132 cm x 112 cm)
Recommended Hydraulic Flow
5 gpm (19 lpm)
features

Wallenstein LXG420S 180° Spring Return Bypass Grapples

Grapple tines interlink as tight as 3” (7.5 cm), ensuring easy handling of smaller logs and branches.

https://www.wallensteinequipment.com/file.aspx?id=cb20b555-d2cb-4709-99dd-1e9f0d027d50&h=500&w=500 Cantilever Cradle

Leverage and secure your load with the serrated cradle when lifting logs in-line.

Wallenstein LXG420S 180° Spring Return Spring Centered Grapple With Locking Positions

The grapple rotates when turning corners but stays straight when grabbing logs. Features lateral and in-line lock positions.



available colours
