Wallenstein LXT115 Highway

Videos
Call for Price
Overview

11500 lb load capacity, 1200 lb lift capacity, the LXT115 log loader trailer is the ultimate equipment for compact tractors and full size pickup trucks. Add an expaneded metal flatbed and a dump box to maximize the versatility.

Specifications
Model
LXT115
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Hitch
2-5/16" Ball
Tires
ST235-80R16 LRE
Brakes
Electric
Engine
Vanguard® 10 hp (305 cc)
Lift Capacity
1200 lbs (544 kg)
Grapple Opening
3" - 40" (8 cm - 102 cm)
Load Capacity
11500 lbs (5216 kg)
Grapple Rotation
360°
Boom Rotation
270°
Ground Clearance
17" (43 cm)
Horizontal Reach
11' 6" (351 cm)
Dimensions (LxWxH)
198" x 68" x 60" (503 cm x 173 cm x 152 cm)
Trailer Bed Length
132" (335 cm)
Trailer Weight (Empty)
2470 lbs (1120 kg)
Dipper Cylinder Diameter
2.5" (6 cm)
Main Boom Cylinder Diameter
3" (8 cm)
Stabilizer Cylinder Diameter
2" (5 cm)
Minimum Tow Vehicle Requirement
3/4 Ton
Stabilizer Width (Spread)
8' 11" (272 cm)
Vertical Reach (Ground To Closed Grapple)
15' 5" (470 cm)
Tongue Weight (Trailer Empty With Log Loader)
480 lbs (218 kg)
Tongue Weight (Trailer Empty With Log Loader & Power Pack)
555 lbs (252 kg)
features

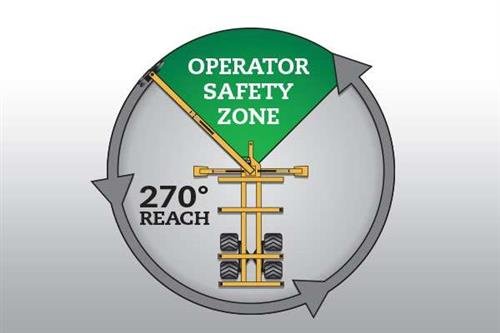

Wallenstein LXT115 Highway 270° Boom Swing Range

Gives you full access to both sides of the trailer while providing an operator safety zone.

https://www.wallensteinequipment.com/file.aspx?id=a7808136-d06f-4192-95f4-508c3fcde6e0&h=500&w=500 360° Hydraulic Rotation

Pick up logs in any position and orient them exactly where you want.

Wallenstein LXT115 Highway 5 Stick Control With Swivel

Enables operation of the boom from either side of the trailer.

Wallenstein LXT115 Highway Electric Brakes

Go easy on your vehicle with electric brakes.

https://www.wallensteinequipment.com/file.aspx?id=9ebd2247-d530-47af-8381-31ee3a0efc74&h=500&w=500 Highway Towable

Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.

Wallenstein LXT115 Highway Hydraulic Stabilizers

Easy to use hydraulic stabilizers help to prevent tipping.

Wallenstein LXT115 Highway Self Centering Bunk Posts

If bumped, the log posts naturally return to their proper position.

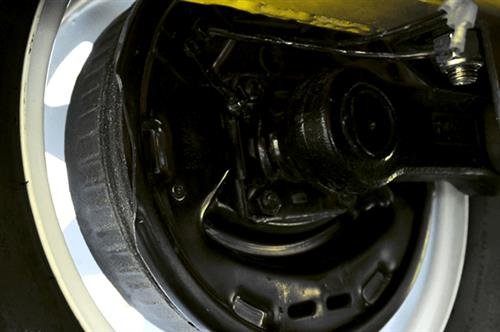

Wallenstein LXT115 Highway Walking Beam Axle

Smoothly travel over uneven ground.
