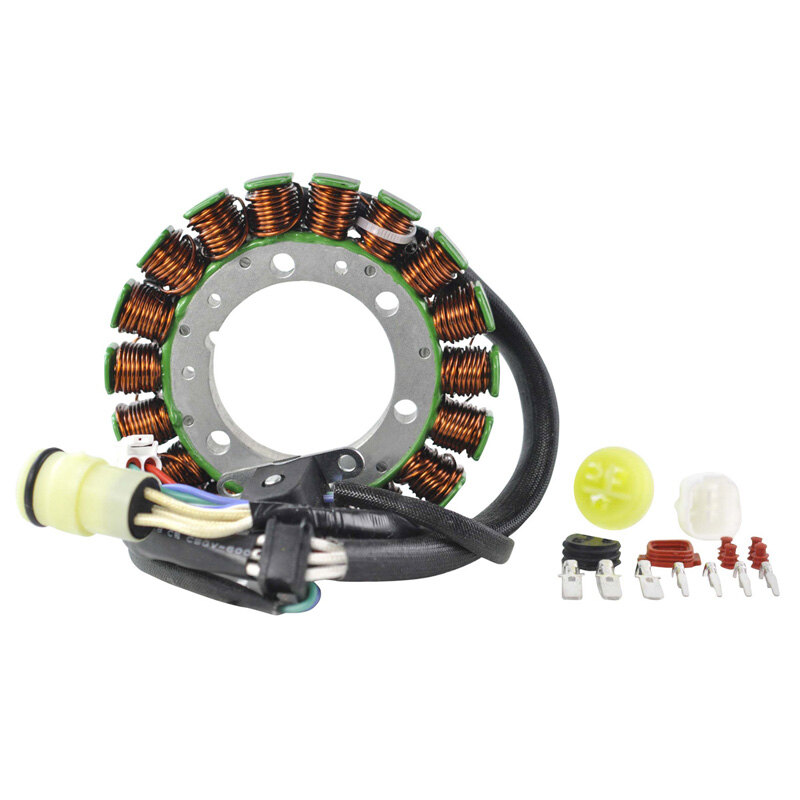

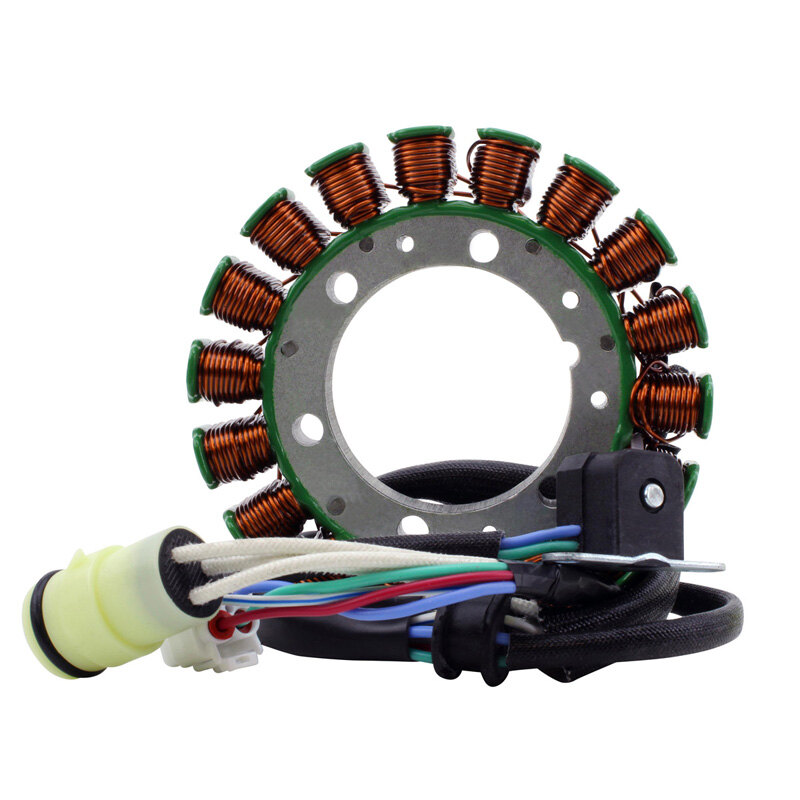

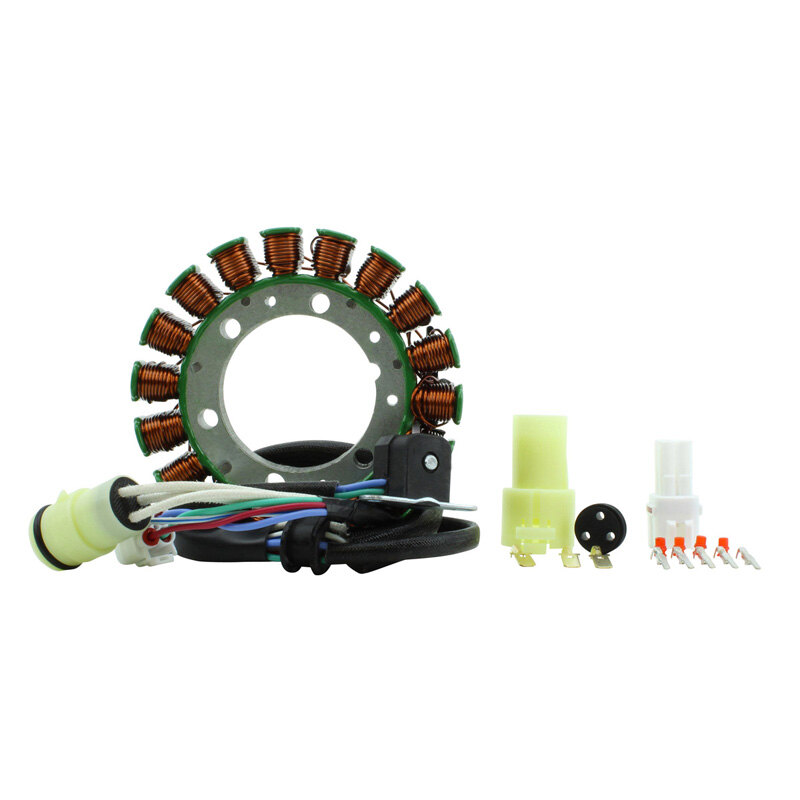

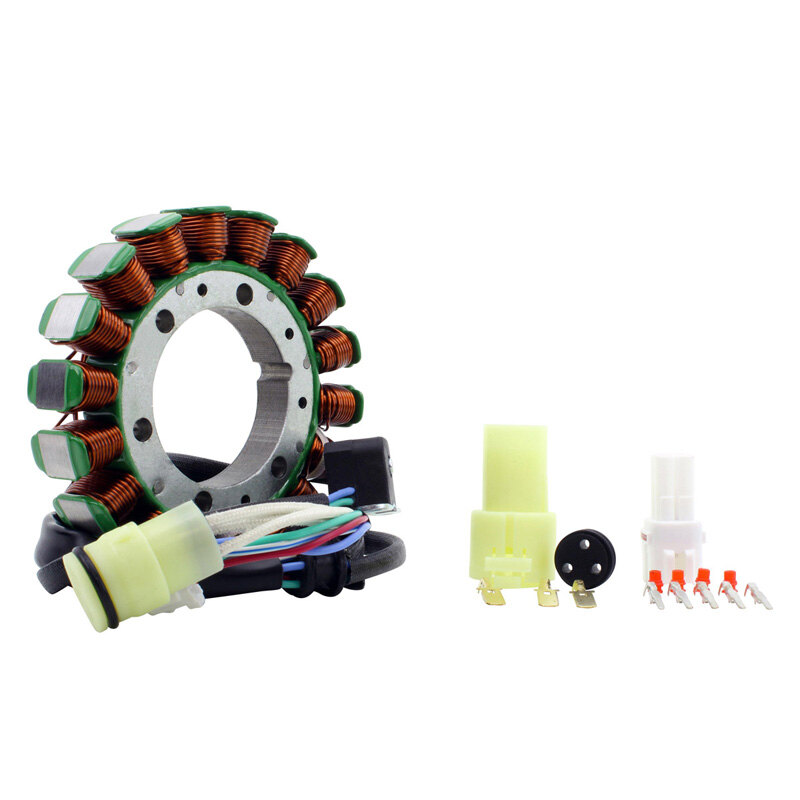

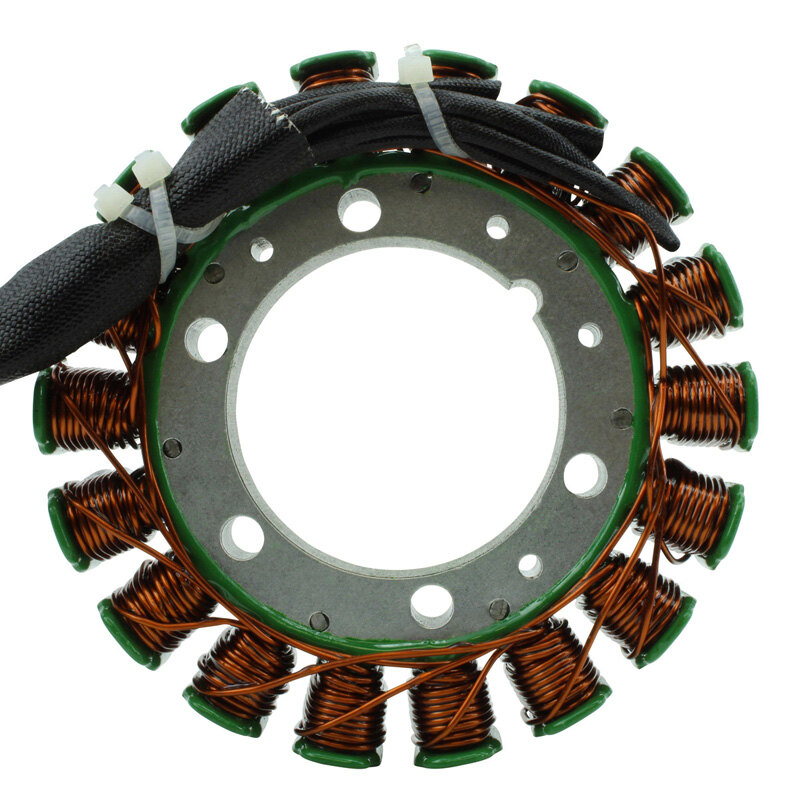

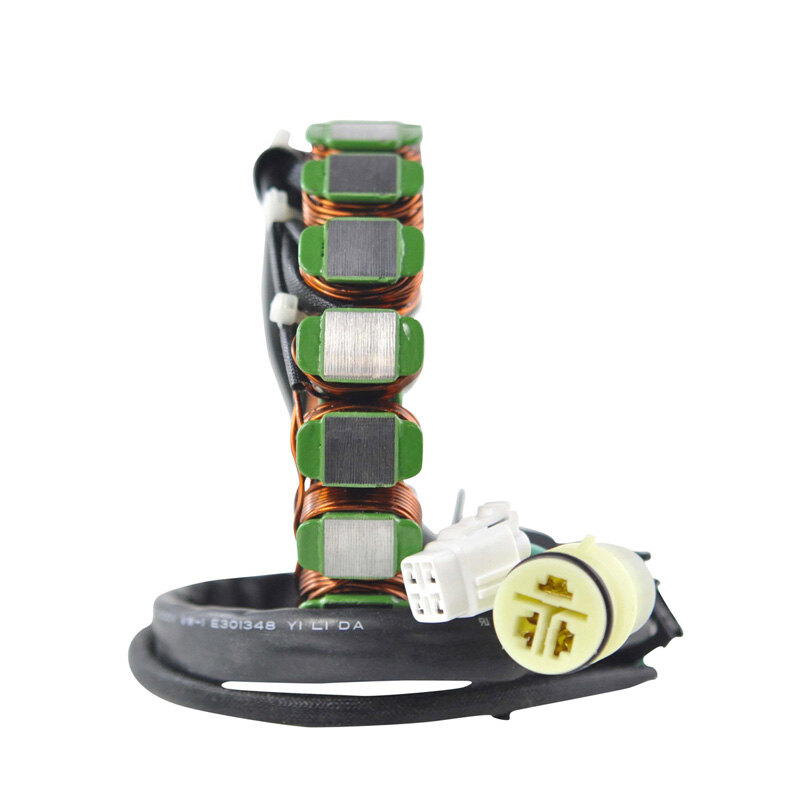

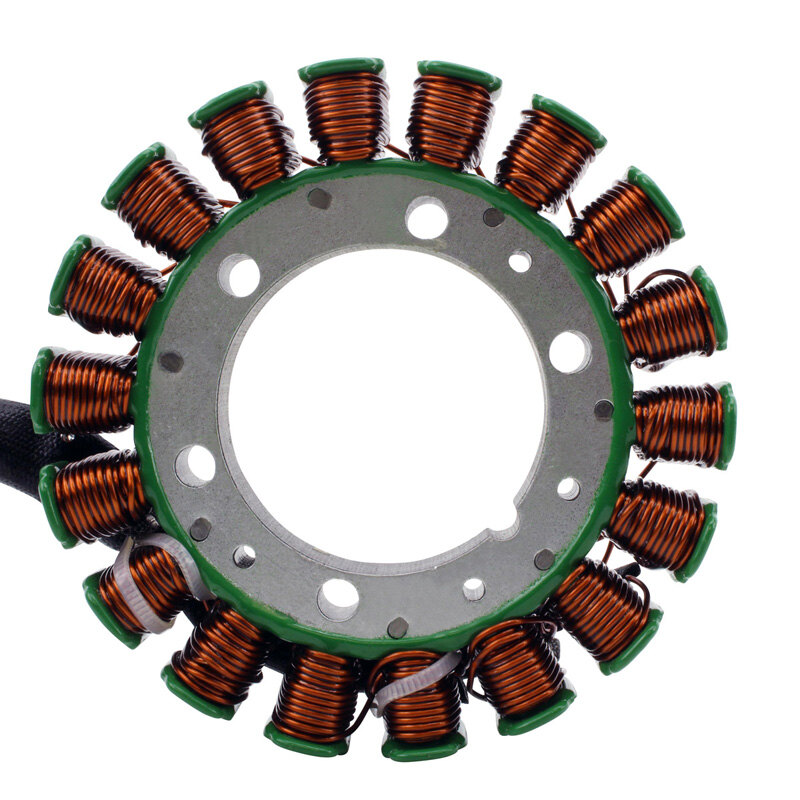

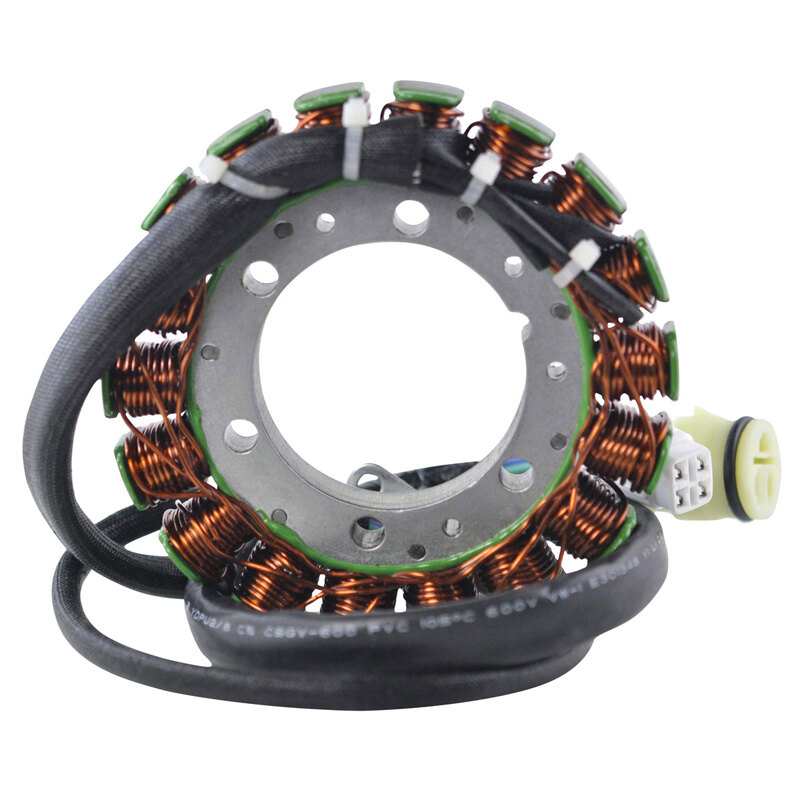

STATOR YAM YFM350|400 BIG BEAR|RAPTOR 00-13

Brand new high output aftermarket stator 300 watts

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

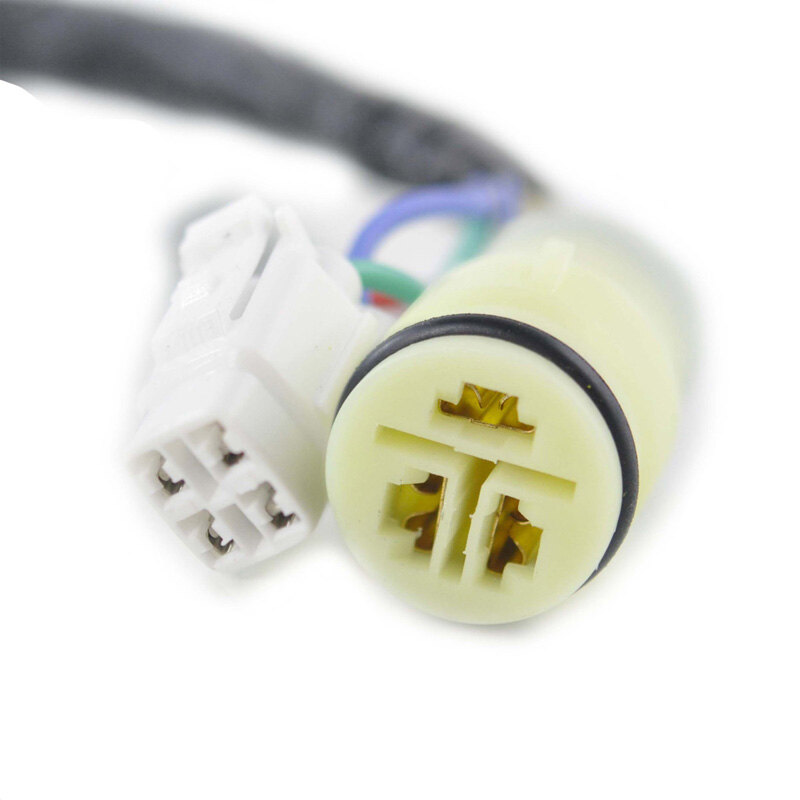

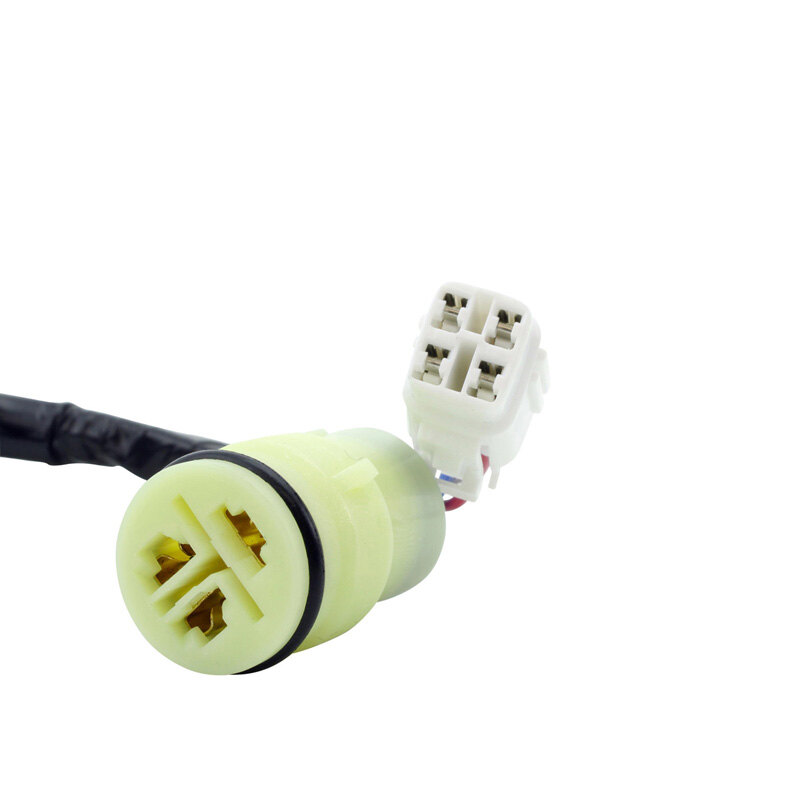

• Connector included
• Rubber grommet included
• All products shipped are tested

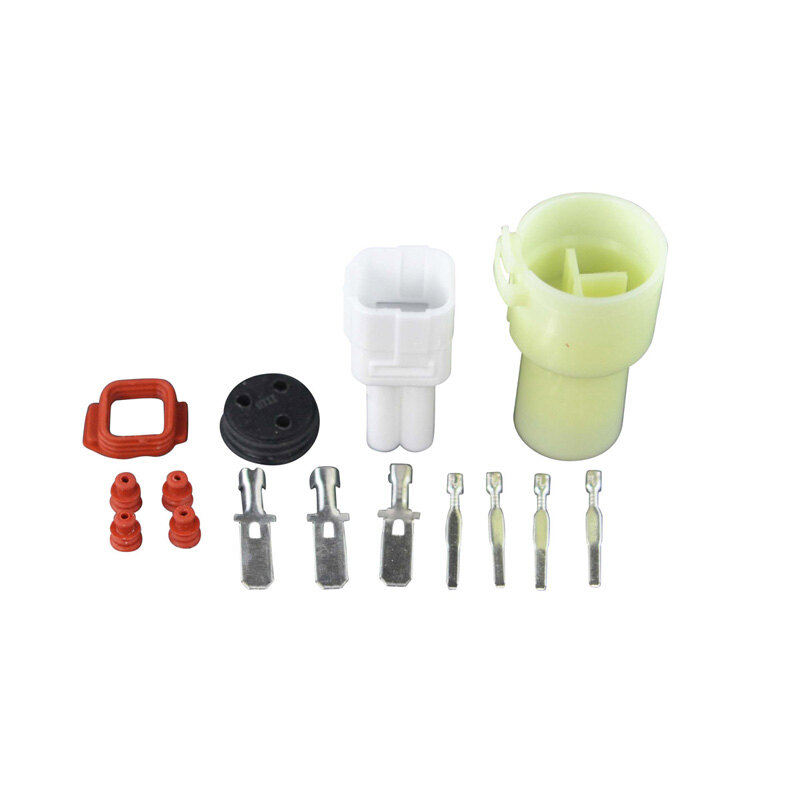

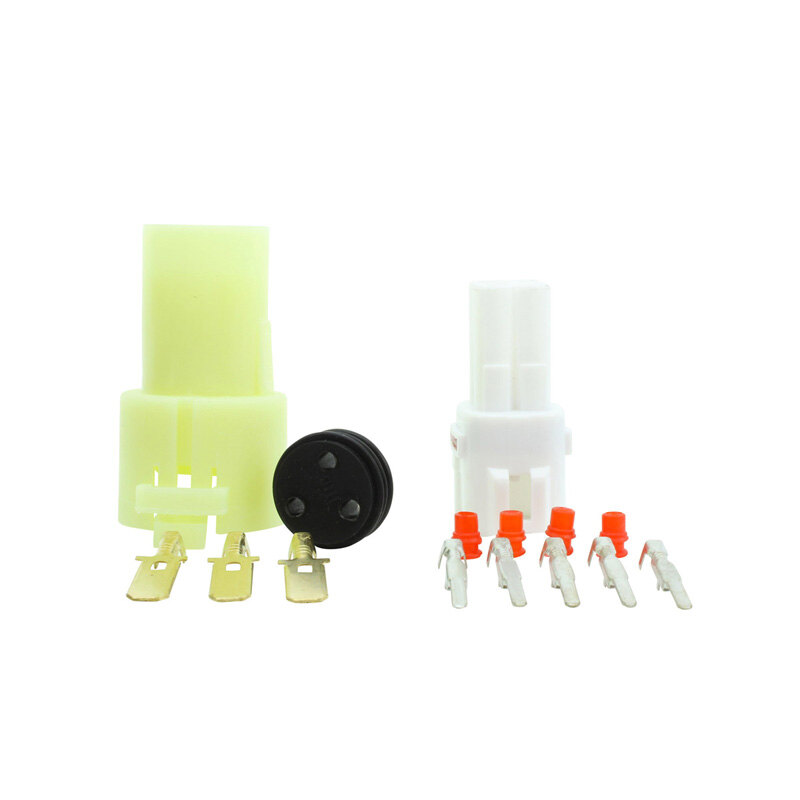

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 53 mm
Exterior diameter: 114 mm
Bracket to bracket : 35 mm
Thickness: 13 mm

Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7

Wire to wire resistance:
Alternator : White between each White = 0.4 ohms\/-20%
Pickup: Green to blue = 518 ohms =\/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
