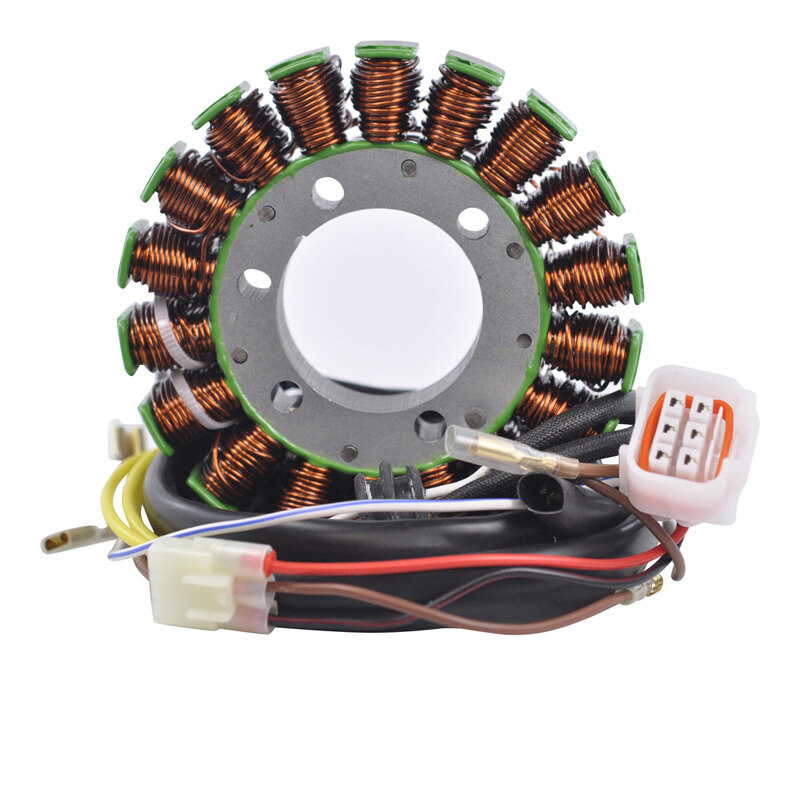

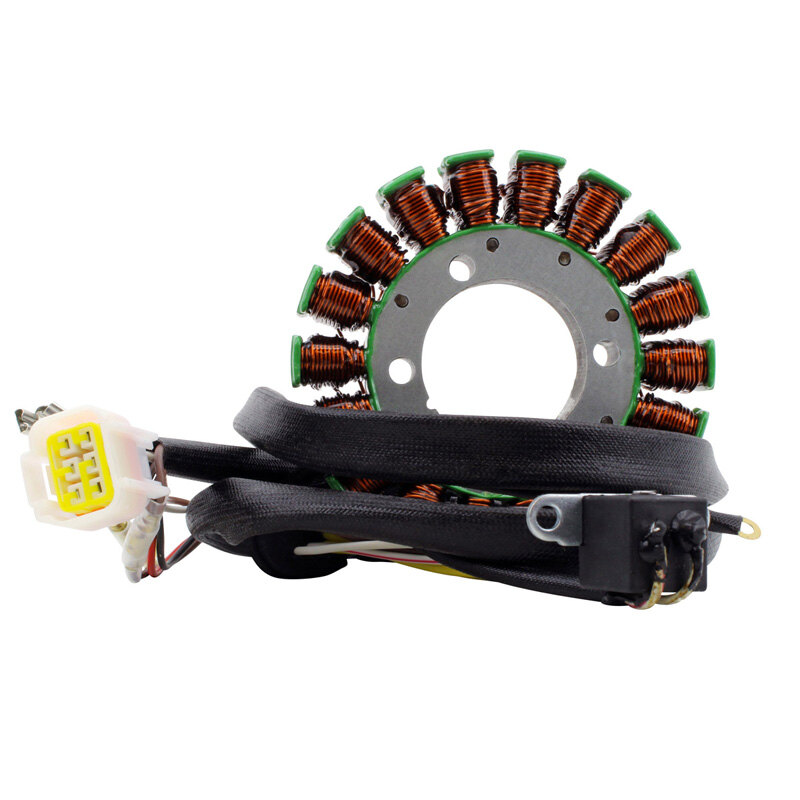

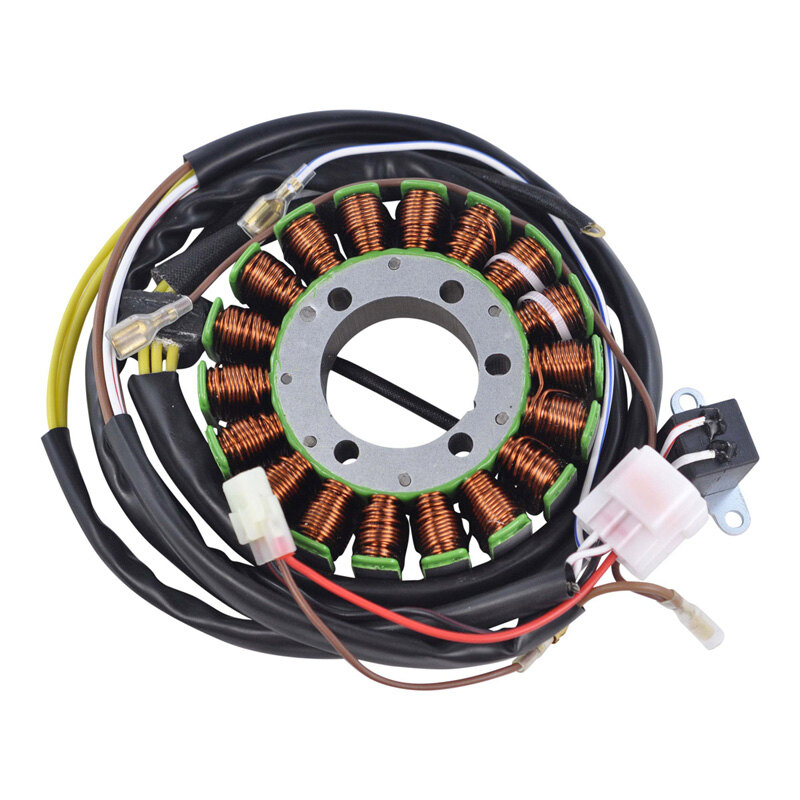

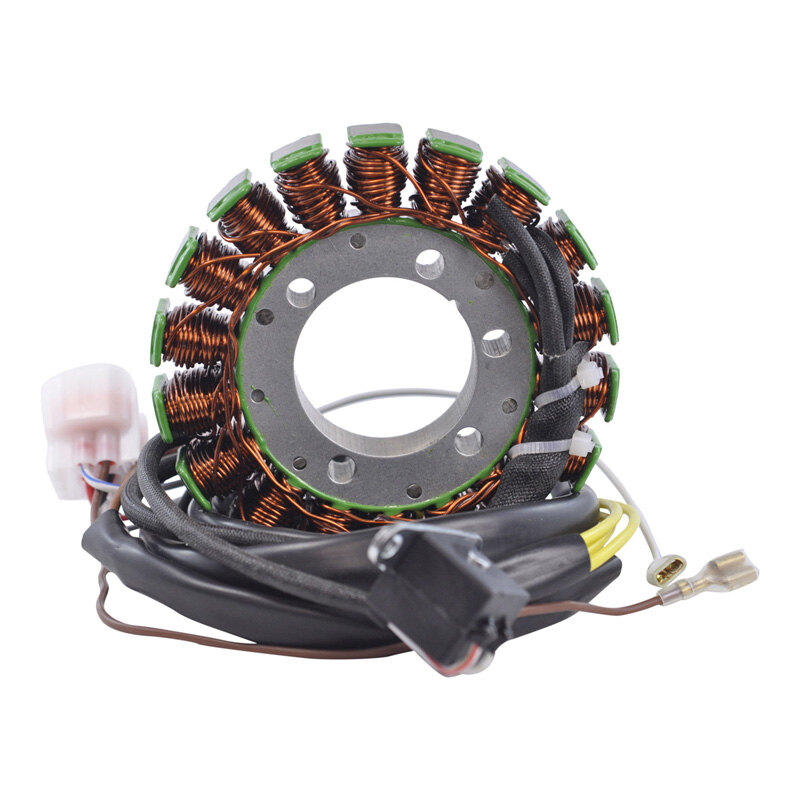

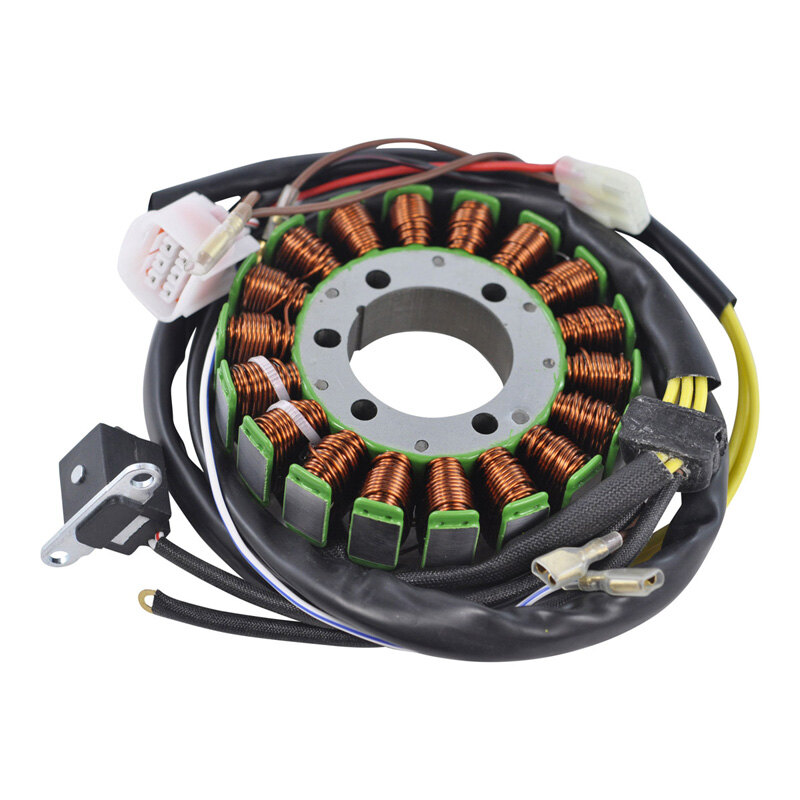

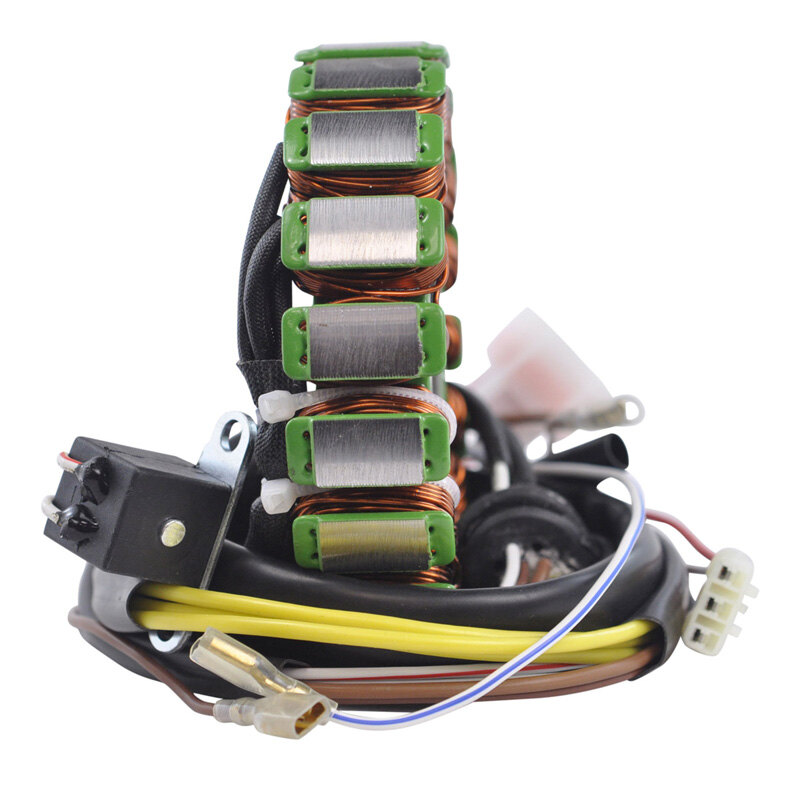

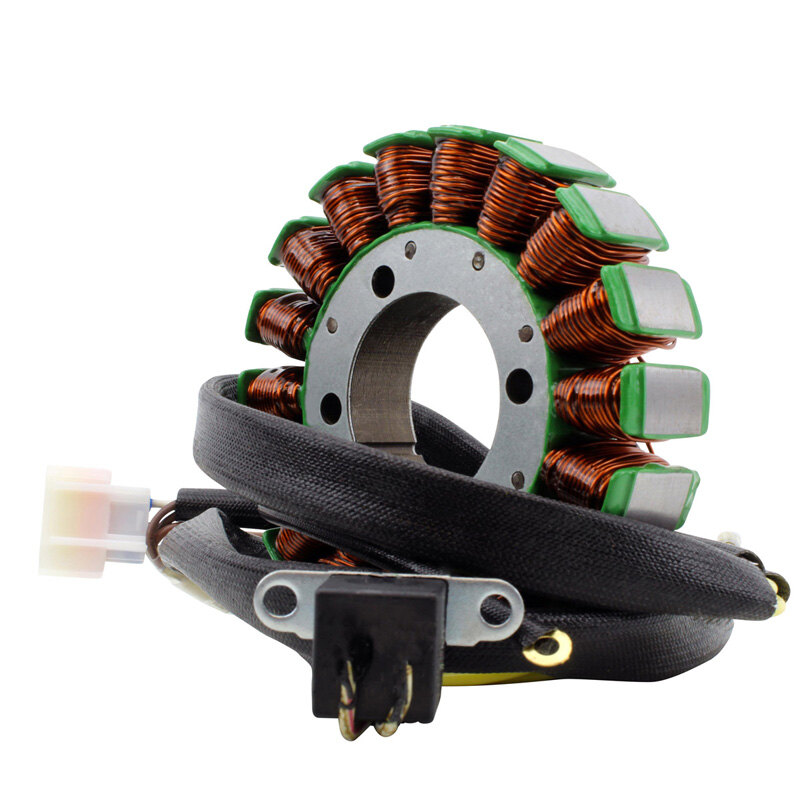

STATOR POL SPORTSMAN 400-500 HO 04-14

Brand new aftermarket stator

• You must re-install the stator to regulator connector
• Higher grade of electric components.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 108 mm
Thickness: 19 mm

Other specifications:
Number of wires: 11

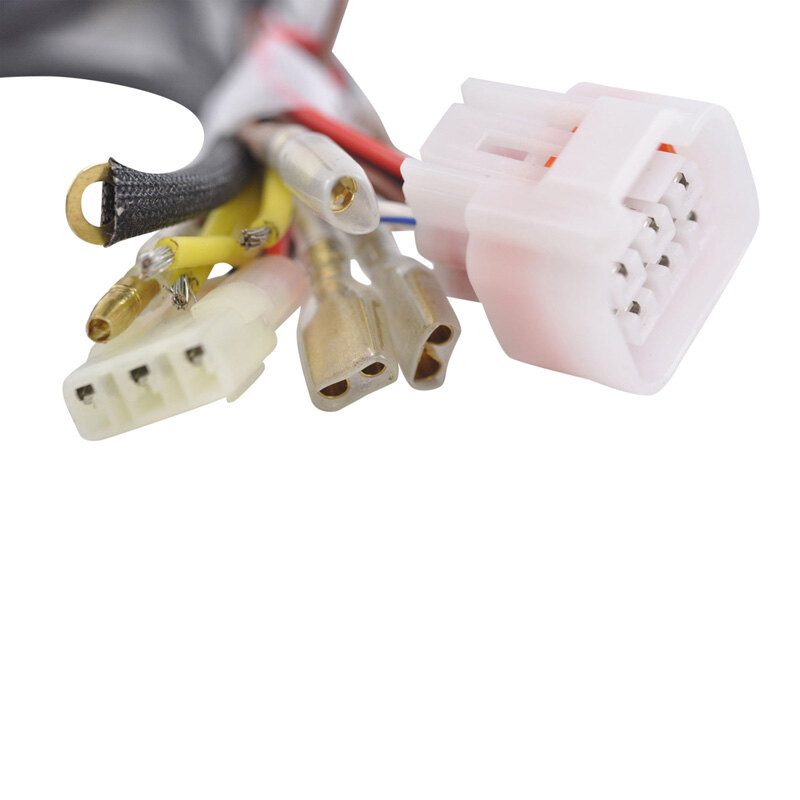

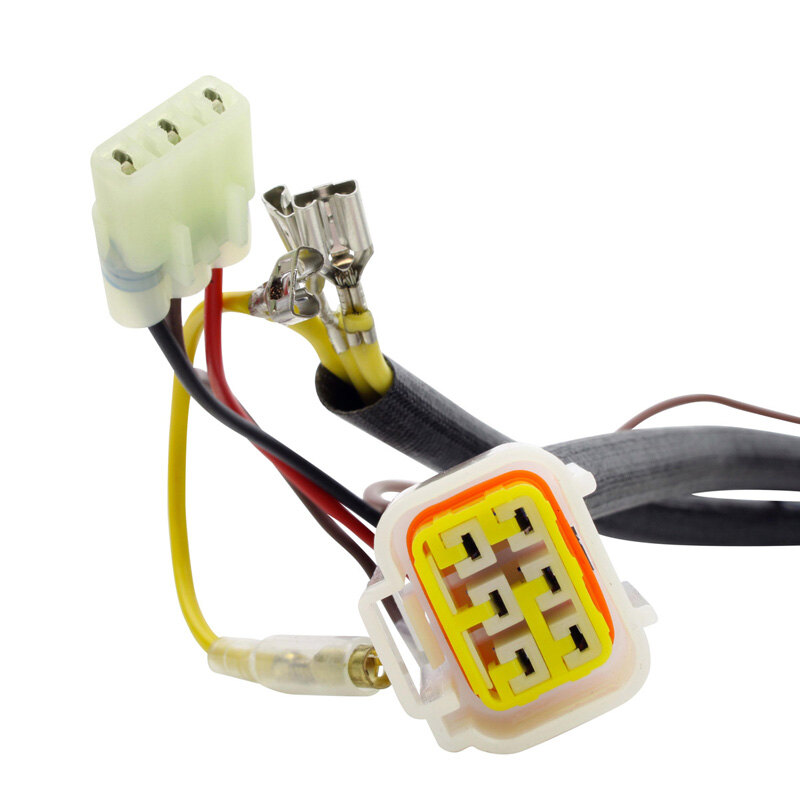

Number of plugs: 6
Number of pins: 9
Harness length Stator to grommet: 100 mm
Harness length grommet to plug: 1000 mm
Pickup coil`s wire length to grommet: 150 mm

Wire to wire resistance:
Alternator: Yellow between each yellow = 0.4 ohms \/-20%
Pickup: White to white/red = 100 ohms \/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

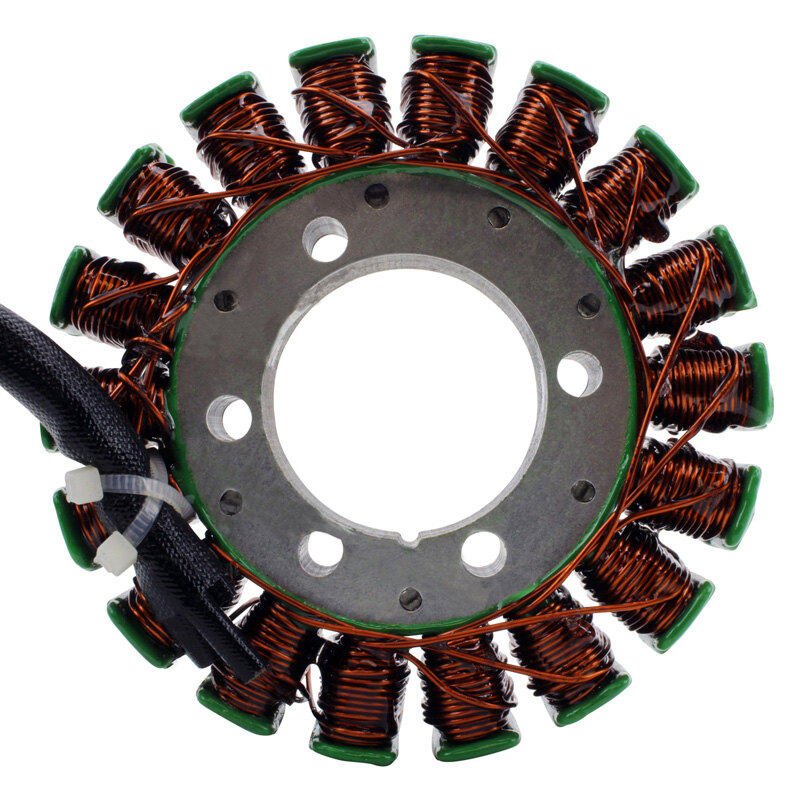

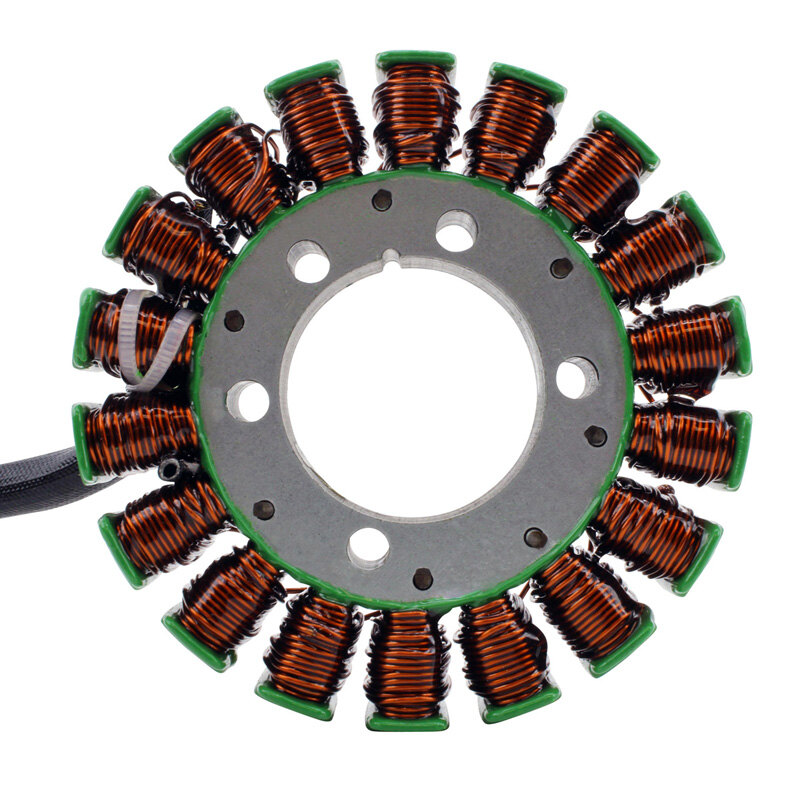

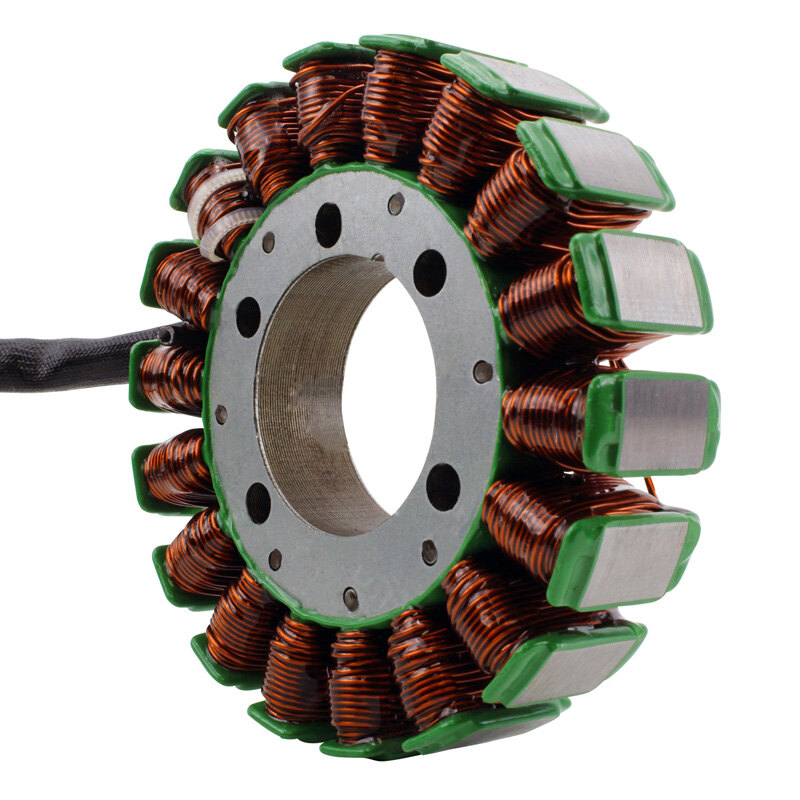

There are two stators possible for the 2004 Polaris Sportsman 400 model. This stator has 18 poles. Please compare your current stator before buying.
