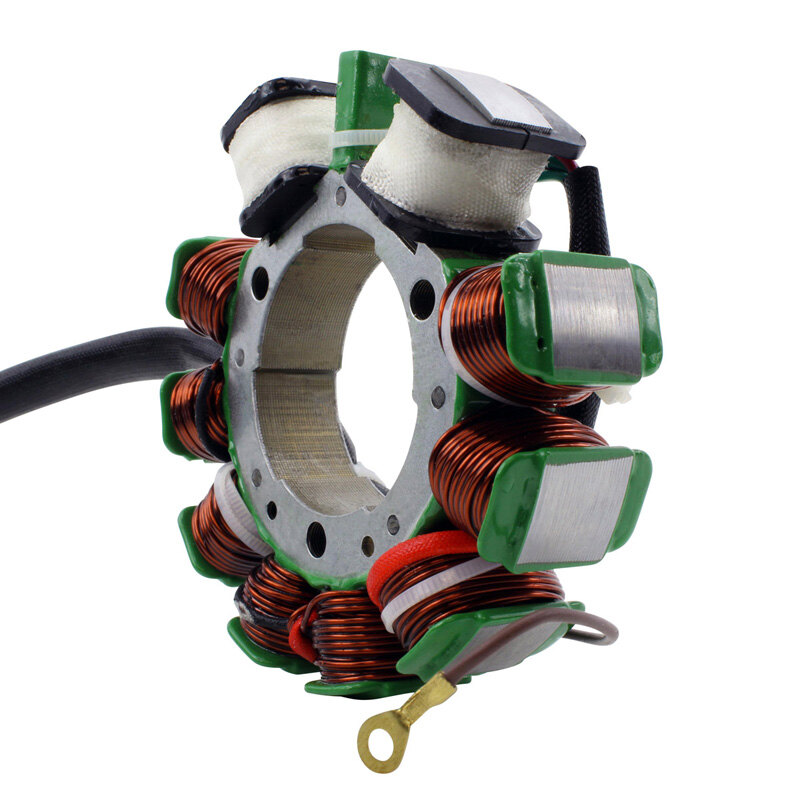

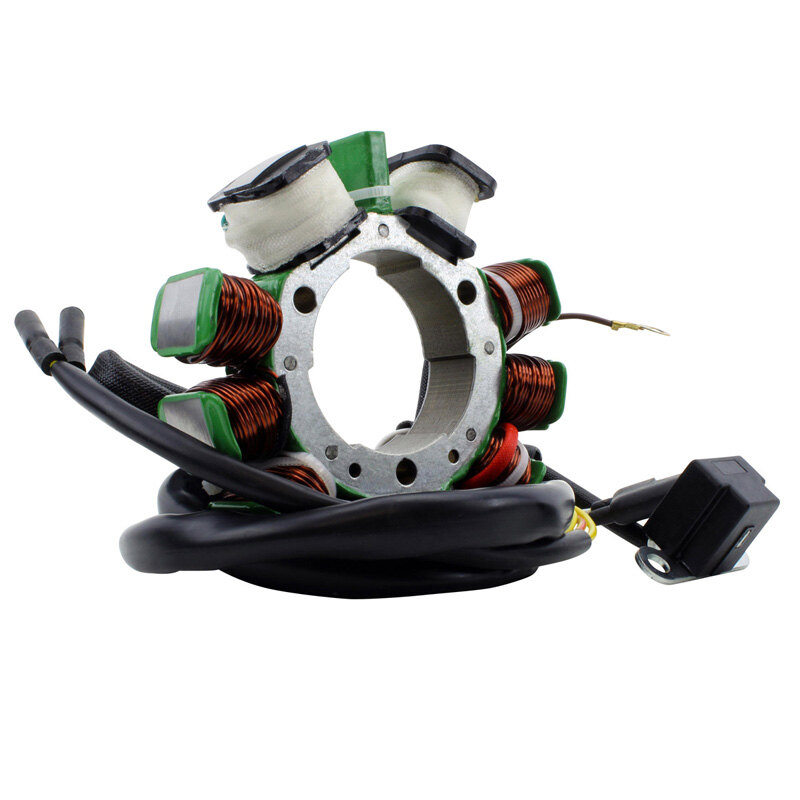

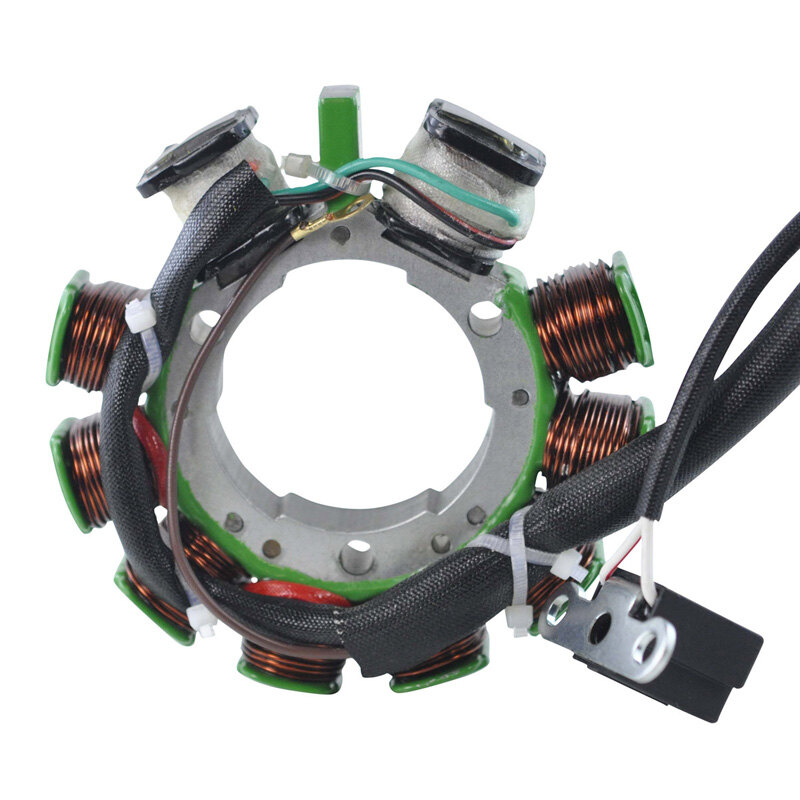

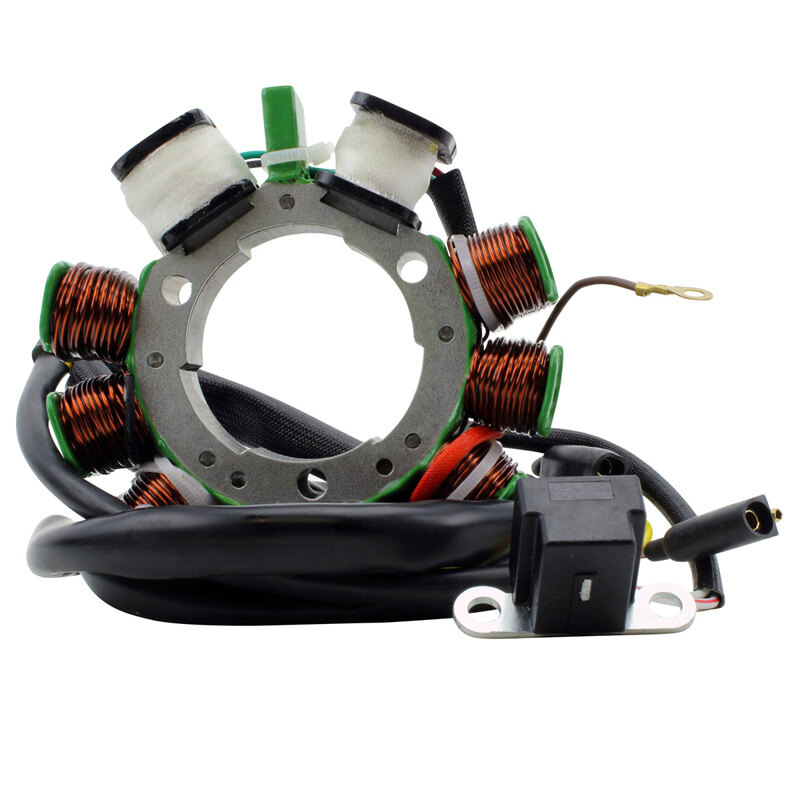

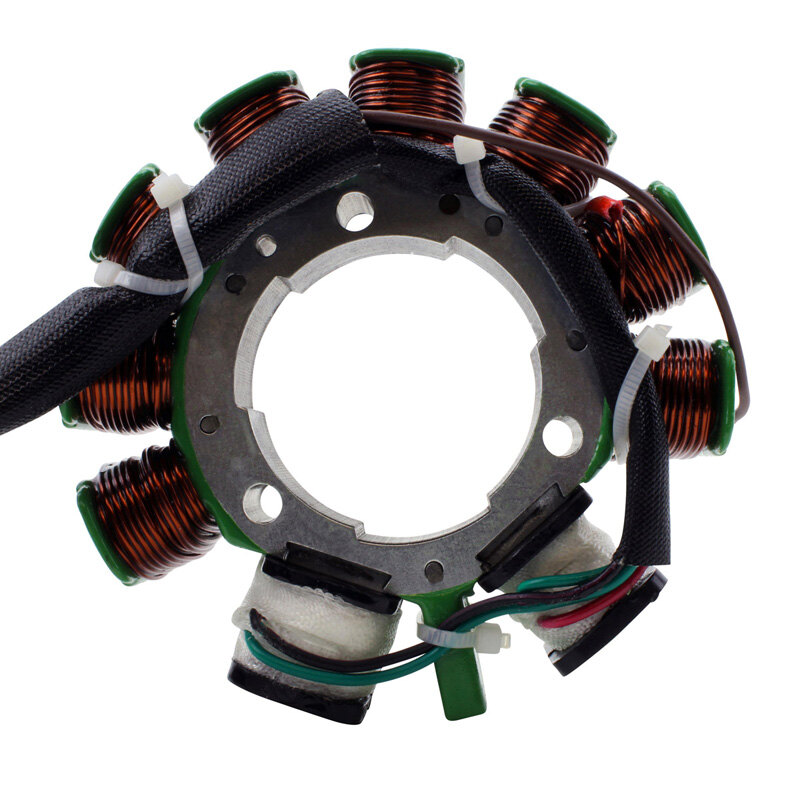

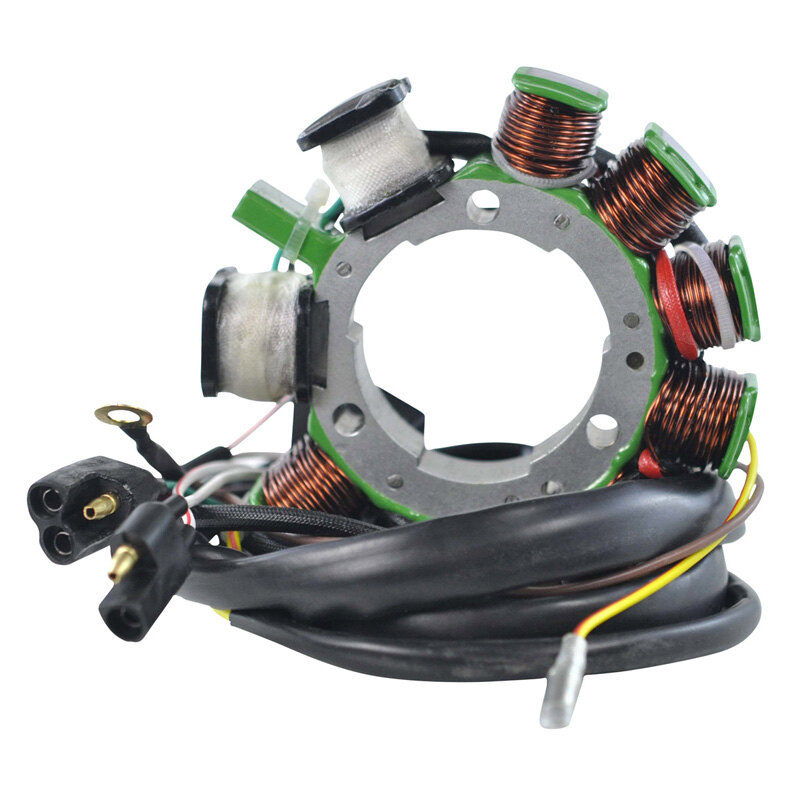

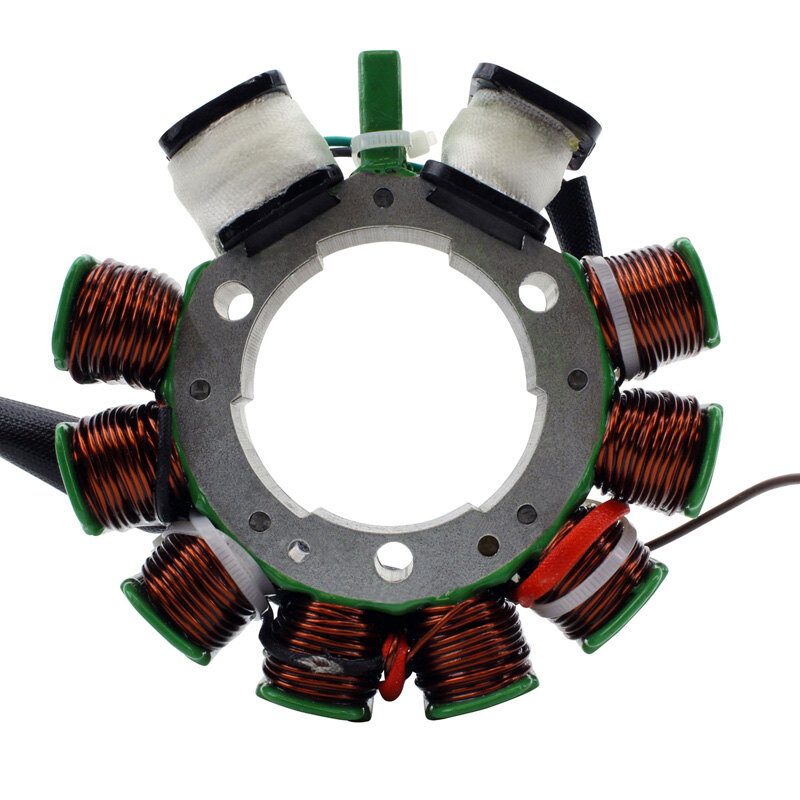

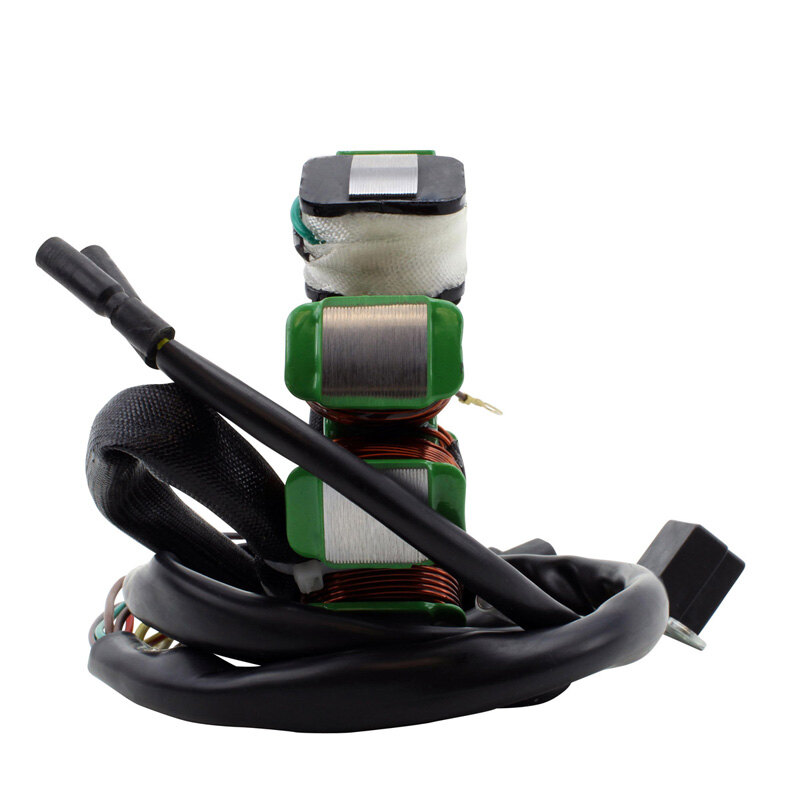

STATOR POL RANGER|SCRAMBLER|SPORTSMAN 500 97-01

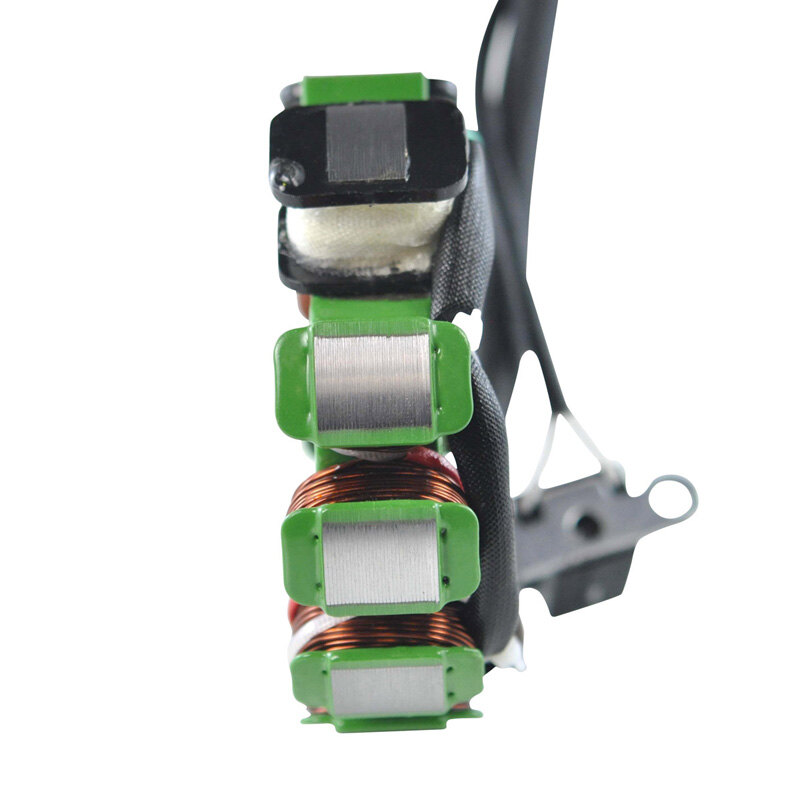

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.

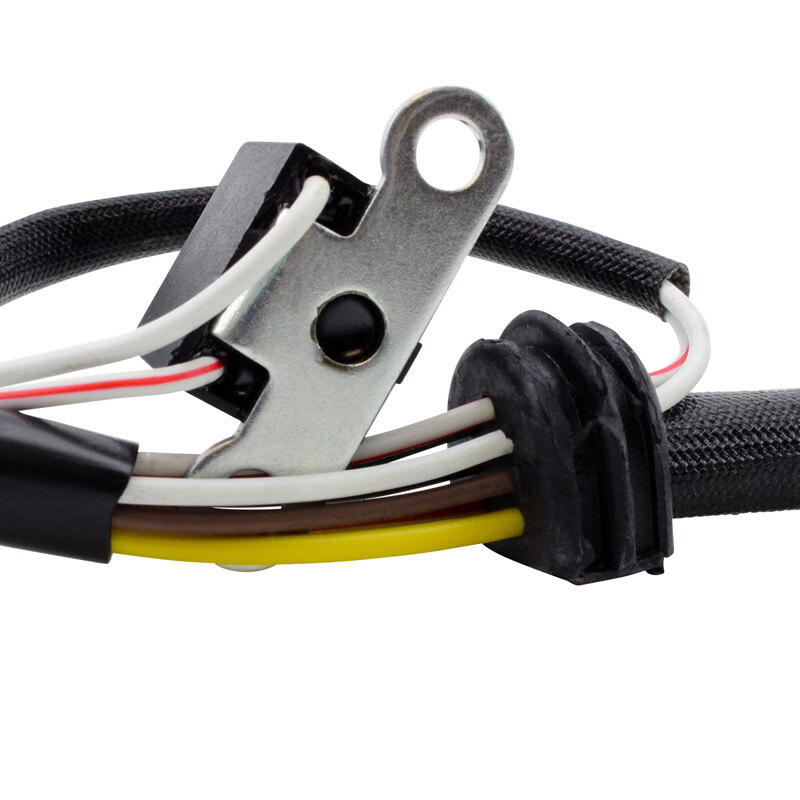

• Pick up pulsar coil included

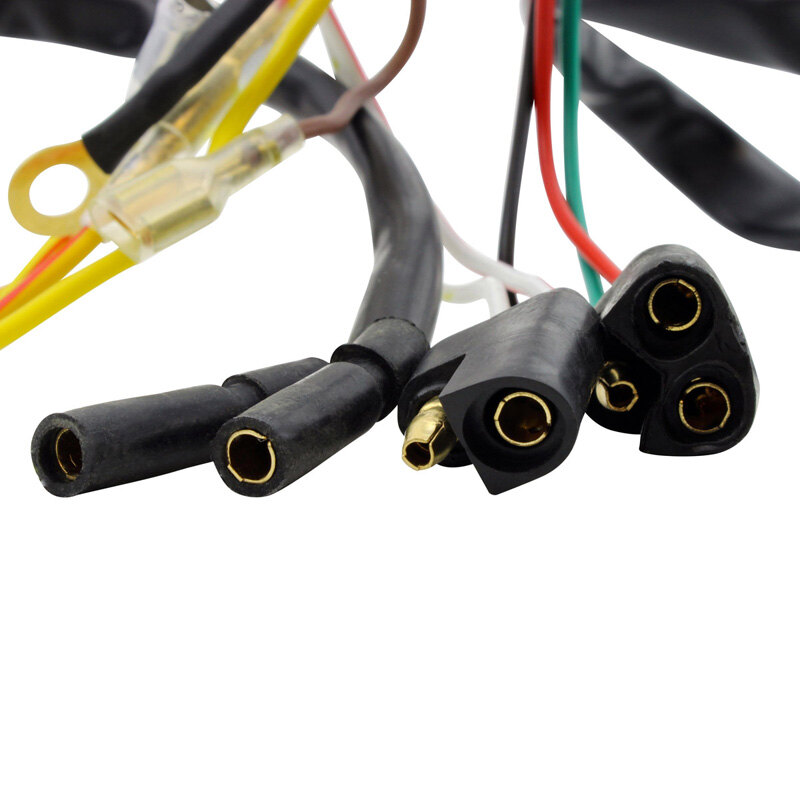

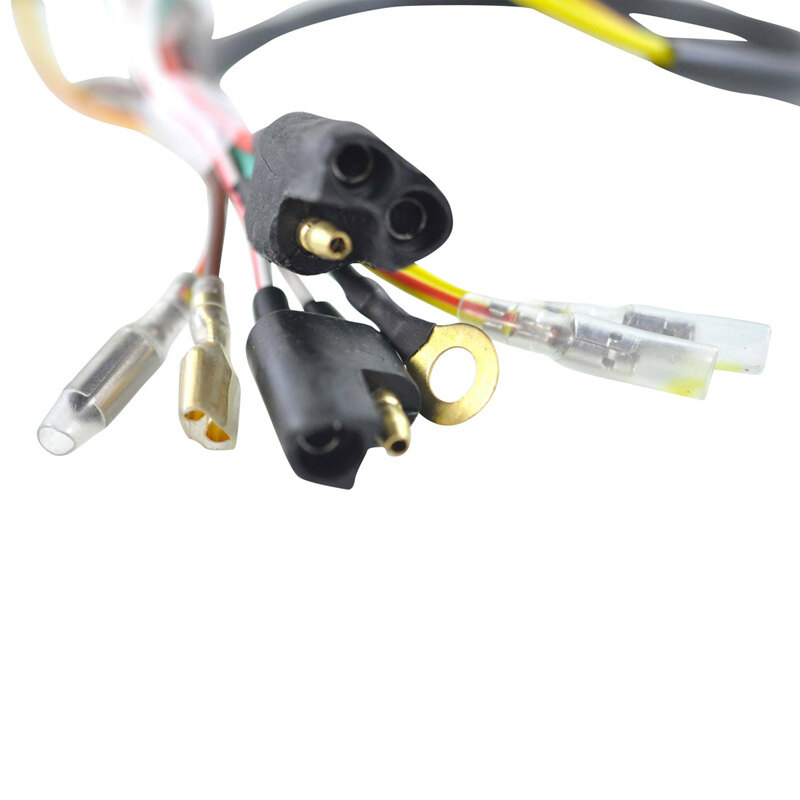

• Connector included
• Rubber grommet included
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 51 mm
Exterior diameter: 114 mm
Thickness: 20 mm

Other specifications:
Number of wires: 9
Number of plugs: 7
Number of pins: 10

Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms +/-20%
Source: Green to Red/Black = 450 ohms +/-20%
Source 2: Green to Black = 3.8 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

There are two possible stators for many Polaris models :
For the Magnum 500, Big Boss 500, Scrambler 500 and Sportsman 500 2000. This stator fits S# 00-01960 and before.
Always check in the \'Fits models\' section and please compare to your ori
