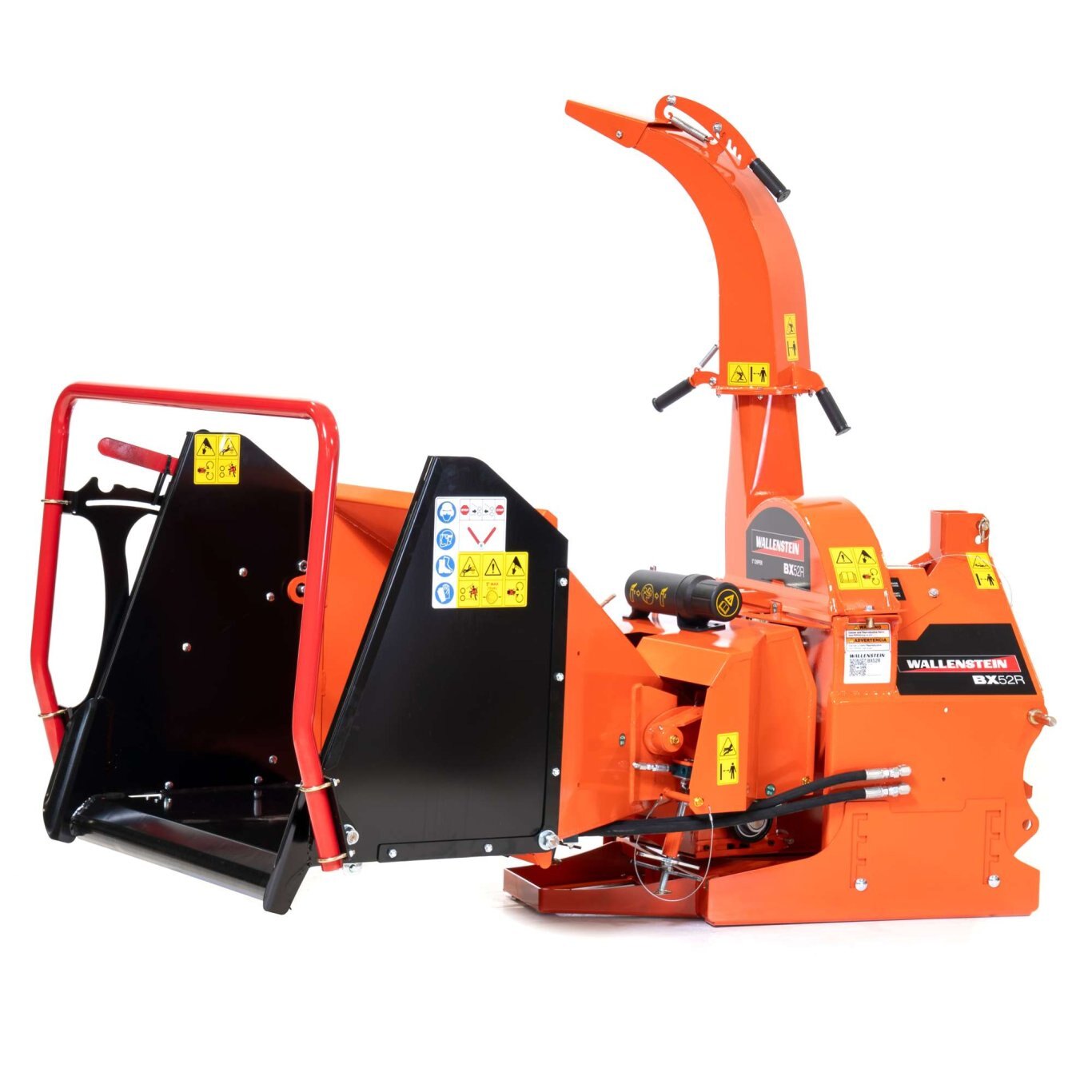

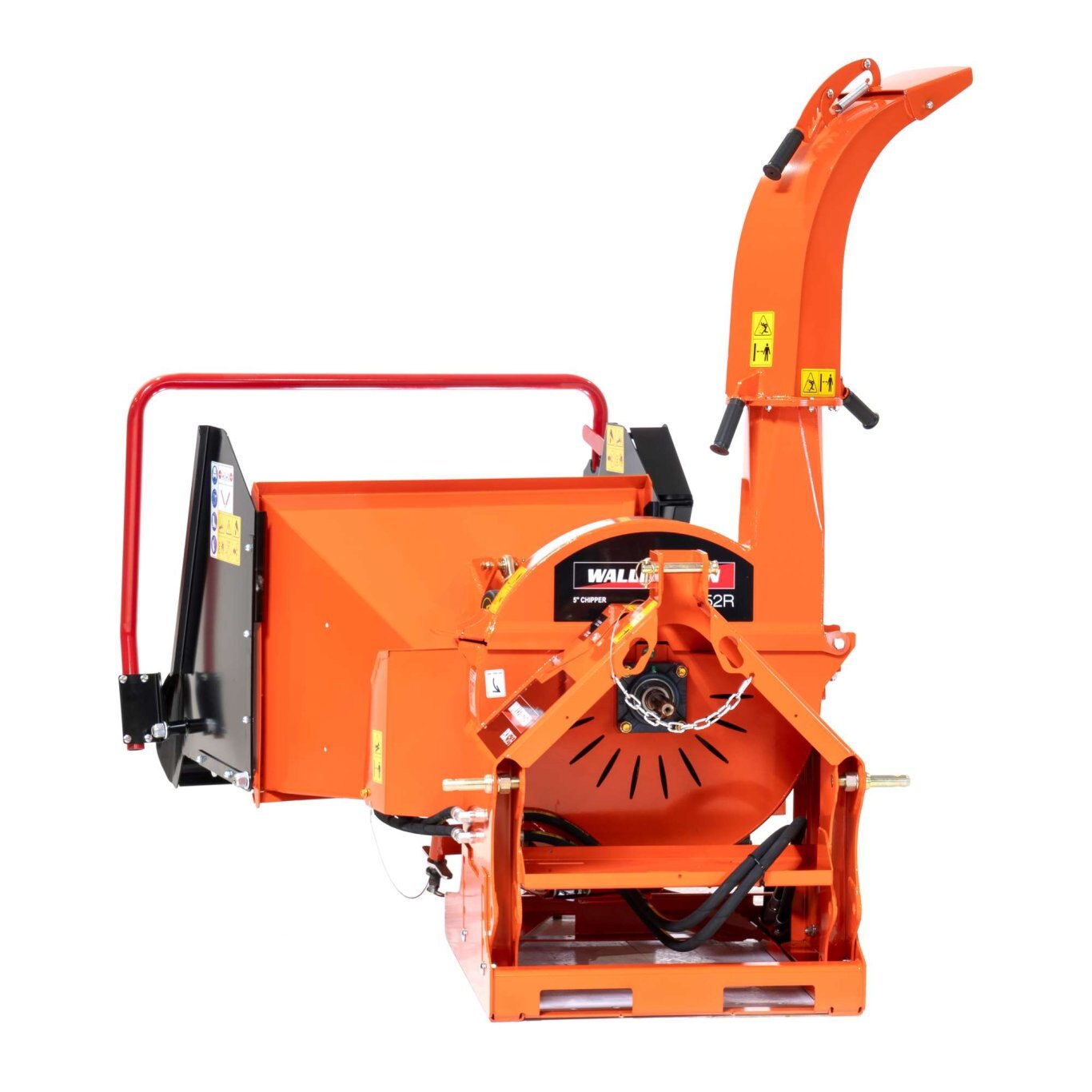

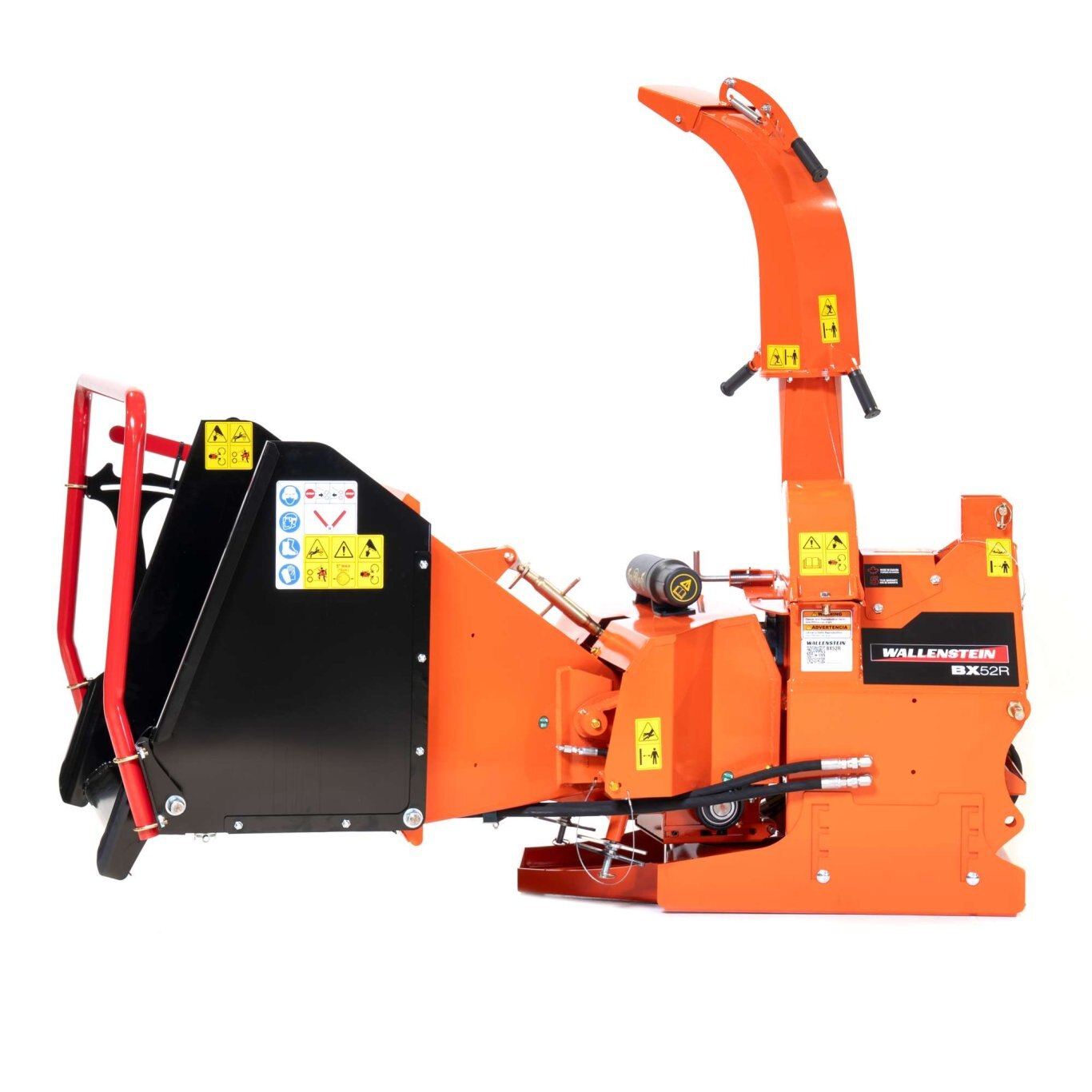

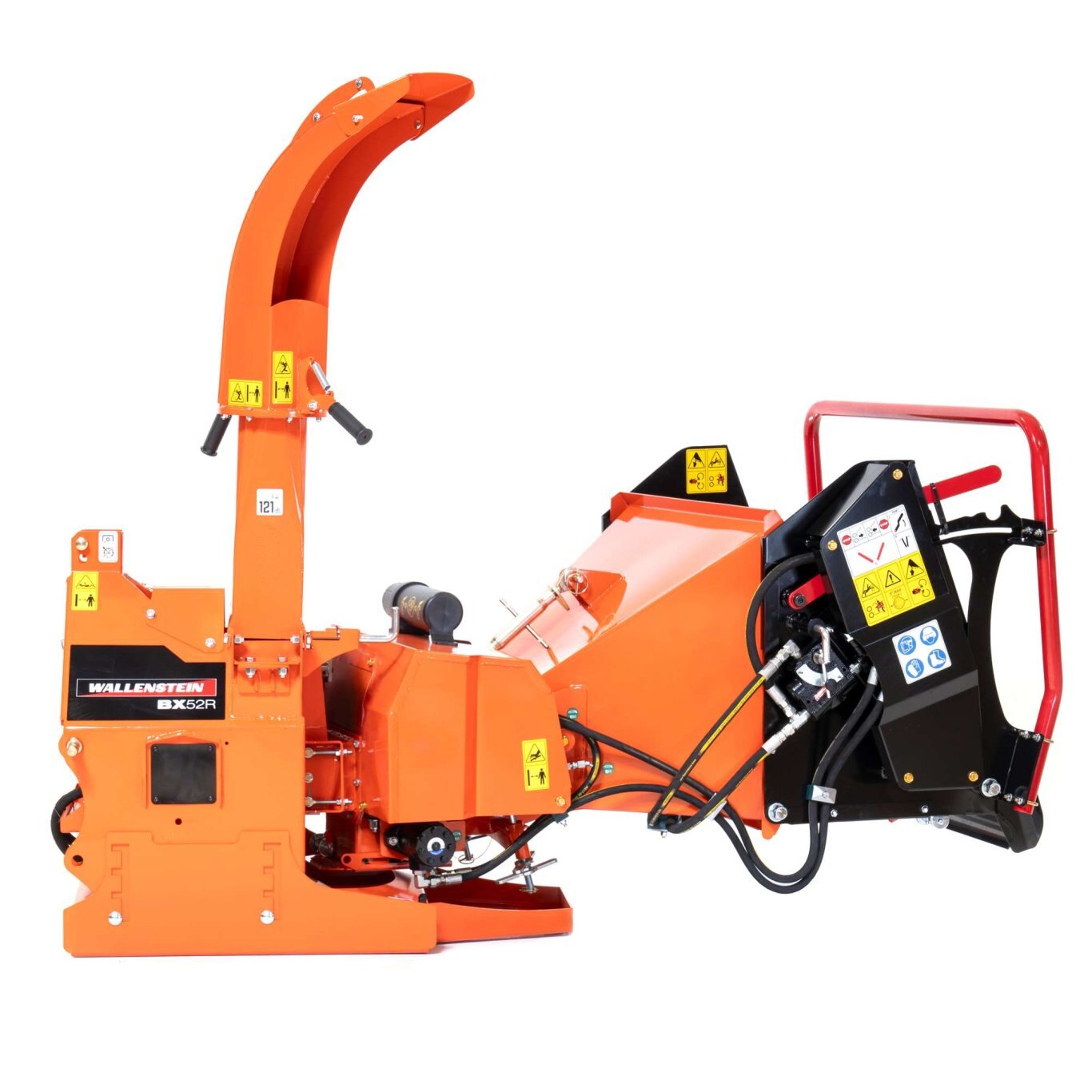

Wallenstein BX52R Dual Hydraulic Roller Feed

Videos
Call for Price
Overview

5" chipping capacity, the BX52R PTO driven wood chipper will handle all your rural and fence line property projects. The two feed rollers are driven by two hydraulic motors dialed in to your desired roller speed. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.

Specifications
Model
BX52R
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Rated RPM
540 - 1000
PTO Height
22" - 27" (55 cm - 69 cm)
Feed System
Dual Hydraulic Roller
Chipper Type
Disc
Drive System
PTO Direct Drive
Rotor Weight
125 lbs (57 kg)
Total Weight
845 lbs (384 kg)
Rotor Diameter
25" (63 cm)
Engine HP Range
40 - 55
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible
Chipping Capacity
5" (13 cm)
Chipper Hopper Opening
35" x 30" (89 cm x 76 cm)
Discharge Chute Height
74" (188 cm)
Dimensions Open (LxWxH)
80" x 67" x 74" (204 cm x 171 cm x 188 cm)
Discharge Chute Rotation
360°
Number Of Chipper Knives
4
Dimensions Folded (LxWxH)
62" x 61" x 74" (158 cm x 155 cm x 188 cm)
features

Wallenstein BX52R Dual Hydraulic Roller Feed Adjustable Discharge Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

Wallenstein BX52R Dual Hydraulic Roller Feed Fold Up Feed Hopper - No Tools

For easy transport. No tools required.

Wallenstein BX52R Dual Hydraulic Roller Feed Adjustable Ski Base

Adjust the chipper height to match the PTO height on your tractor.

Wallenstein BX52R Dual Hydraulic Roller Feed Dual Driven Hydraulic Rollers

Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.

Wallenstein BX52R Dual Hydraulic Roller Feed Oversized Heavy Duty Rotor

Extra large chipper intake backed up by extra large rotor spinning with high momentum.



Wallenstein BX52R Dual Hydraulic Roller Feed Positional Discharge Deflector

The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

Wallenstein BX52R Dual Hydraulic Roller Feed Safety Control Bar

Forward/reverse control with two stop positions.

Wallenstein BX52R Dual Hydraulic Roller Feed Reversible Chipping Blades

Standard reversible rotor knives double the longevity of your knives.

Wallenstein BX52R Dual Hydraulic Roller Feed Shearbolt Protected PTO Drivetrain

Move on from a power spike by simply replacing a single shear bolt.

Wallenstein BX52R Dual Hydraulic Roller Feed Twig Breaker

The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.

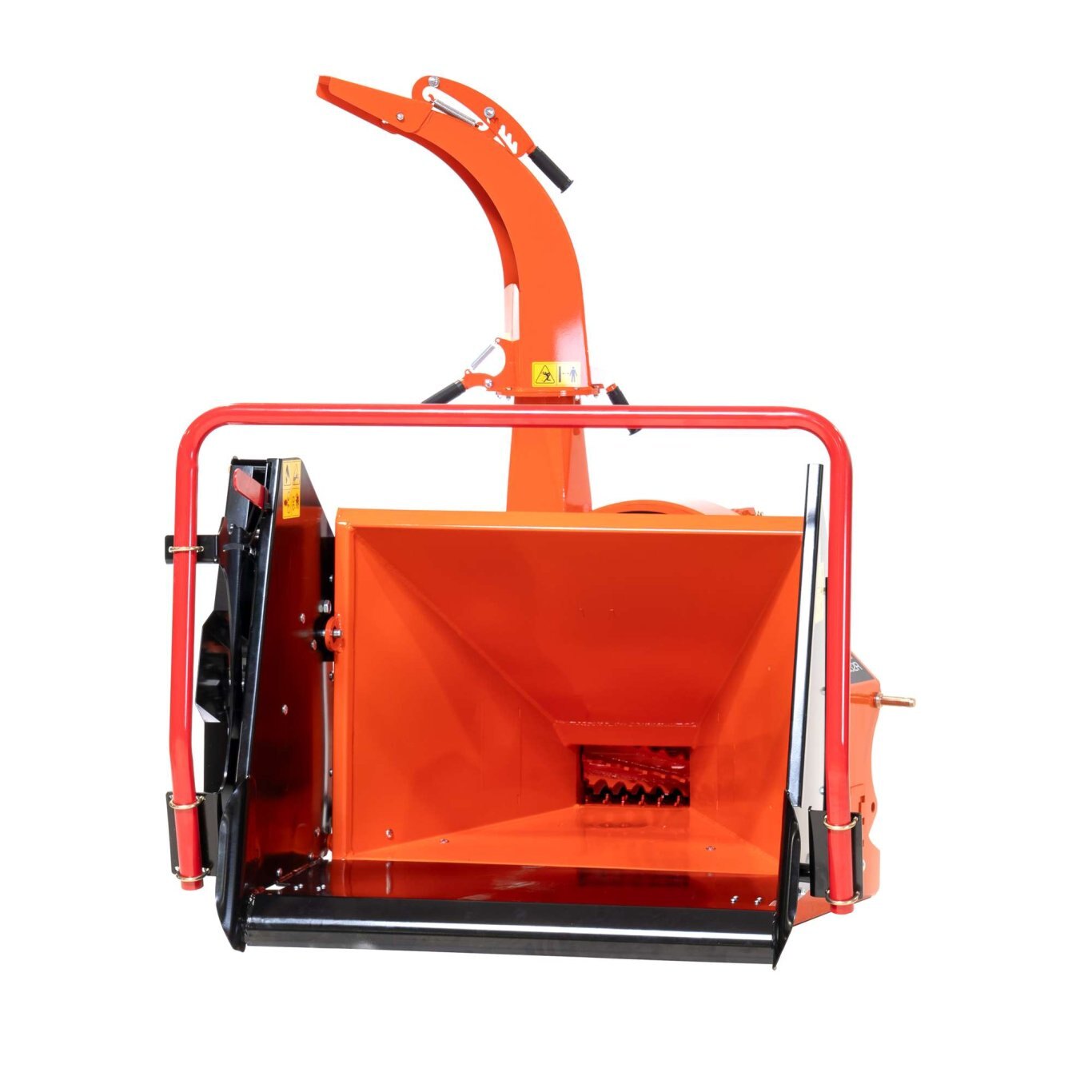

Wallenstein BX52R Dual Hydraulic Roller Feed Wide Infeed Opening

Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.
